36" & 48" Shutter Box Fan
Note:

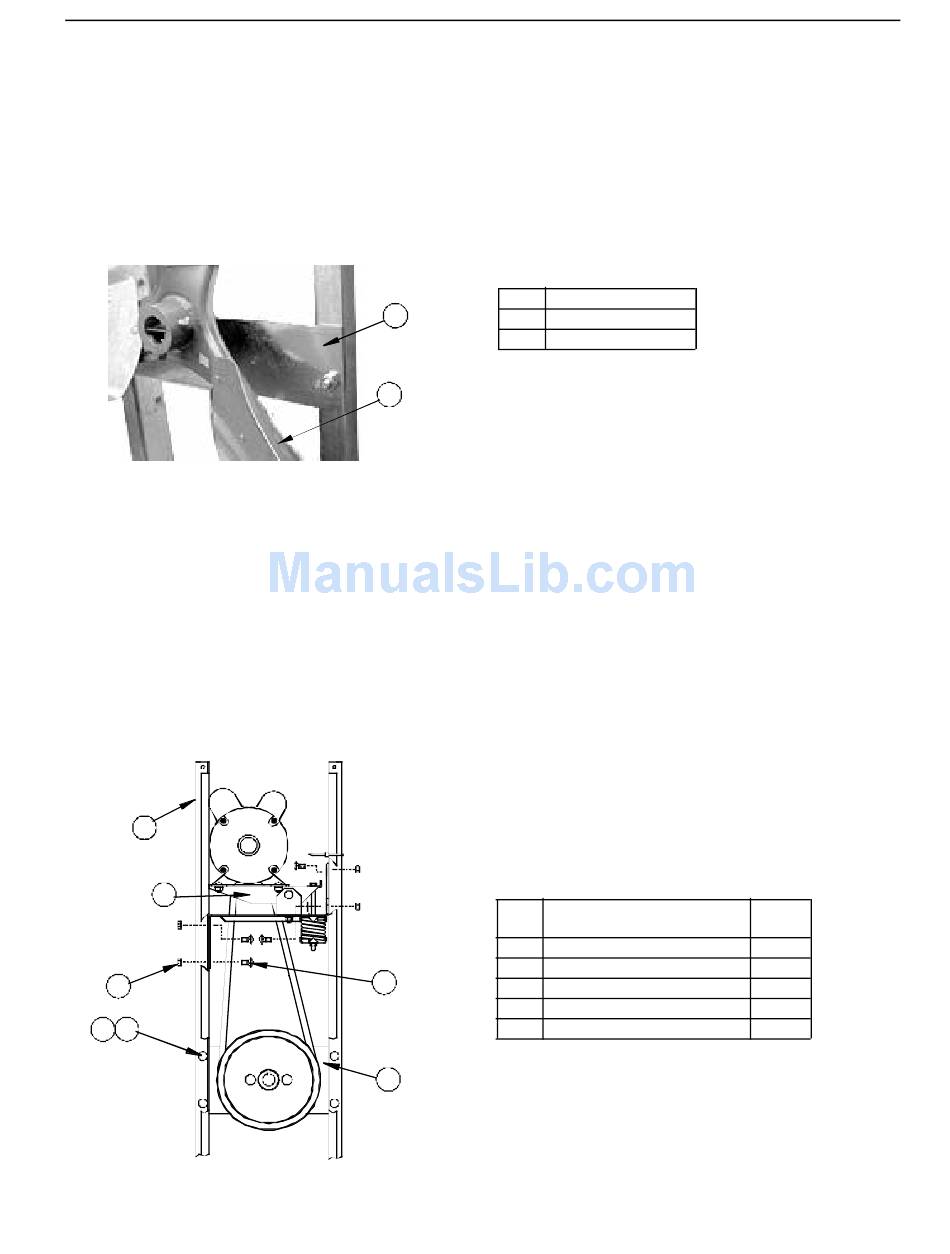

Figure 4. Detail of Shipping Bracket on Factory Assembled Fans (For Belt Drive Units Only)
5
4
1
2 1
Figure 5. Fan Module and Motor Installation
MV1666B

Step 3B - (Belt Drive Assembly Procedures)

Motor Mount Assy. to Posts

The Shutter Fans may be ordered with or without the Motor.
If a Factory Assembled Fan was ordered, the Fan Blade was shipped mounted to a
Shipping Bracket. The Shipping Bracket must be removed and
discarded. (See Figure 4)
2
1
Mv1666-017 01/01

Securing the Module Assembly and Motor

Secure the Module Assembly and Motor between the Motor Support Posts
(Item 5, Figure 5). Hardware is included in the Hardware Package.
If your Fans do not have factory-included motors, set the Motor on the Module
Assembly and secure in place with the 5/16-18 x 5/8'' carriage bolts, and 5/16''-18
Serrated Flange nuts. (See Figure 5)
The Motor is mounted in the rear set of holes.
2
3
Mv1666-004 12/00
Item Description
1 Fan Blade
2 Shipping Bracket
Key Description
1 5/16''-18 Hex Serr. Flange Nut
2 5/16''-18 Carriage Bolt
3 Module Assembly
4 Motor Mount Assembly (BD)
5 Motor Support Post
Fan Assembly Procedure
Part
No.
8490
8282
45581
45698
43688
11
