Chapter 2 Installing the Cisco MGCP IP Phone
Figure 2-1
Power
outlet
(optional power

Connecting to the Network

The Cisco MGCP IP phone has two RJ-45 ports that each support 10/100 Mbps half- or full-duplex
Ethernet connections to external devices—network port (labeled 10/100 SW) and access port (labeled
10/100 PC). You can use either Category 3 or 5 cabling for 10 Mpbs connections, but use Category 5 for
100 Mbps connections. On both the network port and access port, use full-duplex mode to avoid
collisions.
Network Port (10/100 SW)
Use the network port to connect the phone to the network. You must use a straight-through cable on this
port. The phone can also obtain inline power from the Cisco Catalyst switch over this connection. See
the
Access Port (10/100 PC)
Use the access port to connect a network device, such as a computer, to the phone. You must use a
straight-through cable on this port.

Connecting to Power

The Cisco MGCP IP phone can be powered by the following sources:
•
•

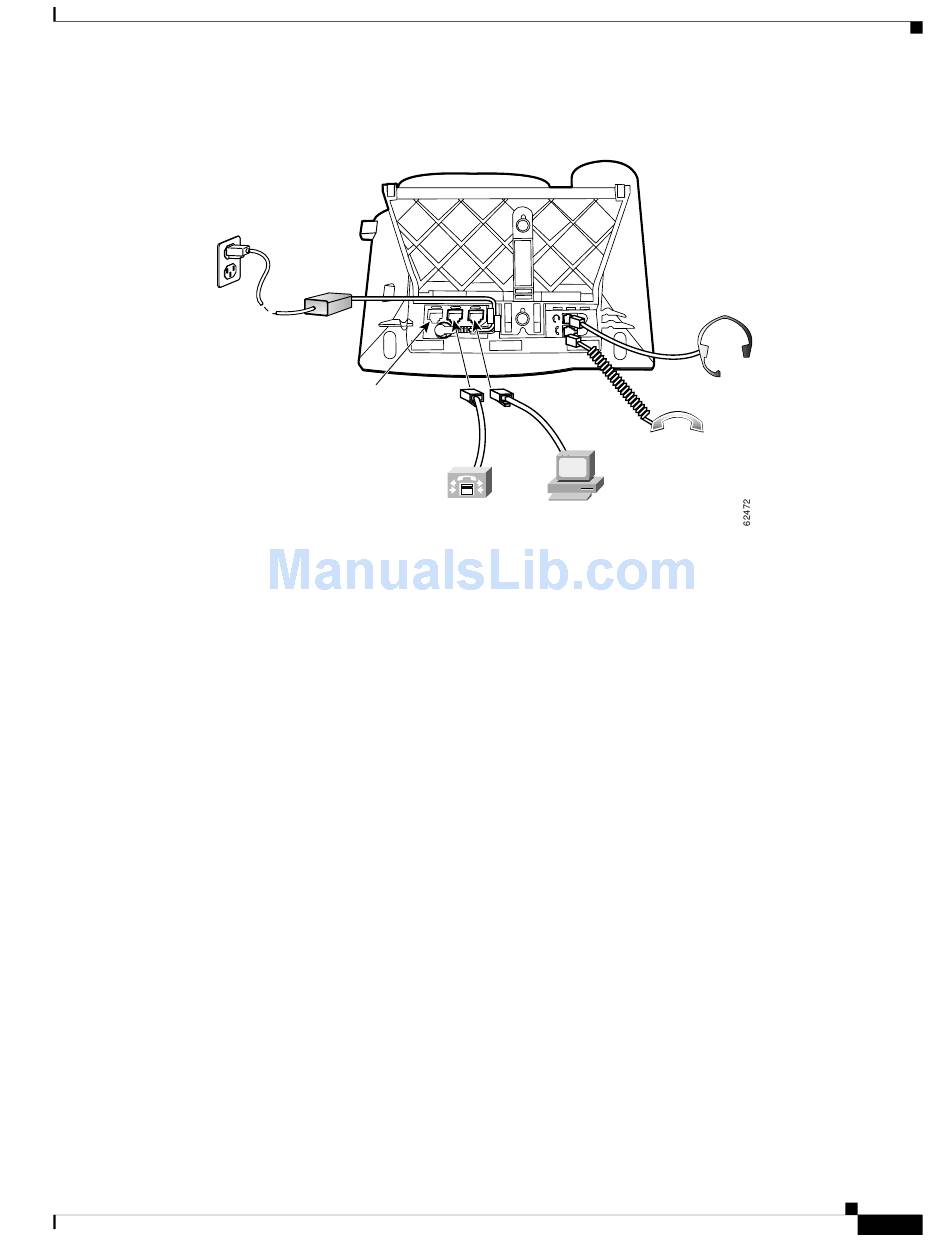

Cisco MGCP IP Phone Cable Connections
Cisco IP phone (rear view)
AC adapter
(-48VDC)
cable)
RS-232 port
"Connecting to Power" section on page 2-3
External power source—Optional Cisco AC adaptor and power cord for connecting to a standard
wall receptacle.
WS-X6348-RJ45V 10/100 switching module—Provides inline power to the Cisco MGCP IP phone
when connected to a Catalyst 3500, 4000, or 6000 family 10/100BASE-TX switching module.
This module sends power on pins 1 & 2 and 3 & 6.
Network port Access port
(10/100 SW) (10/100 PC)
for details.
Cisco MGCP IP Phone Administrator Guide, Release 5.0 and Release 5.1
Connecting the Cisco MGCP IP Phone
Headset
port
Handset
port
2-3
