Removal of Sound Insulation

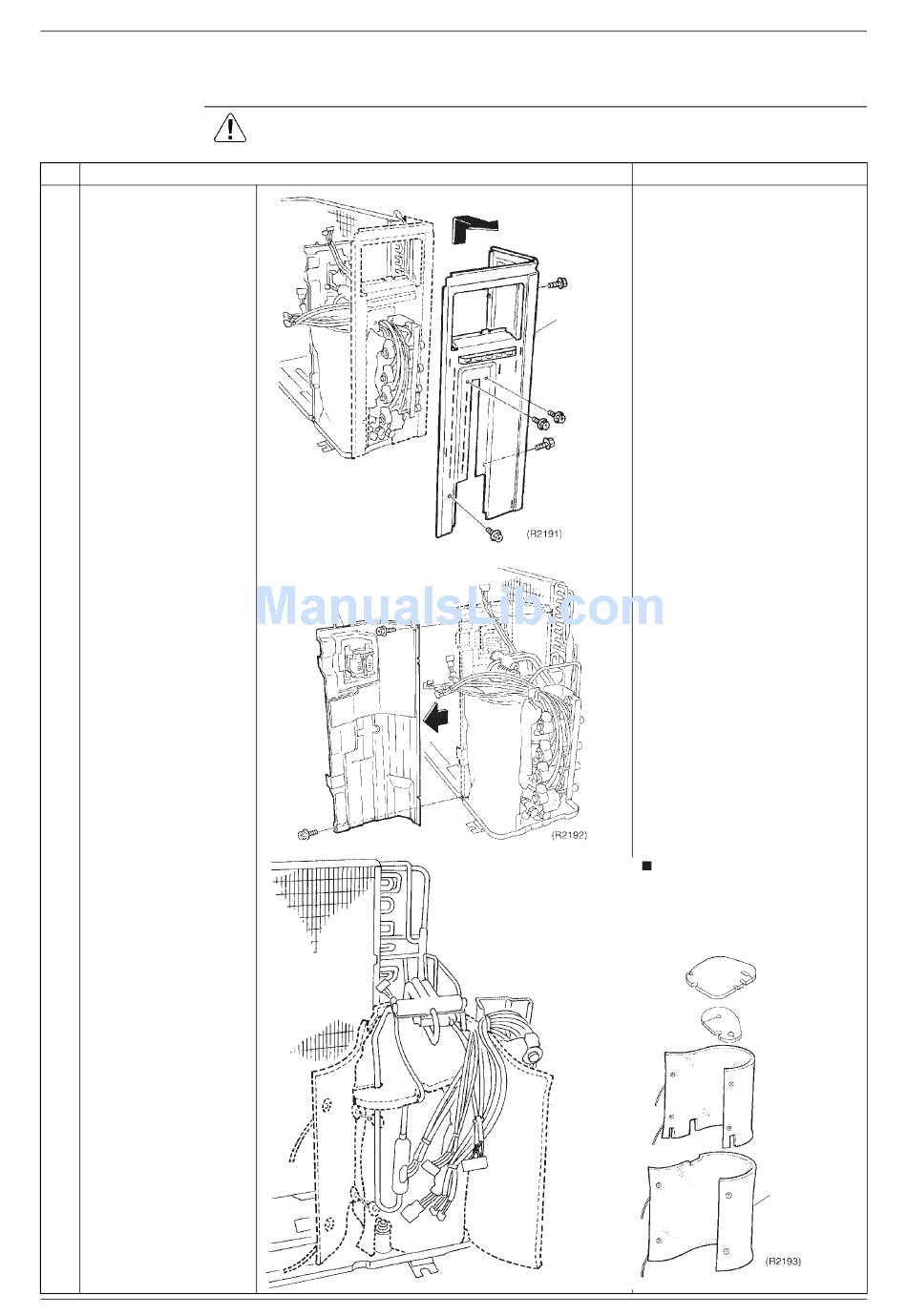

Procedure
Step
1 Remove 5 screws of
the right side panel.
2 Remove 2 screws of
the partition board, and
remove the board.
3 Remove the noise
insulation (top, outer
and inner).
Removal Procedure
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Partition board
Outdoor Unit (50 / 52 / 58 / 68 / 75 Class)
Right side
panel
Carefully remove the noise
insulation, which is easily
torn in the piping section.
Sound insulation (top)
Sound insulation (top inner)
Sound insulation
(inner)
Points
Sound insulation
(outer)
