Top Panel - Thermo Scientific FOCUS GC Instruction Manual

GC Parts Description
Any material exposed to the oven exhaust must be able to withstand repeated
exposure to temperatures of up to 350°C (660 °F).
WARNING! Oven exhaust can cause severe burns. Avoid working behind the instrument when
the oven vents during cooling-down cycles. Do not expose gas tanks or bottles,
chemicals, regulators, electrical cords, or other temperature-sensitive items to oven
exhaust.

Top Panel

Top panel is shown in Figure 1-8.
It comprises:
•
•
•
For details refer to the following Chapters:
Instruction Manual
S/SL or PPKD injector port
Split and Purge lines vent
FID or TCD detector
— Split/Splitless Injector (S/SL)
— Purged Packed Column (PPKD) injector
— Flame Ionization Detector (FID)
— Thermal Conductivity Detector (TCD)
Detector

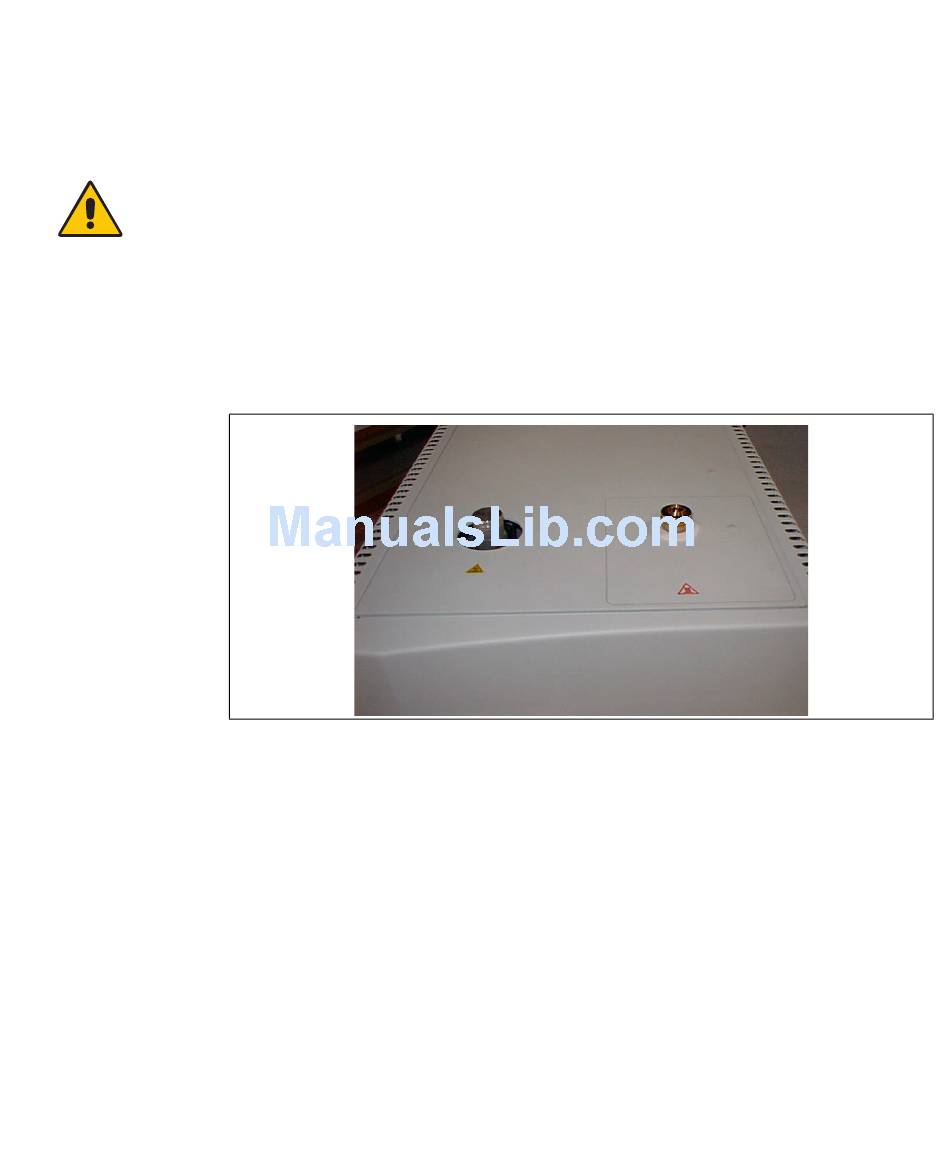

Figure 1-8. Top Panel
FOCUS GC Description
Inlet Port
Chapter 1
39
