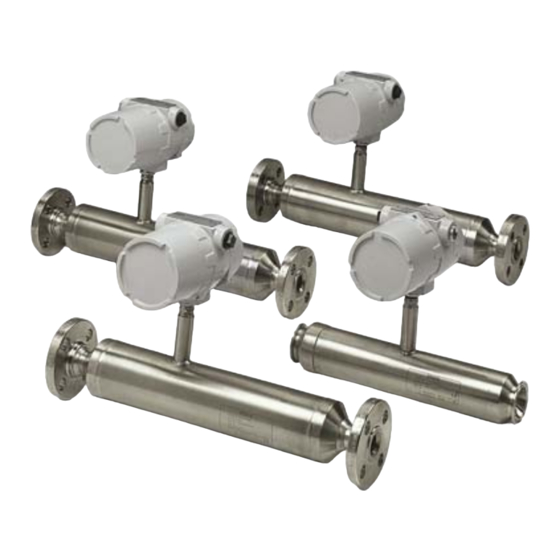

Sarasota FD910, FD950, & FD960

Liquid Density Meters

User Guide

P/N HB-9135

Revision J

Part of Thermo Fisher Scientific

Table of Contents

Need help?

Do you have a question about the Sarasota FD910 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermo Scientific Sarasota FD910

Page 1 Sarasota FD910, FD950, & FD960 Liquid Density Meters User Guide P/N HB-9135 Revision J Part of Thermo Fisher Scientific...
Page 3 Sarasota FD910, FD950, & FD960 Liquid Density Meters User Guide P/N HB-9135 Revision J...
Page 5 © 2017 Thermo Fisher Scientific Inc. All rights reserved. “Hastelloy” is a registered trademark of Haynes International, Inc. “Ni-Span C” is a registered trademark of Special Metals Corporation. “HART” is a registered trademark of the HART Communication Foundation. “Microsoft” and “Windows” are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Page 6 This page intentionally left blank.
Page 7: Revision History
Revised per ECO 6284. 03-2009 Revised per ECO 6804. 06-2011 Revised per ECO 7733. 10-2011 Revised per ECO 7803. Revised ATEX marking per ECO 8915 09-2016 04-2017 Revised Temperature Ranges per ECO 9186 Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 8 This page intentionally left blank.
Page 9: Table Of Contents
Chapter 4 Calibration ......................4-1 Method 1: Online Sampling ............... 4-1 Method 2: Off-Line Static Water Test ..........4-2 Chapter 5 Maintenance & Service ................... 5-1 Contact Information ................5-2 Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 10 Sarasota FD960 ................... A-6 Appendix B Specifications ....................B-1 Drawings ......................C-1 Appendix C Appendix D Health & Safety Clearance Form ..............D-1 Appendix E Toxic & Hazardous Substances Tables ............E-1 viii Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 11: Important Safety Information
Warning Remove all power from the unit before making any connections. Electrocution can result if power is present.  Warning Ensure the power supply is isolated. Take suitable precautions to prevent reinstatement of power while working on the system.  Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 12 This page intentionally left blank.
Page 13: Chapter 1 Product Overview
Chapter 1 Product Overview Introduction The Thermo Scientific Sarasota FD910, FD950, and FD960 liquid density meters (collectively called “density meters” in this guide) share a common design that provides a high accuracy density measurement of single phase liquids and slurries. The different instrument designations relate to the material of construction.
Page 14: Operation
If this is not possible, the pipe arrangement must be designed to allow for online flushing with a cleaning solution. Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 15: Sensing Element
Calibration The period output from the density meter (Period = 1/Frequency) is used to calculate the density of product within the meter using the transducer Temperature & calibration data and the standard Thermo Scientific Sarasota density Pressure equation. Compensation From the calibration sheet, the following constants are generated during...
Page 16 T = measured/fixed line temperature in °C [°F] P = measured/fixed absolute pressure in bar A [psi A] = calibration temperature of densitometer 15°C [60°F] = calibration pressure of densitometer 1.01325 bar A [14.696 psi Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 17: Chapter 2 Installation
Heat tracing: Where the density meter is to be installed in a system that  requires heat tracing, insulation of the density meter may be required. Consult Thermo Fisher. Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 18: Electrical Considerations
When used, it must be earthed to the I.S. bus bar or grounded only at the control room end of the cable. Hazardous Area The Sarasota FD910, FD950, and FD960 density meters have been designed to satisfy the requirements of Clause 1.2.7 of the essential Health Installations and Safety Requirements such that they will not give rise to physical injury when handled properly.
Page 19: Marking
Marking ATEX The Sarasota FD910, FD950, and FD960 density meters are marked for use in hazardous areas in accordance with the ATEX Directive. They are marked as follows. F option...
Page 20: Csa
[Baseefa 02 ATEX 0031X] is marked on the label as shown below: Figure 2–3. The Sarasota FD910, FD950, and FD960 density meters are marked for use in hazardous areas in accordance with CSA. The flameproof option is marked as shown in the label below.
Page 21: Csa
Installation Hazardous Area Installations Flameproof option Vi max = 28 Vdc, li max = 60 mA, Pmax = 2.0 W Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 22 This page intentionally left blank.
Page 23: Chapter 3 Commissioning
1350 Hz (800 and 740 µs) when the instrument is full of air at atmospheric pressure. Stand the density meter on end and fill it with water. The frequency should decrease approximately 400 Hz. Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 24: Resistance Thermometer
Temperature (°C) Tolerance ± Ω ±°C 92.16 0.05 0.13 100.00 0.04 0.10 107.79 0.05 0.13 115.54 0.06 0.17 123.24 0.08 0.20 130.89 0.09 0.23 138.50 0.10 0.27 146.06 0.11 0.30 3-2 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 25: Chapter 4 Calibration
If the density meter is to be corrected based on the laboratory results, a number of samples should be taken and averaged before a correction is made. Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 26: Method 2: Off-Line Static Water Test
Unless the application is particularly severe, a one-year calibration interval should be adequate. Table 4–1. Temperature (°C) Density (kg/m 10.0 999.7 15.0 999.1 20.0 998.2 25.0 997.0 4-2 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 27: Chapter 5 Maintenance & Service
Caution If using the manufacturer’s cleaning brush, pass the brush through the sensor tubes carefully and as straight through as possible to avoid damaging (scratching) the sensor tubes.  “Clean in place” procedures may be employed if required. Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 28: Contact Information
+44 (0) 1606 548711 fax +86 (10) 8419-3580 fax A-101, 1CC Trade Tower Senapati Bapat Road Pune 411 016 Maharashtra, INDIA +91 (20) 6626 7000 +91 (20) 6626 7001 fax www.thermofisherscientific.com 5-2 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 29: Appendix A Ordering Information
Appendix A Ordering Information Sarasota FD910 Table A–1. Sarasota FD910 industrial liquid density meter Code Model FD910 Liquid density meter: Suitable for any single phase liquid process, including liquefied gases Class 150 and 300 flange ratings: All wetted parts are 316L SS...
Page 30 Non-destructive testing: NDT of pressure containing welds by dye penetrant; (50% all external welds; 100% all internal and external welds) Typical model number: FD910-F-A0-S-M Meets design pressure for carbon steel systems. Table A–2. Sarasota FD910 spares Description 21/107 Cleaning brush ZR20-0117/B Box seal ring A-2 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 31 1x KFD2-SD-Ex1.48 for density meter power; should be used when no earth ground is available or in some countries or locations when the device is used in Zone 0 hazardous area Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 32: Sarasota Fd950
Traceable Calibration Certificate: Provides a record of all the instruments used during calibration and their certificates Non-destructive testing: NDT of pressure containing welds by dye penetrant; (50% all external welds; 100% all internal and external welds) Typical model number: FD950-F-1-G-A2-S-M A-4 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 33 1x KFD2-SD-Ex1.48 for density meter power; should be used when no earth ground is available or in some countries or locations when the device is used in Zone 0 hazardous area Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 34: Sarasota Fd960
Non-destructive testing: NDT of pressure containing welds by dye penetrant; (50% all external welds; 100% all internal and external welds) Typical model number: FD960-F-1-G-A0-S-M Meets design pressure for carbon steel systems. A-6 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 35 1 x MTL5525 for density meter power; should be used when no earth ground is available or in some countries or locations when the device is used in Zone 0 hazardous area Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 36 This page intentionally left blank.
Page 37: Appendix B Specifications
Appendix B Specifications Results may vary under different operating conditions. Unless otherwise noted, specifications apply to the Sarasota FD910, FD950, and FD960. Table B–1. Functional specifications Transducer Available to ±0.1 kg/m (±0.0062 lb./ft. calibration accuracy Repeatability 0.02 kg/m (0.0012 lb./ft.
Page 38 Maximum operating As flange rating pressure Table B–2. Material specifications Sensor Sarasota FD910 (Class 150, 300): Stainless steel (316L/1.4404) Sarasota FD910 (Class 600): Hastelloy C276 Sarasota FD950: Hastelloy C276 Sarasota FD960: Ni-Span C Other wetted parts Sarasota FD910: Stainless steel (316L/1.4404) Sarasota FD950: Hastelloy C276 Sarasota FD960: Stainless steel (316L/1.4404)
Page 39 Sarasota FD910 (Class 150, 300, or 600): Stainless steel (raised face) (316L/1.4404) Sarasota FD910 (Class 150, 300, or 600): Duplex (A 182 Gr.F51) Sarasota FD950 (Class 150, 300, or 600): Hastelloy C276 Sarasota FD960 (Class 150, 300, or 600): Stainless steel (316L/1.4404)
Page 40 This page intentionally left blank.
Page 41: Appendix C Drawings
Installation drawing, horizontal methods (1 sheet) C–2 Installation drawing, vertical methods (1 sheet) C–3 AD_5037 Dimensional drawing (1 sheet) C–4 AD_6502 Wiring diagrams, barrier & non-hazardous/safe area C–5 options for Sarasota density meters (9 sheets) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 42 Drawings Figure C–1. Installation drawing, horizontal methods (sheet 1 of 1) C-2 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 43 Drawings Figure C–2. Installation drawing, vertical methods (sheet 1 of 1) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 44 Drawings Figure C–3. AD_5037: Dimensional drawing (sheet 1 of 1) C-4 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 45 Drawings Figure C–4. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 1 of 9) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 46 Drawings Figure C–5. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 2 of 9) C-6 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 47 Drawings Figure C–6. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 3 of 9) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 48 Drawings Figure C–7. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 4 of 9) C-8 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 49 Drawings Figure C–8. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 5 of 9) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 50 Drawings Figure C–9. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 6 of 9) C-10 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 51 Drawings Figure C–10. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 7 of 9) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide C-11...
Page 52 Drawings Figure C–11. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 8 of 9) C-12 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 53 Drawings Figure C–12. AD_6502: Wiring diagrams, barrier & non-hazardous/safe area options for Sarasota density meters (sheet 9 of 9) Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide C-13...
Page 54 This page intentionally left blank.
Page 55: Appendix D Health & Safety Clearance Form
Health & Safety Clearance Form The Health & Safety (COSHH) Clearance form can be found on the following page. Failure to return this form may result in the meter being returned. Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 56 12320 Cardinal Meadow Dr. Suite 150 Sugar Land, TX 77478 USA Tel: 800-437-7979 HEALTH AND SAFETY (COSHH) CLEARANCE FORM Failure to comply with this procedure will result in equipment service delays. This form must be completed for all equipment returned to Thermo Fisher Scientific (Thermo Fisher) – Franklin, MA Depot Repair.
Page 57: Appendix E Toxic & Hazardous Substances Tables
Appendix E Toxic & Hazardous Substances Tables The English and Chinese versions of the Toxic & Hazardous Substances tables for the density meters can be found on the following pages. Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 58 Toxic & Hazardous Substances Tables E-2 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 59 Toxic & Hazardous Substances Tables Thermo Fisher Scientific Sarasota FD910, FD950, & FD960 User Guide...
Page 60 Toxic & Hazardous Substances Tables E-4 Sarasota FD910, FD950, & FD960 User Guide Thermo Fisher Scientific...
Page 61 Thermo Fisher Scientific 81 Wyman Street P.O. Box 9046 Waltham, Massachusetts 02454-9046 United States www.thermofisher.com...
