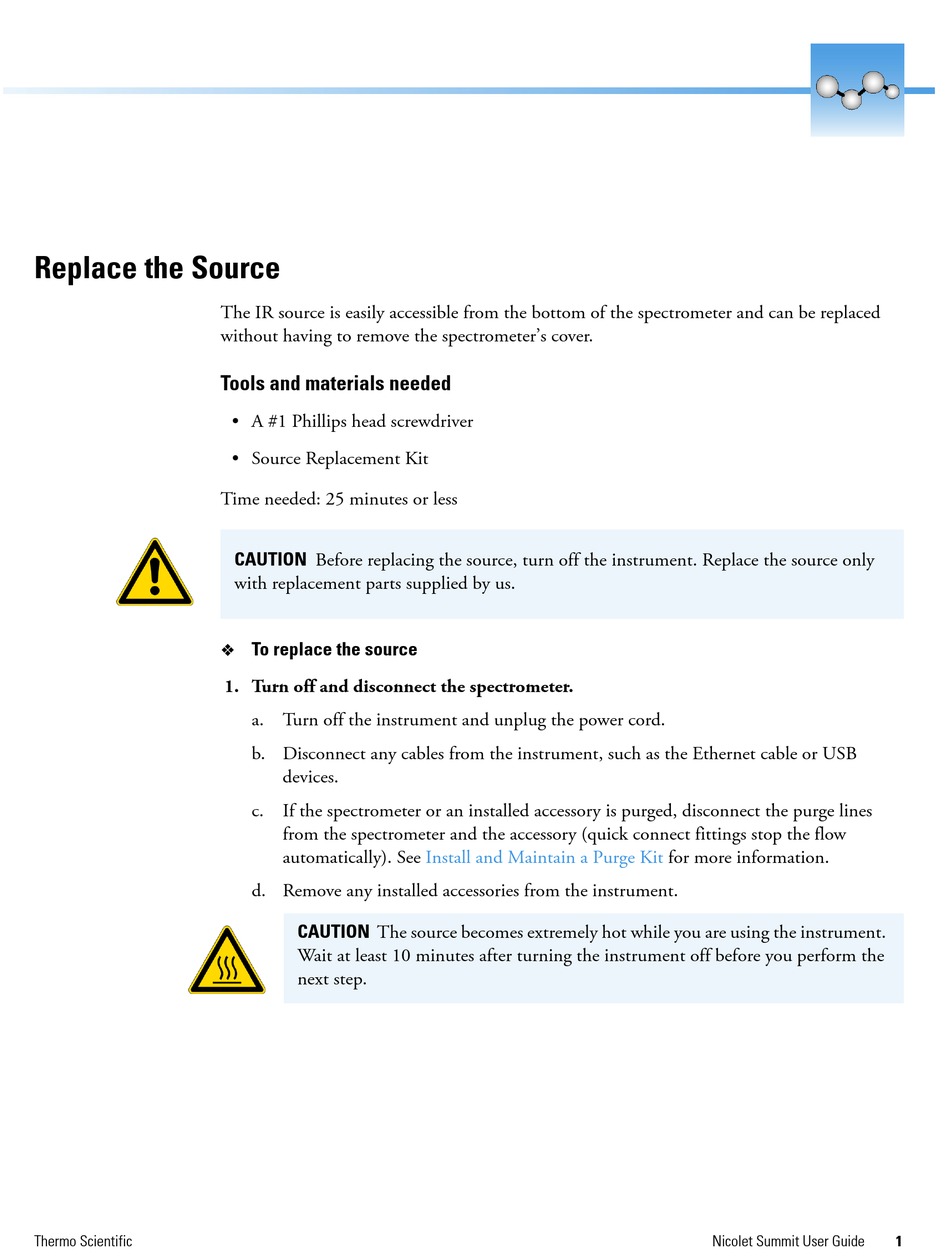

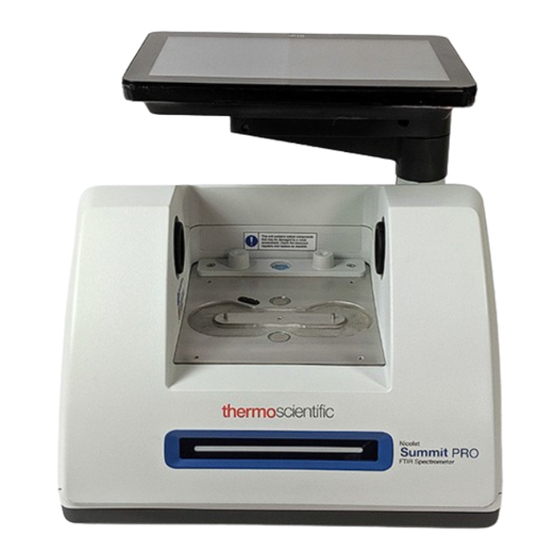

Thermo Scientific Nicolet Summit PRO User Manual

Replace the Source

Thermo Scientific

The IR source is easily accessible from the bottom of the spectrometer and can be replaced

without having to remove the spectrometer's cover.

• A #1 Phillips head screwdriver

• Source Replacement Kit

Time needed: 25 minutes or less

CAUTION Before replacing the source, turn off the instrument. Replace the source only

with replacement parts supplied by us.



1. Turn off and disconnect the spectrometer.

a. Turn off the instrument and unplug the power cord.

b. Disconnect any cables from the instrument, such as the Ethernet cable or USB

devices.

c. If the spectrometer or an installed accessory is purged, disconnect the purge lines

from the spectrometer and the accessory (quick connect fittings stop the flow

automatically). See

d. Remove any installed accessories from the instrument.

CAUTION The source becomes extremely hot while you are using the instrument.

Wait at least 10 minutes after turning the instrument off before you perform the

next step.

Install and Maintain a Purge Kit

for more information.
