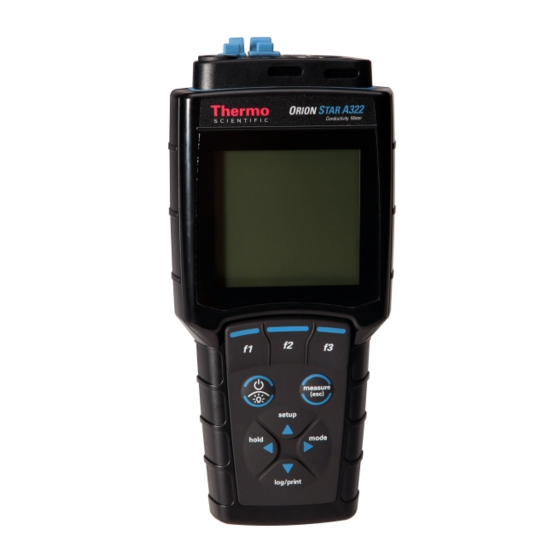

Thermo Scientific Orion Star A212 Benchtop and
Star A222 and Star A322 Portable Conductivity Meters
Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion Star A212 Benchtop and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermo Scientific Orion Star A212 Benchtop

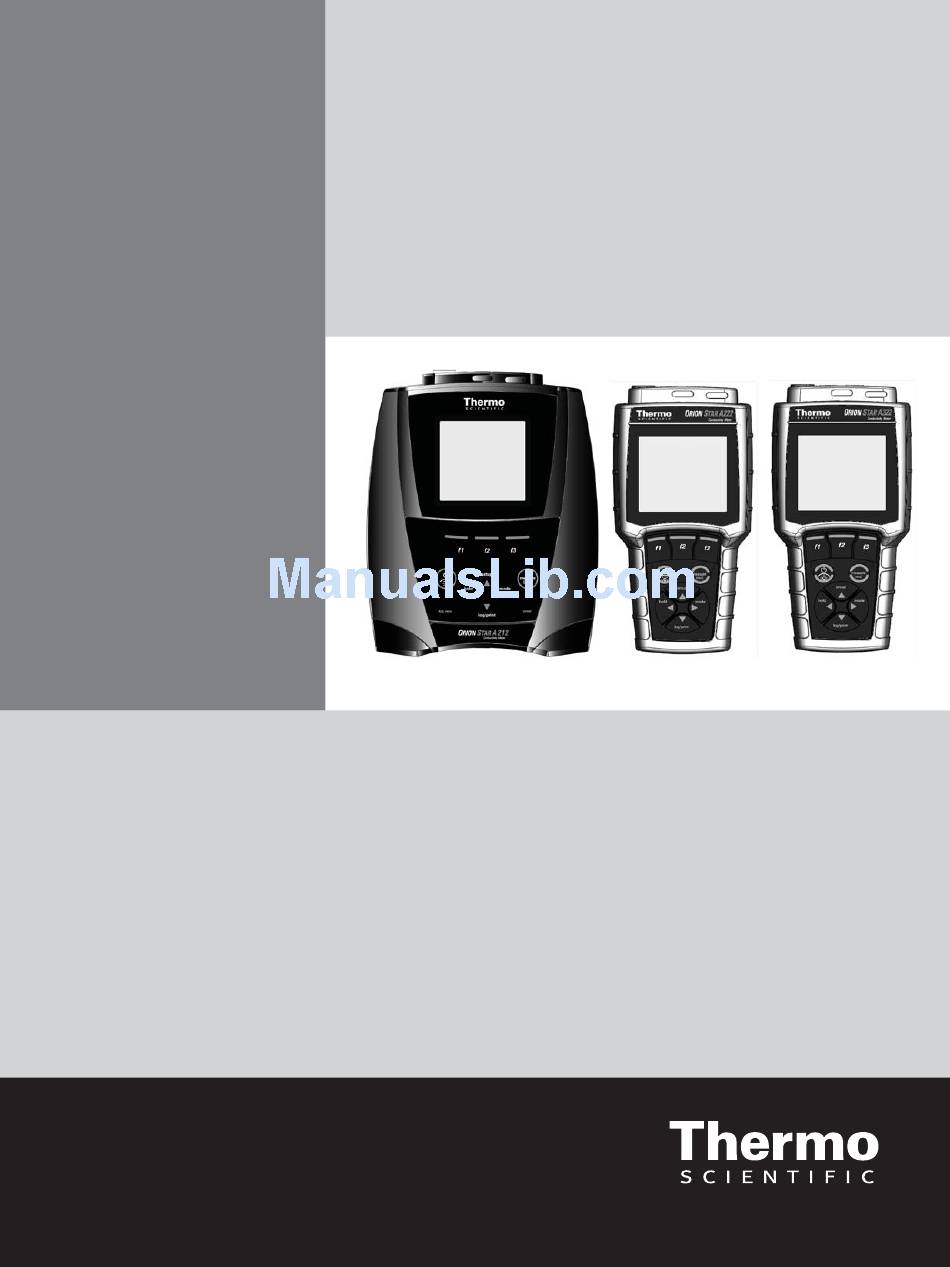

  • Page 1 Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meters Reference Guide...
  • Page 2 Ross and the COIL trade dress are trademarks of Thermo Fisher Scientific, Inc. and its subsidiaries. AQUAfast, AQUASensors, BOD AutoEZ, ionplus, KNIpHE, LogR, No Cal, ORION, perpHect, PerpHecT, pHISA, pHuture, Pure Water, Sage, ROSS, ROSS Ultra, Sure-Flow, Titrator PLUS, and TURBO2 are registered trademarks of Thermo Fisher Scientific, Inc.
  • Page 3: Table Of Contents

    Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meters Chapter 1 Introduction ............1 Chapter 2 Meter Overview.
  • Page 4 Chapter 8 Data Storage and Retrieval ..........23 Data Storage Settings .
  • Page 5 This page intentionally left blank.
  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Thank you for your purchase of the Orion Star A212 benchtop conductivity meter, Star A222 portable conductivity meter or Star A322 portable conductivity meter. These meters are capable of measuring conductivity, TDS, salinity, resistivity and temperature in °C or °F.
  • Page 7 The Orion Star A322 portable conductivity meters feature calibration points cause permanent damage to the meter. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 8: Chapter 2 Meter Overview

    Select four AA alkaline batteries. Remove the battery compartment cover. battery cover. Orion Star A Series Benchtop Orion Star A Series Portable battery cover Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 9: Electrodes And Other Connections

    COND POWER RS232 Star A222 and Star A322 Meter Back Panel Orion Star A212 benchtop meters only. Orion Star A212 benchtop meters only. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 10: Connecting Electrode Arm To The Benchtop Meter

    Orion Star A series benchtop meters include an electrode arm that can be attached to either side of the meter. 2. Choose the side of the meter to attach the arm. should be on the same side as the meter display. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 11: Meter Display

    Orion Star A212 and Star A322 meters only. Orion Star A212 and Star A322 meters only. is pressed. is pressed. sample ID is pressed. channel Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 12: Meter Keypad

    Orion Star A212 benchtop meters only. Press to start or stop the stirrer probe. Orion Star A212 benchtop meters only. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 13: Meter Maintenance

    Orion Star A212 benchtop meters only. Meter Maintenance meter using the proper cleaning procedure for the type of spill. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 14: Chapter 3 Meter Setup

    (Star A212 and Star A322 meters only) (Star A212 and Star A322 meters only) (Star A212 and Star A322 meters only) Temperature Temperature Calibration Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 15: Cond Channel Menu

    A322 meters only) (Star A212 and Star A322 meters only) Temp. Coeff. Default value or last entered value entry screen to set the value. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 16 Menu used to select the temperature units. Temperature Calibration Menu used to select the source of the temperature measurement. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 17: Settings Menu

    Menu used to set the language for all displayed meter prompts. Menu used to turn on or off the beep sound made every time a meter key is pressed. Alarm Beep Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 18: View Log Menu

    View Log Menu Storage and Retrieval chapter for detailed information on using this setup menu. Diagnostics Menu detailed information on using this setup menu. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 19 This page intentionally left blank. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 20: Chapter 4 Conductivity Calibration

    Press f1 (meas) to proceed to the measurement mode or press f2 (print) to proceed to the Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 21: Calibration Editing

    Press f2 (done) a. Press f2 (accept) to accept the cell constant value and save and end the calibration. b. Press f3 (edit) Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 22: Chapter 5 Temperature Calibration

    Offset line. Press f2 (accept) f1 (meas) proceed to the measurement mode or press f2 (print) to proceed to the measurement mode Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 23 This page intentionally left blank. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 24: Chapter 6 Measurement

    Star A212 and Star A322 meters only – ready. Star A212 meters only to turn off the stirrer probe. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 25 This page intentionally left blank. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 26: Chapter 7 Methods

    Chapter 7 Methods The Orion Star A212 and Star A322 series meters can save up to ten methods per channel and the corresponding calibration data for each method, for the fast and easy recollection of different meter setup parameters. The default Saving the Current Meter Settings as a New Method 2.
  • Page 27: Editing, Copying Or Deleting An Existing Method

    (accept) Delete is selected – press f2 (yes) to delete the method or press f3 (no) to keep the method. The Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 28: Chapter 8 Data Storage And Retrieval

    (edit) to access the numeric entry screen; use the numeric entry screen to change the values and press f1 (back) to return to the measurement mode. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 29: Computer And Printer Export Settings

    Data Log and press f3 (select). to highlight Off or On and press f3 (select). f1 (back) and then press to return to the measurement mode. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 30: Viewing The Calibration Log And Data Log

    (select). Press f2 (print) to print the data point or press f1 (back) to return to the list of data points. to return to the measurement mode. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 31: Exporting The Data Log To A Computer Or Printer

    (enter) to select the highlighted vii. Press f2 (done) viii. Press f2 (accept) and then press f2 (yes) Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 32: Clearing The Data Log

    Log Clear and press f2 (accept). f2 (yes) 111111 and pressing f2 (accept) f1 (back) and then press to return to the measurement mode. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 33: Interfacing A Printer

    A complimentary copy of general data logging software is available for use with the Orion Star A200 and Star A300 series meters. This can be found on the CD included with the meter or at www.thermoscientific.com/water. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 34: Chapter 9 Customer Services

    Make sure that the electrode is connected to the appropriate meter input and the electrode Measurement Out of Range parameters are entered correctly in the setup menu. Clean the electrode according to the electrode Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 35: Meter Self Test And Checkout

    E2Prom Test Passed, press f2 (next). any order. When the meter displays Keypad Test Passed, press f2 (next). Self Test Passed. Press to return to the measurement mode. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 36: Meter Checkout (Conductivity)

    Calibrate the cell constant of the conductivity cell according to the meter and cell 1. Remove the conductivity cell and all other electrodes from the meter. can be damaged. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 37: Electrode Stability Test

    Diagnostics and press f3 (select). 3. Press to highlight User Reset and press f2 (accept). f2 (yes) to reset the meter. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 38: About Meter

    About Meter and press f2 (accept). f1 (back) to return to the diagnostics menu or press to return to the measurement mode. Assistance Warranty and Registration Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 39: Ordering Information

    Description Cat. No. STARA2110 STARA2115 STARA2120 STARA2125 STARA2126 STARA2130 STARA2135 STARA2136 STARA2140 STARA2145 STARA2146 Storage Solution STARA2147 STARA2148 STARA2150 STARA2155 Standard STARA2160 STARA2165 Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 40 STARA3210 STARA3215 STARA3220 Star A322 Conductivity Portable Meter STARA3225 STARA3230 STARA3235 STARA3240 STARA3245 STARA3250 STARA3255 Star A Meter Armor STARA3260 STARA3265 STARA3290 STARA3295 Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 41 Stainless Steel ATC Probe 927007MD 9179BNMD 9180BNMD 9512HPBNWP 9609BNWP 8611BNWP 013005MD 013010MD 013020MD 013025MD 013016MD 083005MD 083010MD 083025MD 086030MD 087010MD 087020MD 087030MD 096019 Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 42: Chapter 10 Meter Compliance

    Notice of Compliance WEEE Compliance the recyclers in your country, and information on Thermo Scientific Orion products that may assist the detection of Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 43: Declaration Of Conformity

    Measurement, control and laboratory Conforms with the following directives and standards: EN61326-1:2006 Electromagnetic Compatibility (EMC Directive) EN61010-1:2001 Safety Standards UL61010-1:2004 CAN/CSA C22.2 No. 61010-1-04 Singapore Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 44: Meter Specifications

    Size Regulatory and Safety Warranty 3 year meter replacement Universal Power Adapter Operating Conditions Operating Ambient Temperature Storage Temperature Pollution Degree 2 Overvoltage Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 45 Temperature Compensation Compatible Cell Constants Resistivity Range Resolution Relative Accuracy Salinity Type Range Resolution Relative Accuracy Range Resolution Relative Accuracy TDS Factor Range Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 46 Temperature Measurement Range Resolution Relative Accuracy Offset Calibration 1 point Data Logging Inputs Temperature Probe or ATC Probe Output Power AC Adapter Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 47 This page intentionally left blank. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 48: Appendix 1 Advanced Meter Features

    TDS factor to determine the TDS value of the sample. Conductivity Automatic Calibration cell is entered in the setup menu. Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 49 Table of Conductivity Standard Values vs. Temperature 011005 011006 011007 Cat. No. 01100910 011008 01100510 01100610 01100710 Conductivity Conductivity Conductivity Conductivity Conductivity Standard Standard Standard Standard Standard 12.12 1331 Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 50 Table of Conductivity Standard Values vs. Temperature (cont.) 011005 011006 011007 Cat. No. 01100910 011008 01100510 01100610 01100710 Thermo Scientific Orion Star A212 Benchtop and Star A222 and Star A322 Portable Conductivity Meter Reference Guide...
  • Page 51 This page intentionally left blank.
  • Page 52 Water Analysis Instruments North America 9 0 0 1 : 2 0 0 8 166 Cummings Center Beverly, MA 01915 USA Toll Free: 1-800-225-1480 Tel: 1-978-232-6000 info.water@thermo.com Netherlands Tel: (31) 033-2463887 info.water.uk@thermo.com India Tel: (91) 22-4157-8800 wai.asia@thermofisher.com Japan Tel: (81) 045-453-9175 wai.asia@thermofisher.com China Tel: (86) 21-68654588...

This manual is also suitable for:

Orion star a322Orion star a222
