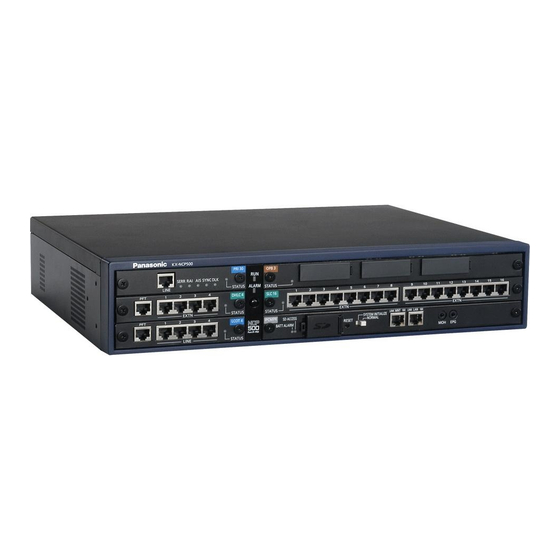

IP Networking Guide
Pure IP-PBX
KX-NCP500/KX-NCP1000
Model No.
KX-TDE100/KX-TDE200/KX-TDE600
Thank you for purchasing a Panasonic Pure IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-NCP500/KX-NCP1000: PBMPR Software File Version 4.1000 or later
KX-TDE100/KX-TDE200: PMMPR Software File Version 4.1000 or later
KX-TDE600: PGMPR Software File Version 4.1000 or later
Document Version: 2010-08

Advertisement

   Summary of Contents for Panasonic KX-NCP500

  • Page 1

    Thank you for purchasing a Panasonic Pure IP-PBX. Please read this manual carefully before using this product and save this manual for future use. KX-NCP500/KX-NCP1000: PBMPR Software File Version 4.1000 or later KX-TDE100/KX-TDE200: PMMPR Software File Version 4.1000 or later KX-TDE600: PGMPR Software File Version 4.1000 or later...

  • Page 2: Table Of Contents

    Registering IP Telephones .....................89 4.6.2 De-registering IP Telephones ..................100 5 Appendix ....................103 Revision History ......................104 5.1.1 KX-NCP500/KX-NCP1000 PBMPR Software File Version 1.01xx .......104 5.1.2 KX-NCP500/KX-NCP1000 PBMPR Software File Version 2.02xx .......105 5.1.3 KX-TDE100/KX-TDE200 PMMPR Software File Version 3.0xxx .........106 5.1.4 KX-TDE600 PGMPR Software File Version 3.0xxx .............107...

  • Page 3: Introduction

    Section 1 Introduction Document Version 2010-08 IP Networking Guide...

  • Page 4: Overview

    Note • Panasonic IP Cell Station (IP-CS) units are also supported by the Pure IP-PBX for communication on a VoIP network. For details, refer to the Quick Installation Guide for the IP-CS. • In this manual, the illustrations of the PBX are based on the KX-NCP500.

  • Page 5

    1.1.1 Establishing a VoIP Network with the Pure IP-PBX (ii) VoIP Network with Another PBX Router Headquarters Headquarters Switching Hub IP Network Router Switching Hub Branch Branch Document Version 2010-08 IP Networking Guide...

  • Page 6: Network Parameters

    1.1.1 Establishing a VoIP Network with the Pure IP-PBX Network Parameters You will need to have the following IP addressing and QoS information to establish VoIP communication on your network. This information is typically supplied by a network administrator. Consult your network administrator for specific values. Parameter Description Identifies the location of IP telephones on the network.

  • Page 7: Network Management

    1.2.1 DHCP (Dynamic Host Configuration Protocol) Server 1.2 Network Management 1.2.1 DHCP (Dynamic Host Configuration Protocol) Server To establish communication over a VoIP network, IP addresses must be assigned to IP telephones and the PBX to identify their locations on the network. While these addresses can be assigned manually, it is also possible to use a DHCP server to automatically assign IP address information.

  • Page 8: Vlan (virtual Lan)

    1.2.2 VLAN (Virtual LAN) 1.2.2 VLAN (Virtual LAN) VLANs are logical segments within a corporate LAN. By assigning VLAN settings to IP telephones, it is possible to separate the packets transmitted by an IP telephone according to the type of data and specify which VLAN each data type will be sent over.

  • Page 9

    If you are using an IP telephone with a primary port only (e.g., KX-NT265 ), a PC cannot be connected to the IP telephone. Only KX-NT265 IP-PTs with a software version of 2.00 or later are supported by KX-NCP500/KX-NCP1000. Document Version 2010-08 IP Networking Guide...

  • Page 10: Gatekeeper

    1.2.3 Gatekeeper 1.2.3 Gatekeeper The following are the general functions of a gatekeeper: • Dialed number-to-IP address translation • Authentication • Bandwidth control The gatekeeper provides these network management functions to registered clients. To register with the gatekeeper, you need to configure the V-IPGW16 card to use the gatekeeper and program the GK Settings table through system programming.

  • Page 11: Packet Control Features

    To compensate for jitter problems, the "jitter buffer" accumulates the packets temporarily for processing. To set the size of the jitter buffer, refer to "3.4 [1-1] Slot—Card Property - IPCMPR (for KX-NCP500/ KX-NCP1000/KX-TDE100/KX-TDE200)/IPCEMPR (for KX-TDE600)—VoIP-DSP Option" in the PC Programming Manual.

  • Page 12

    1.3.2 Voice Activity Detection (VAD) IP Networking Guide Document Version 2010-08...

  • Page 13: Guidance For Voip Installation

    Section 2 Guidance for VoIP Installation Document Version 2010-08 IP Networking Guide...

  • Page 14: Voip Requirements

    2.1.1 Bandwidth Assessment 2.1 VoIP Requirements 2.1.1 Bandwidth Assessment When using the IP telephones and V-IPGW16 card, you must ensure that the IP network in use has enough bandwidth to support VoIP communications. If the amount of bandwidth required for VoIP communications is more than the network can accommodate, speech quality will be compromised.

  • Page 15: Additional Information

    2.1.1 Bandwidth Assessment Via LAN Packet Sending Interval Codec 20 ms 30 ms 40 ms 60 ms 90 ms G.711 87.2 kbps 79.5 kbps 75.6 kbps 71.7 kbps — G.729A 31.2 kbps 23.5 kbps 19.6 kbps 15.7 kbps — Via WAN (PPP: Point-to-Point Protocol) Packet Sending Interval Codec 20 ms...

  • Page 16

    2.1.1 Bandwidth Assessment For example, if you wish to use only 10 of the available 16 virtual VoIP channels (i.e., disable 6 channels), set ports 8, 7, and 6 to OUS as shown below: In this case, the equation for bandwidth calculation, based on the previous example, will change as follows: Required Bandwidth = (No.

  • Page 17: Network Configuration

    2.1.2 Network Configuration 2.1.2 Network Configuration You must evaluate the structure of the existing network to see if a VoIP network can be implemented. Below are the points that should be evaluated. Is the IP network a managed network? A VoIP network should be implemented on a managed IP network such as Frame Relay, Leased Line, or IP-VPN (Virtual Private Network).

  • Page 18

    2.1.2 Network Configuration Does the router not use network address translation (NAT/NAPT)? If the router uses address translation techniques (e.g., NAT/NAPT) to convert between global and local IP addresses, VoIP communications cannot be carried out effectively. Therefore, the routers used to access the IP network must not use NAT/NAPT.

  • Page 19

    2.1.2 Network Configuration Is there only a single IP network between 2 ends of a call? A huge degradation in speech quality will be produced when calls are made through multiple IP networks as shown below; therefore, it is recommended that you avoid establishing a VoIP network in this fashion. PSTN/ PRI QSIG, etc.

  • Page 20: Network Devices

    12000 to 12255 connected to MPR) Used for voice data transmission. RTP (IP-PT connected to 8000 to 8063 IP-EXT16) Maintenance (MPR) Panasonic proprietary protocol. 35300 Used for communication parameter Maintenance (IP-EXT16) 9300 negotiation with the PBX, download of country/area data, confirmation of...

  • Page 21

    2.1.3 Network Devices Protocol Description TCP/UDP Default Port No. DHCP (MPR) Dynamic Host Configuration Protocol. 67, 68 Used for receiving an IP address from a DHCP (IP telephone) 67, 68 DHCP server. FTP (Port mode) File Transfer Protocol. 20, 21 Used for receiving a data file from a FTP server to upgrade the firmware version.

  • Page 22: Qos (quality Of Service)

    2.1.4 QoS (Quality of Service) 2.1.4 QoS (Quality of Service) Some routers permit the configuration of priority control features. This allows the router to give higher priority to voice packets and lower the rate of loss and delays during transmissions, hence improving speech quality. It is strongly recommended that you use this feature, especially in networks where traffic is heavy.

  • Page 23: Voip Requirements Checklist

    2.2 VoIP Requirements Checklist 2.2 VoIP Requirements Checklist Use the following checklists to see if you can implement a VoIP network. The answers identified in underlined bold-face letters are the required answers for the corresponding questions. Bandwidth Assessment Question Answer Memo Ref.

  • Page 24

    2.2 VoIP Requirements Checklist Network Devices Question Answer Memo Ref. Can the firewall pass packets Model of firewall: appropriately? When a firewall is used, make sure to p. 20 configure the firewall appropriately to allow VoIP packets to pass through the network without being blocked by filtering.

  • Page 25: Connection To The Lan

    Section 3 Connection to the LAN This section describes the process of connecting the MPR/IP-EXT16 cards and IP telephones to the LAN. Document Version 2010-08 IP Networking Guide...

  • Page 26: Connecting The Mpr/ip-ext16 Card To The Lan

    3.1 Connecting the MPR/IP-EXT16 Card to the LAN 3.1 Connecting the MPR/IP-EXT16 Card to the LAN Refer to the following example to connect the MPR/IP-EXT16 card to the LAN. When MPR/IP-EXT16 cards are connected to the LAN for the first time, you must assign IP addressing information to them.

  • Page 27

    3.1 Connecting the MPR/IP-EXT16 Card to the LAN Note If you need to open the ferrite core, use a flathead screwdriver to unlatch the case. Connecting the MPR card to a switching hub (for KX-NCP series) Router Switching Hub LAN Port Switching Hub Ethernet Straight Cable IP Softphone...

  • Page 28

    3.1 Connecting the MPR/IP-EXT16 Card to the LAN Connecting the MPR card to a switching hub (for KX-TDE series) Router LAN Port Switching Hub Switching Hub Ethernet Straight Cable IP Softphone IP-PT with 2 ports SIP Extension IP Networking Guide Document Version 2010-08...

  • Page 29

    3.1 Connecting the MPR/IP-EXT16 Card to the LAN Connecting the IP-EXT16 card to a switching hub RJ45 Router Switching Hub Switching Hub Ethernet Straight Cable IP-PT with 2 ports IP-PT with a primary port only Document Version 2010-08 IP Networking Guide...

  • Page 30: Connecting The Ip Telephones

    3.2 Connecting the IP Telephones 3.2 Connecting the IP Telephones When an IP telephone is connected to the LAN and power is supplied for the first time, you will be prompted to set network parameters. The network parameters must be set for the IP telephone before it can be used. Refer to "4.5 Programming the IP Telephones"...

  • Page 31

    3.2 Connecting the IP Telephones Connecting an AC Adaptor to an IP Telephone IP-PTs and some SIP Extensions comply with the IEEE 802.3af Power-over-Ethernet (PoE) standard. If PoE is available on your network, these IP telephones can receive the necessary power supply from the network through the network cable.

  • Page 32

    3.2 Connecting the IP Telephones Connecting a PC to an IP Telephone You can connect a PC to some IP telephones (e.g., KX-NT300 series) using the IP telephone’s secondary port. In this case, only a single port from the LAN’s network interface (switching hub) is required to connect both the IP telephone and PC to the LAN.

  • Page 33: Programming

    Section 4 Programming Document Version 2010-08 IP Networking Guide...

  • Page 34: Programming The Pbx

    4.1.1 Installing the Virtual IP Cards to the PBX 4.1 Programming the PBX 4.1.1 Installing the Virtual IP Cards to the PBX Under Configuration, click Slot. Move the mouse pointer over the small PBX image for virtual slots. Click Select Shelf. Click on the name of the desired card to install in the list.

  • Page 35: Installing Additional Activation Keys

    4.1.2 Installing Additional Activation Keys 4.1.2 Installing Additional Activation Keys If the preinstalled activation keys on the DSP cards are not enough for the desired configuration, it is necessary to obtain additional activation keys in the form of activation key files and install them in the SD Memory Card. Activation Key Code and Key Management System To obtain additional activation keys, you need to purchase the appropriate activation key codes and access the Key Management System.

  • Page 36

    4.1.2 Installing Additional Activation Keys Model No. Activation Key Type Description KX-NCP KX-TDE Series Series KX-NCS3516 KX-NCS4516 16 IP PT Provides the activation key number and registration ID to download the activation key that enables the use of 16 IP-PTs. KX-NCS3701 KX-NCS4701 1 SIP Extension...

  • Page 37: Configuration Of The Activation Keys

    4.1.2 Installing Additional Activation Keys Model No. Activation Key Type Description KX-NCP KX-TDE Series Series KX-NCS2249 CA Pro 128users Provides the activation key number and registration ID to download the activation key that enables the use of CA PRO for 128 users. KX-NCS2301 CA Supervisor 1user Provides the activation key number and...

  • Page 38

    4.1.2 Installing Additional Activation Keys Under Configuration, click Slot. Click Activation Key. In the The number of activated IP-GW box, type the number of IP Trunk channels to be used for H. 323 CO lines. In the The number of activated IP Softphone box, type the number of IP softphones to be used through the IP Softphone/IP Proprietary Telephone activation key.

  • Page 39: Programming The Virtual 16-channel Voip Gateway Card

    4.2.1 Assigning the Hunt Pattern 4.2 Programming the Virtual 16-Channel VoIP Gateway Card There are 2 methods to program the Virtual 16-Channel VoIP Gateway Card (V-IPGW16 card) to establish VoIP communications between PBXs at different locations, as follows: PBX code method The caller dials the unique PBX code of the PBX to which the called party is connected, in addition to the destination number.

  • Page 40: Programming The Address Translation Table

    4.2.2 Programming the Address Translation Table Note For more details about hunt pattern assignment, refer to "3.13 [1-1] Slot—Shelf Property - Virtual IP Gateway—Hunt Pattern" in the PC Programming Manual. 4.2.2 Programming the Address Translation Table The function of an address translation table in a VoIP network is to provide 2-way translation of telephone numbers and IP addresses .

  • Page 41

    4.2.2 Programming the Address Translation Table Click DN2IP. When using the PBX code method: In the Leading Number box, type the remote PBX code and starting digit of destination extension. When using the extension number method: In the Leading Number box, type the remote PBX code and starting digit of destination extension.

  • Page 42: Programming The Network Settings

    4.2.3 Programming the Network Settings 4.2.3 Programming the Network Settings For successful operation of a VoIP network using the V-IPGW16 card, network settings for the PBX at each location must be programmed appropriately. For a detailed discussion of related features, refer to the Feature Manual.

  • Page 43

    4.2.3 Programming the Network Settings From the system menu, click Private Network. Click TIE Table. In the Own PBX Code box, type the PBX code of the local PBX in the network. In the first unused Leading Number box, type the PBX code of the remote PBX in the network.

  • Page 44

    4.2.3 Programming the Network Settings Move the mouse pointer over the installed V-IPGW16 card to display the menu of options. Click INS. When "En-bloc" is selected, you need to press "#" after dialing the phone number. Programming for the Extension Number Method Under Configuration, click Slot.

  • Page 45

    4.2.3 Programming the Network Settings From the system menu, click System. Click Numbering Plan. Click Main. Click the Other PBX Extension tab. In the Other PBX Extension Numbering (TIE) box, type a starting digit of destination extension. Click OK. From the system menu, click Private Network. Click TIE Table.

  • Page 46

    4.2.3 Programming the Network Settings Move the mouse pointer over the installed V-IPGW16 card to display the menu of options. Click INS. When "En-bloc" is selected, you need to press "#" after dialing the phone number. Note For details about network parameter settings, refer to the relevant sections of the PC Programming Manual. IP Networking Guide Document Version 2010-08...

  • Page 47: Programming The Mpr Card

    4.3.1 Assigning the IP Addressing Information 4.3 Programming the MPR Card 4.3.1 Assigning the IP Addressing Information The IP addressing information for the MPR card can be assigned automatically through a DHCP server or entered manually using the Maintenance Console. Note •...

  • Page 48

    4.3.1 Assigning the IP Addressing Information When not using a DHCP server: Select Disable for the DHCP Client setting. For KX-NCP500/KX-NCP1000/KX-TDE100/ KX-TDE200, type the IP address of the MPR card in the IP Address for IPCMPR Card box. For KX-TDE600, type the IP address of the MPR card in the IP Address for IPCEMPR Card box.

  • Page 49

    When not using a DHCP server: Click the LAN Setting tab, then select Disable for the DHCP Client setting. For KX-NCP500/KX-NCP1000/KX-TDE100/ KX-TDE200, type the IP address of the MPR card in the IP Address for IPCMPR Card box. For KX-TDE600, type the IP address of the MPR card in the IP Address for IPCEMPR Card box.

  • Page 50: Programming The Ip-ext16 Card (kx-tde Series Only)

    4.4.1 Assigning the IP Addressing Information 4.4 Programming the IP-EXT16 Card (KX-TDE series only) 4.4.1 Assigning the IP Addressing Information When an IP-EXT16 card is placed on the LAN for the first time, it is necessary to assign IP addressing information to the card.

  • Page 51: Programming The Ip Telephones

    4.5.1 Assigning the IP Addressing Information 4.5 Programming the IP Telephones 4.5.1 Assigning the IP Addressing Information The IP address of an IP telephone, the subnet mask address, the default gateway address, and the PBX IP address must be assigned to the IP telephone before it can be used on the network. These IP addressing information can be assigned in the following ways: Note For details for the KX-NT400, refer to the Operating Instructions of the KX-NT400.

  • Page 52

    4.5.1 Assigning the IP Addressing Information KX-NT300 series (except KX-NT321) To start programming SETUP Supply power to the IP-PT. Press "SETUP" when it is displayed. To enter the IP address of the MPR card (PBX IP Address) Software version 2.00 or later only Select "PBX".

  • Page 53

    4.5.1 Assigning the IP Addressing Information KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To enter the IP address of the MPR card in the Primary PBX (PBX IP Address) Select "PBX IP Press SP-PHONE.

  • Page 54

    4.5.1 Assigning the IP Addressing Information KX-NT265 (software version 2.00 or later only) To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To enter the IP address of the MPR card (PBX IP Address) HOLD PBX IP Address Press VOLUME...

  • Page 55

    4.5.1 Assigning the IP Addressing Information Not using a DHCP server when the IP-PT is on the same LAN with the PBX Only the PBX IP address can be assigned automatically to the IP-PT in process of being registered to the PBX.

  • Page 56

    4.5.1 Assigning the IP Addressing Information Continued from previous page To set VLAN parameters To the VLAN settings Return to the Menu screen. To end programming STORE The IP-PT will reboot and can then be registered to the PBX. Press "STORE". Return to the Menu screen.

  • Page 57

    4.5.1 Assigning the IP Addressing Information KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Select "Network". Press SP-PHONE. Select "DHCP (Disable)". Press SP-PHONE twice. IP Address* Press SP-PHONE.

  • Page 58

    4.5.1 Assigning the IP Addressing Information Continued from previous page To set VLAN parameters To the VLAN settings To end programming The IP-PT will reboot and can then be registered to the PBX. Press STORE. Valid IP address range: "1.0.0.0" to "223.255.255.255" Valid subnet mask address range: "0–255.0–255.0–255.0–255"...

  • Page 59

    4.5.1 Assigning the IP Addressing Information KX-NT265 (software version 2.00 or later only) To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Press VOLUME to Press SP-PHONE. Press VOLUME to Press SP-PHONE select "Network".

  • Page 60

    4.5.1 Assigning the IP Addressing Information Not using a DHCP server when the IP-PT is on the remote office LAN All the IP addressing information must be assigned manually. Follow the procedure below to assign the IP addressing information. If you need to set VLAN parameters, follow the procedure described in "4.5.2 Setting the VLAN Parameters"...

  • Page 61

    4.5.1 Assigning the IP Addressing Information Continued from previous page To enter the IP address of the Secondary PBX (optional for software version 2.00 or later only) PBX IP Address Select "Secondary PBX". ENTER ENTER To set VLAN parameters To the VLAN settings Return to the Menu screen.

  • Page 62

    4.5.1 Assigning the IP Addressing Information KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Select "Network". Press SP-PHONE. Select "DHCP (Disable)". Press SP-PHONE twice. IP Address* Press SP-PHONE.

  • Page 63

    4.5.1 Assigning the IP Addressing Information Continued from previous page Press HOLD twice to return to the Menu screen. To set VLAN parameters To the VLAN settings To end programming The IP-PT will reboot and can then be registered to the PBX. Press STORE.

  • Page 64

    4.5.1 Assigning the IP Addressing Information KX-NT265 (software version 2.00 or later only) To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Press VOLUME to Press SP-PHONE. Press VOLUME to Press SP-PHONE select "Network".

  • Page 65

    4.5.1 Assigning the IP Addressing Information For IP-PTs connected to the IP-EXT16 Card (KX-TDE series only) Using a DHCP server to automate the assignment of IP addressing information The IP address of the IP-PT, the subnet mask address, and the default gateway address can be assigned automatically by the DHCP server.

  • Page 66

    4.5.1 Assigning the IP Addressing Information KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To enter the IP address of the IP-EXT16 card in the Primary PBX (PBX IP Address) Select "PBX IP Press SP-PHONE.

  • Page 67

    4.5.1 Assigning the IP Addressing Information KX-NT265 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To enter the IP address of the IP-EXT16 card (PBX IP Address) HOLD PBX IP Address Press VOLUME Press SP-PHONE Press SP-PHONE.

  • Page 68

    4.5.1 Assigning the IP Addressing Information Not using a DHCP server when assigning IP addressing information All the IP addressing information must be assigned manually. Follow the procedure below to assign the IP addressing information. If you need to set VLAN parameters, follow the procedure described in "4.5.2 Setting the VLAN Parameters"...

  • Page 69

    4.5.1 Assigning the IP Addressing Information Continued from previous page To enter the IP address of the Secondary PBX (optional for KX-NT300 with software version 2.00 or later only) PBX IP Address Select "Secondary PBX". ENTER ENTER To set VLAN parameters To the VLAN settings Return to the Menu screen.

  • Page 70

    4.5.1 Assigning the IP Addressing Information KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Select "Network". Press SP-PHONE. Select "DHCP (Disable)". Press SP-PHONE twice. IP Address* Press SP-PHONE.

  • Page 71

    4.5.1 Assigning the IP Addressing Information Continued from previous page Press HOLD twice to return to the Menu screen. To set VLAN parameters To the VLAN settings To end programming The IP-PT will reboot and can then be registered to the PBX. Press STORE.

  • Page 72

    4.5.1 Assigning the IP Addressing Information KX-NT265 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Press VOLUME to Press SP-PHONE. Press VOLUME to Press SP-PHONE select "Network". select "DHCP (Disable)".

  • Page 73

    4.5.1 Assigning the IP Addressing Information For KX-HGT100 SIP Telephones Using a DHCP server to automate the assignment of IP addressing information The DHCP server automatically assigns the IP address of the KX-HGT100, the subnet mask address, and the default gateway address to the KX-HGT100. The PBX IP address can be assigned to the KX-HGT100 through Web Programming.

  • Page 74

    4.5.1 Assigning the IP Addressing Information Follow the procedure below to assign IP addressing information manually. To start programming Supply power to the KX-HGT100. Press PROGRAM . To set the IP addressing information Select "Set network". Press OK. Select "STATIC". Press OK.

  • Page 75

    4.5.1 Assigning the IP Addressing Information For SIP Extensions (except KX-HGT100) Using a DHCP server to automate the assignment of IP addressing information The IP address of the SIP Extension, the subnet mask address, and the default gateway address can be assigned to the SIP Extension automatically by the DHCP server.

  • Page 76: Setting The Vlan Parameters

    4.5.2 Setting the VLAN Parameters 4.5.2 Setting the VLAN Parameters To establish voice communications between IP telephones, the primary ports of the IP telephones and the connected PBX must belong to the same VLAN. Consult your network administrator and obtain the appropriate VLAN ID.

  • Page 77

    4.5.2 Setting the VLAN Parameters KX-NT321 After assigning the IP addresses Select "QoS". Press SP-PHONE. Select "VLAN". Press SP-PHONE. Press SP-PHONE. Select "VLAN (Enable)". To set the VLAN ID for the primary port VLAN ID 1–4094 Select "VLAN (Primary)". Press SP-PHONE. Select "VLAN ID".

  • Page 78

    4.5.2 Setting the VLAN Parameters KX-NT265 After assigning the IP addresses Press VOLUME to Press VOLUME to Press SP-PHONE. Press VOLUME to Press SP-PHONE. select "QoS". select "VLAN". select "VLAN (Enable)". VLAN ID VLAN Priority 1–4094 Press SP-PHONE. 0–7 Press SP-PHONE. Press SP-PHONE.

  • Page 79: Setting The Diffserv Parameters

    4.5.3 Setting the Diffserv Parameters 4.5.3 Setting the Diffserv Parameters Differentiated Services (DiffServ, or DS) is an IP-based QoS technique used to control QoS of VoIP communications by setting the DS field in the header of IP packets. Consult your network administrator for the appropriate setting values for the DS field.

  • Page 80

    4.5.3 Setting the Diffserv Parameters KX-NT321 To start programming Press PROGRAM while Select "QoS". Select "Diffserv". Press SP-PHONE. Press SP-PHONE. "Searching" is displayed. To set the DS field value for the primary port Select "Primary Port". Press SP-PHONE. Select "DS (Enable)". Press SP-PHONE.

  • Page 81

    4.5.3 Setting the Diffserv Parameters KX-NT265 (software version 2.00 or later only) To start programming Press PROGRAM while Press VOLUME to Press SP-PHONE. Press VOLUME to Press SP-PHONE. "Searching" is displayed. select "QoS". select "Diffserv". To set the DS field value Diffserv 0.0–7.7 Press VOLUME to...

  • Page 82: Configuration Of Ip Ports

    4.5.4 Configuration of IP Ports 4.5.4 Configuration of IP Ports A KX-NT300 series IP-PT user or KX-NT265 IP-PT (software version 2.00 or later) user can configure the port number of PTAP, DHCP, and FTP ports. Consult your network administrator to check whether the configuration of the IP ports is required.

  • Page 83

    4.5.4 Configuration of IP Ports KX-NT300 series (except KX-NT321) To start programming SETUP Password Press "SETUP" Select "IP Port". ENTER 7678 ENTER when it is displayed. To configure the port number of PTAP Ports Software version 2.00 or later only Select "PTAP Server Port".

  • Page 84

    4.5.4 Configuration of IP Ports Continued from previous page To configure the port number of FTP Ports Port No. 21, 1024 – 65535 Select "FTP Server Ctrl Port". ENTER ENTER Port No. Select "FTP Client Ctrl Port". ENTER 1024 – 65535 ENTER Port No.

  • Page 85

    4.5.4 Configuration of IP Ports KX-NT321 To start programming Password Press PROGRAM while Select "IP Port". Press SP-PHONE. 7678 Press SP-PHONE. "Searching" is displayed. To configure the port number of PTAP Ports Select "PTAP Server". Press SP-PHONE. Select "Primary PBX". Press SP-PHONE.

  • Page 86

    4.5.4 Configuration of IP Ports Continued from previous page To configure the port number of FTP Ports Port No. 21, 1024 – 65535 Press SP-PHONE. Select "FTP Server Ctrl". Press SP-PHONE. Port No. 1024 – 65535 Select "FTP Client Ctrl". Press SP-PHONE.

  • Page 87

    4.5.4 Configuration of IP Ports KX-NT265 (software version 2.00 or later only) To start programming Password Press PROGRAM while Press VOLUME to Press SP-PHONE. 7678 Press SP-PHONE. "Searching" is displayed. select "IP Port". To configure the port number of PTAP Ports Port No.

  • Page 88

    4.5.4 Configuration of IP Ports Note If you wish to change the port number back to default, enter 0 as the port number for the desired port. IP Networking Guide Document Version 2010-08...

  • Page 89: Registering Ip Telephones

    4.6.1 Registering IP Telephones 4.6 Registering IP Telephones 4.6.1 Registering IP Telephones After the programming of the PBX and IP telephone is finished, the IP telephone must be registered to the PBX. This is done using the Maintenance Console. Registration of IP-PTs Under Configuration, click Slot.

  • Page 90

    4.6.1 Registering IP Telephones Highlight numbers and names and click the right arrow to select them for registration. Click Next. A screen will appear with information on the current IP-PT extension number and name, and index number for programming. Note •...

  • Page 91

    4.6.1 Registering IP Telephones Set passwords for the SIP Extensions. Click the cell in the Connection column for each SIP Extension you wish to register. The Command Connection screen appears. Click OUS. Enter a password in the Password box for each SIP Extension.

  • Page 92

    4.6.1 Registering IP Telephones Program the SIP Extension you wish to register. [For SIP Extensions (except KX-HGT100)] Set the IP address of the MPR card, extension number, and password in the corresponding fields for your SIP Extension. Send a request from the SIP Extension to the PBX for registration.

  • Page 93

    4.6.1 Registering IP Telephones Double-click Network Connections. Double-click Local Area Connection. Click Properties. Confirm that Internet Protocol (TCP/IP) is listed. Note If Internet Protocol (TCP/IP) is not listed, you must install TCP/IP. For details about installation, refer to the documentation for Windows XP.

  • Page 94

    4.6.1 Registering IP Telephones Click the Connections tab. Select Never dial a connection if necessary. Click LAN Settings. When Not Using a Proxy Server Note If you will use a proxy server, see When Using a Proxy Server. Clear all check boxes. Click OK.

  • Page 95

    4.6.1 Registering IP Telephones Under Do not use proxy server for addresses beginning with:, type the IP address of the LAN port of the card. Click OK. Your PC is now ready for programming the KX-HGT100 through an IP network. Programming the KX-HGT100 Start Internet Explorer from the Start menu.

  • Page 96

    4.6.1 Registering IP Telephones Parameter Descriptions Unit Status Parameter Description Phone Number Specifies the extension number of the KX-HGT100. Unit Information Specifies the status of the KX-HGT100 as follows: • Update Profile: Basic Setting is not programmed (e.g., factory default). •...

  • Page 97

    4.6.1 Registering IP Telephones Basic Setting Parameter Description Language Specifies the language to be displayed on the LCD. Telephone Number Specifies the extension number of the KX-HGT100. SIP ID Specifies the extension number of the KX-HGT100. SIP Password Specifies the password for the KX-HGT100. Proxy Address Specifies the IP address of the MPR card.

  • Page 98

    4.6.1 Registering IP Telephones Advanced Setting Parameter Description RTP Port Min Specifies the minimum port number for RTP transmission and reception (even number only). RTP Port Max Specifies the maximum port number for RTP transmission and reception (even number only). Codec Priority Specifies the codec types in order of priority.

  • Page 99

    4.6.1 Registering IP Telephones Basic Setting programming through the KX-HGT100 Follow the procedure below to program the Basic Setting parameters through the KX-HGT100. Note • Before programming these settings, it is recommended to set the IP address of the KX-HGT100. For details about setting IP addresses, refer to "For KX-HGT100 SIP Telephones"...

  • Page 100: De-registering Ip Telephones

    4.6.2 De-registering IP Telephones 4.6.2 De-registering IP Telephones De-registration of IP-PTs Under Configuration, click Slot. When de-registering from V-IPEXT32 Card: Move the mouse pointer over the small PBX image for virtual slots, and click Select Shelf. Move the mouse pointer over the V-IPEXT32 card.

  • Page 101

    4.6.2 De-registering IP Telephones Forced De-registration of IP-PTs Follow the steps below to forcibly de-register an IP-PT when normal de-registration was unsuccessful. Under Configuration, click Slot. When de-registering from V-IPEXT32 Card: Move the mouse pointer over the small PBX image for virtual slots, and click Select Shelf. Move the mouse pointer over the V-IPEXT32 card.

  • Page 102

    4.6.2 De-registering IP Telephones De-registration of SIP Extensions The de-registration of SIP Extensions is carried out by deleting either the extension number or password registered in the PBX. Under Configuration, click Slot. Move the mouse pointer over the small PBX image for virtual slots.

  • Page 103: Appendix

    Section 5 Appendix Document Version 2010-08 IP Networking Guide...

  • Page 104: Revision History

    5.1.1 KX-NCP500/KX-NCP1000 PBMPR Software File Version 1.01xx 5.1 Revision History 5.1.1 KX-NCP500/KX-NCP1000 PBMPR Software File Version 1.01xx Changed Contents • 4.2 Programming the Virtual 16-Channel VoIP Gateway Card • 4.3 Programming the MPR Card • 4.5 Programming the IP Telephones •...

  • Page 105: Kx-ncp500/kx-ncp1000 Pbmpr Software File Version 2.02xx

    5.1.2 KX-NCP500/KX-NCP1000 PBMPR Software File Version 2.02xx 5.1.2 KX-NCP500/KX-NCP1000 PBMPR Software File Version 2.02xx Changed Contents • 1.1.1 Establishing a VoIP Network with the Pure IP-PBX • 2.1.3 Network Devices • 4.3.1 Assigning the IP Addressing Information • 4.5.2 Setting the VLAN Parameters •...

  • Page 106: Kx-tde100/kx-tde200 Pmmpr Software File Version 3.0xxx

    5.1.3 KX-TDE100/KX-TDE200 PMMPR Software File Version 3.0xxx 5.1.3 KX-TDE100/KX-TDE200 PMMPR Software File Version 3.0xxx Changed Contents • 1.1.1 Establishing a VoIP Network with the Pure IP-PBX • 2.1.3 Network Devices • 3.2 Connecting the IP Telephones • 4.1.2 Installing Additional Activation Keys •...

  • Page 107: Kx-tde600 Pgmpr Software File Version 3.0xxx

    5.1.4 KX-TDE600 PGMPR Software File Version 3.0xxx 5.1.4 KX-TDE600 PGMPR Software File Version 3.0xxx Changed Contents • 1.1.1 Establishing a VoIP Network with the Pure IP-PBX • 2.1.3 Network Devices • 3.2 Connecting the IP Telephones • 4.1.2 Installing Additional Activation Keys •...

  • Page 108: Error Message

    5.2 Error Message 5.2 Error Message When a major system error occurs, an error message is displayed on the IP-PT. For IP-PTs with a single line display (e.g., KX-NT265), only an error code (i.e., ERR XXXX-XXXX) will be displayed. Note For details for the KX-NT400, refer to the Operating Instructions of the KX-NT400.

  • Page 109

    Bluetooth wireless Resets the Bluetooth wireless ®*1 headset. headset. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is ® under license. Document Version 2010-08 IP Networking Guide...

  • Page 110

    Copyright: This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Co., Ltd. © Panasonic System Networks Co., Ltd. 2010...
