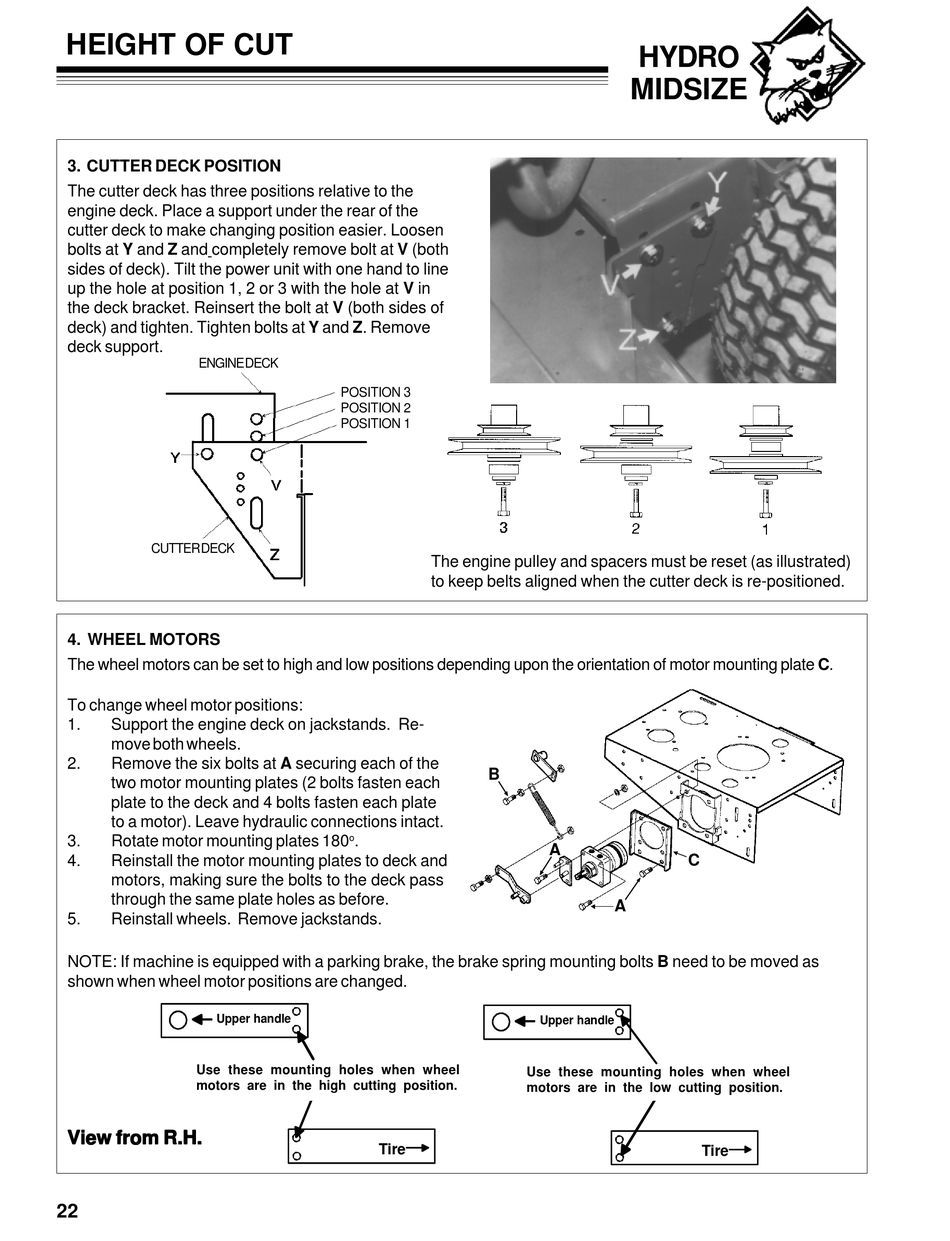

HEIGHT OF CUT
3. CUTTER DECK POSITION
The cutter deck has three positions relative to the
engine deck. Place a support under the rear of the
cutter deck to make changing position easier. Loosen
bolts at Y and Z and completely remove bolt at V (both
sides of deck). Tilt the power unit with one hand to line
up the hole at position 1, 2 or 3 with the hole at V in
the deck bracket. Reinsert the bolt at V (both sides of
deck) and tighten. Tighten bolts at Y and Z. Remove
deck support.
ENGINE DECK
CUTTER DECK
4. WHEEL MOTORS
The wheel motors can be set to high and low positions depending upon the orientation of motor mounting plate C.
To change wheel motor positions:
1. Support the engine deck on jackstands. Re-
move both wheels.
2. Remove the six bolts at A securing each of the
two motor mounting plates (2 bolts fasten each
plate to the deck and 4 bolts fasten each plate
to a motor). Leave hydraulic connections intact.
3. Rotate motor mounting plates 180
4. Reinstall the motor mounting plates to deck and
motors, making sure the bolts to the deck pass
through the same plate holes as before.
5. Reinstall wheels. Remove jackstands.
NOTE: If machine is equipped with a parking brake, the brake spring mounting bolts B need to be moved as
shown when wheel motor positions are changed.
Upper handle
Use these mounting holes when
Use these mounting holes when wheel
motors are in the high cutting position.
wheel motors are in high cutting position
View from R.H. View from R.H.
View from R.H. View from R.H. View from R.H.
22
POSITION 3
POSITION 2
POSITION 1
The engine pulley and spacers must be reset (as illustrated)
to keep belts aligned when the cutter deck is re-positioned.
B
o
.
Tire
HYDRO
MIDSIZE
A
C
A
Upper handle
Use these mounting holes when wheel Use these mounting holes when
motors are in the low cutting position.
wheel motors are in low cutting position
Tire
