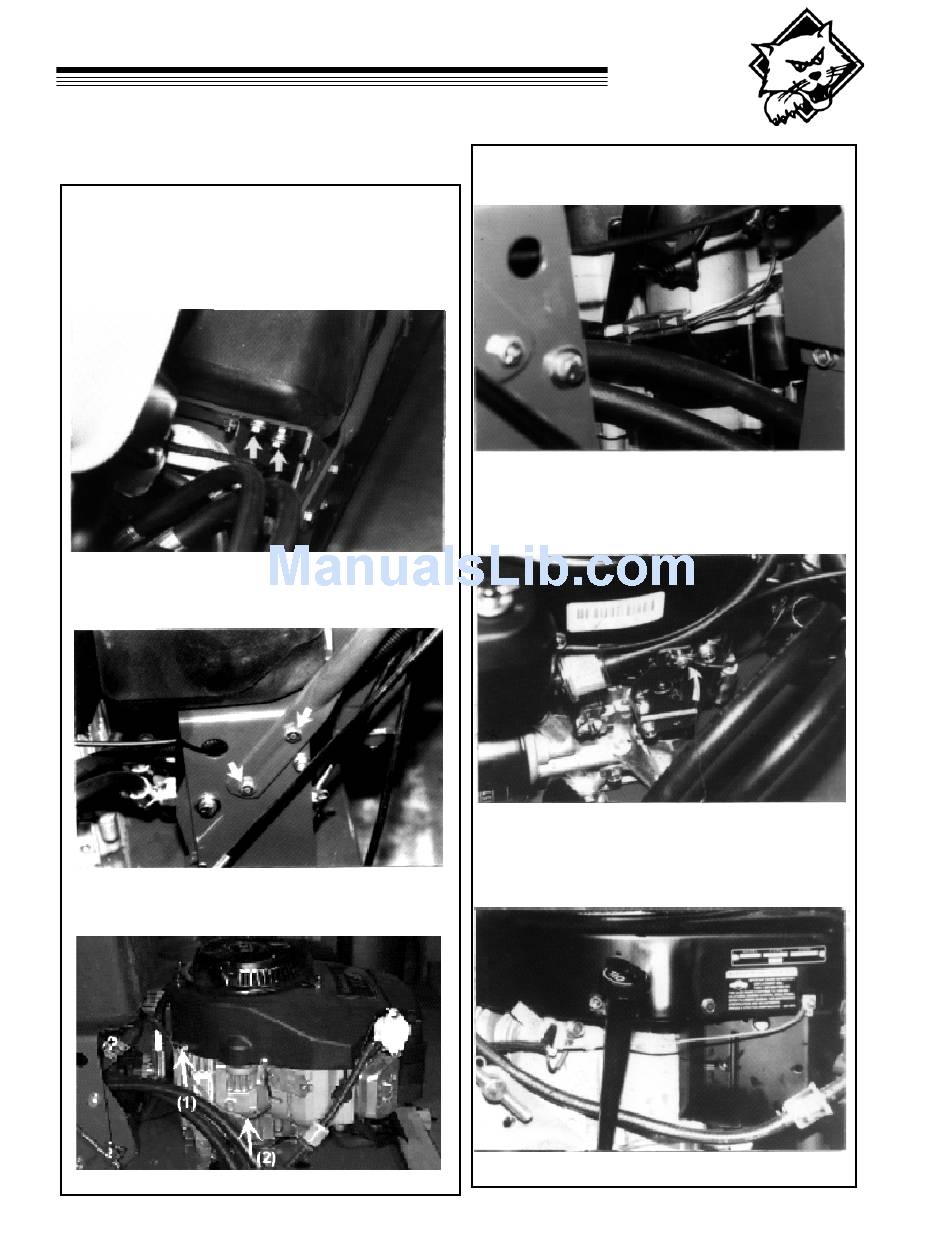

ASSEMBLY INSTRUCTIONS

All references to right hand (R.H.) or left hand
(L.H.) are as viewed from the operating position.
1. Place both power unit and cutter deck crate on level
surface. Uncrate, but leave both power unit and
cutter deck on their respective pallets.
2. Install fuel tank with four 3/8-16X3/4 bolts, washers
and lock washers. Connect fuel line to tank with
hose clamp.
3. Place the bottom sections of the upper handle on
the outside of the top of the lower handle. Secure
with four 3/8-16X1 bolts and four 3/8-16 whiz nuts.
4. Connect Wire Harness: Kawasaki 17 Hp - Connect
black ground wire to bolt (1) on flywheel shroud.
Connect red wire (2) to engine kill wire.
8
HYDRO
MIDSIZE
Kohler models: Plug handle harness into engine
harness.
Kawasaki 14 Hp: Route red wire through cable clips
and connect to engine kill wire. Connect ground wire
to throttle plate with throttle cable screw.
Vangard: Route red wire behind dip stick tube and
connect to engine kill terminal. Connect ground wire
with M8 bolt to engine block behind dipstick tube.
