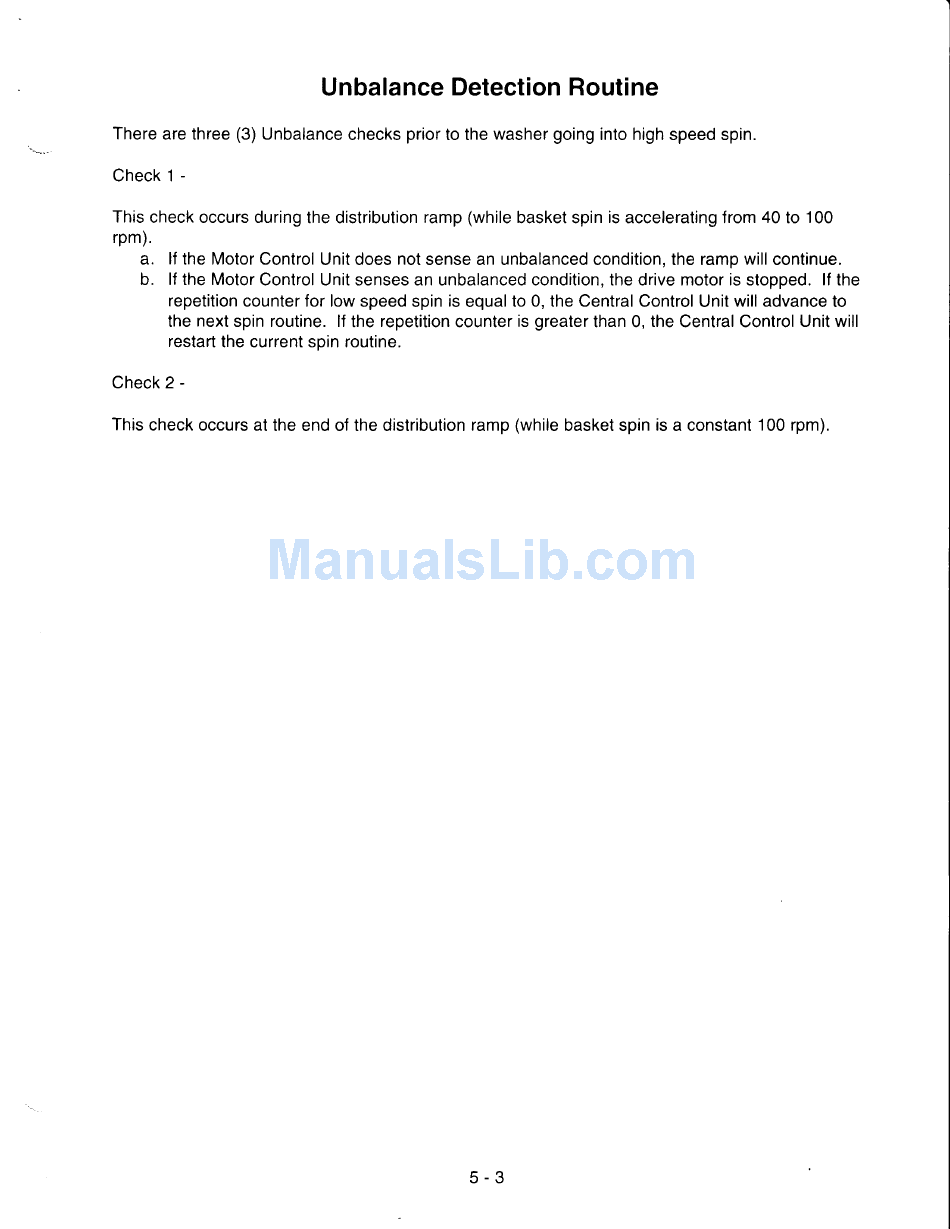

Unbalance Detection Routine
There are three (3) Unbalance checks prior to the washer going into high speed spin.
Check 1 -
This check occurs during the distribution ramp (while basket spin is accelerating f rom 40 to 100
rpm ).
a. lf the Motor Control Unit does not sense an unbalanced condition, the ramp will continue.
b. lf the Motor Control Unit senses an unbalanced condition, the drive motor is stopped. lf the
repetition counter for low speed spin is equal to 0, the Central Control Unit will advance to
the next spin routine. lf the repetition counter is greater than 0, the Central Control Unit will
restart the current spin routine.
Check 2 -
This check occurs at the end of the distribution ramp (while basket spin is a constant 100 rpm).
5 - 3
