Installing The Power Supply Module(S) - Enterasys Matrix N7 7C107 Hardware Installation Manual

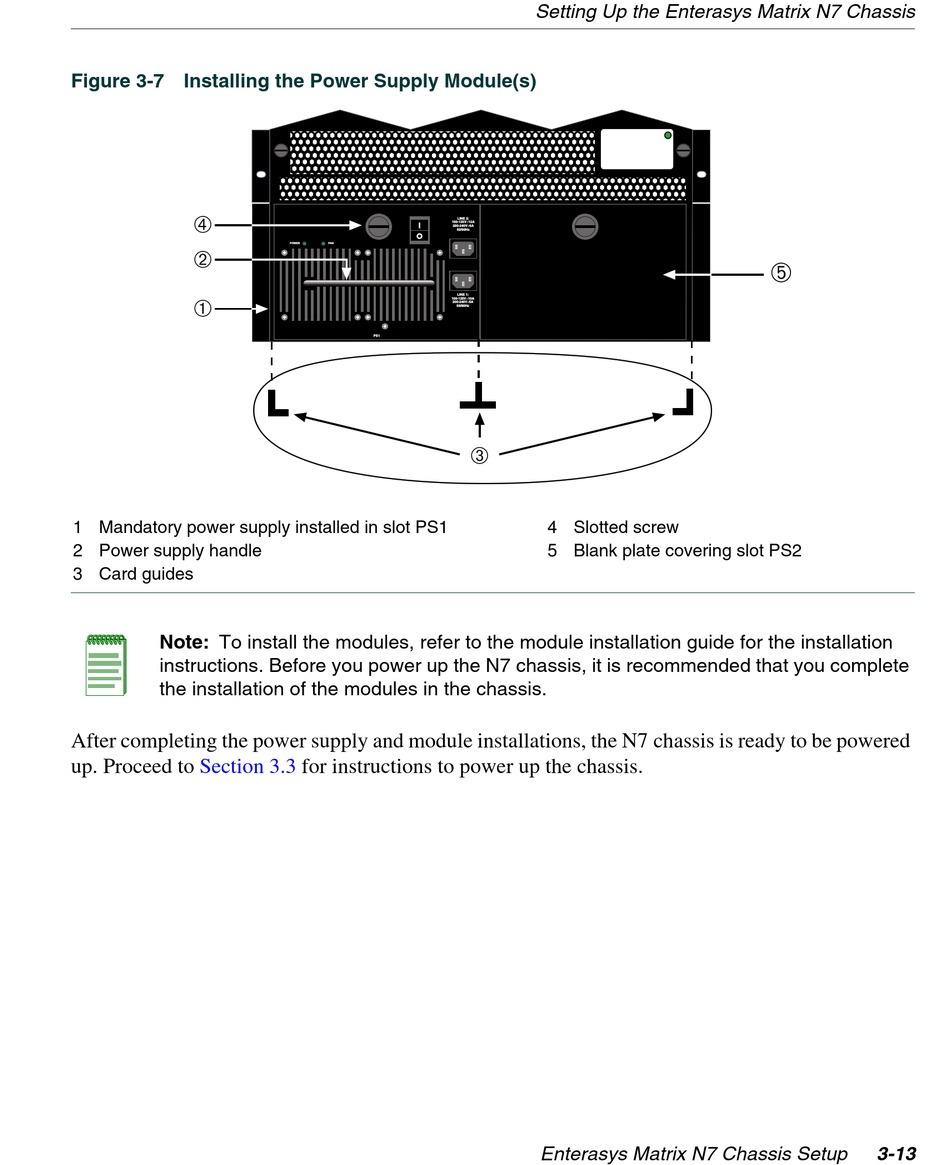

Figure 3-7 Installing the Power Supply Module(s)
Ã
Á
À
1 Mandatory power supply installed in slot PS1
2 Power supply handle
3 Card guides
Note: To install the modules, refer to the module installation guide for the installation
instructions. Before you power up the N7 chassis, it is recommended that you complete
the installation of the modules in the chassis.
After completing the power supply and module installations, the N7 chassis is ready to be powered
up. Proceed to Section 3.3
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
for instructions to power up the chassis.
Setting Up the Enterasys Matrix N7 Chassis
Â
4 Slotted screw
5 Blank plate covering slot PS2
Enterasys Matrix N7 Chassis Setup
Ä
3-13
