Powering Up THE N7 Chassis with Power Supplies

3.3 POWERING UP THE N7 CHASSIS WITH POWER SUPPLIES
To power up the N7 chassis with ac power supplies, refer to
Note: If two power supplies are installed, repeat the following procedure for each
supply.
For redundancy using two 6C207-3 power supplies, each of the four power cords from
the two power supplies must be connected to dedicated 15-Ampere ac power circuits.
1. Plug one end of each power cord (supplied with the power supply) into the ac power socket on
the front panel of the power supplies. See

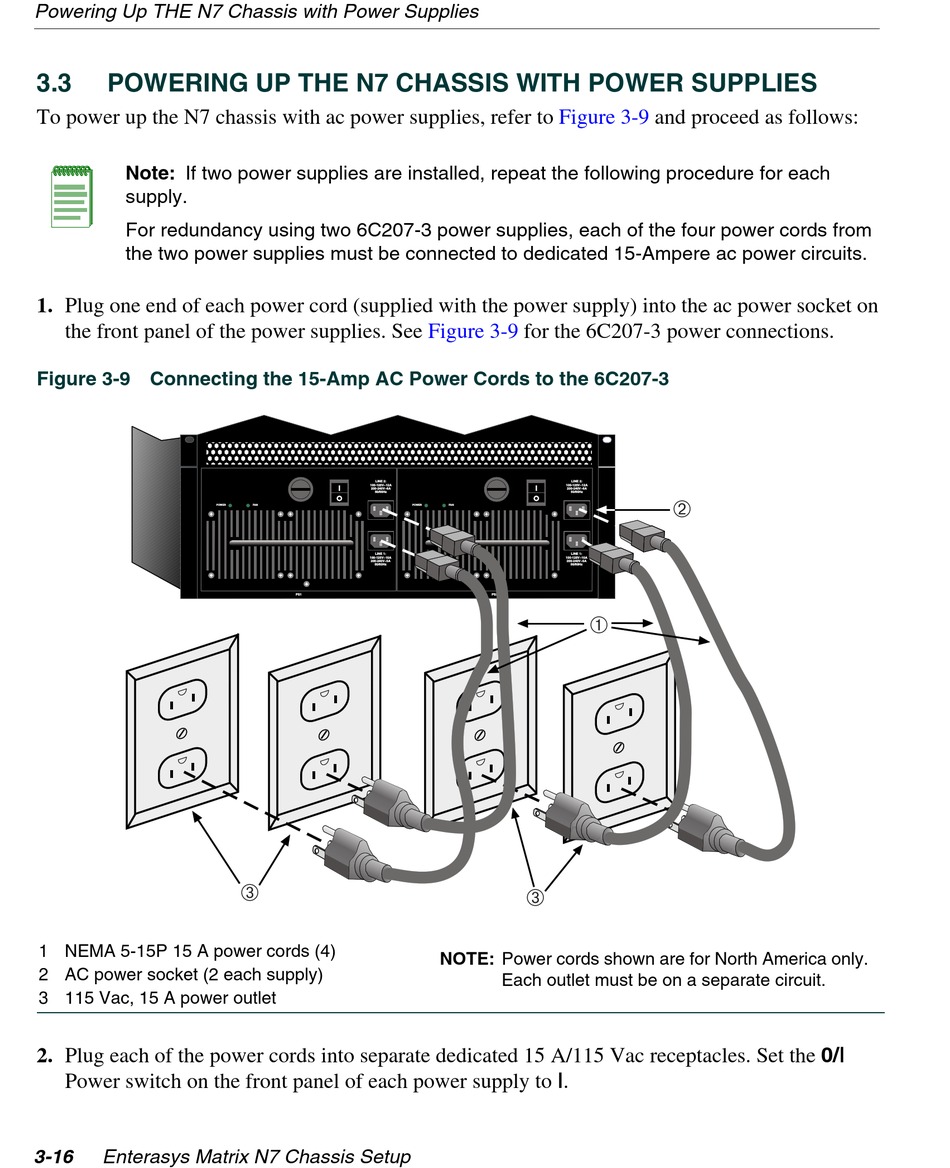

Figure 3-9 Connecting the 15-Amp AC Power Cords to the 6C207-3
1 NEMA 5-15P 15 A power cords (4)
2 AC power socket (2 each supply)
3 115 Vac, 15 A power outlet
2. Plug each of the power cords into separate dedicated 15 A/115 Vac receptacles. Set the 0/|
Power switch on the front panel of each power supply to |.
3-16 Enterasys Matrix N7 Chassis Setup
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
Â
Figure 3-9
Figure 3-9 for the 6C207-3 power connections.
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS2
À
Â
NOTE: Power cords shown are for North America only.
Each outlet must be on a separate circuit.
and proceed as follows:
Á
