4. Slide the fan tray into the chassis until the faceplate of the tray is flush with the face of the
N7 chassis. If there is any strong resistance, remove the fan tray and reinsert it.

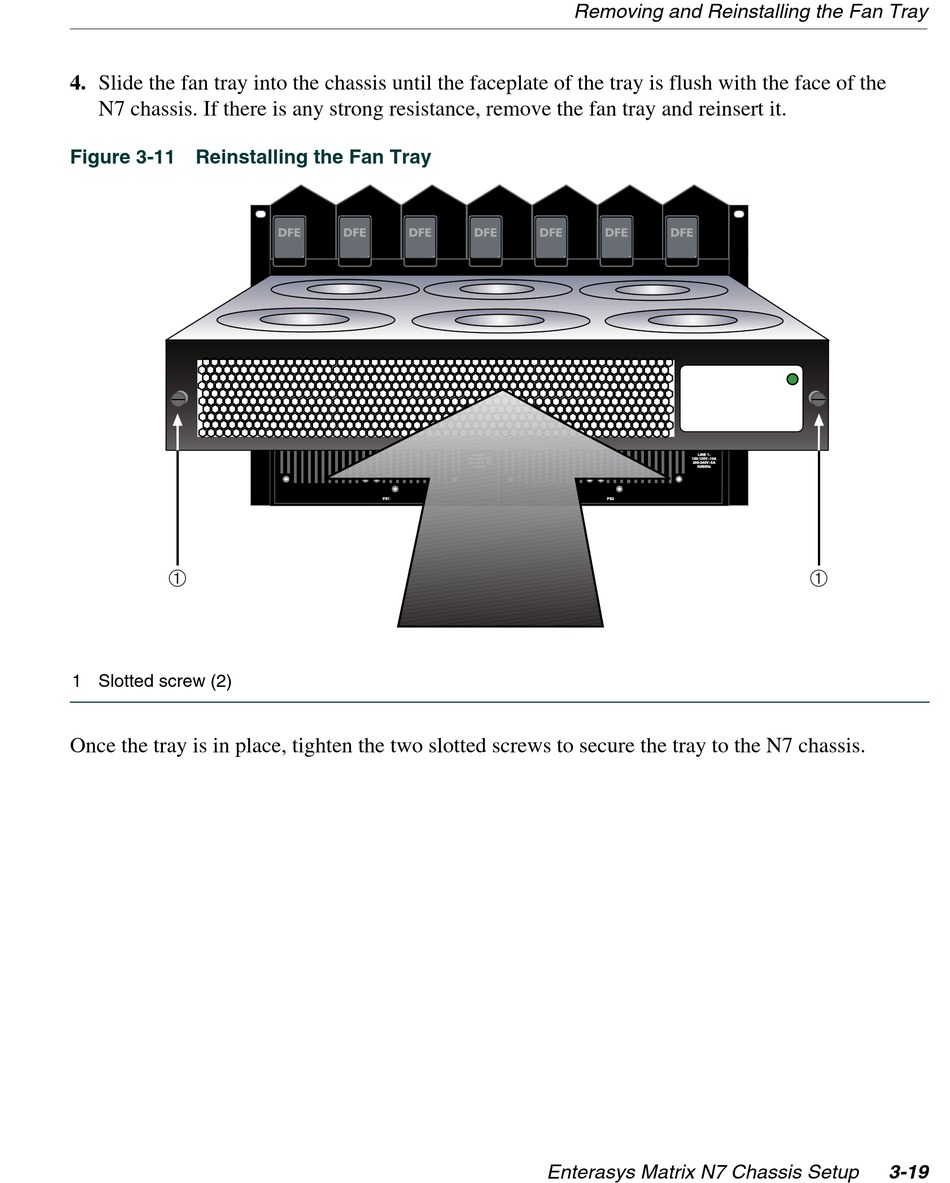

Figure 3-11 Reinstalling the Fan Tray
À
1 Slotted screw (2)
Once the tray is in place, tighten the two slotted screws to secure the tray to the N7 chassis.
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
Removing and Reinstalling the Fan Tray
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS2
Enterasys Matrix N7 Chassis Setup
À
3-19
