Setting Up the Enterasys Matrix N7 Chassis
3.2.2.2

Installing the Cable Management Bar

Cables can be attached along the cable management bar using cable ties to ensure that the cables
are not accidentally loosened or disconnected from the chassis during operation. To install the
cable management bar, see
1. Remove the cable management bar from the shipping box. Ensure that there are four screws
inside the bag with the cable management bar.
2. Line up the two holes on each side of the cable management bar with the four holes located on
the bottom of the N7 chassis, near the front of the chassis as shown in
3. Use a Phillips screwdriver and the four screws supplied with the bar to fasten the cable
management bar to the bottom of the chassis.

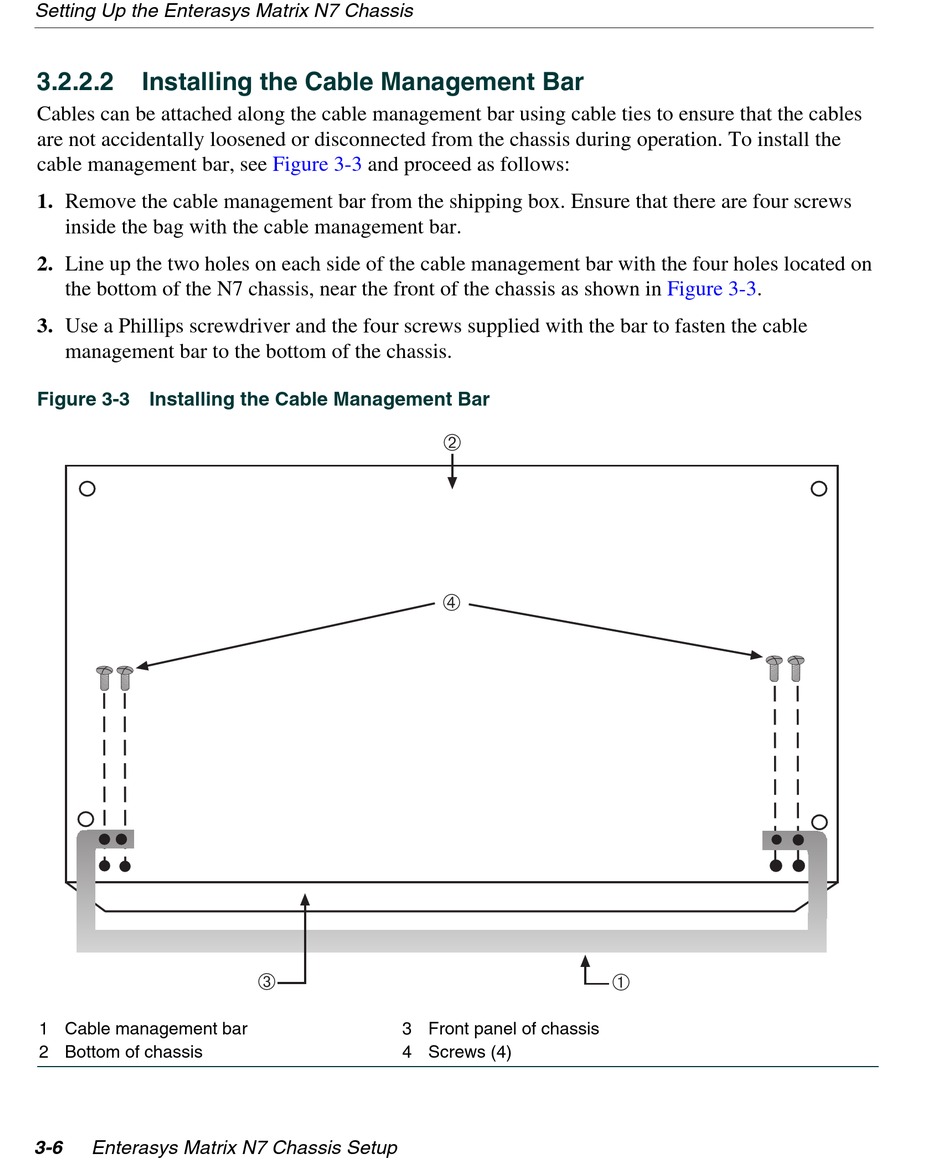

Figure 3-3 Installing the Cable Management Bar
1 Cable management bar
2 Bottom of chassis
3-6 Enterasys Matrix N7 Chassis Setup
Figure 3-3 and proceed as follows:
Â
3 Front panel of chassis
4 Screws (4)
Á
Ã
À
Figure 3-3.
