Rack Mounting The Enterasys Matrix N7 Chassis - Enterasys Matrix N7 7C107 Hardware Installation Manual

Setting Up the Enterasys Matrix N7 Chassis

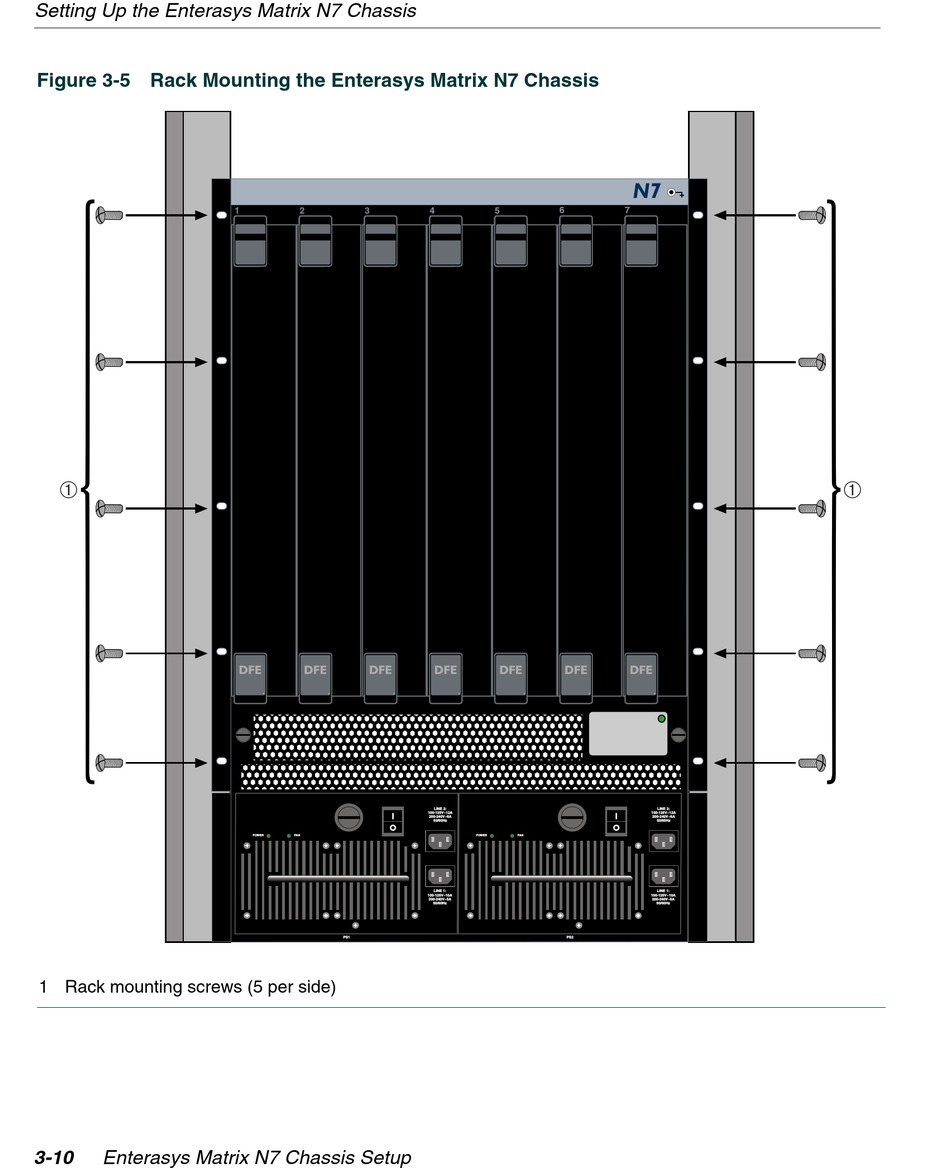

Figure 3-5 Rack Mounting the Enterasys Matrix N7 Chassis
À
1 Rack mounting screws (5 per side)
