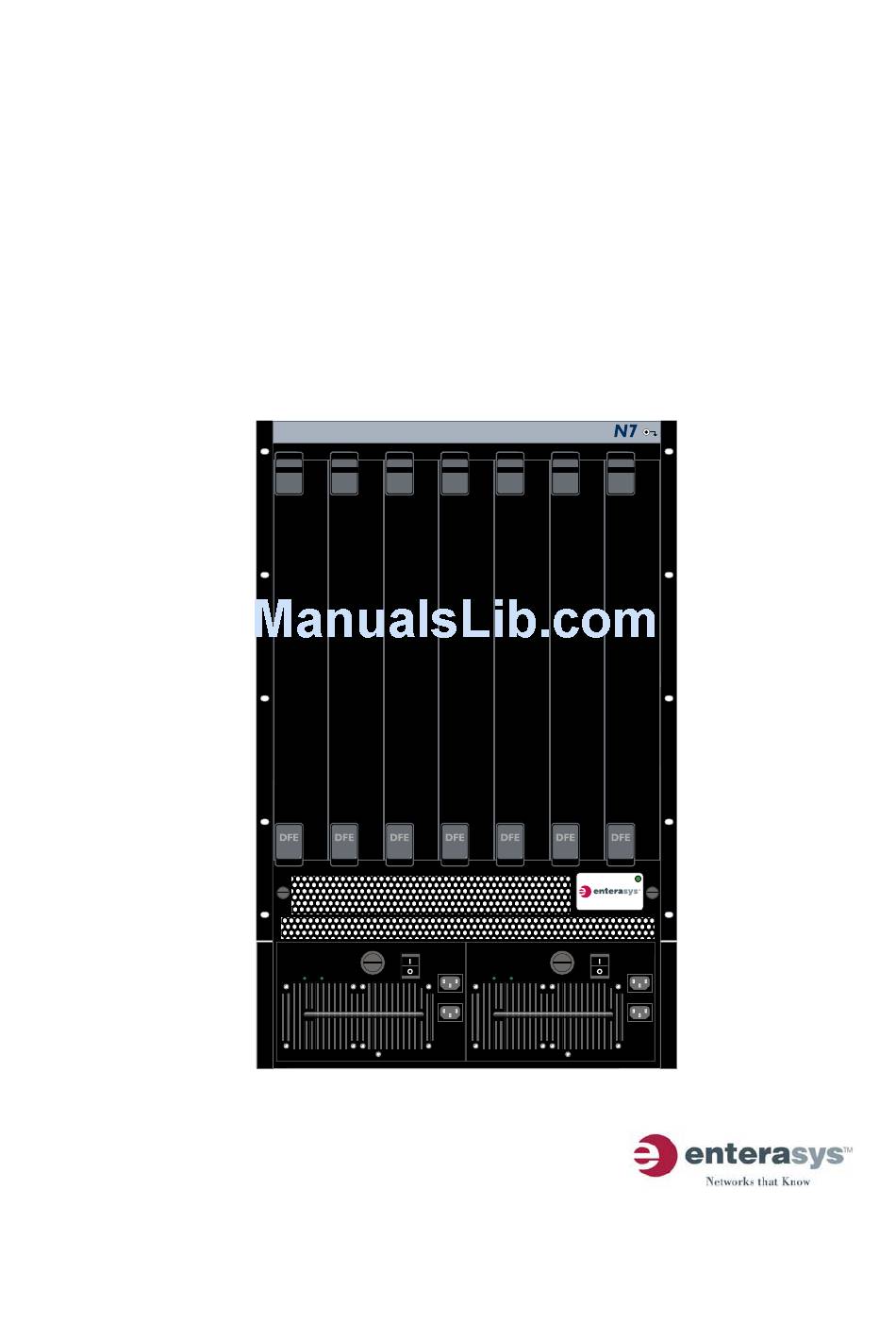

Matrix N7 7C107 Chassis
9033851-04
Installation Guide
1
2
3
4
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER
FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
5
6
7
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER
FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix N7 7C107 and is the answer not in the manual?

Questions and answers

Related Manuals for Enterasys Matrix N7 7C107

Summary of Contents for Enterasys Matrix N7 7C107

  • Page 1 Matrix N7 7C107 Chassis Installation Guide LINE 2: LINE 2: 100-125V~12A 100-125V~12A 200-240V~6A 200-240V~6A 50/60Hz 50/60Hz POWER POWER LINE 1: LINE 1: 100-125V~10A 100-125V~10A 200-240V~5A 200-240V~5A 50/60Hz 50/60Hz 9033851-04...
  • Page 3 Enterasys Networks reserves the right to make changes in specifications and other information contained in this document and its web site without prior notice. The reader should in all cases consult Enterasys Networks to determine whether any such changes have been made.
  • Page 4 This product complies with the following: UL 60950, CSA C22.2 No. 60950, 73/23/EEC, EN 60950, IEC 60950. SEGURIDAD DEL PRODUCTO El producto de Enterasys cumple con lo siguiente: UL 60950, CSA C22.2 No. 60950, 73/23/EEC, EN 60950, IEC 60950. PRODUKTSICHERHEIT Dieses Produkt entspricht den folgenden Richtlinien: UL 60950, CSA C22.2 No.
  • Page 5 EN 61000-3-3, EN 55024, AS/NZS CISPR 22, VCCI V-3. COMPATIBILIDAD ELECTROMÁGNETICA (EMC) Este producto de Enterasys cumple con lo siguiente: 47 CFR Partes 2 y 15, CSA C108.8, 89/336/EEC, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 22, VCCI V-3.
  • Page 6 Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC EN 55022 EN 55024 EC Directive 73/23/EEC EN 60950 Equipment Type/Environment: Networking Equipment, for use in a Commercial or Light Industrial Environment. Enterasys Networks, Inc. declares that the equipment packaged with this notice conforms to the above directives.
  • Page 7 CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between the end user (“You”) and Enterasys Networks, Inc. on behalf of itself and its Affiliates (as hereinafter defined) (“Enterasys”) that sets forth Your rights and obligations with respect to the Enterasys software program/firmware installed on the Enterasys product (including any accompanying documentation, hardware or media) (“Program”) in the package and prevails over any additional, conflicting or...
  • Page 8 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Enterasys and/or its suppliers. For Department of Defense units, the Program is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.
  • Page 9 Enterasys and, accordingly, You hereby agree to maintain complete books, records and accounts showing (i) license fees due and paid, and (ii) the use, copying and deployment of the Program. You also grant to Enterasys and its authorized representatives, upon reasonable notice, the right to audit and examine during Your normal business hours,...

  • Page 11: Table Of Contents

    Contents Figures ............................xi Tables.............................xii ABOUT THIS GUIDE Using This Guide......................xiii Structure of This Guide ....................xiii Using the Matrix N7 7C107 Chassis Series Manual Set..........xiv Document Conventions....................xiv INTRODUCTION Overview ......................1-1 Features ......................1-3 Getting Help ....................1-5 INSTALLATION REQUIREMENTS AND GUIDELINES Site Guidelines ....................
  • Page 12 SPECIFICATIONS AND REGULATORY COMPLIANCE Physical Specifications..................1-1 Power Supply Requirements................1-2 Environmental Requirements................1-2 Regulatory Compliance................... 1-2 Contents...

  • Page 13: Figures

    Figures Figure Page The Matrix N7 7C107 Chassis with Redundant Power Supplies ........1-2 6C207-3 Power Supply LEDs ..................2-3 Fan Tray LED ........................2-4 Unpacking the Matrix N7 Chassis ................... 3-3 Chassis Bottom, Rubber Feet Placement ............... 3-5 Installing the Cable Management Bar ................3-6 Shelf Installation ......................

  • Page 14: Tables

    Tables Table Page Power Supply (PS) LED Status Definitions..............2-3 Fan Tray LED States and Their Definitions ..............2-4 Tables...

  • Page 15: About This Guide

    Matrix N7 7C107 chassis. A general working knowledge of data communications networks is helpful when setting up the Matrix N7 7C107 chassis. NOTE: In this guide, the Matrix N7 7C107 chassis is also referred to as the Matrix N7 chassis. STRUCTURE OF THIS GUIDE...

  • Page 16: Using The Matrix N7 7C107 Chassis Series Manual Set

    Using the Matrix N7 7C107 Chassis Series Manual Set USING THE MATRIX N7 7C107 CHASSIS SERIES MANUAL SET Separate manuals have been developed for the 7xxxxx series DFE modules that can be installed in the Matrix N7 chassis. NOTE: The Matrix N7 chassis supports the DFE (Distributed Forwarding Engine) 7xxxxx series of modules and does not support the older 6x1xx, 6x2xx, and 6x3xx series of modules.
  • Page 17 Document Conventions ELECTRICAL HAZARD: Warns against an action that could result in personal injury or death due to an electrical hazard. RIESGO ELECTRICO: Advierte contra una acción que pudiera resultar en lesión corporal o la muerte debido a un riesgo eléctrico. ELEKTRISCHER GEFAHRENHINWEIS: Warnung vor sämtlichen Handlungen, die zu Verletzung von Personen oder Todesfällen –...
  • Page 18 Document Conventions About This Guide...

  • Page 19: Introduction

    Introduction This chapter provides an overview of the Matrix N7 chassis and its features. Also covered in this chapter are the instructions on how to obtain additional help from Enterasys Networks if needed. OVERVIEW The Matrix N7 chassis design provides seven slots for a new advanced generation of modules, the Matrix DFE series modules.
  • Page 20 Overview Figure 1-1 The Matrix N7 7C107 Chassis with Redundant Power Supplies Á À  LINE 2: LINE 2: 100-125V~12A 100-125V~12A 200-240V~6A 200-240V~6A 50/60Hz 50/60Hz POWER POWER LINE 1: LINE 1: 100-125V~10A 100-125V~10A 200-240V~5A 200-240V~5A 50/60Hz 50/60Hz à ➀ ➂...

  • Page 21: Features

    Features FEATURES The following provides an overview of the chassis features. NOTE: The Matrix N7 chassis supports the DFE (Distributed Forwarding Engine) 7xxxxx series of modules and does not support the older 6x1xx, 6x2xx, and 6x3xx series of modules. Matrix N7 Chassis Modules The Matrix N7 chassis has seven slots for the new Matrix DFE series of modules.

  • Page 22: Power Supply Replacement

    Features Power Supply Status via Management The Matrix N7 chassis power supplies report information to the DFE modules installed in the chassis regarding their present operating status as well as the fan tray status. This information includes the following: • Power Supply ID (PS1, PS2) •...

  • Page 23: Getting Help

    Matrix N7 chassis can then be slid onto the shelf into place and then fastened to the chassis. Refer Section 2.1 for requirements on ventilation and cooling. GETTING HELP For additional support related to the modules or this document, contact Enterasys Networks using one of the following methods: World Wide Web http://www.enterasys.com/support...
  • Page 24 Getting Help Introduction...

  • Page 25: Installation Requirements And Guidelines

    To install the Matrix N7 chassis as a rack mounted unit, care must be taken to ensure that the rack used will support the unit and that the rack remains stable. • The 6C207-3 ac power supplies for the Matrix N7 7C107 chassis require two three-pronged power receptacles capable of delivering the current and voltage specified in Section A.2.

  • Page 26: Configuration Guidelines

    Configuration Guidelines • Ambient temperature at the installation site must be maintained between 5° and 40°C (41° to 104°F). Temperature changes must be maintained within 10°C (18°F) per hour. CONFIGURATION GUIDELINES The Matrix N7 chassis has seven slots that accept DFE modules. The slots are numbered 1 to 7 beginning with the leftmost slot.
  • Page 27 LANVIEW LEDs Figure 2-1 6C207-3 Power Supply LEDs Á À LINE 2: 100-125V~12A 200-240V~6A 50/60Hz POWER LINE 1: 100-125V~10A 200-240V~5A 50/60Hz ➀ ➁ POWER LED FAN LED Table 2-1 Power Supply (PS) LED Status Definitions Condition Load PS1 LEDs PS2 LEDs POWER POWER Amber...

  • Page 28: Fan Tray Led

    LANVIEW LEDs 2.3.2 Fan Tray LED ➀ Refer to Figure 2-2 for the location of the fan tray LED Table 2-2 describes the different states of the fan tray LED. Figure 2-2 Fan Tray LED À ➀ Fan tray LED Table 2-2 Fan Tray LED States and Their Definitions LED Color Status...

  • Page 29: Matrix N7 Chassis Setup

    Matrix N7 Chassis Setup This chapter contains instructions on setting up the Matrix N7 chassis. Equipment needed: • Phillips screwdriver • Flat blade screwdriver ELECTRICAL HAZARD: Only qualified personnel should install or service this unit. RIESGO ELÉCTRICO: Nada mas personal capacitado debe de instalar o darle servicio a esta unida.
  • Page 30 Unpacking the Matrix N7 Chassis NOTE: The rear shipping bracket is also the shelf used to mount the chassis in an equipment rack. Instructions for installing the shelf into the rack are provided in Section 3.2.3.1. 4. Remove and save the four screws fastening the rear shipping bracket/shelf to the skid. Remove the rear shipping bracket/shelf from the skid and set aside for later installation in the rack.
  • Page 31 Unpacking the Matrix N7 Chassis Figure 3-1 Unpacking the Matrix N7 Chassis Ã Ä Ã Â Å Æ Á Å Å Ç È Ç À Ç Ç É Matrix N7 Chassis Setup...

  • Page 32: Setting Up The Matrix N7 Chassis

    Setting Up the Matrix N7 Chassis SETTING UP THE MATRIX N7 CHASSIS The following sections describe the procedures that must be followed to complete the installation of the Matrix N7 chassis. 3.2.1 Order of Installation Once a suitable site has been chosen, the Matrix N7 chassis can be installed as a freestanding or rack-mounted unit.
  • Page 33 Setting Up the Matrix N7 Chassis 3.2.2.1 Installing the Rubber Feet To install the rubber feet, see Figure 3-2 and proceed as follows: ➀ 1. Place the chassis on a sturdy flat surface to access the bottom of the chassis 2.

  • Page 34: Installing The Cable Management Bar

    Setting Up the Matrix N7 Chassis 3.2.2.2 Installing the Cable Management Bar Cables can be attached along the cable management bar using cable ties to ensure that the cables are not accidentally loosened or disconnected from the chassis during operation. To install the cable management bar, see Figure 3-3 and proceed as follows:...

  • Page 35: Rack Mounting The Matrix N7 Chassis

    Setting Up the Matrix N7 Chassis 3.2.3 Rack Mounting the Matrix N7 Chassis The Matrix N7 chassis can be mounted in a standard 48.26-centimeter (19-inch) equipment rack. To rack mount the chassis into a rack you need to • allow at least 60 centimeters (24 inches) of clearance in front of the rack for chassis installation, •...
  • Page 36 Setting Up the Matrix N7 Chassis Figure 3-4 Shelf Installation 3.2.3.2 Installing the Matrix N7 Chassis CAUTION: Read Chapter 2 before completing the following procedure to ensure that all installation guidelines are met. To install the Matrix N7 chassis, proceed as follows: WARNING: To help prevent personal injury, at least two people are required to lift the chassis into the rack.
  • Page 37 Setting Up the Matrix N7 Chassis Figure 3-5 Rack Mounting the Matrix N7 Chassis À À LINE 2: LINE 2: 100-125V~12A 100-125V~12A 200-240V~6A 200-240V~6A 50/60Hz 50/60Hz POWER POWER LINE 1: LINE 1: 100-125V~10A 100-125V~10A 200-240V~5A 200-240V~5A 50/60Hz 50/60Hz ➀ Rack mounting screws (5 per side) Matrix N7 Chassis Setup...

  • Page 38: Installing A Power Supply

    Setting Up the Matrix N7 Chassis 3.2.3.3 Attaching the Electrostatic Discharge Wrist Strap The Electrostatic Discharge (ESD) wrist strap must be attached before handling the power supplies, fan tray, and modules used in the Matrix N7 chassis. In addition, observe all precautions when handling these modules to prevent damage from electrostatic discharge.
  • Page 39 3. Examine the power supply carefully, checking for damage. If any damage is noted, DO NOT install the power supply. Contact Enterasys Networks immediately. ➀ 4. Slide the power supply into the slot labeled PS1 as follows: ➁...

  • Page 40: Removing A Power Supply

    Setting Up the Matrix N7 Chassis Figure 3-7 Installing the Power Supply Module(s) à LINE 2: 100-125V~12A 200-240V~6A 50/60Hz POWER Á Ä LINE 1: À 100-125V~10A 200-240V~5A 50/60Hz  ➀ ➃ Mandatory power supply installed in slot PS1 Slotted screw ➁...
  • Page 41 Setting Up the Matrix N7 Chassis ➁ ➂ 3. Unplug the power cords from each dedicated 15A/120 Vac outlet ➁ ➃ ➄ 4. Unplug the power cord from the ac power connectors of the power supply ➅ ➄ ➆ 5. Unscrew the captive slotted-head screw to release the power supply from the chassis ➄...

  • Page 42: Powering Up A Matrix N7 Chassis With Power Supplies

    Powering Up a Matrix N7 Chassis with Power Supplies POWERING UP A MATRIX N7 CHASSIS WITH POWER SUPPLIES To power up a Matrix N7 chassis with ac power supplies, refer to Figure 3-9 and proceed as follows: NOTE: If two power supplies are installed, repeat the following procedure for each supply.

  • Page 43: Removing And Reinstalling The Fan Tray

    LEDs (Power and Fan), refer to Section 2.3. If you experience any problems with this installation, contact Enterasys Networks for assistance. REMOVING AND REINSTALLING THE FAN TRAY The Matrix N7 chassis is equipped at the factory with a removable fan tray that allows for easy periodic cleaning and/or replacement if a problem occurs with fan operation.

  • Page 44: Reinstalling The Fan Tray

    Removing and Reinstalling the Fan Tray Figure 3-10 Removing the Fan Tray LINE 2: LINE 2: 100-125V~12A 100-125V~12A 200-240V~6A 200-240V~6A 50/60Hz 50/60Hz POWER POWER LINE 1: LINE 1: 100-125V~10A 100-125V~10A 200-240V~5A 200-240V~5A 50/60Hz 50/60Hz À À ➀ Slotted screw (2) 3.4.2 Reinstalling the Fan Tray To reinstall the fan tray, refer to...
  • Page 45 Removing and Reinstalling the Fan Tray Figure 3-11 Reinstalling the Fan Tray LINE 2: LINE 2: 100-125V~12A 100-125V~12A 200-240V~6A 200-240V~6A 50/60Hz 50/60Hz POWER POWER LINE 1: LINE 1: 100-125V~10A 100-125V~10A 200-240V~5A 200-240V~5A 50/60Hz 50/60Hz À À ➀ Slotted screw (2) ➀...
  • Page 46 Removing and Reinstalling the Fan Tray 3-18 Matrix N7 Chassis Setup...

  • Page 47: A.1 Physical Specifications

    Networks reserves the right to change the specifications at any time without notice. PHYSICAL SPECIFICATIONS The physical specifications for the Matrix N7 7C107 chassis, the 6C207-3 power supply module, and the 6C407 fan tray module are as follows: 7C107 Chassis Dimensions: 77.47 H x 44.04 W x 36.83 D (cm)

  • Page 48: A.2 Power Supply Requirements

    Power Supply Requirements POWER SUPPLY REQUIREMENTS The requirements for the 6C207-3 ac power supply modules are as follows: Input Frequency: 50 to 60 Hz Input: (Voltage/Current): 2 x 100 to 125 Vac: 10.5 A 2 x 200 to 240 Vac: 5.5 A Input Power: 1600 W ENVIRONMENTAL REQUIREMENTS...
