Setting Up the Enterasys Matrix N7 Chassis
3.2.3.1 Installing the Shelf
To install the shelf, proceed as follows:
Warning: If the rack is not secured to the floor, it is recommended that you install the
chassis in the bottom half of the rack. This helps prevent the rack from being top heavy.
Advertencia: Si el rack no esta asegurado al piso, es recomendable que instales el
chasis en la parte de abajo del rack.Esto ayuda a prevenir que el rack este demasiado
pesado en la parte superior.
Warnhinweis: Falls das Rack nicht mit Schrauben am Boden gesichert wird, sollte das
Chassis in der unteren Hälfte des Racks installiert werden, um ein kippen des Racks zu
vermeiden.
1. Keeping the above Caution note in mind, locate the position on the rack where you will install
the shelf. The chassis requires 77.47 centimeters (30.5 inches) of vertical spacing.
2. Align the four holes in the ears of the shelf with those in the rack (see
the shelf to the rack using four of the screws supplied with the rack.
3. After installing the shelf, proceed to install the Enterasys Matrix N7 chassis as described in
Section 3.2.3.2.

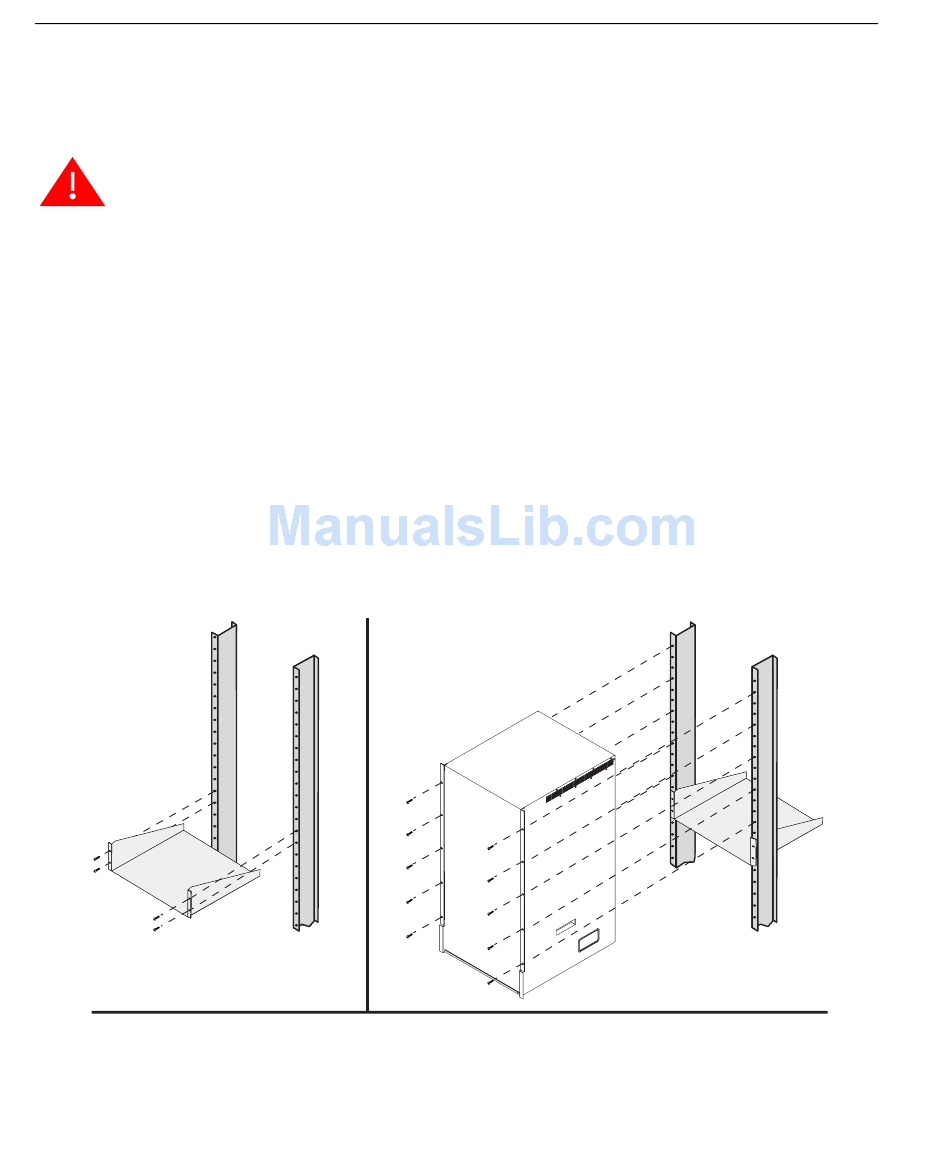

Figure 3-4 Shelf Installation
3-8 Enterasys Matrix N7 Chassis Setup
A
Figure 3-4, A), then fasten
B
