Setting Up the Matrix N7 Chassis
3.2.2.2

Installing the Cable Management Bar

Cables can be attached along the cable management bar using cable ties to ensure that the cables
are not accidentally loosened or disconnected from the chassis during operation. To install the
cable management bar, see
1. Remove the cable management bar from the shipping box. Ensure that there are four screws
inside the bag with the cable management bar.
2. Line up the two holes on each side of the cable management bar
on the bottom of the Matrix N7 chassis
Figure 3-3.
3. Use a Phillips screwdriver and the four screws supplied
➀
management bar

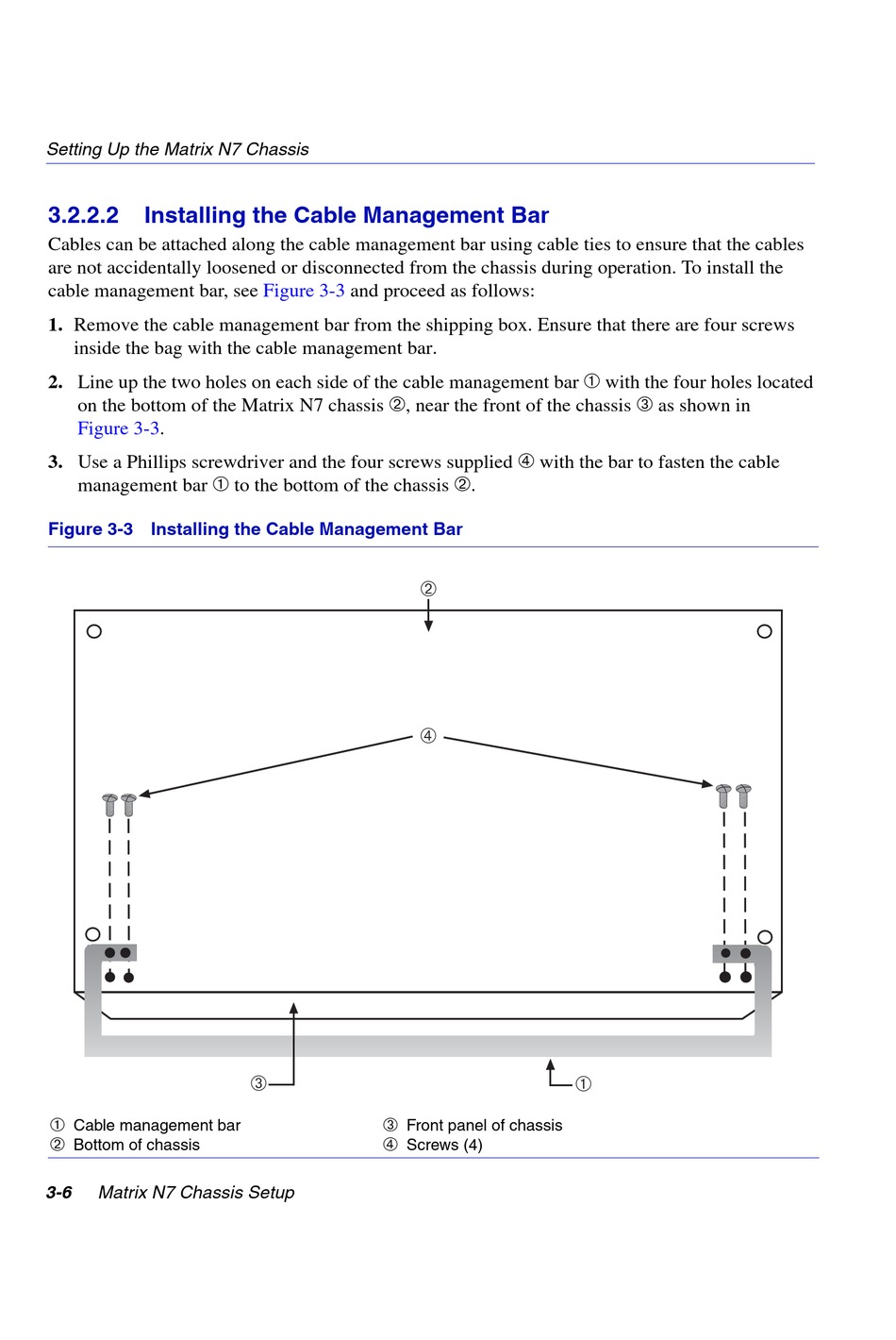

Figure 3-3 Installing the Cable Management Bar
➀
Cable management bar
➁
Bottom of chassis
3-6 Matrix N7 Chassis Setup
Figure 3-3 and proceed as follows:
➁
to the bottom of the chassis
Â
➂
➃
, near the front of the chassis
➃
with the bar to fasten the cable
➁
.
Á
Ã
Front panel of chassis
Screws (4)
➀
with the four holes located
➂
as shown in
À
