24
Replacing convertible notebook components

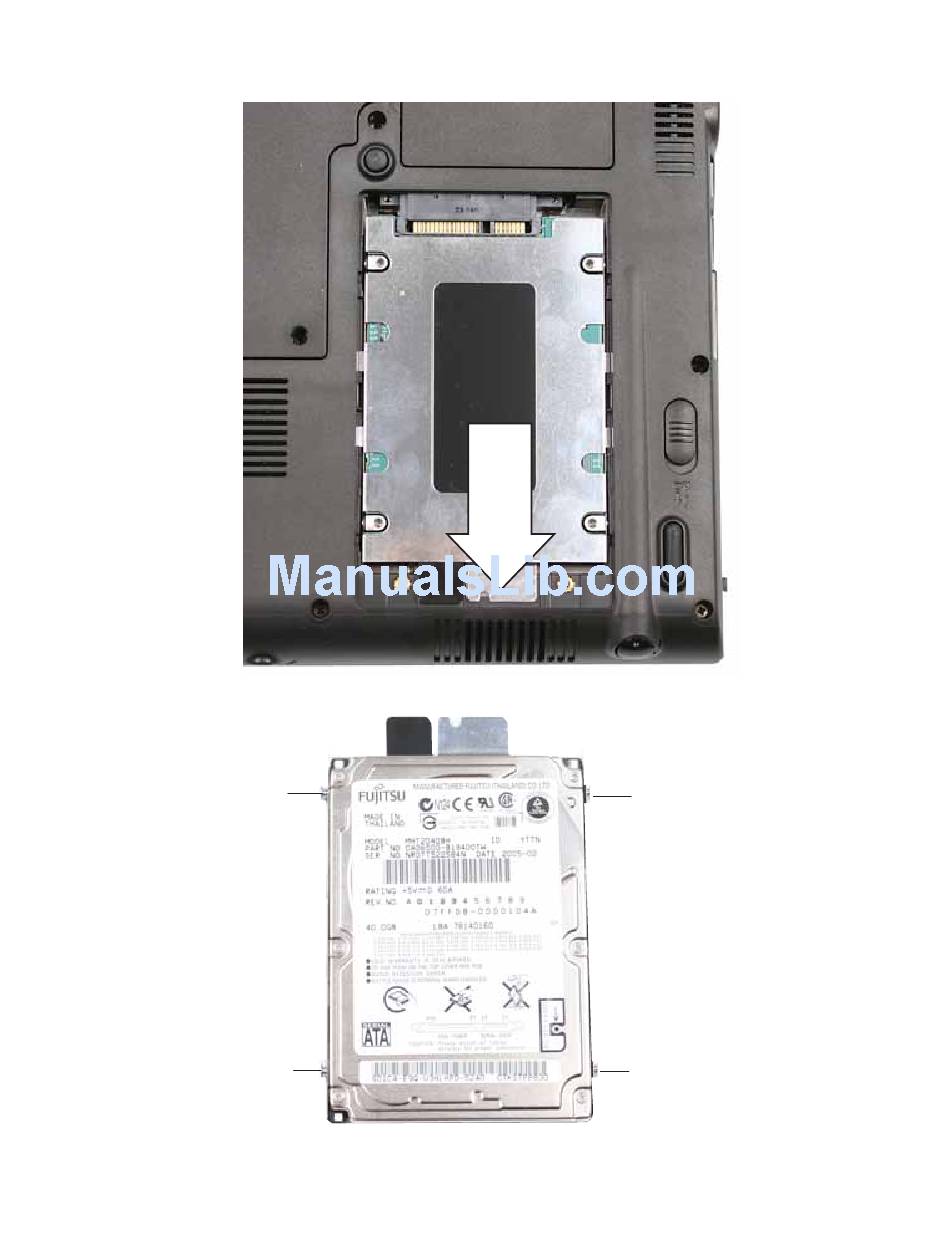

Slide the old hard drive kit out of the convertible notebook.
Remove the four screws that secure the hard drive to the hard drive kit bracket.
Screw
Screw
Insert the new drive into the bracket, label side up, so the screw holes line up.
Replace the four screws that were removed in
Screw
Screw
Step
6.
