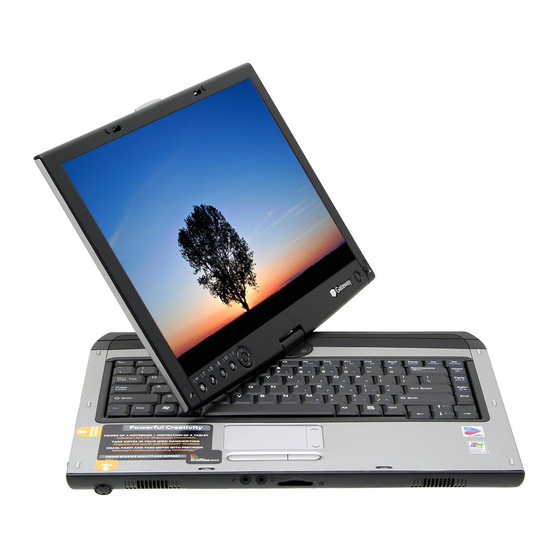

Gateway Convertible Service Manual

Convertible notebook
Hide thumbs Also See for Convertible:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Setup Manual
GATEWAY CONVERTIBLE NOTEBOOK
SERVICEGUIDE
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Convertible and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gateway Convertible

Summary of Contents for Gateway Convertible

  • Page 1 GATEWAY CONVERTIBLE NOTEBOOK SERVICEGUIDE ®...

  • Page 3: Table Of Contents

    Identifying the convertible notebook model ........2...
  • Page 4 Contents...

  • Page 5: Replacing Convertible Notebook Components

    Replacing convertible notebook components • Identifying the convertible notebook model • Identifying components • Preparing your work space • Preventing static electricity discharge • Preparing the convertible notebook • Replacing a bay module • Adding or replacing memory modules •...

  • Page 6: Identifying The Convertible Notebook Model

    Caution It is important that you use the correct service guide for the convertible notebook. Failure to follow the approved tasks for the convertible notebook model may result in damage to the convertible notebook. The label on the bottom of the convertible notebook contains information that identifies the convertible notebook model and its features.

  • Page 7: Identifying Components

    Identifying components Use this chart to identify the main components of the convertible notebook. For a complete list of replaceable parts, see “Contents” on page LCD panel assembly (see page Keyboard cover (see page Keyboard (see page Cooling assembly...

  • Page 8: Preventing Static Electricity Discharge

    • As you remove components and screws, lay them toward the rear of your work surface (behind the convertible notebook) or far enough to the side that your arms do not accidentally brush them onto the floor. •...

  • Page 9: Preparing The Convertible Notebook

    Make sure the LCD panel is in notebook mode, then close the LCD panel. Disconnect your convertible notebook from the optional port replicator. Disconnect the AC adapter, modem cable, and network cable, if connected to the convertible notebook. Disconnect all peripheral devices connected to the convertible notebook and remove any PC Cards and memory cards.
  • Page 10 Replacing convertible notebook components Removing the optional secondary battery To remove the optional secondary battery: Remove the modular bay lock screw (if one is present), then slide and hold the module bay latch. The battery may move out slightly. Modular bay lock screw...

  • Page 11: Replacing A Bay Module

    To replace a bay module: If you are removing a drive, make sure that there is no disc in it. Complete the steps in “Preparing the convertible notebook” on page Turn the convertible notebook over so the bottom is facing up.
  • Page 12 Replacing convertible notebook components Remove the modular bay lock screw (if one is present), then slide and hold the module bay latch. The drive may move out slightly. Modular bay lock screw Slide the drive out. Firmly push the new drive straight into the bay until the latch clicks into place.

  • Page 13: Adding Or Replacing Memory Modules

    Adding or replacing memory modules Important Use only memory modules designed for this Gateway convertible notebook. Tools you need to complete this task: Phillips #0 screwdriver Memory bay To add or replace memory modules: Complete the steps in “Preparing the convertible notebook” on page Loosen the screws that secure the memory cover.
  • Page 14 Replacing convertible notebook components If you are removing a memory module, gently press outward on the clip at each end of the module until the module tilts upward. Clip Clip Pull the module out of the slot. Hold the new or replacement module at a 30-degree angle and press it into the empty memory slot.

  • Page 15: Replacing The Cooling Assembly

    • X-23-7762 thermal grease Cooling assembly To replace the cooling assembly: Complete the steps in “Preparing the convertible notebook” on page Loosen the screws that secure the cooling assembly bay cover. (These screws cannot be removed.) Screw Screw Screw Screw...
  • Page 16 Replacing convertible notebook components Remove the cooling assembly bay cover. Be careful not to break off the tabs located on the bottom of the cover. If the cover does not remove easily, wiggle the cover to loosen it. Loosen the four screws that secure the cooling assembly to the system board. (These screws cannot be removed.) Use the numbers stamped in the metal next to each screw and loosen...
  • Page 17 At the same time as you lift, move the cooling assembly away from the side of the convertible notebook. Remove any thermal grease residue from the processor using a soft cloth and isopropyl alcohol. Place new thermal grease on the processor. Use only enough to cover the CPU die.

  • Page 18: Replacing The Processor

    • X-23-7762 thermal grease To replace the processor: Complete the steps in “Preparing the convertible notebook” on page Remove the cooling assembly by following the steps in “Replacing the cooling assembly” on page Use a flat-blade screwdriver to turn the processor lock screw 1/4-turn counter-clockwise.
  • Page 19 Remove the old processor from the system board. Install the new processor onto the system board making sure that Pin 1 on the processor (indicated by the silk-screened arrow on the corner of the processor) aligns with Pin 1 on the processor socket (indicated by the absence of a pin hole in the processor socket), then use a flat-blade screwdriver to turn the processor lock screw 1/4-turn clockwise.

  • Page 20: Replacing The Ieee 802.11 Wireless Card

    Tools you need to complete this task: Phillips #0 screwdriver Screws removed during this task: 2 chrome 2.0*3.0 (IEEE 802.11 wireless card) Select models only Wireless bay To replace the IEEE 802.11 wireless card: Complete the steps in “Preparing the convertible notebook” on page...
  • Page 21 Important The number of antenna cables varies by the type of wireless network used by the convertible notebook. IEEE 802.11N cards typically have three antenna cables. Other types of wireless network cards typically have two antenna cables. Some convertible notebook models do not support three antenna cables.
  • Page 22 Replacing convertible notebook components If the wireless card is held by clips, press outward on the clip at each side of the card until the card tilts upward. Clip Clip -OR- If the wireless card is held by screws, remove the screws.
  • Page 23 Pull the card out of the slot. Hold the new card at a 30-degree angle and press it into the empty slot. This card is keyed so it can only be inserted in one direction. If the card does not fit, make sure that the notch in the card lines up with the tab in the card slot.

  • Page 24: Replacing The Cmos Battery

    Make sure the positive (+) side of the new battery is facing up, then press the battery into the socket until it snaps into place. If the convertible notebook has wireless networking built in, replace the wireless card by following the steps in “Replacing the IEEE 802.11 wireless card”...

  • Page 25: Replacing The Hard Drive

    Tools you need to complete this task: Phillips #0 screwdriver Screws removed during this task: 1 chrome 2.5*5.0 (Hard drive) 4 chrome 3.0*0.5+3.5I (Hard drive bracket) Hard drive To replace the hard drive: Complete the steps in “Preparing the convertible notebook” on page...
  • Page 26 Replacing convertible notebook components Loosen the screws that secure the hard drive bay cover. (These screws cannot be removed.) Screw Screw Remove the hard drive bay cover. Be careful not to break off the tabs located on the bottom of the cover. If the cover does not remove easily, wiggle the cover to loosen it.
  • Page 27 Remove the hard drive screw. Screw...
  • Page 28 Replacing convertible notebook components Slide the old hard drive kit out of the convertible notebook. Remove the four screws that secure the hard drive to the hard drive kit bracket. Screw Screw Screw Screw Insert the new drive into the bracket, label side up, so the screw holes line up.
  • Page 29 Slide the new hard drive into your convertible notebook, then replace the screw that was removed in Step Replace the hard drive bay cover, then tighten the cover screws.

  • Page 30: Replacing The Hinge Covers

    Complete the steps in “Preparing the convertible notebook” on page Turn the convertible notebook over so the top is facing up. Insert the small flat-blade screwdriver or non-marring tool under the bottom of the back hinge cover, then carefully pry it up.

  • Page 31: Replacing The Keyboard Cover

    You will hear small snapping sounds as the cover comes away from the convertible notebook. Be careful not to break off the tabs located on the bottom of the cover.

  • Page 32: Replacing The Keyboard

    Screws removed during this task: 2 black 2.5*8.0 (Keyboard) To replace the keyboard: Complete the steps in “Preparing the convertible notebook” on page Remove the two bottom keyboard screws. The screw holes are marked with a K. Screw Screw Remove the keyboard cover by following the steps in “Replacing the keyboard cover”...
  • Page 33 Lift the back edge of the keyboard slightly, then slowly slide it toward the LCD panel to release the keyboard retaining tabs located on the front edge of the keyboard. Carefully rotate the keyboard toward you so it lies keys-down on top of your convertible notebook. Be careful not to damage the LCD panel.
  • Page 34 Be careful to not damage the LCD panel. Replace the keyboard cover by following the steps in “Replacing the keyboard cover” on page Close the LCD panel. Turn your convertible notebook over so the bottom is facing up. Replace the screws removed in Step...

  • Page 35: Replacing The Inverter

    “Replacing the keyboard cover” on page Open the LCD panel to the fully open position. Remove the rubber inserts from the front of the LCD panel assembly. Important The number of rubber inserts varies by convertible notebook model. Insert Insert Insert Insert...
  • Page 36 Replacing convertible notebook components Remove the screws from the front of the LCD panel assembly. Important The number of screws varies by convertible notebook model. Screw Screw Screw Screw Screw Screw Screw Screw Carefully separate the front and back of the LCD panel assembly.
  • Page 37 Align the new inverter with the screw hole, replace the screw that was removed in Step then reconnect the cables. Press the LCD panel front and back together. Press the two halves together in several places until they click in place. You should find no loose spots or spots where the two halves do not meet.

  • Page 38: Replacing The Power Button Board

    “Replacing the keyboard cover” on page Open the LCD panel to the fully open position. Remove the rubber inserts from the front of the LCD panel assembly. Important The number of rubber inserts varies by convertible notebook model. Insert Insert Insert Insert...
  • Page 39 Remove the screws from the front of the LCD panel assembly. Important The number of screws varies by convertible notebook model. Screw Screw Screw Screw Screw Screw Screw Screw Carefully separate the front and back of the LCD panel assembly.
  • Page 40 Replacing convertible notebook components Remove the two screws that connect the power button board to the front of the LCD panel assembly, then remove the board. Screw Screw Install the new power button board. Replace the screws that were removed in Step 8, then reconnect the cable.

  • Page 41: Replacing The Tablet Button Board

    “Replacing the keyboard cover” on page Open the LCD panel to the fully open position. Remove the rubber inserts from the front of the LCD panel assembly. Important The number of rubber inserts varies by convertible notebook model. Insert Insert Insert Insert...
  • Page 42 Replacing convertible notebook components Remove the screws from the front of the LCD panel assembly. Important The number of screws varies by convertible notebook model. Screw Screw Screw Screw Screw Screw Screw Screw Carefully separate the front and back of the LCD panel assembly.
  • Page 43 Remove the two screws that connect the tablet button board to the front of the LCD panel assembly, then remove the board. Screw Screw Install the new tablet button board. Replace the screws that were removed in Step 8, then reconnect the cable.

  • Page 44: Replacing The Lcd Assembly

    To replace the LCD assembly: Complete the steps in “Preparing the convertible notebook” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the screws on the bottom that secure the LCD panel hinge to the chassis.
  • Page 45 “Replacing the keyboard cover” on page Detach the three cables from the system board. Grasp the plastic tab carefully and pull to unplug the LCD video cable from the convertible notebook. Make sure you grasp the tab, not the cable. Caution The connector is fragile.
  • Page 46 Replacing convertible notebook components Lift the LCD panel assembly up and away from the convertible notebook. The LCD panel assembly is now completely detached from the convertible notebook. Place the new LCD panel assembly onto the convertible notebook, then replace the two hinge...

  • Page 47: Replacing The Lcd Panel Hinge

    To replace the LCD panel hinge: Complete the steps in “Preparing the convertible notebook” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hinge covers by following the steps in “Replacing the hinge covers”...
  • Page 48 Replacing convertible notebook components Remove the screws from the front of the LCD panel assembly. Important The number of screws varies by convertible notebook model. Screw Screw Screw Screw Screw Screw Screw Screw Carefully separate the front and back of the LCD panel assembly.
  • Page 49 Remove the four screws that secure the old hinge to the LCD panel assembly. Screws Screws Replace the new hinge onto the LCD panel assembly. Replace the screws removed in Step Feed the wiring back into the hinge. Start by feeding the wire that has the largest connector into the hinge. Then proceed to the wire that has the next smallest connector and so on.

  • Page 50: Replacing The Lcd Panel

    To replace the LCD panel: Complete the steps in “Preparing the convertible notebook” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hinge covers by following the steps in “Replacing the hinge covers”...
  • Page 51 Remove the screws connecting the LCD panel to the LCD lid. Screw Screw Screw Screw Remove the old LCD panel from the LCD lid. Place the new LCD panel into the LCD lid. Replace the screws removed in Step Feed the wiring back into the hinge.

  • Page 52: Replacing The Lcd Assembly Lid

    To replace the LCD assembly lid: Complete the steps in “Preparing the convertible notebook” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hinge covers by following the steps in “Replacing the hinge covers”...
  • Page 53 Remove the LCD panel hinge by following the instructions in “Replacing the LCD panel hinge” on page Remove the screws connecting the LCD panel to the old LCD lid. Screw Screw Screw Screw Remove the LCD panel from the old LCD lid.

  • Page 54: Replacing The Palm Rest

    Remove the bay module by following the steps in “Replacing a bay module” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hard drive by following the steps in “Replacing the hard drive”...
  • Page 55 Screws Screws Screws Screws Turn the convertible notebook over so the top is facing up. Flip the black touchpad connector clip up, then remove the cable. Be careful not to touch or damage any other components. Fingerprint reader connector Touchpad connector...
  • Page 56 Remove the screw from the top of the palm rest. Screw Starting on the right side, lift the palm rest assembly up and away from the convertible notebook. Be careful when pulling the palm rest assembly away from the bottom near the docking port.

  • Page 57: Replacing The Fingerprint Reader

    Remove the bay module by following the steps in “Replacing a bay module” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hard drive by following the steps in “Replacing the hard drive”...
  • Page 58 Clip Clip Remove the fingerprint reader from the convertible notebook. Place the new fingerprint reader into the convertible notebook in the same orientation as the old reader. Lay the clips on the fingerprint reader, then replace the screws removed in Step Plug the fingerprint reader cable into the fingerprint reader.
  • Page 59 Replace the hard drive by following the steps in “Replacing the hard drive” on page If the convertible notebook has wireless networking built in, plug the wireless antennas back in by following the steps in “Replacing the IEEE 802.11 wireless card” on page Replace the wireless bay cover by following the steps in “Replacing the IEEE 802.11 wireless...

  • Page 60: Replacing The Bluetooth Module

    Remove the bay module by following the steps in “Replacing a bay module” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hard drive by following the steps in “Replacing the hard drive”...
  • Page 61 Replace the hard drive by following the steps in “Replacing the hard drive” on page If the convertible notebook has wireless networking built in, plug the wireless antennas back in by following the steps in “Replacing the IEEE 802.11 wireless card” on page Replace the wireless bay cover by following the steps in “Replacing the IEEE 802.11 wireless...

  • Page 62: Replacing The System Board

    To replace the system board: Complete the steps in “Preparing the convertible notebook” on page Remove the bay module by following the instructions in “Replacing a bay module” on page Remove the memory from the old system board and install it on the new system board by following the instructions in “Adding or replacing memory modules”...
  • Page 63 Remove the cooling assembly by following the instructions in “Replacing the cooling assembly” on page If your new system board does not include a processor, remove the processor from the old system board and install it on the new system board by following the instructions in “Replacing the processor”...
  • Page 64 Replacing convertible notebook components Unplug the speakers from the system board (one connector). Speaker connector Unplug the Bluetooth module from the system board (one connector).
  • Page 65 “Replacing the TPM module (select models)” on page Place the new system board into the convertible notebook and reconnect all cables. Replace the system board screws in the holes on the top of the system board removed in Step Connect the Bluetooth module to the system board.
  • Page 66 Replace the cooling assembly by following the instructions in “Replacing the cooling assembly” on page If the convertible notebook has wireless networking built in, plug the wireless antennas back in by following the steps in “Replacing the IEEE 802.11 wireless card” on page Replace the wireless bay cover by following the steps in “Replacing the IEEE 802.11 wireless...

  • Page 67: Replacing The Modem

    Remove the bay module by following the instructions in “Replacing a bay module” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hard drive by following the instructions in “Replacing the hard drive”...
  • Page 68 Remove the system board by following the steps in “Replacing the system board” on page Turn the system board over so the bottom is facing up, then remove the screws that secure the modem to the convertible notebook. Screw Screw...
  • Page 69 Replace the hard drive by following the instructions in “Replacing the hard drive” on page If the convertible notebook has wireless networking built in, plug the wireless antennas back in by following the steps in “Replacing the IEEE 802.11 wireless card” on page Replace the wireless bay cover by following the steps in “Replacing the IEEE 802.11 wireless...

  • Page 70: Replacing The Tpm Module (Select Models)

    2 black 2.0*2.5 (TPM module) To replace the TPM module: Complete the steps in “Preparing the convertible notebook” on page Open the wireless bay by following the instructions in “Replacing the IEEE 802.11 wireless card” on page Remove the two screws that secure the TPM module to the system board.

  • Page 71: Replacing The Tpm Module (Select Models)

    Remove the bay module by following the instructions in “Replacing a bay module” on page If the convertible notebook has wireless networking built in, unplug the wireless antennas by following the steps in “Replacing the IEEE 802.11 wireless card” on page Remove the hard drive by following the instructions in “Replacing the hard drive”...
  • Page 72 Replace the hard drive by following the instructions in “Replacing the hard drive” on page If the convertible notebook has wireless networking built in, plug the wireless antennas back in by following the steps in “Replacing the IEEE 802.11 wireless card” on page Replace the wireless bay cover by following the steps in “Replacing the IEEE 802.11 wireless...
