Digi-3-Coder (Issue 1.2)
Digi-3-Coder Foil Sensor Instructions
M4 Cap Screw x 16 long
2mm Spacer (Part No. SPA 312082)
Standard 40mm width foil, fit the 2mm spacer above the mounting plate
The mounting plate fits into the pocket of the main plate. (Standard Printer)
When using 38mm width foil, you must position the 2mm spacer underneath
the mounting plate. Then refix the assembly to the printer body, using the M4
cap screw provided. This raises the sensor position by 2mm.
If other widths of foil are to be used in the Digi-3-Coder, you must contact
your local supplier for additional spacers and screws.
6 October 2005
Mounting Plate
Page 38

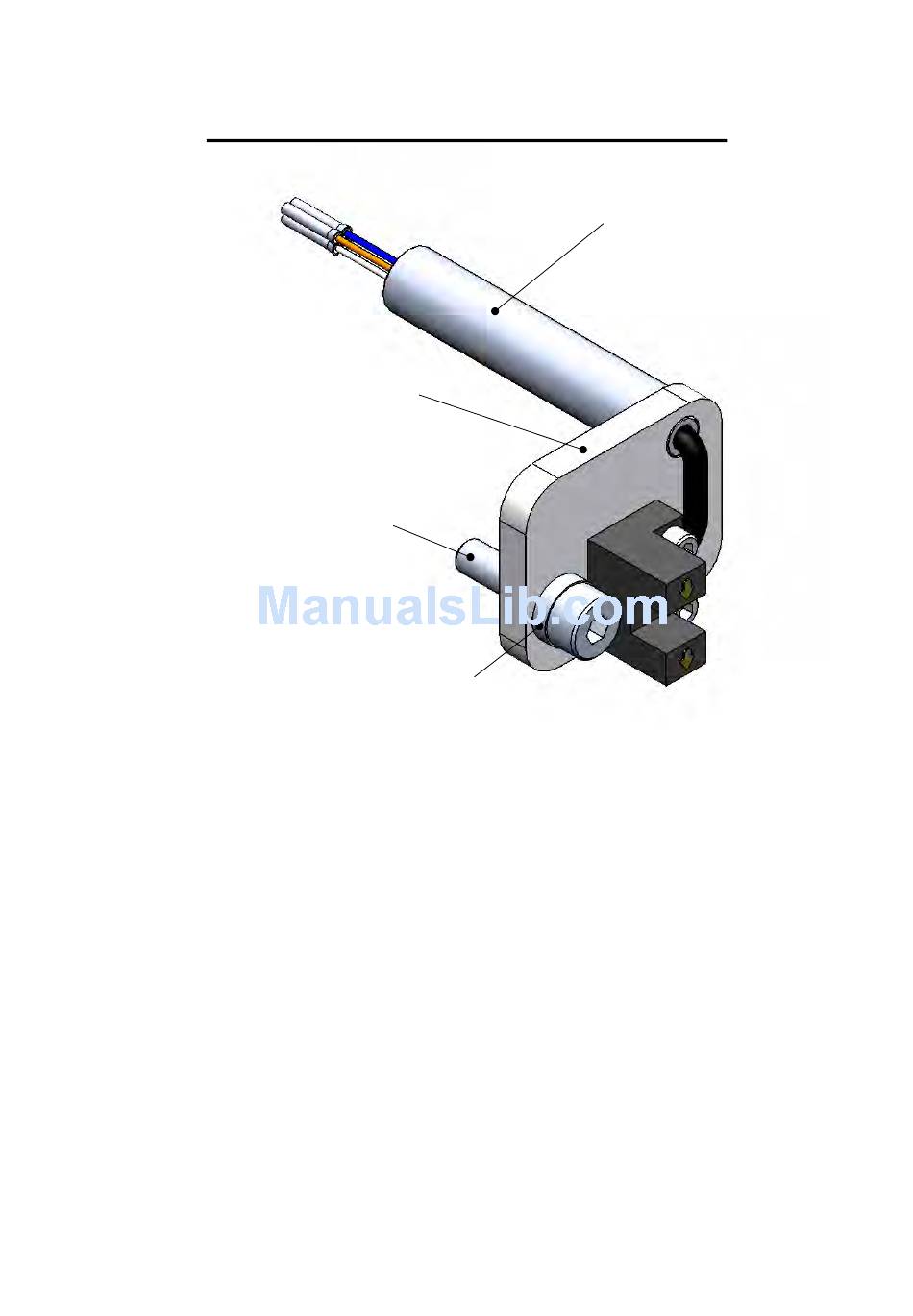

Foil Sensor Assembly
(Part No. SEN 312086)
.
