Fault And Print Relay Connections - Open Date Digi-3-Coder Operator Instructions Manual

Digi-3-Coder (Issue 1.2)
Digi-3-Coder Fault and Print Relay Connections
Linking the Fault and Print relays will achieve optimum security. If the Print switch is turned off,
or when any fault occurs the relays will change state. This will break the signal return
connection (High going Low) see below:-

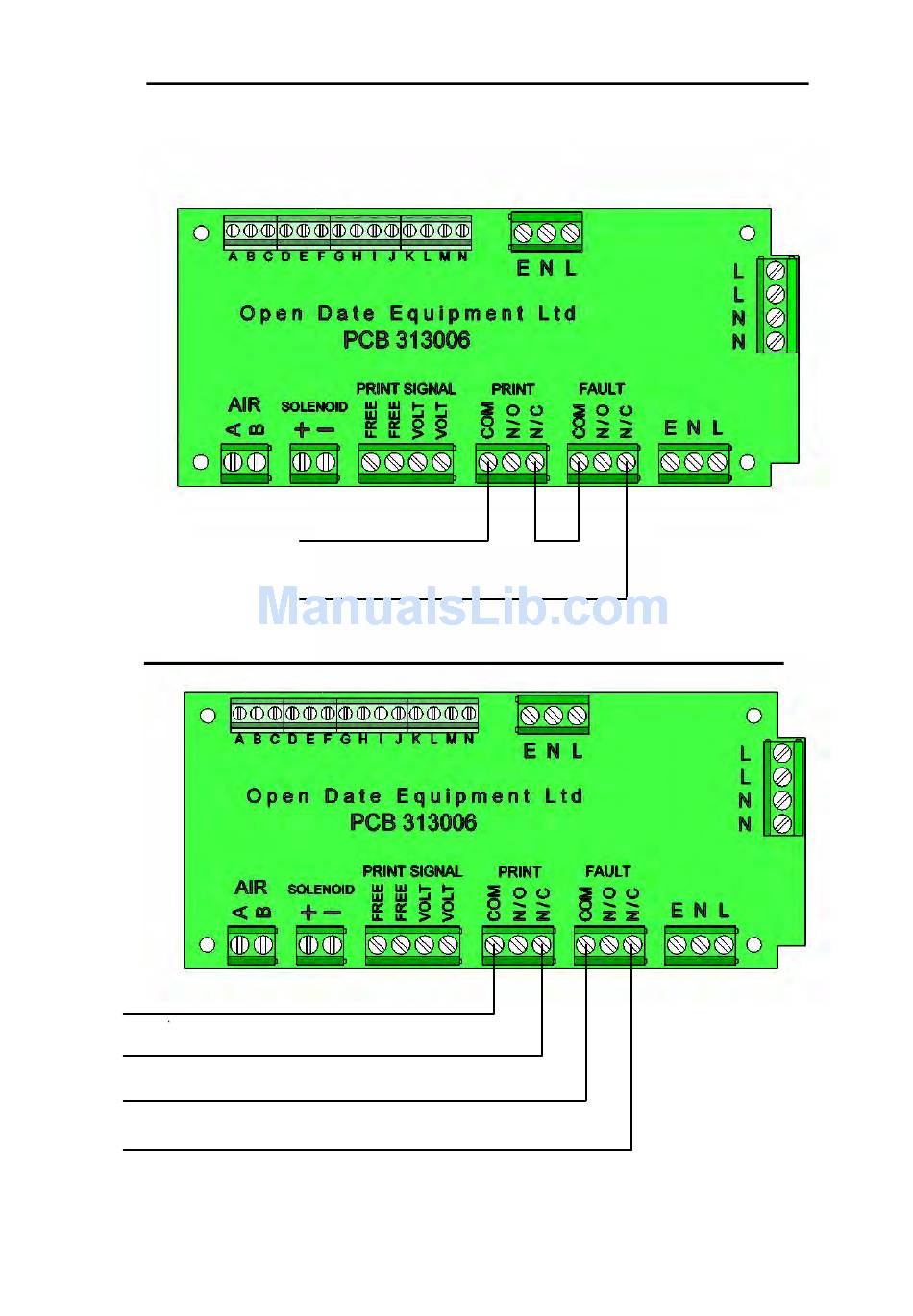

Digi-3-Coder Individual Relays & Connections
PRINT RELAY
FAULT RELAY
Both Relays are Rated at 24v DC, 1 amp maximum current.
6 October 2005
Max 24v DC (1 amp)
Signal Return
Max 24v DC (1 amp)
Signal Return
Max 24v DC (1 amp)
Signal Return
Link Wire
Page 10
