Digi-3-Coder (Issue 1.2)

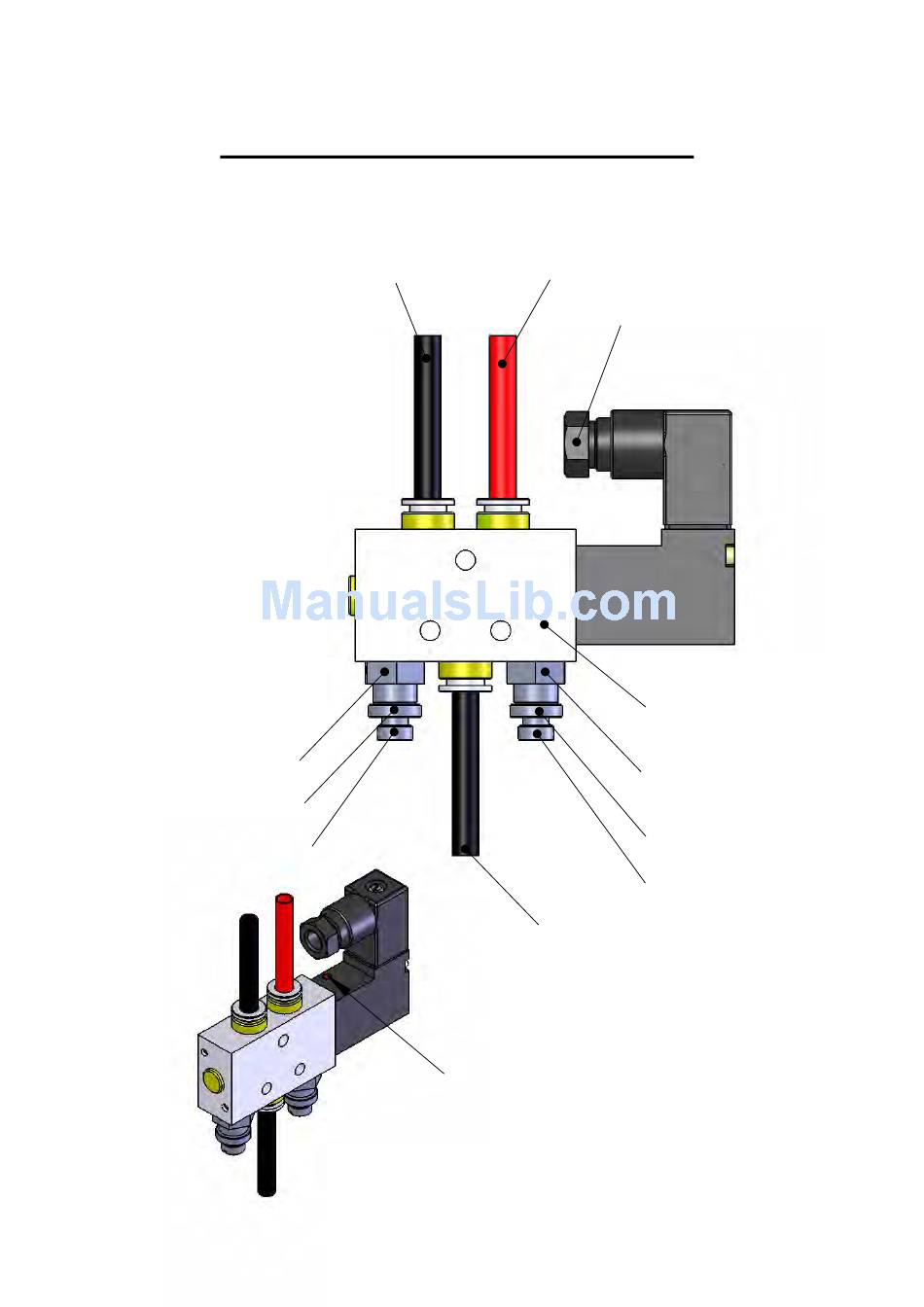

Digi-3-Coder Solenoid Valve Details
Voltage 24 Volt DC, 80mA Current normally
6mm Black Pipe to Printer
Air Flow Restrictor
(Forward Stroke)
Lock Nut
Adjusting Screw
6 October 2005
(Part No. VAL 312034 without fittings)
Manual Test Button
6mm Red Pipe to Printer
Electrical Connection Socket
(See page 24)
Solenoid Valve
Air Flow Restrictor
(Return Stroke)
Lock Nut
Adjusting Screw
Mains Air Pipe 6mm
(from Air Filter Regulator)
Must be clean & Dry Air
Presssure range 4.0 to 6.8 bar
Page 12
