Intel® NetStructure™ 470T and 470F Switches User Guide
Protocol-based VLAN
You configure a protocol-based VLAN by creating the VLAN and then
adding participating ports. The switch supports up to three protocol-based
VLANs: IP, IPX, and NetBEUI. However, each port can be a member of
only one VLAN; protocol-based VLANs cannot overlap.

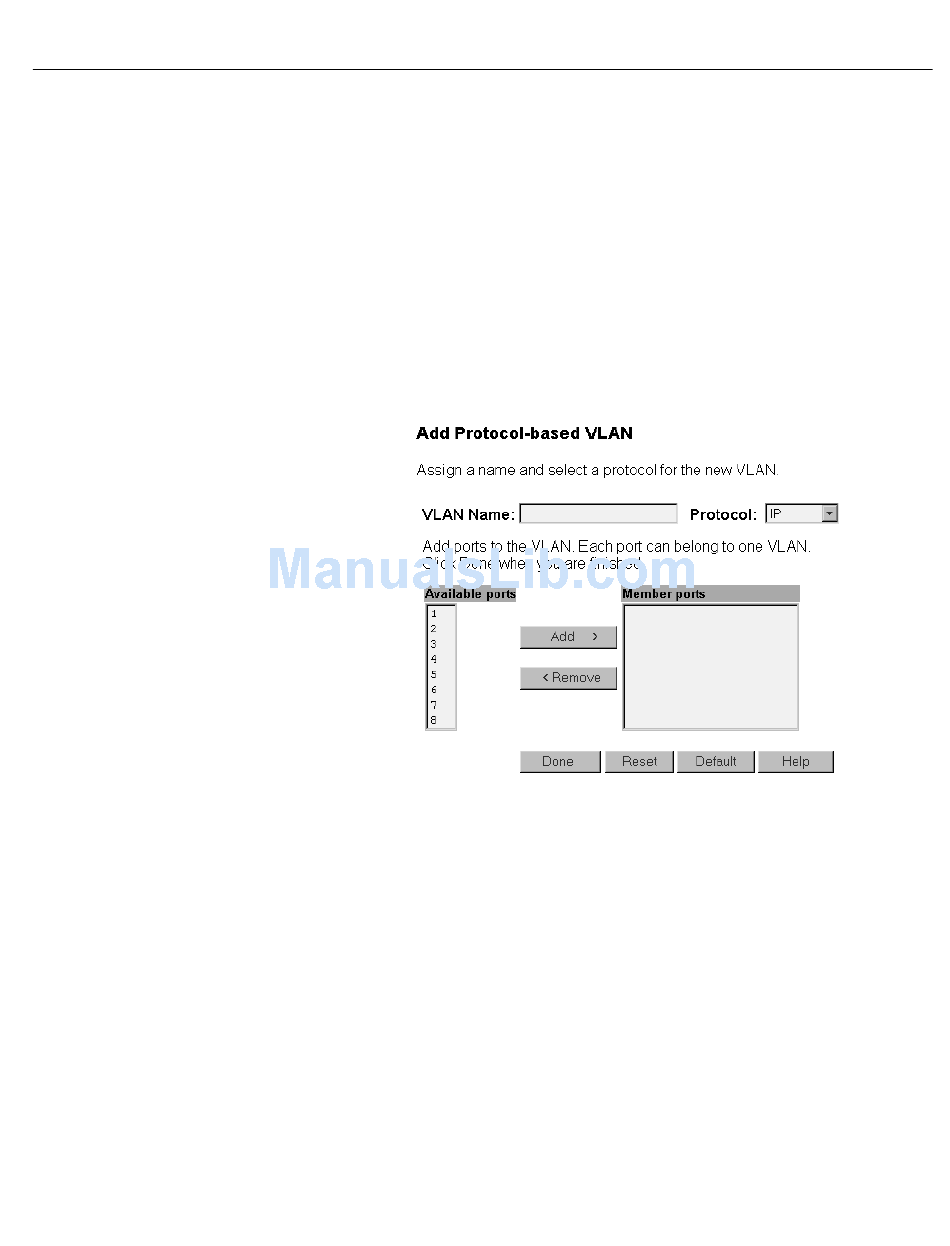

To configure a protocol-based VLAN
1 Click the Configure VLAN menu, and then click Protocol-based
VLAN.
2 Click Add to create a new VLAN, or select an existing VLAN and click
Edit to change its configuration.
3 If you are creating a new VLAN, type a name in the VLAN Name box
and select a protocol from the Protocol list.
4 In the Available Ports box, click a port to add to the VLAN, and then
click Add.
5 When you finish adding ports, click Done.
