C H A P T E R
Help text at the bottom of
the screen provides infor-
mation on the selected
item.
5 Using Local Management

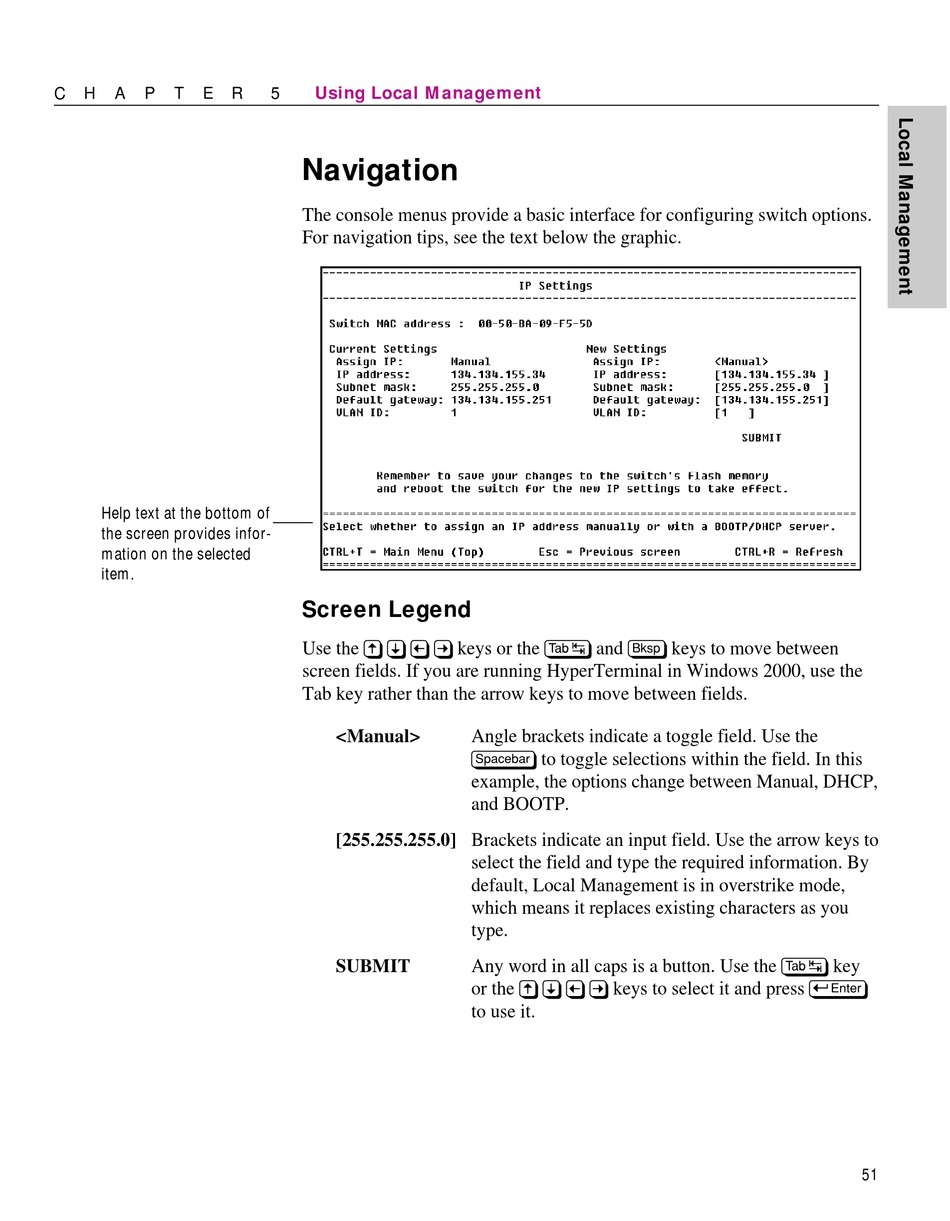

Navigation

The console menus provide a basic interface for configuring switch options.
For navigation tips, see the text below the graphic.
Screen Legend
Use the W Z A S keys or the T and b keys to move between
screen fields. If you are running HyperTerminal in Windows 2000, use the
Tab key rather than the arrow keys to move between fields.
<Manual>
[255.255.255.0] Brackets indicate an input field. Use the arrow keys to
SUBMIT
Angle brackets indicate a toggle field. Use the
z to toggle selections within the field. In this
example, the options change between Manual, DHCP,
and BOOTP.
select the field and type the required information. By
default, Local Management is in overstrike mode,
which means it replaces existing characters as you
type.
Any word in all caps is a button. Use the T key
or the W Z A S keys to select it and press E
to use it.
51
