Intel® NetStructure™ 470T and 470F Switches User Guide

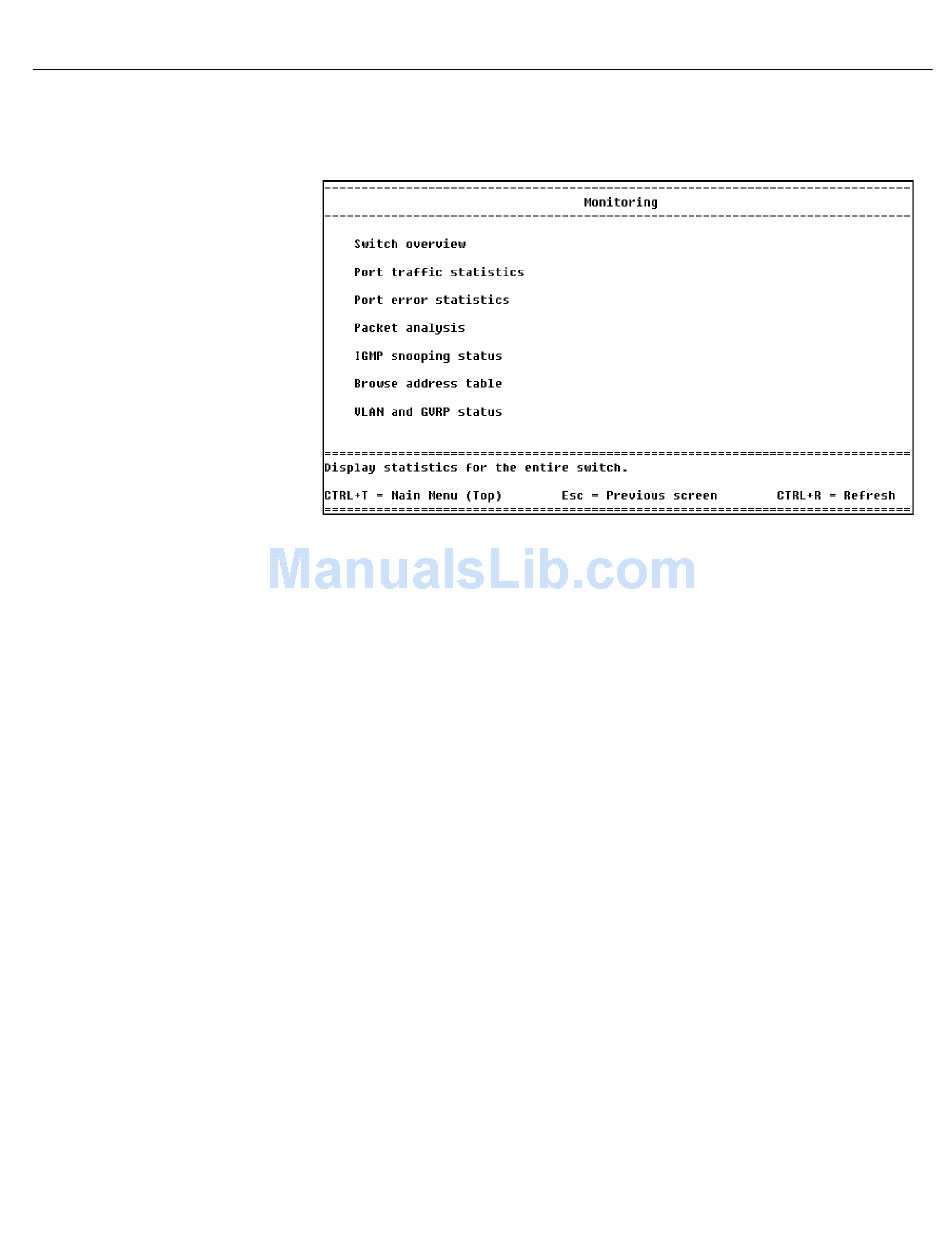

Monitor (Network Statistics)
Description
Switch overview: Displays an overview of all ports on the switch.
Port traffic statistics: Displays port traffic and utilization statistics.
Port error statistics: Displays port error statistics.
Packet analysis: Displays traffic per port by packet size and type.
IGMP snooping status: Displays active IP multicast groups detected by
the switch.
Browse address table: Displays the entries in the switch's address table by
port or MAC address.
VLAN and GVRP status: Displays status for static and dynamic tag-based
(IEEE 802.1Q) VLANs. This option is available only when the switch is
running 802.1Q VLANs.
