C H A P T E R
LOCATION
Main Menu
Configure VLAN

Add a Port-based VLAN

5 Using Local Management

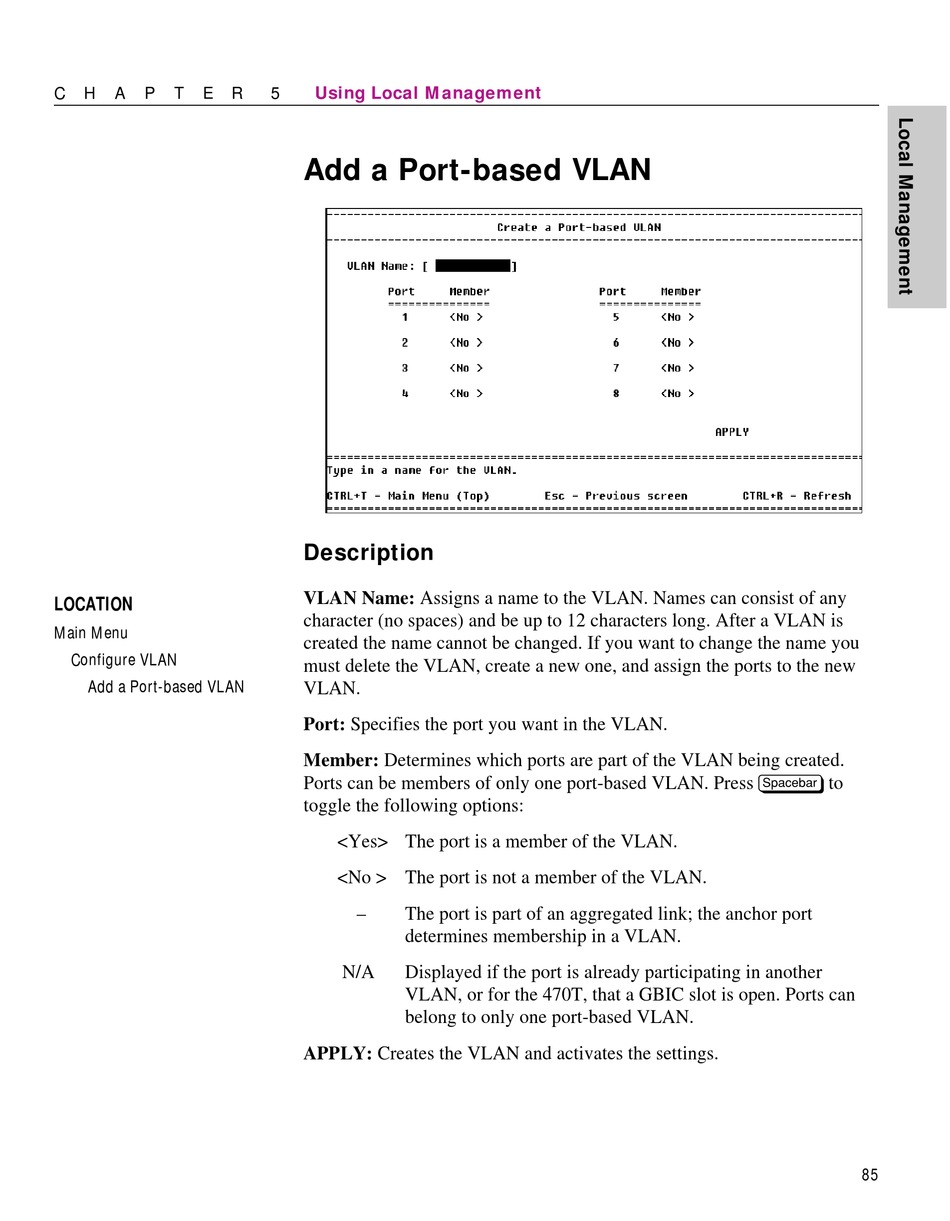

Add a Port-based VLAN
Description
VLAN Name: Assigns a name to the VLAN. Names can consist of any
character (no spaces) and be up to 12 characters long. After a VLAN is
created the name cannot be changed. If you want to change the name you
must delete the VLAN, create a new one, and assign the ports to the new
VLAN.
Port: Specifies the port you want in the VLAN.
Member: Determines which ports are part of the VLAN being created.
Ports can be members of only one port-based VLAN. Press z to
toggle the following options:
<Yes> The port is a member of the VLAN.
<No > The port is not a member of the VLAN.
– The port is part of an aggregated link; the anchor port
determines membership in a VLAN.
N/A Displayed if the port is already participating in another
VLAN, or for the 470T, that a GBIC slot is open. Ports can
belong to only one port-based VLAN.
APPLY: Creates the VLAN and activates the settings.
85
