C H A P T E
36
R 4 Intel® NetStructure™ 470T and 470F Switches User Guide

Port-based VLAN

You configure a port-based VLAN by creating the VLAN and then adding
participating ports. The switch can support up to four port-based VLANs.
However a port can be a member of only one VLAN; port-based VLANs
cannot overlap.

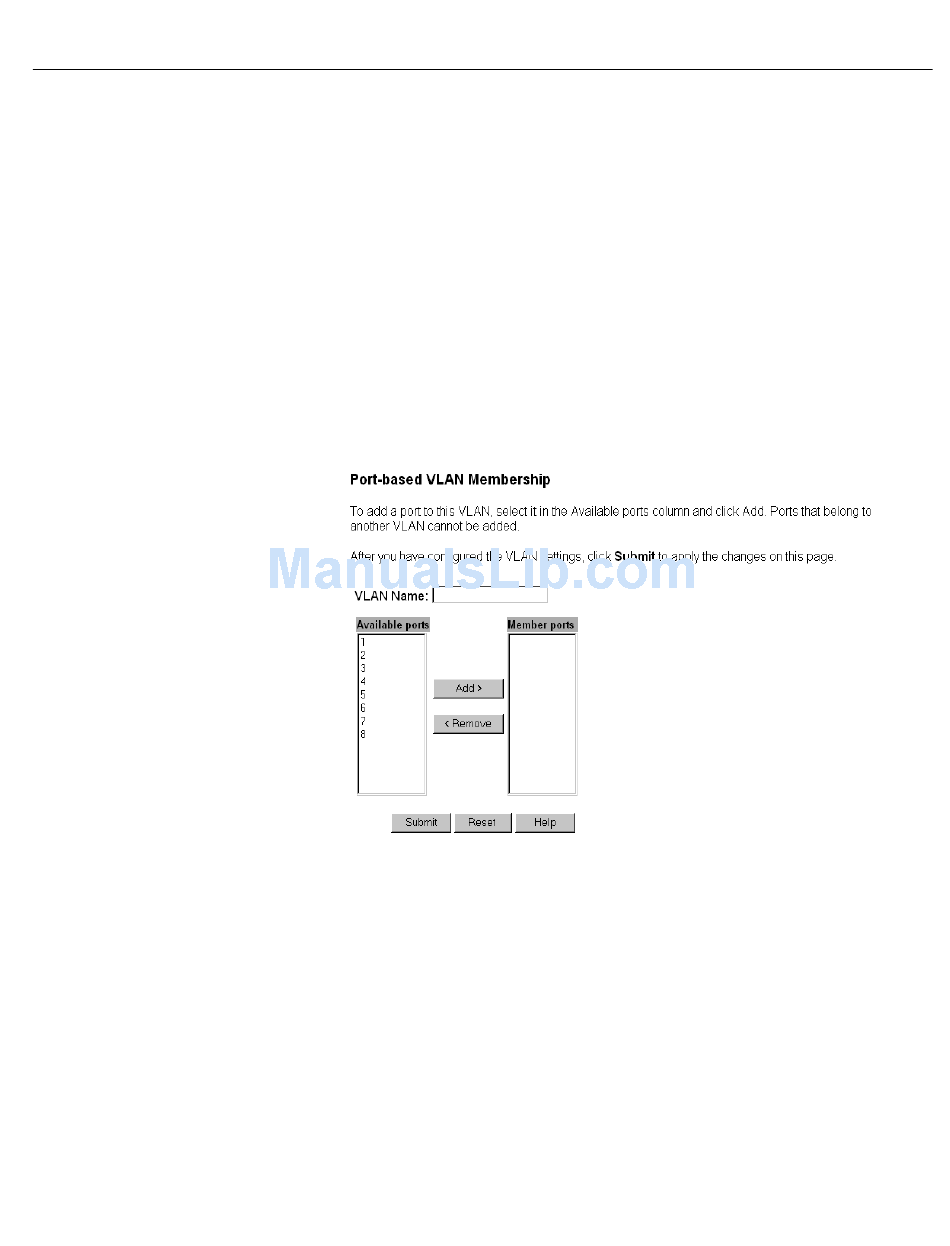

To configure a port-based VLAN
1 Click the Configure VLAN menu, and then click Port-based VLAN.
2 Click Add to create a new VLAN, or select a VLAN and click Edit to
change its configuration.
3 If you are creating a new VLAN, type a name in the VLAN Name box.
4 In the Available Ports box, click a port to add to the VLAN, and then
click Add.
5 When you finish adding ports, click Submit.
