C H A P T E R
LOCATION
Main Menu
Configure Management
Update Firmware and . . .
NOTE
Check the Intel ® Support Web site
for firmware updates to the 470
switch.
5 Using Local Management

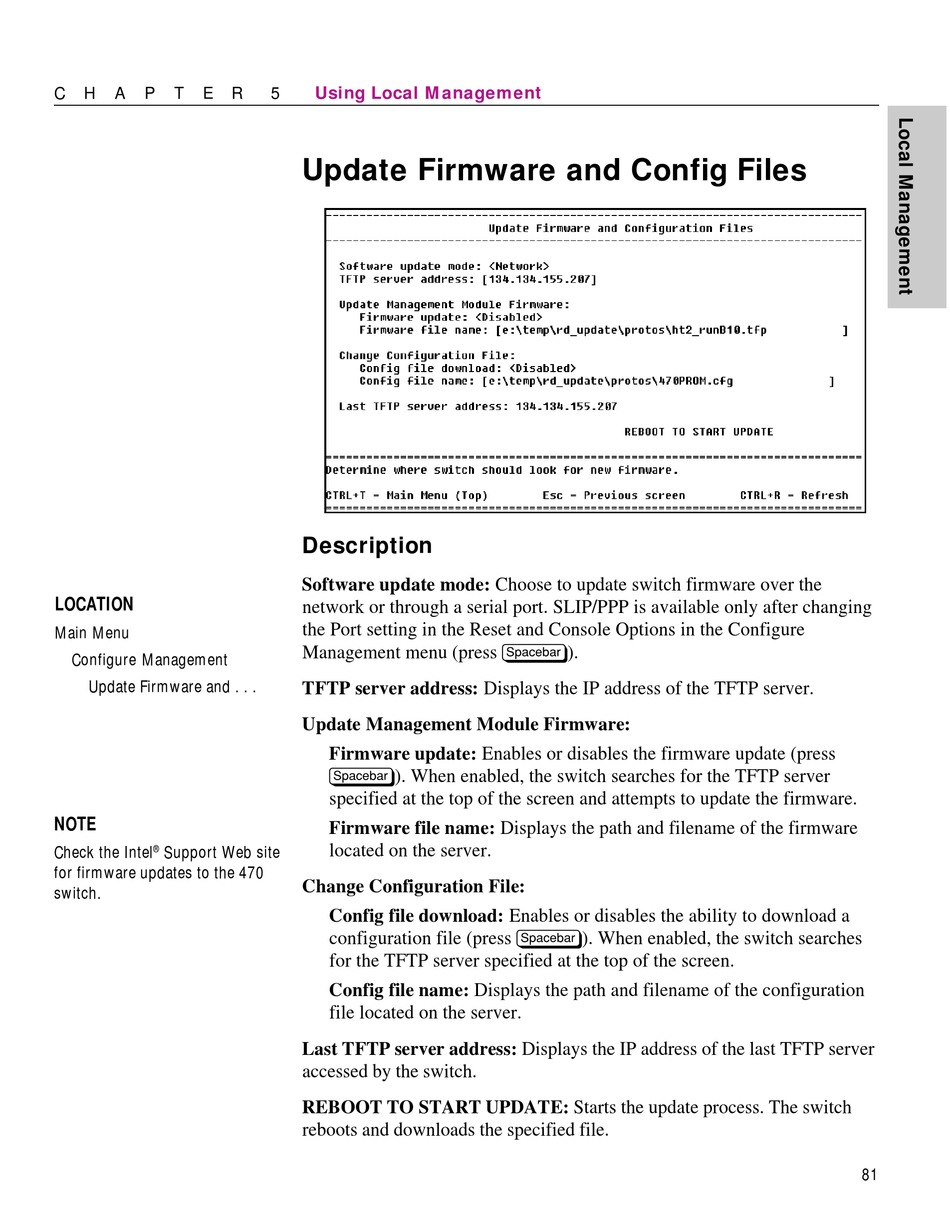

Update Firmware and Config Files

Description
Software update mode: Choose to update switch firmware over the
network or through a serial port. SLIP/PPP is available only after changing
the Port setting in the Reset and Console Options in the Configure
Management menu (press z).
TFTP server address: Displays the IP address of the TFTP server.
Update Management Module Firmware:
Firmware update: Enables or disables the firmware update (press
z). When enabled, the switch searches for the TFTP server
specified at the top of the screen and attempts to update the firmware.
Firmware file name: Displays the path and filename of the firmware
located on the server.
Change Configuration File:
Config file download: Enables or disables the ability to download a
configuration file (press z). When enabled, the switch searches
for the TFTP server specified at the top of the screen.
Config file name: Displays the path and filename of the configuration
file located on the server.
Last TFTP server address: Displays the IP address of the last TFTP server
accessed by the switch.
REBOOT TO START UPDATE: Starts the update process. The switch
reboots and downloads the specified file.
81
