NOTE
When creating a VLAN that
includes ports on more than one
switch, set the same VID on each
switch.
4
Using the Web Device Manager
Tag-based VLAN
You configure a tag-based VLAN by configuring port membership and
ingress/egress rules. Note: If some of your devices don't support 802.1Q
tags, additional configuration may be necessary.

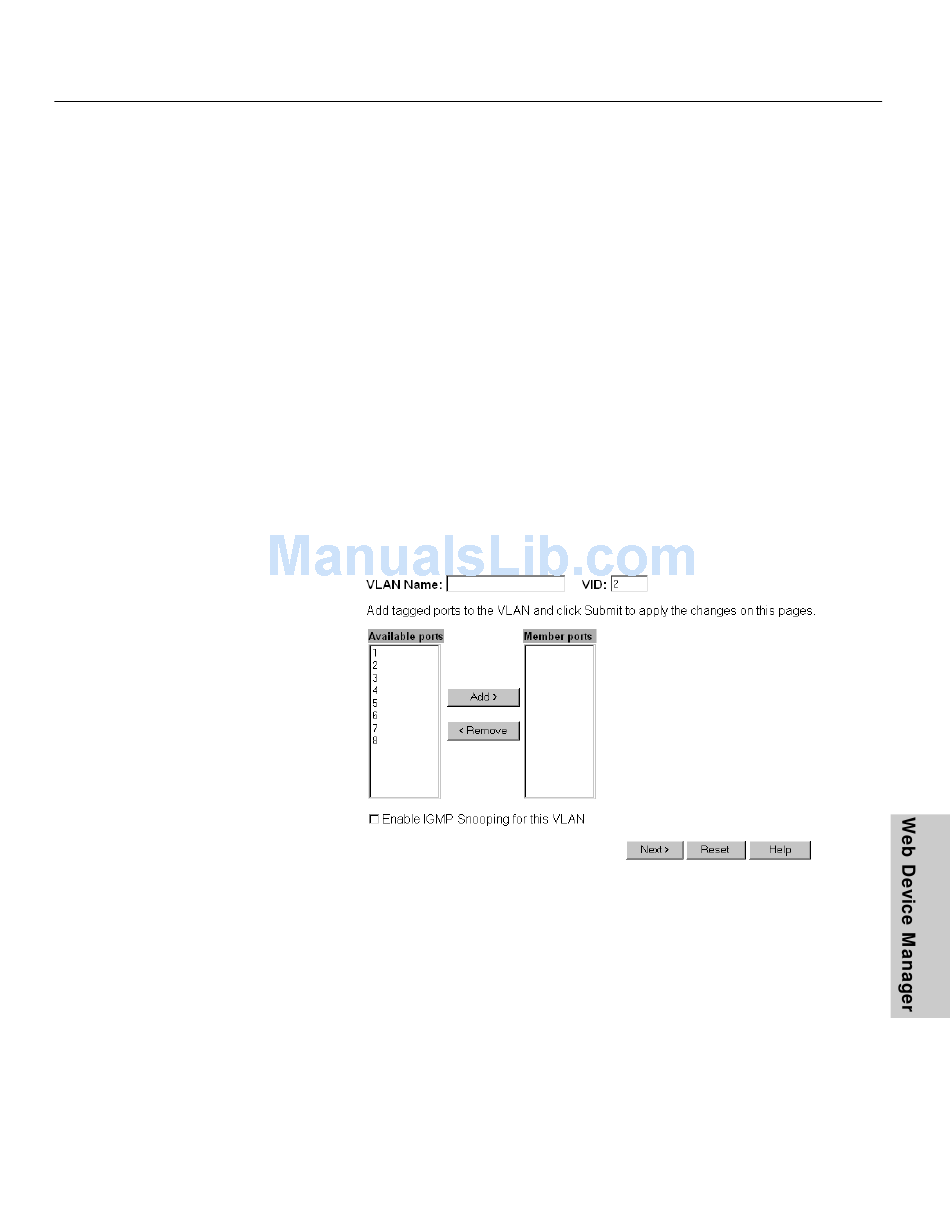

To configure a tag-based (IEEE 802.1Q) VLAN
1 Create a VLAN and assign member ports.
• Click the Configure VLAN menu, and then click Tag-based (IEEE
802.1Q) VLAN.
• From the main Tag-based VLAN page, click Add to create a new
VLAN. To modify an existing VLAN, click the VLAN name, and
click Modify.
• If you are creating a new VLAN, type a name and VID (from 2 to
4094) to identify it.
• To configure membership of a port to a VLAN, click the port in the
Available ports box and click Add. To remove a port, click the port in
the Member ports box and click Remove.
• The switch supports a maximum of 12 IGMP Snooping sessions to
manage broadcast traffic. If you want the VLAN to be part of an
IGMP Snooping session, select the Enable IGMP Snooping check
box.
• When you finish adding ports, click Next.
37
