C H A P T E R
LOCATION
Main Menu
Configure Device

Port Settings

5 Using Local Management

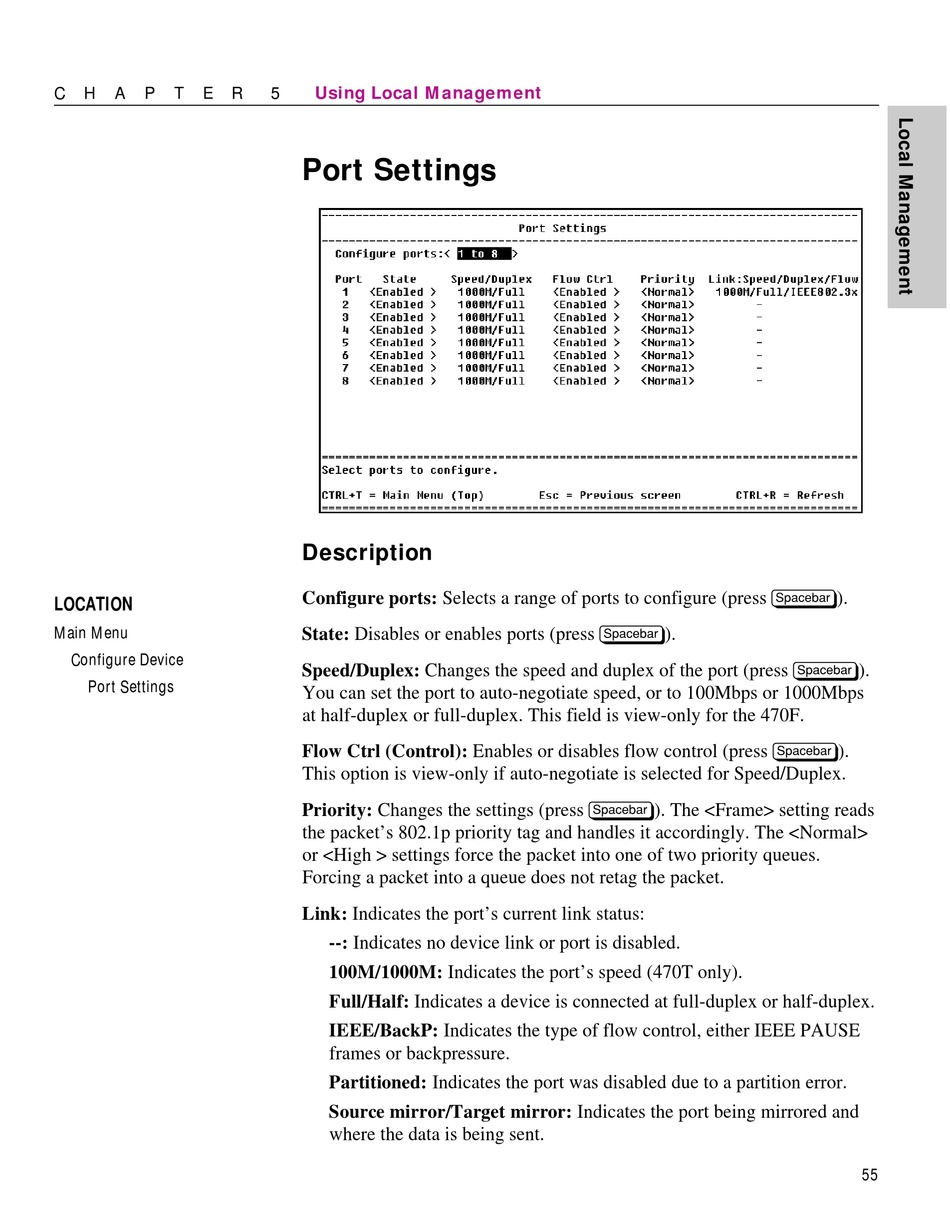

Port Settings
Description
Configure ports: Selects a range of ports to configure (press z).
State: Disables or enables ports (press z).
Speed/Duplex: Changes the speed and duplex of the port (press z).
You can set the port to auto-negotiate speed, or to 100Mbps or 1000Mbps
at half-duplex or full-duplex. This field is view-only for the 470F.
Flow Ctrl (Control): Enables or disables flow control (press z).
This option is view-only if auto-negotiate is selected for Speed/Duplex.
Priority: Changes the settings (press z). The <Frame> setting reads
the packet's 802.1p priority tag and handles it accordingly. The <Normal>
or <High > settings force the packet into one of two priority queues.
Forcing a packet into a queue does not retag the packet.
Link: Indicates the port's current link status:
--: Indicates no device link or port is disabled.
100M/1000M: Indicates the port's speed (470T only).
Full/Half: Indicates a device is connected at full-duplex or half-duplex.
IEEE/BackP: Indicates the type of flow control, either IEEE PAUSE
frames or backpressure.
Partitioned: Indicates the port was disabled due to a partition error.
Source mirror/Target mirror: Indicates the port being mirrored and
where the data is being sent.
55
