12

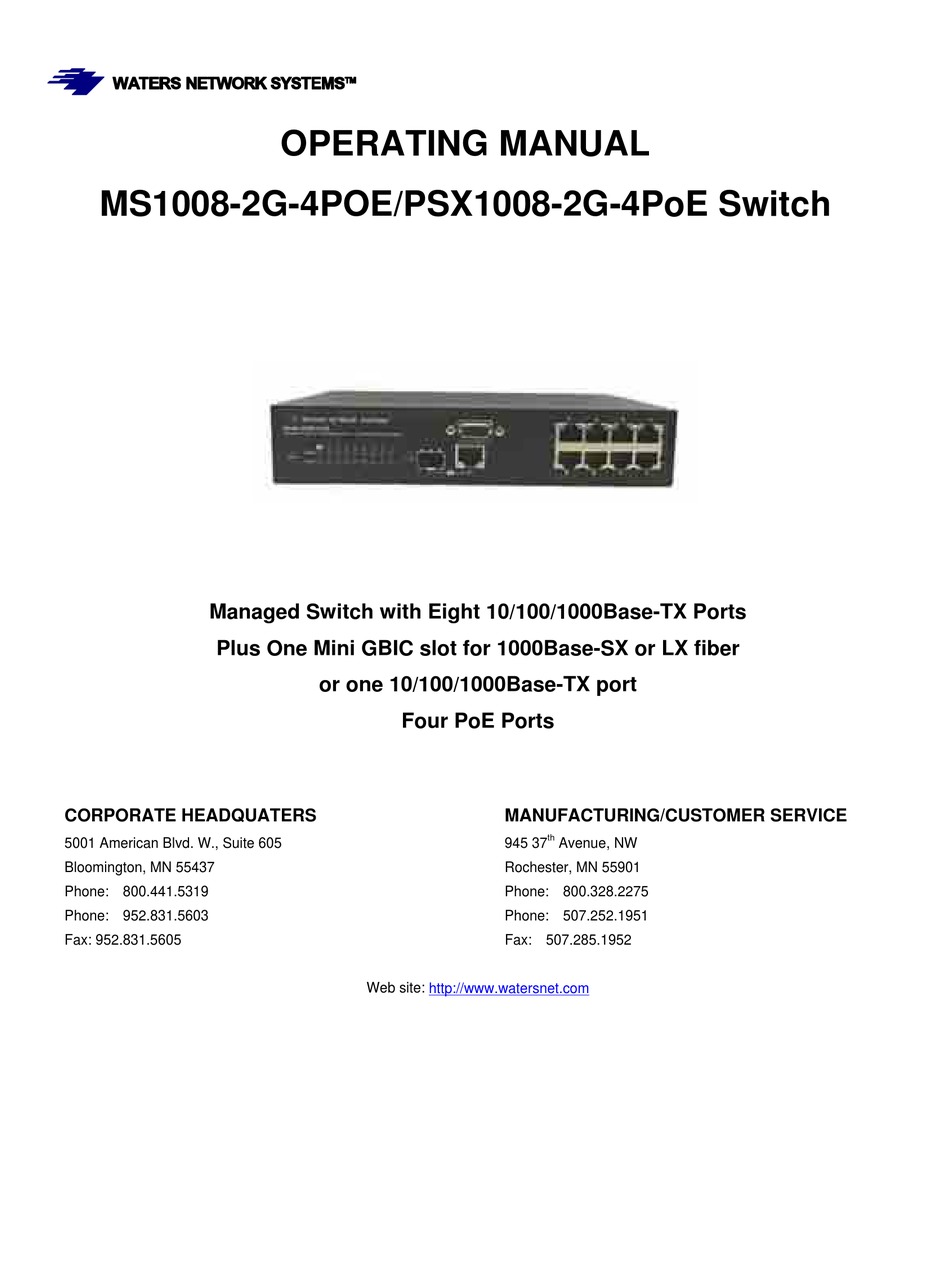

MS1008-2G-4POE/PSX1008-2G-4PoE Switch
Managed Switch with Eight 10/100/1000Base-TX Ports
Plus One Mini GBIC slot for 1000Base-SX or LX fiber
CORPORATE HEADQUATERS
5001 American Blvd. W., Suite 605
Bloomington, MN 55437
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605

OPERATING MANUAL

or one 10/100/1000Base-TX port
Four PoE Ports
Web site:
http://www.watersnet.com
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS1008-2G-4POE and is the answer not in the manual?

Questions and answers

Related Manuals for Waters Network Systems MS1008-2G-4POE

Summary of Contents for Waters Network Systems MS1008-2G-4POE

  • Page 1: Operating Manual

    OPERATING MANUAL MS1008-2G-4POE/PSX1008-2G-4PoE Switch Managed Switch with Eight 10/100/1000Base-TX Ports Plus One Mini GBIC slot for 1000Base-SX or LX fiber or one 10/100/1000Base-TX port Four PoE Ports CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd. W., Suite 605 945 37 Avenue, NW...

  • Page 2: Table Of Contents

    Workstation Settings for Web Management ............23 Login via the Web....................23 System Information....................24 IP Configuration....................25 DHCP Server.......................26 5.5.1 DHCP Server Configuration ................26 Port and IP Bindings....................28 TFTP Transaction....................28 Restore Configuration..................29 Backup Configuration ..................29 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 2...
  • Page 3 System Configuration Menu ................54 5.24.2 Trap Configuration ..................55 5.24.3 SNMPV3 Configuration ..................56 5.25 QoS Configuration ....................59 5.26 IGMP Configuration ...................61 5.27 X-ring........................62 5.28 Security Menu....................64 5.29 MAC Address Table .....................67 5.30 Power over Ethernet (PoE)..................70 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 3...
  • Page 4 Save Configuration ....................72 5.33 Reboot the System ....................72 CLI Commands ....................73 Troubleshooting ....................95 Before Calling for Assistance................95 Return Material Authorization (RMA) Procedure ..........96 Shipping and Packaging Information ..............97 Warranty......................98 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 4...

  • Page 5: Specifications

    GVRP (256 groups) Port security Port mirroring Broadcast storm Spanning Tree SMTP System Log DHCP SNTP NETWORK STANDARDS: IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3x IEEE 802.3ab IEEE 802.3ad IEEE 802.1d IEEE 802.1s Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 5...
  • Page 6 Storage: 14° to 158°F (-10°to 70°C) Ambient relative humidity: 5% to 90% (non-condensing) MECHANICAL: Enclosure: Rugged high-strength sheet metal suitable for stand-alone, wall or tabletop mounting Cooling Method: Internal fan PHYSICAL CHARACTERISTICS: Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 6...
  • Page 7 8.5 x 5.5 x 1.75 in (216 x 140 x 45mm) Weight: 2 lbs (.91kg) GSM1009-1SFP: Dimensions: 11 x 10.5 x 2 in (279 x 267 x 51mm) Weight: 3.7lbs (1.68kg) Warranty: Limited Lifetime Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 7...

  • Page 8: Package Contents

    Notify the carrier of any damage that you believe occurred during shipment. Ensure that the items listed below are included. If an item is missing, please contact your supplier. Both the MS1008-2G-4PoE and PSX1008-2G-4PoE switch package contains the following: Switch...
  • Page 9 Web Browser. The switch can be managed via a web browser, Telnet, CLI (command line interface) commands or SNMP Management. Ethernet switching technology dramatically boosted the total bandwidth of a network, Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 9...

  • Page 10: Switch Features

    Automatic MDI/MDIX crossover for each 10/100Base-TX port Console port on front side for system configuration Half-duplex mode for backpressure Full-duplex for flow control Store-and-forward switching architecture Automatic address learning, address migration 8K-entry MAC address table Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 10...
  • Page 11 DHCP client, relay, server SNTP and SMTP Management IP address security MAC address security System log SNMP trap support TFTP firmware update Web/SNMP/Telnet/CLI//MenuDrivenRMON Performs non-blocking full wire speed Configuration upload and download Supports X-ring function Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 11...

  • Page 12: Software Features

    Dynamic VLAN groups up to 2048 VLAN ID can be assigned from 1 to 4094. GVRP function supports 256 groups. IGMP v1 and v2 compliance and also supports 256 IGMP IGMP groups and support query mode. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 12...
  • Page 13 System log function. SNMP IP Supports 10 IP address accounts for system management security security for web, SNMP, Telnet to prevent intruders. SMTP 6 mail accounts. SNTP Supports RFC2030 simple network time protocol Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 13...

  • Page 14: Management Methods

    If that is the case, this function should be enabled. Table 3.1 – Software Features Management Methods The switch supports following management methods: Console and Telnet Management Web-based Management SNMP Network Management Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 14...

  • Page 15: Console And Telnet Management

    The console connection is also on the front panel of the switch. The console port can be used to perform management functions. Console connection requires a direct connection between the switch and a workstation with a RS-232 cable. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 15...
  • Page 16 Eight 10/100Base-TX connections. MDI allows you to connect to another hub or switch and MDIX allows you to connect to a workstation or PC. Therefore, Auto MDI/MDIX means that you can connect to another switch or workstation without a crossover cable. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 16...

  • Page 17: Led Indicators

    Choose a surface for your switch that is clean, smooth, level, sturdy and with a power outlet nearby. Make sure there is enough clearance around the switch to allow attachment of cables, power cord and air circulation. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 17...

  • Page 18: Attaching Rubber Feet

    The switch provides an ideal solution for small workgroups. The switch can be used as a standalone switch to which personal computers, servers, and print servers are directly connected to form a small workgroup. Figure 4.1 – Workgroup/Classroom Application Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 18...
  • Page 19 You can use any of the copper ports or the mini GBIC port to connect with another switch to interconnect each of your small-switched workgroups to form a larger switched network. Figure 4.2 – Segment Application Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 19...

  • Page 20: Network Configuration

    RS-232 console port. This port is a female DB-9 connector. From the Main Console Management Menu, you have access to all of the management functions of the switch. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 20...
  • Page 21 2. Turn on the switch. The switch will display a series of messages as it performs a self test. Once the self test is completed, the login screen will be displayed. Figure 4.5 - Console Login Interface Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 21...
  • Page 22 5. Once you have logged into the system, a command prompt will be displayed. The switch provides CLI (command line interface) console management. Once you have logged into the switch, you can begin entering CLI commands. Section 6.0 lists the commands and their descriptions. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 22...

  • Page 23: Web Based Management

    2. Enter the IP address of the switch and press Enter. Example: http://192.168.16.1 3. The login screen will be displayed. 4. Enter the user name and password. The default user name and password is root. 5. Click Enter or OK. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 23...

  • Page 24: System Information

    The following information is displayed on this screen: Firmware Version - displays the firmware version for the switch. Kernel Version - displays the kernel software version. MAC Address - displays the unique hardware address assigned by manufacturer (default). Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 24...

  • Page 25: Ip Configuration

    IP address. For example, domain name www.net.com might translate to 192.168.1.1. DNS2 - DNS2 is the backup for DNS1. If the DNS1 cannot function, the DNS2 will replace DNS1. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 25...

  • Page 26: Dhcp Server

    192.168.1.200, 192.168.1.100 will be the Low IP address. High IP Address - High IP address is the last of the dynamic IP numbers to be assigned. In the example listed above, the High IP address would be 192.168.1.200. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 26...
  • Page 27 Figure 5.4 - DHCP Server Configuration When the DHCP server function is enabled, the system will collect DHCP client information which will be displayed in the DHCP Client Entry screen. Figure 5.5 - DHCP Client Entries Screen Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 27...

  • Page 28: Port And Ip Bindings

    1. Start the TFTP server. 2. Copy the new firmware version image file to the TFTP server. 3. Enter the IP address of the TFTP server. 4. Click Apply to proceed with the update. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 28...

  • Page 29: Restore Configuration

    This menu allows you to save the current EEPROM value from the switch to the TFTP server. 1. Fill in the TFTP server IP address. 2. Enter the correct Backup File Name. 3. Click Apply to proceed. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 29...

  • Page 30: Waters Network Systems Ms1008-2G-4Poe/Psx1008-2G-4Poe User's Manual

    1. Select the System Log Mode: client only, server only, or both client and server. 2. Assign the system log server IP. 3. Click Reload to refresh the events log. 4. Click Clear to clear the current events log. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 30...

  • Page 31: Smtp Configuration

    (When the Email Alert is enabled, this function will be available.) Mail Account – configure email account receive alerts. johnadmin@123.com. The email account must exist on the mail server configured in SMTP Server IP Address column. Password - email account password Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 31...

  • Page 32: Event Configuration

    Authentication Failure – the system will produce a log event when the SNMP authentication fails. X-ring topology change - – the system will produce a log event when the X-ring topology changes. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 32...
  • Page 33 Link Down - the system will produce a log message when port connection is down only. o Link Up & Link Down - the system will produce a log message when port connection is up and down. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 33...

  • Page 34: Sntp Configuration

    -6 hours 6 am MDT - Mountain Daylight MST - Mountain Standard -7 hours 5 am PDT - Pacific Daylight PST - Pacific Standard -8 hours 4 am ADT - Alaskan Daylight Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 34...
  • Page 35 7 pm Standard CCT - China Coast, USSR +8 hours 8 pm Zone 7 JST - Japan Standard, +9 hours 9 pm USSR Zone 8 EAST - East Australian +10 hours 10 pm Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 35...
  • Page 36 The daylight savings ending time will different in every year. Daylight Saving Offset (mins) - set the offset time. Switch Timer - displays the switch current time. Click Apply to save the configuration. Figure 5.13 – SNTP Configuration Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 36...

  • Page 37: Ip Security

    Click Apply to save the configuration. Note: Remember to execute Save Configuration to save the new settings. Figure 5.14 – IP Security Settings Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 37...

  • Page 38: User Authentication

    This menu provides information for all switch ports. The Port Statistics screen provides statistics for current port traffic. You can use the Clear button to clean out off of the counts. Figure 5.16 – Port Statistics Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 38...

  • Page 39: Port Control Menu

    Asymmetric in Full Duplex mode. Security – The default for security is Off. When turned On, the port will accept only one MAC address. Click Apply to save the configuration. Figure 5.17 – Port Control Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 39...
  • Page 40 To view the status of a single port, click on the port displayed on the switch panel at the top of your web management screen. Single port information will be displayed as shown in Figure 5.18. Figure 5.18 – Single port status Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 40...

  • Page 41: Port Trunking

    If LACP is enabled, you can configure the LACP Active/Passive status in each port on the state activity page. Click apply to confirm the setting. The Trunk Group can be deleted by selecting the Group ID and clicking Delete. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 41...
  • Page 42 Figure 5.19 – Port Trunk Aggregator Setting Once the LACP aggregator has been configured, the information can be displayed through the Aggregator Information screen. Figure 5.20 - Aggregator Information screen Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 42...

  • Page 43: State Activity

    Destination port – mirror port can be used to see all monitor port traffic. You can connect mirror port to LAN analyzer or Netxray. Select the mirroring port state: o RX – RX packet only o TX – TX packet only Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 43...
  • Page 44 TX – TX packet only o Both – RX and TX packet Click Apply to confirm the settings. Note: To disable the function, set the monitor port to none. Figure 5.22 - Port Mirroring Screen Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 44...

  • Page 45: Rate Limiting

    Ingress – enter the port effective ingress rate. The default value is 0. Egress – enter the port effective egress rate. The default value is 0. Click Apply to confirm the settings. Figure 5.23 – Rate Limiting Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 45...

  • Page 46: Protocol Menu Options

    When a port is configured in a VLAN, packets can travel only among members of the same VLAN group. All unselected ports belong to another single VLAN. If the port-based VLAN is enabled, VLAN-tagging is ignored. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 46...
  • Page 47 Figure 5.25 – VLAN Configuration 1. Click Add to create a new VLAN group. 2. Enter the Group Name and VLAN ID. 3. Select the members of the VLAN group. 4. Click apply. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 47...

  • Page 48: Vlan

    VLAN, VID is 1. The default VLAN cannot be deleted. Each member port of an 802.1 VLAN port is configured as an Access, Trunk, or Hybrid Link. Frames on an Access Link carry no VLAN identification. Conversely, frames Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 48...
  • Page 49 Select the ports to be configured. There are three link types. Access Link Trunk Link Hybrid Link Assign the Untagged VID. Assign the Tagged VID. Click apply. Figure 5.27 displays the settings. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 49...
  • Page 50 Figure 5.27 – VLAN 802.1q Configuration Screen Group Configuration To edit the existing VLAN Group: Select the VLAN group in the table list. Click apply. Figure 5.28 – Group Configuration Screen Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 50...

  • Page 51: Rstp (Rapid Spanning Tree Protocol) Menu

    If you change the value, you must reboot the switch to assign the new path priority number. The value must be multiple of 4096 according to the protocol standard rule. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 51...
  • Page 52 Note: Follow the rule to configure the MAX age, hello time and forward delay time: 2 x (Forward Delay Time value –1) > = Max Age value >= 2 x (Hello Time value +1) Figure 5.30 - RSTP System Configuration Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 52...

  • Page 53: Port Configuration

    To configure the port as an edge port, set the port to True. 4. Admin Non STP - the port includes the STP mathematic calculation. True does not Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 53...

  • Page 54: Snmp Configuration

    Remove. You cannot remove the default community string set. Agent Mode - select the SNMP version that you want to use. Click Change to switch to the selected SNMP version mode. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 54...

  • Page 55: Trap Configuration

    Trap Version - select the SNMP version – v 1 or v2. Click Add - to save the settings. To remove the community string, select the community string to be removed and click Remove. The default community string cannot be removed. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 55...

  • Page 56: Snmpv3 Configuration

    User ID – Enter a user name. Authentication Password – Enter an authentication password. Privacy Password – Enter a private password. Click Add to add the password. Click Remove to remove an unwanted password. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 56...
  • Page 57 ViewName- set up the name. Sub-Oid Tree – enter the Sub Oid Type – select excluded or included Click Add to configure the MIBview Table. Click Remove to remove the MIBview Table. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 57...
  • Page 58 Figure 5.34 – SNMP V3 Interface Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 58...

  • Page 59: Qos Configuration

    • COS first - the port priority follows the COS priority first and other priority rules next. • TOS first - the port priority follows the TOS priority first and other priority rules next. Click Apply to save the configuration. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 59...
  • Page 60 COS Configuration Use this section of the screen to set the COS priority level. COS priority - set the COS priority level 0~7: High, Middle, Low, Lowest. Click Apply to save the configuration. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 60...

  • Page 61: Igmp Configuration

    A message sent by a host to the querier to indicate that the host Leave is no longer a member of a specific multicast group. Group Table 5.2 – IGMP Messages Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 61...

  • Page 62: X-Ring

    The other switches are working switches and their two member ports are working ports. If there is a network connection failure, the backup port will automatically become a working port to recover the failure. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 62...
  • Page 63 One access point is the operating connection and the other is a standby or back up connection that is activated in case the operating connection fails. Click Apply to save the configuration. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 63...

  • Page 64: Security Menu

    Server Port - set the UDP destination port for authentication requests to the specified Radius Server. Accounting Port - set the UDP destination port for accounting requests to the specified Radius Server. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 64...
  • Page 65 Disable - the specified port is required to be held in the authorized state Click Apply to save the configuration. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 65...
  • Page 66 Max Requests - set the number of authentication requests that must time-out before authentication fails and the authentication session ends. Reauth period - set the period of time after which clients connected must be re-authenticated. Select Apply to save the configuration. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 66...

  • Page 67: Mac Address Table

    2. Port No. – use the Space bar to select the port number. 3. VLAN ID - enter the MAC address, and VLAN ID (if that MAC address belongs to a VLAN group). 4. Click Add to save the configuration. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 67...
  • Page 68 Click Add to save the configuration. The MAC address will be displayed in the table. You can delete a MAC address from the filtering table by selecting the MAC address and clicking Delete. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 68...
  • Page 69 You can view the MAC address and the related devices’ MAC address connected to the port. Select the port. The selected port for static MAC address information will be displayed. Select Clear MAC Table to clear the current port static MAC address information. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 69...

  • Page 70: Power Over Ethernet (Poe)

    Capacitive Detection - Used to detect the power consumption of the powered device. Click Apply to confirm/save changes. Use the Refresh button to renew the states. Port – Displays the index of PoE ports. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 70...

  • Page 71: Factory Default Settings

    Determined Class – Displays the power limit class. Click Apply to apply changes. Figure 5.44 – PoE Settings 5.31 Factory Default Settings You can return the factory default settings by choosing Factory Default from the Main Menu. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 71...

  • Page 72: Save Configuration

    5.33 Reboot the System Once changes have been made, the system should be rebooted to apply the changes. Choose Reboot System from the Main Menu. Click on Reboot to reboot the system. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 72...

  • Page 73: Cli Commands

    Enter the Exit database configure VLAN specific (vlan)# VLAN parameters database command while in privileged EXEC mode Interface Use this mode to configure switch Enter the Exit configuration parameters (config-i interface Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 73...
  • Page 74 Configure the system name switch (config)# system name xxx [system name} system Configure switch location switch(config)#system location location xxx [system location] system Set switch system description switch(config)#system string description xxx Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 74...
  • Page 75 (maximum 10 characters) password xxxxxx [password] show admin Displays administrator switch#show admin information dhcpserver Enables DHCP Server switch(config)#dhcpserver enable enable dhcpserver Configures low IP address switch(config)# dhcpserver lowip number for IP pool lowip 192.168.1.1 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 75...
  • Page 76 DHCP server ip-binding ip-binding no dhcpserver Disables DHCP server switch(config)#no function dhcpserver security Enables IP security function switch(config)#security enable enable security http Enables IP security of HTTP switch(config)#security http Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 76...
  • Page 77 [symmetric| is congestion. mode Asymmetric asymmetric] no flowcontrol Disable flow control switch(config-if)#no flowcontrol security Enable security switch(config)#interface enable fastEthernet 2 h(config-if)#security enable no security Disable security switch(config)#interface fastEthernet 2 switch(config-if)#no security Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 77...
  • Page 78 Disable operation for Ethernet ports. Use the disable form of this command to disable the port. show interface Displays the status of the switch(config)#interface configuration interface configuration fastEthernet 2 switch(config-if)#show Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 78...
  • Page 79 Assign a static trunk group. switch(config)#aggregator group [GroupID] :1~3 group 1 2-4 nolacp [GroupID] [Port-list]: Member port list. [Port-list] This parameter could be a switch(config)#aggregator nolacp port range (ex.1-4) or a port group 1 3,1,2 nolacp Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 79...
  • Page 80 Displays VLAN information switch(vlan)#show vlan 23 [GroupID] show vlan no vlan group Delete port-based group ID switch(vlan)#no vlan group [GroupID] IEEE 802.1Q VLAN vlan 8021q Modify the name of VLAN switch(vlan)#vlan 8021q test Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 80...
  • Page 81 3 trunk-link tag 3-20 vlan 8021q Assign a hybrid link for VLAN switch(vlan)# vlan 8021q trunk by trunk group trunk 3 hybrid-link untag 4 [PortNumber] tag 3,6,8 hybrid-link untag switch(vlan)# vlan 8021q Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 81...
  • Page 82 (BPDUs). spanning-tree Use the spanning-tree switch(config)# forward-time forward-time global spanning-tree forward-time [seconds] configuration command to set the forwarding-time for the specified spanning-tree instances. The forwarding Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 82...
  • Page 83 True stp-admin-non Admin NonSTP of STP switch(config)#interface -stp priority. fastEthernet 2 [True|False] switch(config-if)# stp-admin-non-stp False show Display a summary of the switch>show spanning-tree spanning-tree spanning-tree states. Disable spanning-tree. switch(config)#no spanning-tree spanning-tree Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 83...
  • Page 84 Displays the details of the switch#show igmp configuration IGMP configuration. configuration show igmp Displays the details of the switch#show igmp multi multi IGMP snooping entries. no igmp Disables IGMP snooping switch(config)#no igmp function Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 84...
  • Page 85 The following table lists SNMP Commands. Command Level Description Example snmp Set SNMP agent system switch(config)#snmp system-name name system-name l2switch [System Name] snmp Set SNMP agent system switch(config)#snmp system-location location system-location lab Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 85...
  • Page 86 [Group Name] password [Authentication Password] [Privacy Password] snmpv3 access Configure the access table of switch(config)#snmpv3 context-name SNMPV3 agent access context-name Test [Context group G1 security-level Name ] AuthPriv group match-rule Exact views V1 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 86...
  • Page 87 [User Name] no snmpv3 Remove specified access switch(config)#no snmpv3 access table of SNMPv3 agent. access context-name Test context-name group G1 security-level [Context AuthPr Name ] iv match-rule Exact views group V1 V1 V1 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 87...
  • Page 88 [RX|TX|Both] monitor function fastEthernet 2 switch(config-if)#monitor RX show monitor Displays port monitor switch(config)#interface information fastEthernet 2 switch(config-if)#show monitor no monitor Disables source port of switch(config)#interface monitor function fastEthernet 2 switch(config-if)#no monitor Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 88...
  • Page 89 20 [sec.] is used to set the supplicant timeout. 8021x misc The 802.1x misc server switch(config)#8021x misc servertimeout timeout global configuration servertimeout 20 [sec.] command is used to set the Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 89...
  • Page 90 IP address of the TFTP server and the file name. upgrade Upgrade firmware from the switch(config)#upgrade flash:upgrade_ TFTP server. Must specify lash:upgrade_fw the IP address of TFTP server and the file name. Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 90...
  • Page 91 [Systemlog|SM TP|Both] event Set authentication failure switch(config)#event authentication- event type authentication-failure both failure [Systemlog| SMTP|Both] event X - Set X-ring topology event type switch(config)#event X - -ring-topology- -ring-topology-change both change Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 91...
  • Page 92 Enable daylight savings time. switch(config)#sntp daylight If SNTP function is disabled, this command can’t be applied. sntp Set period of daylight savings switch(config)# sntp daylight-period time. If SNTP function is daylight-period Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 92...
  • Page 93 [1st Ring Port] ring port ringport 7 8 [2nd Ring Port] X - ring Configure coupling port switch(config)#Xring couplingport couplingport 1 [Coupling Port] X - ring Configure control port switch(config)#Xring controlport controlport 2 Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 93...
  • Page 94 Disable ring master switch(config)# no Xring master master no X - ring Disable coupling ring switch(config)# no Xring couplering couplering no X - ring Disable dual homing switch(config)# no Xring dualhoming dualhoming Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 94...

  • Page 95: Troubleshooting

    Waters’ switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact Waters Network Systems’ Customer Support Center at 800.328.2275 or email carolynl@watersnet.com.

  • Page 96: Return Material Authorization (Rma) Procedure

    The components involved in the problem d. Any particular application that, when used, appears to create the problem 2. An accurate list of Waters Network Systems product model(s) involved. Include the date(s) that you purchased the products from your supplier.

  • Page 97: Shipping And Packaging Information

    (user) charge. Shipping and Packaging Information Should you need to ship the unit back to Waters Network Systems, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection.

  • Page 98: Warranty

    In the event of a malfunction or other indication of product failure attributable directly to faulty materials and/or workmanship, Waters Network Systems will, at its option, repair or replace the defective products or components at no additional charge as set for herein.
  • Page 99 Repaired or replaced products will be returned at no cost to the original Buyer and shipped via the carrier and method of delivery chosen by Waters Network Systems. A product’s lifetime ends when service and repair for the product can no longer be obtained from the original manufacturer or its direct successor or assignee.
  • Page 100 WATERS NETWORK SYSTEMS’ LIABILITY UNDER THE WARRANTY SHALL BE LIMITED TO PRODUCT REPAIR, OR REPLACEMENT OF THE BUYER’S PURCHASE PRICE. IN NO EVENT SHALL WATERS NETWORK SYSTEMS BE LIABLE FOR THE COST OF PROCUREMENT OF SUBSTITUTE GOODS BY THE CUSTOMER OR FOR ANY CONSEQENTIAL OR INCIDENTAL DAMAGES FOR BREACH OR WARRANTY.
  • Page 101 OR TORT (INCLUDING NEGLIGENCE) SHALL WATERS BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH Waters Network Systems MS1008-2G-4POE/PSX1008-2G-4PoE User’s Manual Page 101...
  • Page 102 AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOTHING HEREIN SHALL HAVE THE EFFECT OF LIMITING OR EXCLUDING WATERS’S LIABILITY FOR DEATH OR PERSONAL INJURY CAUSED BY NEGLIGENCE. Waters Network Systems, LLC 5001 American Blvd. West, Suite 605 Minneapolis, MN 55437 Phone Number: 952.831.5604 Fax Number: 952.831.5605...
