Waters Network Systems GSM2116 Operating Manual

Managed switch with either 16 or 24 10/100/1000base-tx ports plus two slots for 1000base-sx or lx fiber
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12
Managed Switch with either 16 or 24 10/100/1000Base-TX ports
Plus two slots for 1000Base-SX or LX fiber
CORPORATE HEADQUATERS
5001 American Blvd. W., Suite 605
Bloomington, MN 55437
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605

OPERATING MANUAL

GSM2116 and GSM 2124

Web site:
http://www.watersnet.com
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM2116 and is the answer not in the manual?

Questions and answers

Related Manuals for Waters Network Systems GSM2116

Summary of Contents for Waters Network Systems GSM2116

  • Page 1: Operating Manual

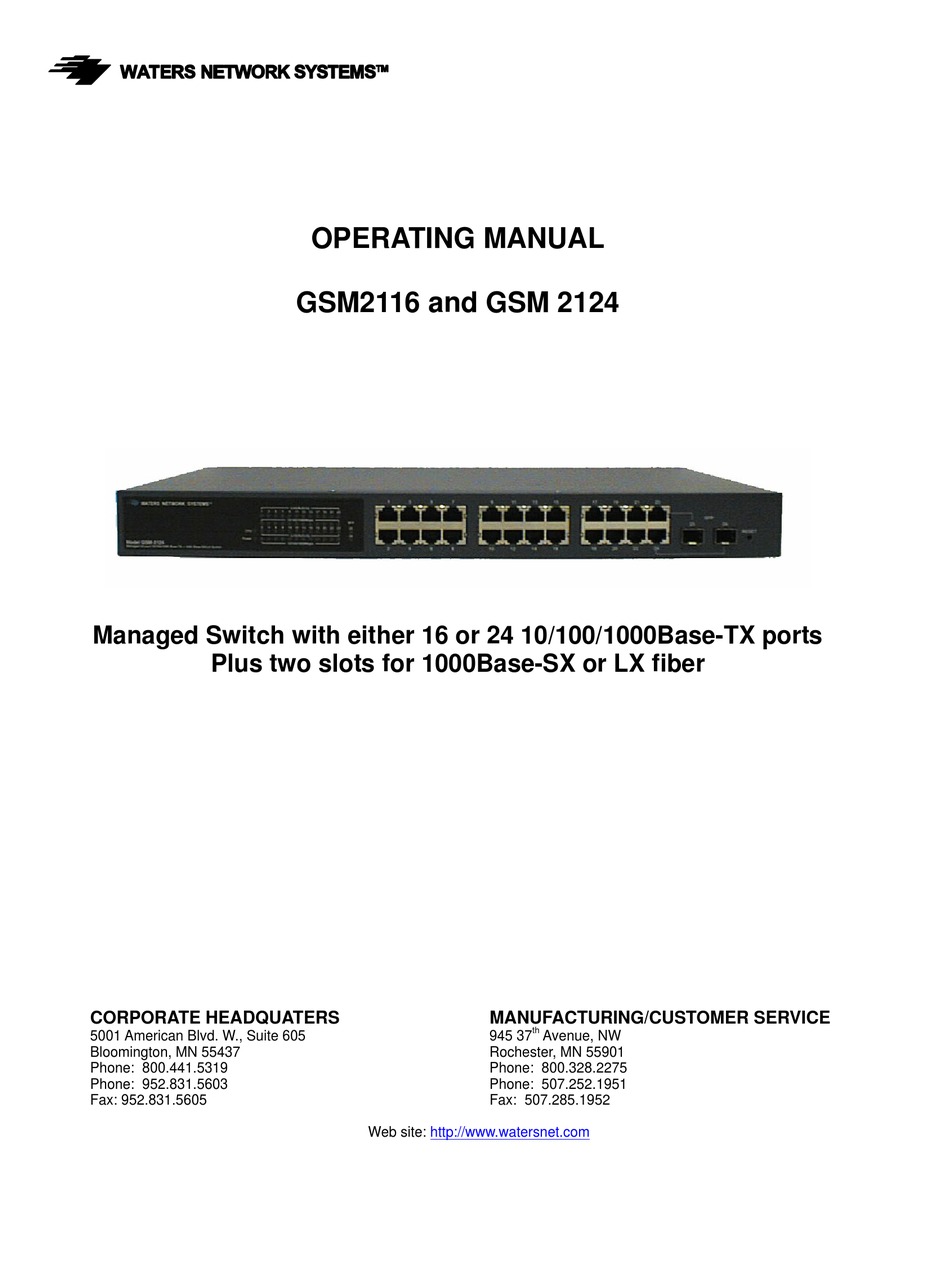

    OPERATING MANUAL GSM2116 and GSM 2124 Managed Switch with either 16 or 24 10/100/1000Base-TX ports Plus two slots for 1000Base-SX or LX fiber CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd. W., Suite 605 945 37 Avenue, NW Bloomington, MN 55437 Rochester, MN 55901 Phone: 800.441.5319...

  • Page 2: Table Of Contents

    (STP) C ............. 74 PANNING ONFIGURATION ONFIGURATION 5.19.1 STP S ........................74 TATUS 5.19.2 STP C ...................... 76 ONFIGURATION 5.19.3 STP P .................... 77 ONFIGURATION 5.20 ....................79 RUNKING ONFIGURATION Waters Network Systems User’s Manual Page 2 GSM-2116 and GSM-2124...
  • Page 3 MAINTENANCE........................... 127 ........................127 XAMPLES TROUBLESHOOTING......................... 128 ..................128 EFORE ALLING FOR SSISTANCE (RMA) P ............. 129 ETURN ATERIAL UTHORIZATION ROCEDURE ................129 HIPPING AND ACKAGING NFORMATION WARRANTY ..........................131 Waters Network Systems User’s Manual Page 3 GSM-2116 and GSM-2124...

  • Page 4: Specifications

    Specifications OPERATIONAL CHARACTERISTICS MAC Address Table: 8K Switching Mode: Store-and-forward Memory Buffer Size: GSM2116: 272KB GSM2124: 400KB Jumbo frame support PERFORMANCE Non-blocking wire speed Auto negotiation Auto-MDIX Back pressure flow control for half duplex Flow control for full duplex MANAGEMENT FUNCTIONS...
  • Page 5 5% to 90% (non-condensing) MECHANICAL Enclosure: Rack mountable Cooling Method: Fan cooled PHYSICAL CHARACTERISTICS Dimensions: 8.23 x 17.40 x 1.73 in (209 x 442 x 44mm) Weight: 9.26lbs (.2kg) WARRANTY: Limited Lifetime Waters Network Systems User’s Manual Page 5 GSM-2116 and GSM-2124...

  • Page 6: Package Contents

    RS-232 Cable Introduction This user’s guide covers both the GSM2116 and the GSM2124 Waters’ managed switch. Both switches meet IEEE802.3/u/x/z specifications. The switch has either sixteen or twenty-four 10/100/1000Mbps ports and two SFP fiber slots. The switch can be managed through RS-232 serial port via direct connection or through an Ethernet port using CLI or Web-based management unit, associated with SNMP agent.

  • Page 7: Software Features

    Supports external loopback test to verify if link is okay Supports network time synchronization and daylight saving Supports 120 event log records in the main memory and display on the local console Waters Network Systems User’s Manual Page 7 GSM-2116 and GSM-2124...

  • Page 8: Hardware Description

    SFP Fiber Ports Figure 3.2 - Front view of GSM-2116 switch RESET Button: Power Indication LED Fiber Port Status Indication LEDs RESET button is used to reset the management system. Waters Network Systems User’s Manual Page 8 GSM-2116 and GSM-2124...

  • Page 9: Rear Panel

    If the SFP modules are installed, ports 15 and 16 (ports 23 and 24) can no longer be used for 10/100/1000 copper connection. The following lists the SFP modules that are available for the GSM2116 switch: SFP-1000SX-LC – multimode fiber transceiver with LC connector SFP-1000LX-LC-10 –...

  • Page 10: Installation

    802.3 series specification of Media Access Control (MAC) and PHY, and layer 2 protocols such as 802.1d, 802.1q, and LACP. Waters Network Systems User’s Manual Page 10 GSM-2116 and GSM-2124...
  • Page 11 VLAN and tag-based VLAN. They are different in practical deployment, especially in physical locations. The following diagram shows how the VLAN works. Example 2a: Port-based VLAN (See Figure 3-5). Waters Network Systems User’s Manual Page 11 GSM-2116 and GSM-2124...
  • Page 12 4. VLAN4 members cannot access VLAN1 and VLAN3 members, but they can access VLAN2 members. Example 3a: The same VLAN members can be at different switches with the same VID (See Figure 3.7). Waters Network Systems User’s Manual Page 12 GSM-2116 and GSM-2124...

  • Page 13: Network Applications

    Flow control: None 4. When you complete the connection, press the Enter key. 5. Turn on the switch. 6. The default login is: a. Username = admin b. Password = admin Waters Network Systems User’s Manual Page 13 GSM-2116 and GSM-2124...

  • Page 14: Configuring Ip, Subnet Mask And Default Gateway

    <mask> : subnet mask <gateway> : default gateway Possible value: <ip> : 192.168.1.2 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: GEL2-SW8(ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 Waters Network Systems User’s Manual Page 14 GSM-2116 and GSM-2124...

  • Page 15: Configuring The Switch Via The Web

    2. Access your web browser or use the console connection. Note: If you make changes to the configuration, you must save the configuration before rebooting the switch. Waters Network Systems User’s Manual Page 15 GSM-2116 and GSM-2124...

  • Page 16: Ip Address Assignment

    C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24. Each class has its address range described below. Waters Network Systems User’s Manual Page 16...
  • Page 17 Private IP address and listed below: Class A 10.0.0.0 --- 10.255.255.255 Class B 172.16.0.0 --- 172.31.255.255 Class C 192.168.0.0 --- 192.168.255.255 Please refer to RFC 1597 and RFC 1466 for more information. Subnet mask: Waters Network Systems User’s Manual Page 17 GSM-2116 and GSM-2124...
  • Page 18 The length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched. The following table shows the result. Waters Network Systems User’s Manual Page 18...
  • Page 19 IP address, known as default router. Basically, it is a routing policy. The gateway setting is used for Trap Events Host only in the switch. For assigning an IP address to the switch, check the IP address of the network that will be Waters Network Systems User’s Manual Page 19...
  • Page 20 IP of the server. However, generally the name is used to connect to the server. Thus, the switch DNS client program (such as a browser) will ask the DNS to resolve the IP address of the named server. Waters Network Systems User’s Manual Page 20...

  • Page 21: Web Based Management

    A maximum of three users are able to login simultaneously in the switch. To optimize the display effect, we recommend you use Microsoft IE 6.0 and above as your web browser. Waters Network Systems User’s Manual Page 21...

  • Page 22: Overview Of Web Management

    System Up Time Current Time BIOS Version Firmware Version Hardware-Mechanical Version Serial Number Host IP Address Host MAC Address Device Port RAM Size Flash Size Figure 5.2 displays the System Information screen. Waters Network Systems User’s Manual Page 22 GSM-2116 and GSM-2124...
  • Page 23 The Auto Logout default is set to three minutes. You may change the time by using the pull down list for Auto Logout. The system will Waters Network Systems User’s Manual Page 23 GSM-2116 and GSM-2124...
  • Page 24 Root System Port Mirror Bandwidth SNMP IGMP Snooping Max. Packet Length DHCP Boot VLAN MAC Table GVRP Trunk 802.1X Alarm Configuration Diagnostics TFTP Server Firmware Upgrade Reboot Logout Waters Network Systems User’s Manual Page 24 GSM-2116 and GSM-2124...

  • Page 25: System Information

    The serial number is assigned by the manufacturer. Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Waters Network Systems User’s Manual Page 25 GSM-2116 and GSM-2124...

  • Page 26: Ip Configuration

    IP address from DHCP server, the device will stop the booting process. If the field is set to “Disable”, you will have to input the IP address manually. For more details about IP address and DHCP, refer to Section 4.4 - IP Address Assignment. Default: Disabled Waters Network Systems User’s Manual Page 26 GSM-2116 and GSM-2124...
  • Page 27 DHCP is enabled. DNS can help you easily remember the mnemonic address name with the meaningful words in it. No assignment of DNS address is made by default. Default: 0.0.0.0 Waters Network Systems User’s Manual Page 27 GSM-2116 and GSM-2124...

  • Page 28: Time Configuration

    And when the time passes over the ending time, the system time will be decreased one hour after one minute at the time Waters Network Systems User’s Manual...
  • Page 29 This is used to set when to stop performing the daylight saving time. Month: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Waters Network Systems User’s Manual Page 29 GSM-2116 and GSM-2124...

  • Page 30: Account Configuration

    Up to four guest accounts can be created. The default setting for user account is: Username: admin Password: admin The default setting for guest user account is: Username: guest Password: guest Figure 5.6 – Account Configuration Waters Network Systems User’s Manual Page 30 GSM-2116 and GSM-2124...

  • Page 31: Management Policy

    (Deny). Some restrictions also can be placed on the mode used to connect to the switch. For example, VLAN VID is able to be accepted or denied by the Waters Network Systems User’s Manual...
  • Page 32 A new entry of Management Security Configuration can be created after the initial parameters as have been setup. Use the Edit/Create button. Delete: Removes the existed entry of Management Security Configuration from the management security table. Waters Network Systems User’s Manual Page 32 GSM-2116 and GSM-2124...

  • Page 33: Virtual Stack

    Master device with the smaller MAC value will be the Master. All of these 16 devices can become the Master device and back up with each other . Virtual Stack is disabled by default. Waters Network Systems User’s Manual Page 33...
  • Page 34 It is the group identifier (GID) which signs for VSM. Valid letters are A-Z, a-z, 0-9, “ “ and “_” characters. The maximal length is 15 characters. Figure 5.9 – Virtual Stack Configuration Waters Network Systems User’s Manual Page 34 GSM-2116 and GSM-2124...

  • Page 35: Port Configuration

    Port status reports the current status of all ports in the switch. The screen will be automatically refreshed approximately every five seconds as port parameters change. Parameter Description: Port No: Waters Network Systems User’s Manual Page 35 GSM-2116 and GSM-2124...
  • Page 36 Show each port’s flow control status. There are two types of flow control in Ethernet, backpressure for half-duplex operation and pause flow control (IEEE802.3x) for full-duplex operation. The switch supports both. Default: Disabled Waters Network Systems User’s Manual Page 36 GSM-2116 and GSM-2124...
  • Page 37 Vendor Rev (Revision): Displays the module revision. Vendor SN (Serial Number): Displays the serial number assigned by the manufacturer. Date Code: Displays the date this SFP module was made. Temperature: Waters Network Systems User’s Manual Page 37 GSM-2116 and GSM-2124...

  • Page 38: Port Configuration

    Used to set the operation mode of each port. The switch supports three parameters for each port: State Mode Flow control. Parameter description: State: The communication capability of the port is Enabled or Disabled. When enabled, traffic can be Waters Network Systems User’s Manual Page 38 GSM-2116 and GSM-2124...

  • Page 39: Simple Counter

    The valid range is three to ten seconds. The refresh interval is used to set the update frequency. Default update time is three seconds. Figure 5.13 – Simple Counter Waters Network Systems User’s Manual Page 39...

  • Page 40: Detail Counter

    Each data field is 20-digits. If the counting overflows, the counter will be reset and counting will be restarted. The data is updated based on the time interval defined by the user. The valid Waters Network Systems User’s Manual Page 40...
  • Page 41 Shows the counting number of the transmitted multicast packet. Rx 64 Bytes: Number of 64-byte frames in good and bad packets received. Rx 65-127 Bytes: Number of 65 ~ 126-byte frames in good and bad packets received. Waters Network Systems User’s Manual Page 41 GSM-2116 and GSM-2124...
  • Page 42 Number of long frames(according tomax_length register) with invalid CRC. Rx Drops: Frames dropped due to the lack of receiving buffer. Rx Errors: Number of the error packets received. Tx Collisions: Number of collisions transmitting frames experienced. Waters Network Systems User’s Manual Page 42 GSM-2116 and GSM-2124...

  • Page 43: Mirror Configuration

    Port 1. Monitored Port: Set up the port for being monitored. Select the check box ( beside the port number. Valid ports are Port 1~16 (24). Figure 5.15 – Mirror Configuration Waters Network Systems User’s Manual Page 43 GSM-2116 and GSM-2124...

  • Page 44: Bandwidth Management

    Data Rate field. Traffic may be lost if egress buffers run full. The format of the packet limits to unicast, broadcast and multicast. Valid range is 0~1000. Waters Network Systems User’s Manual Page 44...

  • Page 45: Qos (Quality Of Service) Configuration

    Port 2 has a higher precedence of transmitting packets. Parameter description: Port No: Choose the port 1~16 (24) respectively with Priority Class on Per Port Priority function. Class: Waters Network Systems User’s Manual Page 45 GSM-2116 and GSM-2124...
  • Page 46 Priority. For the use of VLAN Tag Priority function, use the Configure button. Figure 5.19 – VLAN Tag Priority Parameter description: Quality of Service (QoS) VLAN Tag Configuration: Used for setting up the QoS belongs to VLAN operation. Waters Network Systems User’s Manual Page 46 GSM-2116 and GSM-2124...
  • Page 47 Set the ports 1~16 (24) respectively to allow the TOS QoS function to work. Use Select All to set all the ports at the same time. Bit 0, Bit 1, Bit 2: Waters Network Systems User’s Manual Page 47 GSM-2116 and GSM-2124...
  • Page 48 FTP and news as the QoS of L4 and enter the “Advanced Mode”, then we can see that special port numbers 80, 280, 443, 25, 110, 20, 21, 69, 119, 2009 have already been configured. You can also modify these port numbers. See Figure 5-21. Special TCP/UDP class: Waters Network Systems User’s Manual Page 48 GSM-2116 and GSM-2124...
  • Page 49 Prioritize IP Telephony (VoIP):1718,1719,1720 Prioritize iSCSI:3225,3260,3420 Prioritize web browsing, e-mail, FTP transfers and news: 80,280,443,25,110,20,21,69,119,2009 Prioritize Streaming Audio/Video: 2979,1755,7070,7071,554,8000 Prioritize Databases (Oracle, IBM DB2, SQL, Microsoft): 66,1571,1575,523,118,156,3306,1232,1433,1434 Advanced Mode Figure 5.21 - Waters Network Systems User’s Manual Page 49 GSM-2116 and GSM-2124...
  • Page 50 Used to set the IP Differentiated Services Configuration QoS. Diffserv: Display 64 (0~63) DiffServ Priority items. Class: 64 types of traffic. Can set High Priority or Low Priority for each port respectively. Waters Network Systems User’s Manual Page 50 GSM-2116 and GSM-2124...

  • Page 51: Snmp Configuration

    Community name is user-definable with a maximum length of 15 characters and is case sensitive. No blank spaces are permitted in the community name string. Any printable character is allowed. Waters Network Systems User’s Manual Page 51 GSM-2116 and GSM-2124...
