Waters Network Systems GSM2109 Operating Manual

Managed switch with eight 10/100/1000base-tx ports plus one mini gbic slot for 1000base-sx or lx fiber or one 10/100/1000base-tx port
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12

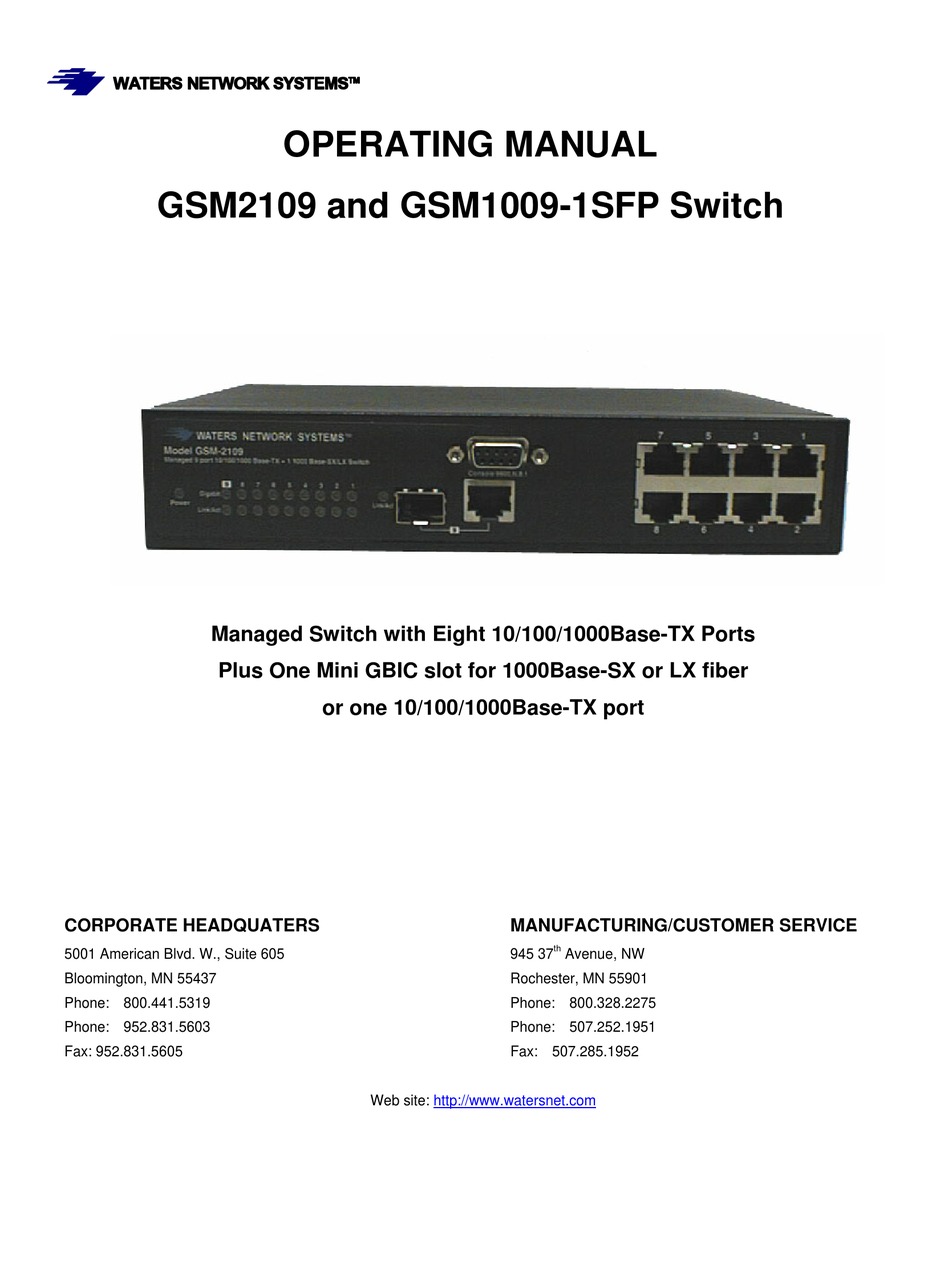

GSM2109 and GSM1009-1SFP Switch
Managed Switch with Eight 10/100/1000Base-TX Ports
Plus One Mini GBIC slot for 1000Base-SX or LX fiber
CORPORATE HEADQUATERS
5001 American Blvd. W., Suite 605
Bloomington, MN 55437
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605

OPERATING MANUAL

or one 10/100/1000Base-TX port
Web site:
http://www.watersnet.com
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM2109 and is the answer not in the manual?

Questions and answers

Related Manuals for Waters Network Systems GSM2109

Summary of Contents for Waters Network Systems GSM2109

  • Page 1: Operating Manual

    OPERATING MANUAL GSM2109 and GSM1009-1SFP Switch Managed Switch with Eight 10/100/1000Base-TX Ports Plus One Mini GBIC slot for 1000Base-SX or LX fiber or one 10/100/1000Base-TX port CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd. W., Suite 605 945 37 Avenue, NW...

  • Page 2: Table Of Contents

    Login via the Web....................42 System Information ...................43 IP Address Configuration...................44 DHCP Server.....................45 5.5.1 DHCP Server Configuration ................45 5.5.2 DHCP Server - Port and IP Bindings ..............46 TFTP Transaction ....................47 Restore Configuration ..................47 Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 2...
  • Page 3 RSTP Configuration..................68 5.25.2 RSTP Port Configuration ...................70 5.26 SNMP Configuration ..................71 5.26.1 System Configuration ..................71 5.26.2 Trap Configuration ...................72 5.26.3 SNMP v3 Configuration ...................73 5.27 QoS Configuration.....................76 5.28 IGMP Configuration ..................78 5.29 X-ring.........................80 Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 3...
  • Page 4 Factory Default Settings ..................87 5.32 Save Configuration....................87 5.33 Reboot the System.................... 87 Troubleshooting....................88 Before Calling for Assistance ................88 Return Material Authorization (RMA) Procedure ..........89 Shipping and Packaging Information..............90 Warranty ......................91 Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 4...

  • Page 5: Specifications

    GVRP (256 groups) Port security Port mirroring Broadcast storm Spanning Tree SMTP System Log DHCP SNTP NETWORK STANDARDS: IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3x IEEE 802.3ab IEEE 802.3ad IEEE 802.1d IEEE 802.1s Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 5...
  • Page 6 32° to 140°F (0° to 60°C) Storage: 14° to 158°F (-10°to 70°C) Ambient relative humidity: 5% to 90% (non-condensing) MECHANICAL: Enclosure: Rugged high-strength sheet metal suitable for stand-alone, wall or tabletop mounting Cooling Method: Internal fan Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 6...
  • Page 7 8.5 x 5.5 x 1.75 in (216 x 140 x 45mm) Weight: 2 lbs (.91kg) GSM1009-1SFP: Dimensions: 11 x 10.5 x 2 in (279 x 267 x 51mm) Weight: 3.7lbs (1.68kg) Warranty: Limited Lifetime Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 7...

  • Page 8: Package Contents

    Notify the carrier of any damage that you believe occurred during shipment. Ensure that the items listed below are included. If an item is missing, please contact your supplier. Both the GSM2109 and GSM1009-1SFP switch package contains the following: GSM Switch...

  • Page 9: Hardware Features

    9-port 10/100/1000Base-TX RJ45 ports plus one mini GBIC slot for SFP module for 1000Base-SX or LX fiber connectivity 9 usable ports Conforms to IEEE 802.3, 802.3u, 802.3x, 802.3z, and 802.3ab Ethernet Standards Auto-sensing 10/100/1000Base-TX RJ45 port ports Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 9...

  • Page 10: Software Features

    Supports IEEE802.3ad with LACP function. Up to 3 trunk groups and maximum group member up to 8 ports. Per port supports 4 queues. Class of Service Weight round ratio (WRR): High: Mid-High: Mid-Low: Low (8:4:2:1) Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 10...
  • Page 11 Rate limiting levels: 64kbps to 64Mbits or up to 256Mbits for Gigabit port. Support IEEE802.1x User-Authentication and can report to RADIUS server. User Reject Authentication Accept Authorize Disable System login Provides IP management security function (up to 4 accounts) security Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 11...

  • Page 12: Management Methods

    IEEE802.1d Spanning tree Spanning Tree IEEE802.1w Rapid spanning tree Table 3.1 – Software Features Management Methods The GSM2109/1009 switch series supports following management methods: Console and Telnet Management Web-based Management SNMP Network Management 3.3.1 Console and Telnet Management Console Management is done through the RS-232 Console Port. Use the RS-232 cable supplied in your package to connect directly to a workstation from your switch.

  • Page 13: Web-Based Management

    SNMP (Simple Network Management Protocol) provides a means to monitor and control network devices, manage configurations, collect statistics, performance and security information. Hardware Description Front Panel The front panel of the GSM2109/1009 switch consists of nine auto-sensing 10/100/1000Base-TX RJ45 ports mini GBIC slot.

  • Page 14: Led Indicators

    Choose a surface for your switch that is clean, smooth, level, sturdy and with a power outlet nearby. Make sure there is enough clearance around the switch to allow attachment of cables, power cord and air circulation. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 14...

  • Page 15: Attaching Rubber Feet

    Network Applications This section provides samples of network topology in which the GSM2109/1009 switch can be used. This model switch is generally used as a desktop, workgroup or edge segment switch.
  • Page 16 Hyper Terminal to match the following default characteristics of the console port: Baud Rate: 9600 bps Data Bits: Parity: None Stop Bit: Flow Control: None Figure 4.1 - Communication Parameters Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 16...
  • Page 17 4. The default user name is root, and the default password is root. You may change the login identification to make it more secure for your network. Figure 4.2 - Console Login Interface Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 17...
  • Page 18 • Telnet – use the default IP of the switch 192.168.16.1 to access switch management via Telnet. • Web Interface described in Section 5.0. Note: A complete list of CLI commands is included in this section. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 18...

  • Page 19: Cli Commands

    Enter the Exit database configure VLAN specific (vlan)# VLAN parameters database command while in privileged EXEC mode Interface Use this mode to configure switch Enter the Exit configuration parameters (config-i interface Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 19...
  • Page 20 (with a specific interface) while in the global configuration mode Commands Set List – Used in Next Table User EXEC Privileged EXEC Global configuration VLAN database Interface Configuration Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 20...
  • Page 21 [Gateway] ip dhcp Enable DHCP client function switch(config)#ip dhcp of switch show ip Show IP information of switch switch#show ip no ip dhcp Disable DHCP client function switch(config)#no ip dhcp of switch Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 21...
  • Page 22 Configures DNS IP for DHCP switch(config)# dhcpserver clients dnsip 192.168.1.1 dnsip [dns ip] dhcpserver Configures lease time (in switch(config)#dhcpserver leasetime hours) leasetime 1 [hours] dhcpserver Set static IP for DHCP clients switch(config)#interface ipbinding by port Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 22...
  • Page 23 Disables IP security function switch(config)#no security no security Disables IP security for HTTP switch(config)#no security http server http no security Disables IP security of telnet switch(config)#no security telnet server telnet Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 23...
  • Page 24 Set interface ingress limit switch(config)#interface type frame type to “accept fastEthernet 2 broadcast-mul broadcast and multicast” switch(config-if)#bandwidth ticast frame type broadcast-multicast bandwidth Set interface ingress limit switch(config)#interface type frame type to “only accept fastEthernet 2 Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 24...
  • Page 25 2 h(config-if)#show interface status show interface Displaces statistic counter of switch(config)#interface accounting interface fastEthernet 2 h(config-if)#show interface accounting no accounting Clears interface accounting switch(config)#interface information fastEthernet 2 switch(config-if)#no accounting Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 25...
  • Page 26 Disable the LACP function of switch(config)#no lacp trunk group aggregator lacp 1 [GroupID] no aggregator Remove a trunk group switch(config)#no group aggregator group 2 [GroupID] Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 26...
  • Page 27 [UntaggedVID] vlan 8021q Assign a trunk link for a VLAN switch(vlan)#vlan 8021q port by port. If the port belongs to port 3 trunk-link tag 2,3,6,99 [PortNumber] a trunk group, this command Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 27...
  • Page 28 3 hybrid-link untag 5 tag 6-8 [TaggedVID List] show vlan Show VLAN information switch(vlan)#show vlan 23 [GroupID] show vlan no vlan group Delete port based group ID switch(vlan)#no vlan group [GroupID] Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 28...
  • Page 29 Use the spanning-tree cost switch(config)#interface [1~200000000] interface configuration fastEthernet 2 command to set the path switch(config-if)#stp-path- cost for Spanning Tree cost 20 Protocol (STP) calculations. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 29...
  • Page 30 True stp-admin-non-s Admin NonSTP of STP switch(config)#interface priority. fastEthernet 2 [True|False] switch(config-if)# stp-admin-non-stp False show Display a summary of the switch>show spanning-tree spanning-tree spanning-tree states. Disable spanning-tree. switch(config)#no spanning-tree spanning-tree Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 30...
  • Page 31 22 middle low|middle|high qos priority tos Configure TOS priority switch(config)#qos priority [Priority][lowest| tos 3 high low|middle|high show qos Displays the QoS switch>show qos configuration no qos Disables QoS function switch(config)#no qos Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 31...
  • Page 32 Display filter MAC address switch#show address-table table. mac-address-table filter filter no mac- Remove static entry of MAC switch(config)#interface address-table address table fastEthernet 2 static hwaddr switch(config-if)#no [MAC] mac-address-table static hwaddr 000012345678 Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 32...
  • Page 33 192.168.1.50 [IP address] community public community trap-version v1 [Community- (remove) string] Switch(config)# trap-version no snmp-server host [v1|v2c] 192.168.1.50 snmpv3 Configure the context name switch(config)#snmpv3 context-name context-name Test [Context Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 33...
  • Page 34 V1 type [View Name] Excluded sub-oid 1.3.6.1 type [Excluded| Included] sub-oid [OID] show snmp Displays the SNMP switch#show snmp configuration no snmp Remove the specified switch(config)#no snmp community- community. community-strings public strings [Community] Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 34...
  • Page 35 View Name] [Notify View Name] no snmpv3 Remove specified mibview switch(config)#no snmpv3 mibview view table of SNMPV3 agent. mibview view V1 type [View Name] Excluded sub-oid 1.3.6.1 type [Excluded| Included] sub-oid [OID] Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 35...
  • Page 36 8021x system The 802.1x system share key switch(config)# 8021x sharekey global configuration command system sharekey 123456 [ID] is used to change the shared key value. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 36...
  • Page 37 | accept | state of the selected port. portstate accept authorize] show 8021x Displays a summary of the switch>show 8021x 802.1x properties and the port states. no 8021x Disable 802.1x function switch(config)#no 8021x Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 37...
  • Page 38 192.168.1.5 smtp Enable SMTP authentication switch(config)#smtp authentication authentication smtp account Configure authentication switch(config)#smtp account [account] account user smtp password Configure authentication switch(config)#smtp [password] password password smtp rcptemail Configure e-mail address for switch(config)#smtp Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 38...
  • Page 39 X - Disable X- ring topology event switch(config)#no event X - -ring-topology- -ring-topology-change change no event Disable port event for system switch(config)#interface systemlog fastethernet 3 switch(config-if)#no event systemlog Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 39...
  • Page 40 Displays index number of time switch#show sntp timezone timezone zone list no sntp Disable SNTP function switch(config)#no sntp no sntp daylight Disable daylight savings time switch(config)#no sntp daylight Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 40...
  • Page 41 Disable ring master switch(config)# no Xring master master no X - ring Disable coupling ring switch(config)# no Xring couplering couplering no X - ring Disable dual homing switch(config)# no Xring dualhoming dualhoming Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 41...

  • Page 42: Web Based Management

    3. The login screen will be displayed. 4. Enter the user name and password. The default user name and password is root. 5. Click Enter or OK. 6. The Main Menu for web based management will be displayed. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 42...

  • Page 43: System Information

    The System Information screen displays the following: Firmware Version - displays the firmware version for the switch. Kernel Version - displays the kernel software version. MAC Address - displays the unique hardware address assigned by manufacturer (default). Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 43...

  • Page 44: Ip Address Configuration

    IP address. For example, domain name www.net.com might translate to 192.168.1.1. DNS2 - DNS2 is the backup for DNS1. If the DNS1 cannot function, the DNS2 will replace DNS1. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 44...

  • Page 45: Dhcp Server

    High IP Address - High IP address is the last of the dynamic IP numbers to be assigned. In the example listed above, the High IP address would be 192.168.1.200. Subnet Mask - The dynamic IP assigned range for subnet mask. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 45...

  • Page 46: Dhcp Server - Port And Ip Bindings

    When the device is connecting to the port and requests a dynamic IP assignment, the system will assign the IP address that has been previously assigned to the connected device. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 46...

  • Page 47: Tftp Transaction

    4. Click Apply to proceed with the update. 5. Enter the firmware filename. Figure 5.7 - Update Firmware Screen Restore Configuration You can restore the EEPROM value from the TFTP server: 1. Enter the TFTP server IP address. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 47...

  • Page 48: Backup Configuration

    The System Event Log allows you to configure the switch so you can collect and view system events. 1. Select the Syslog Client Mode: client only, server only, or both client and server. (Disable is the default.) 2. Assign the syslog server IP address. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 48...

  • Page 49: Smtp Configuration

    (When the Email Alert is enabled, this function will be available.) Mail Account – configure email account receive alerts. johnadmin@123.com. The email account must exist on the mail server configured in SMTP Server IP Address column. Password - email account password Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 49...

  • Page 50: Event Configuration

    Authentication Failure – the system will produce a log event when the SNMP authentication fails. X-ring topology change - – the system will produce a log event when the X-ring topology changes. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 50...
  • Page 51 Link Down - the system will produce a log message when port connection is down only. o Link Up & Link Down - the system will produce a log message when port connection is up and down. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 51...

  • Page 52: Sntp

    -6 hours 6 am MDT - Mountain Daylight MST - Mountain Standard -7 hours 5 am PDT - Pacific Daylight PST - Pacific Standard -8 hours 4 am ADT - Alaskan Daylight Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 52...
  • Page 53 7 pm Standard CCT - China Coast, USSR +8 hours 8 pm Zone 7 JST - Japan Standard, +9 hours 9 pm USSR Zone 8 EAST - East Australian +10 hours 10 pm Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 53...
  • Page 54 The daylight savings ending time will different in every year. 6. Daylight Saving Offset (mins) - set the offset time. 7. Switch Timer - displays the switch current time. 8. Click Apply to save the configuration. Figure 5.12 – SNTP Configuration Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 54...

  • Page 55: Ip Security

    Secure IP1~ Secure IP10 – Assign up to ten IP addresses. Only the IP addresses entered in the IP Security Configuration screen will have access to the management functions of the switch through the Web browser and Telnet. IP Security is disabled by default. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 55...

  • Page 56: User Authentication

    1. User name – type in the new user name. The default user name is root. 2. Password – type in the new password. The default password is root. 3. Click Apply to make the changes. 5.14 – User Authentication Screen Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 56...

  • Page 57: Port Menu Options

    Packet Dropped: The counts of dropped packet. Rx Bcast Packet: The counts of broadcast packet. Rx Mcast Packet: The counts of multicast packet. Use the Clear button to clear out all the counters. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 57...

  • Page 58: Port Control

    Flow Control – flow control function is Symmetric or Asymmetric in full duplex mode. The default value is Disable. Security – This port accepts only one MAC address when enabled. Use Apply to save the configuration Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 58...

  • Page 59: Single Port Information

    The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between partner systems. The systems have to reach an agreement on the identity of the Link Aggregation Group to which the link belongs, move Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 59...
  • Page 60 • If LACP is enabled, you can configure the LACP Active/Passive status in each port on the state activity page. • Click apply to confirm the setting. • The Trunk Group can be deleted by selecting the Group ID and clicking Delete. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 60...

  • Page 61: State Activity

    Passive – port does not automatically send LACP protocol packets and responds only if it receives LACP protocol packets from the opposite device. Note: A link having either two active LACP ports or one active port can perform Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 61...

  • Page 62: Port Mirroring

    You can choose the port to monitor in only one mirror mode. Select the mirroring port state: o RX – RX packet only o TX – TX packet only o Both – RX and TX packet Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 62...

  • Page 63: Rate Limiting

    Ingress – enter the port effective ingress rate. The default value is 0. Egress – enter the port effective egress rate. The default value is 0. Click Apply to confirm the settings. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 63...

  • Page 64: Protocol Menu

    5.22 - Rate Limiting Screen 5.23 Protocol Menu The Protocol Menu includes the following functions: VLAN Rapid Spanning Tree Protocol (RSTP) Simple Network Management Protocol (SNMP) Quality of Service (QoS) Internet Group Management Protocol (IGMP) X-Ring Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 64...

  • Page 65: Vlan Configuration

    In order for an end station to send packets to different VLANs, it has to be either capable of sending tagged or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with a different VLAN ID based on not only default PVID but also Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 65...

  • Page 66: 802.1Q Vlan

    (VID) that indicates the VLAN numbers. From this menu, you can create a tag-based VLAN, and enable or disable the Generic Attribute Registration Protocol (GVRP) protocol. There are 256 VLAN groups available Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 66...
  • Page 67 To enable the GVRP protocol, check box to enable GVRP protocol. Select the ports to be configured. There are three link types. Access Link Trunk Link Hybrid Link Assign the Untagged VID. Assign the Tagged VID. Click apply. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 67...

  • Page 68: Rstp (Rapid Spanning Tree Protocol) Menu

    RSTP mode – RSTP must enabled before RSTP functions can be configured. RSTP is disabled by default. Priority (0-61440) - a value used to identify the root bridge. The bridge with the Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 68...
  • Page 69 Note: Follow the rule to configure the MAX age, hello time and forward delay time: 2 x (Forward Delay Time value –1) > = Max Age value >= 2 x (Hello Time value +1) 5.27 - RSTP System Configuration Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 69...

  • Page 70: Rstp Port Configuration

    To configure the port as an edge port, set the port to True. 4. STP Neighbor - the port includes the STP mathematic calculation. True does not include STP mathematic calculation. False includes the STP mathematic calculation. 5. Click Apply. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 70...

  • Page 71: Snmp Configuration

    String – enter the name of the string. Attribute – enable access rights for the community string. • Read only – enables requests accompanied by this string to display MIB-object Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 71...

  • Page 72: Trap Configuration

    Trap Manager IP - enter the IP address of the trap manager. Community Name - enter the community string. Ver. - select the SNMP version – v 1 or v2. Click Add - to save the settings. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 72...

  • Page 73: Snmp V3 Configuration

    Click Add to add the password. Click Remove to remove an unwanted password. Configure SNMP V3 Group Table. Security Name (User ID) – assign the user name that you set up in user table. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 73...
  • Page 74 ViewName- set up the name. Sub-Oid Tree – enter the Sub Oid Type – select excluded or included Click Add to configure the MIBview Table. Click Remove to remove the MIBview Table. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 74...
  • Page 75 5.32 – SNMP V3 Interface Figure 5.31 – SNMP v3 Interface Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 75...

  • Page 76: Qos Configuration

    • COS first - the port priority follows the COS priority first and other priority rules next. • TOS first - the port priority follows the TOS priority first and other priority rules next. Click Apply to save the configuration. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 76...
  • Page 77 5.32 – QoS Configuration Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 77...

  • Page 78: Igmp Configuration

    IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets as well as manage IP multicast traffic through the switch. IGMP provides the following three fundamental types of messages: Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 78...
  • Page 79 IGMP Protocol - enable or disable the IGMP protocol. IGMP Query - enable or disable the IGMP query function. The IGMP query information will be display in the IGMP status section. 5.33 – IGMP Configuration Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 79...

  • Page 80: X-Ring

    Dual-homing provides reliability for your network by allowing a device to be connected to the network by way of two independent connection points. One access point is the operating connection and the other is a Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 80...

  • Page 81: Security Menu

    Authentication is supplied through user name and password which are verified by a separate server. System Configuration Once the 802.1x function has been enabled, you are ready to configure the parameters for this function. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 81...
  • Page 82 Accept - the specified port is required to be held in the authorized state. Authorized - the specified port is set to the authorized or unauthorized state in accordance with the outcome of an authentication exchange between the supplicant and the authentication server. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 82...
  • Page 83 Max Requests - set the number of authentication requests that must time-out before authentication fails and the authentication session ends. Reauth period - set the period of time after which clients connected must be Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 83...

  • Page 84: Mac Address Table

    1. MAC Address - enter the MAC address of the port that should permanently forward traffic, regardless of device activity. 2. Port No. – use the Space bar to select the port number. 3. Click Add to save the configuration. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 84...
  • Page 85 Click Add to save the configuration. The MAC address will be displayed in the table. You can delete a MAC address from the filtering table by selecting the MAC address and clicking Delete. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 85...
  • Page 86 Select the port. The selected port for static MAC address information will be displayed. Select Clear MAC Table to clear the current port static MAC address information. 5.40 – All MAC Address Interface Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 86...

  • Page 87: Factory Default Settings

    5.33 Reboot the System Once changes have been made, the system should be rebooted to apply the changes. Choose Reboot System from the Main Menu. Click on Reboot to reboot the system. Waters Network Systems GSM2109/GSM1009-SFP User’s Manual Page 87...

  • Page 88: Troubleshooting

    Verify whether or not the problem is corrected. If not, go to next step. If the problem is corrected, the Waters’ switch and its associated cables are functioning properly. 6. If the problem continues, contact Waters Network Systems Customer Service at 800.328.2275 or email carolynl@watersnet.com for assistance.

  • Page 89: Return Material Authorization (Rma) Procedure

    The components involved in the problem d. Any particular application that, when used, appears to create the problem 2. An accurate list of Waters Network Systems product model(s) involved. Include the date(s) that you purchased the products from your supplier.

  • Page 90: Shipping And Packaging Information

    (user) charge. Shipping and Packaging Information Should you need to ship the unit back to Waters Network Systems, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection.

  • Page 91: Warranty

    This limited warranty does not include service to repair damage resulting from accident, disaster, misuse, neglect, lightning, acts of God, tampering or product modification. Service under the warranty may be obtained by contacting Waters Network Systems and receiving a Return Material Authorization (RMA) number from Waters Network Systems.
  • Page 92 WATERS NETWORK SYSTEMS’ LIABILITY UNDER THE WARRANTY SHALL BE LIMITED TO PRODUCT REPAIR, OR REPLACEMENT OF THE BUYER’S PURCHASE PRICE. IN NO EVENT SHALL WATERS NETWORK SYSTEMS BE LIABLE FOR THE COST OF PROCUREMENT OF SUBSTITUTE GOODS BY THE CUSTOMER OR FOR ANY CONSEQENTIAL OR INCIDENTAL DAMAGES FOR BREACH OR WARRANTY.
