12
Unmanaged Switch with 16 or 24 10/100/1000-TX Ports
CORPORATE HEADQUATERS
5001 American Blvd. W., Suite 605
Bloomington, MN 55437
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605
OPERATING MANUAL
GS1016 and GS1024 Switches
Optional Slots for SFP Fiber Connectivity
Web site:
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952
http://www.watersnet.com
Advertisement
Table of Contents
Related Manuals for Waters Network Systems GS1016
Summary of Contents for Waters Network Systems GS1016
-

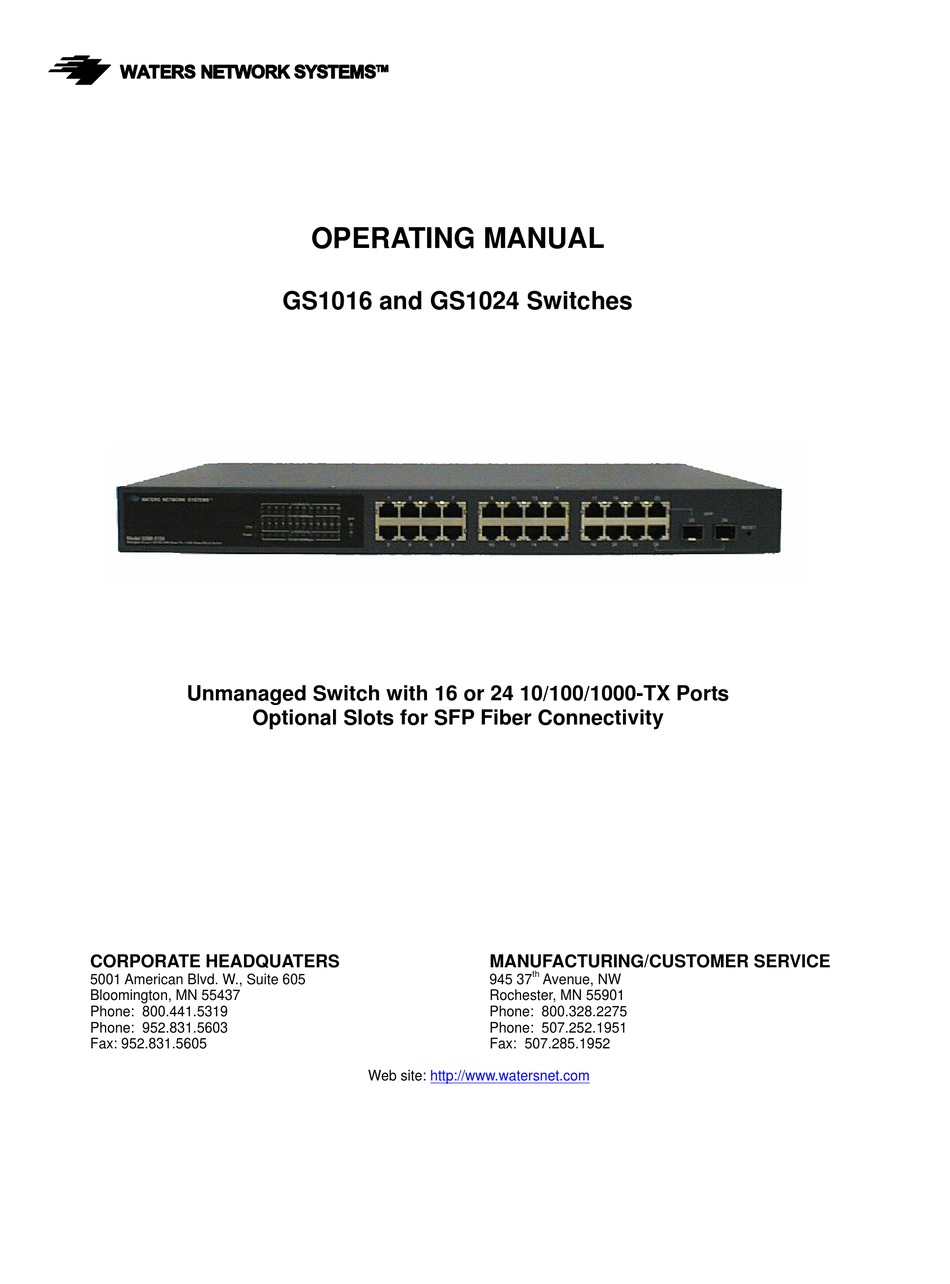

Page 1: Operating Manual
OPERATING MANUAL GS1016 and GS1024 Switches Unmanaged Switch with 16 or 24 10/100/1000-TX Ports Optional Slots for SFP Fiber Connectivity CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd. W., Suite 605 945 37 Avenue, NW Bloomington, MN 55437 Rochester, MN 55901 Phone: 800.441.5319... -
Page 2: Table Of Contents
INSTALLATION ..........................5 ..........................6 WITCH OPOLOGY LEDS..............................6 TROUBLESHOOTING........................7 ..................... 7 EFORE ALLING FOR SSISTANCE (RMA) P ..............8 ETURN ATERIAL UTHORIZATION ROCEDURE ..................... 9 HIPPING AND ACKAGING NFORMATION WARRANTY ..........................10 Waters Network Systems User’s Manual Page 2 GS-1016GS-1024-TX... -
Page 3: Specifications
100 to 240 VAC, 50 to 60Hz Power Consumption 30 watts maximum OPERATING ENVIRONMENT Ambient Temperature: 32° to 122°F (0° to 50°C) Ambient Humidity 5% to 90% MECHANICAL: Cooling Method: Fan cooled Waters Network Systems User’s Manual Page 3 GS-1016GS-1024-TX... - Page 4 PHYSICAL CHARACTERISTICS Dimensions: 8.23 x 17.4 x 1.73 in (132 x 217 x 44 mm) WARRANTY: Limited Lifetime Waters Network Systems User’s Manual Page 4 GS-1016GS-1024-TX...
-
Page 5: Package Contents
Because both models (GS1016 and GS1024) have two optional slots for SFP fiber, ports 15 and 16 in the GS1016 and ports 23 and 24 in the GS1024 can support two types of media (copper or fiber). Use of the SFP module for fiber eliminates the use of the corresponding port in copper. -
Page 6: Switch Topology
If there is a no link status, the possible causes are as follows: The attached device is not powered on. The cable may not be the correct type or is faulty. The installed building premise cable is faulty. The port may be faulty. Waters Network Systems User’s Manual Page 6 GS-1016GS-1024-TX... -
Page 7: Troubleshooting
Troubleshooting All Waters’ switching products are designed to provide reliability and consistently high performance in all network environments. The installation of a Waters’ GS1016 and GS1024 switch is a straightforward procedure. Should problems develop during installation or operation, this section is intended to help locate, identify and correct these types of problems. Please follow the suggestions listed below prior to contacting your supplier. -
Page 8: Return Material Authorization (Rma) Procedure
2. An accurate list of Waters Network Systems product model(s) involved. Include the date(s) that you purchased the products from your supplier. 3. It is useful to include other network equipment models and related hardware, including personal computers, workstations, terminals and printers; plus, the various network media types being used. -
Page 9: Shipping And Packaging Information
Shipping and Packaging Information Should you need to ship the unit back to Waters Network Systems, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection. -
Page 10: 7.0 Warranty
In the event of a malfunction or other indication of product failure attributable directly to faulty materials and/or workmanship, Waters Network Systems will, at its option, repair or replace the defective products or components at no additional charge as set for herein. This limited warranty does not include service to repair damage resulting from accident, disaster, misuse, neglect, lightning, acts of God, tampering or product modification. - Page 11 WATERS NETWORK SYSTEMS’ LIABILITY UNDER THE WARRANTY SHALL BE LIMITED TO PRODUCT REPAIR, OR REPLACEMENT OF THE BUYER’S PURCHASE PRICE. IN NO EVENT SHALL WATERS NETWORK SYSTEMS BE LIABLE FOR THE COST OF PROCUREMENT OF SUBSTITUTE GOODS BY THE CUSTOMER OR FOR ANY CONSEQENTIAL OR INCIDENTAL DAMAGES FOR BREACH OR WARRANTY.
- Page 12 ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOTHING HEREIN SHALL HAVE THE EFFECT OF LIMITING OR EXCLUDING WATERS’S LIABILITY FOR DEATH OR PERSONAL INJURY CAUSED BY NEGLIGENCE. Waters Network Systems User’s Manual Page 12 GS-1016GS-1024-TX...
