Waters Network Systems ProSwitch 2800M Operating Manual

Managed modular fiber and copper switch chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12
Managed Modular Fiber and Copper Switch Chassis
CORPORATE HEADQUATERS
7401 Metro Blvd., Suite 560
Edina, MN 55439
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605

OPERATING MANUAL

ProSwitch 2800M/MR
Web site:
http://www.watersnet.com
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProSwitch 2800M and is the answer not in the manual?

Questions and answers

Related Manuals for Waters Network Systems ProSwitch 2800M

Summary of Contents for Waters Network Systems ProSwitch 2800M

  • Page 1: Operating Manual

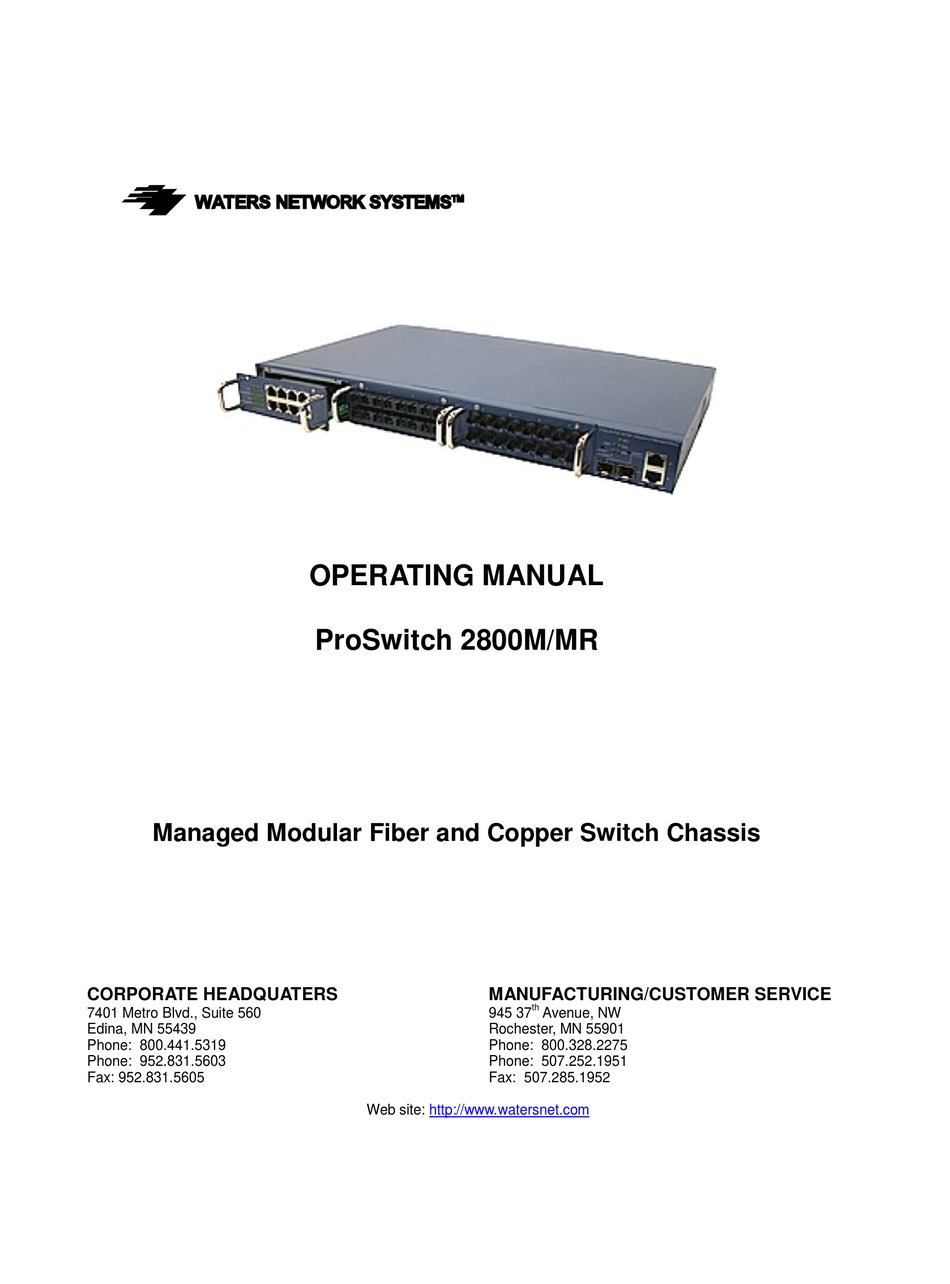

    OPERATING MANUAL ProSwitch 2800M/MR Managed Modular Fiber and Copper Switch Chassis CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 7401 Metro Blvd., Suite 560 945 37 Avenue, NW Edina, MN 55439 Rochester, MN 55901 Phone: 800.441.5319 Phone: 800.328.2275 Phone: 952.831.5603 Phone: 507.252.1951 Fax: 952.831.5605 Fax: 507.285.1952...

  • Page 2: Table Of Contents

    ........................60 ABLE 5.14 GVRP C ....................... 65 ONFIGURATION 5.15 (STP) C ............. 69 PANNING ONFIGURATION ONFIGURATION 5.15.1 STP S ........................69 TATUS 5.15.2 ......................71 ONFIGURATION 5.15.3 STP P .................... 73 ONFIGURATION Waters Network Systems 2800M/MR User’s Manual Page 2...
  • Page 3 MAINTENANCE ........................... 142 ........................142 XAMPLES TROUBLESHOOTING ......................... 143 ..................143 EFORE ALLING FOR SSISTANCE (RMA) P ............ 144 ETURN ATERIAL UTHORIZATION ROCEDURE ................144 HIPPING AND ACKAGING NFORMATION WARRANTY ..........................145 Waters Network Systems 2800M/MR User’s Manual Page 3...

  • Page 4: Specifications

    IEEE 802.1x MANAGEMENT FUNCTIONS Web-based, SNMP, CLI, or Telnet RMON RFC1757 group 1, 2, 3 and 9 DHCP client IGMP snooping function 802.1x port-based authentication QoS (four levels) VLANs 4094/Maximum 256 groups Waters Network Systems 2800M/MR User’s Manual Page 4...
  • Page 5 SM: 20km 1000Base-SX SFPs MM: 850m 1000Base-LX SFPs SM: 10km, 1310nm SM: 40km, 1310nm POWER SUPPLY Internal power supply Input Voltage 100 to 240 VAC, 50 to 60Hz Power Consumption 45 watts maximum Waters Network Systems 2800M/MR User’s Manual Page 5...
  • Page 6 Dimensions: 17.4 W x 11 D x 1.75” H (442 x 281 x 44mm) Weight: 2800M Chassis: 7.5 lbs (3.4 kg) 2800MR Chassis: 10 lbs (4.6 kg) Copper Module: .61 lbs (.28 kg) Fiber Module: .75 lbs (3.34 kg) WARRANTY: Limited Lifetime Waters Network Systems 2800M/MR User’s Manual Page 6...

  • Page 7: Package Contents

    RS-232 Cable Introduction The ProSwitch 2800M is a managed modular switch chassis providing outstanding performance in any network environment requiring a combination of fiber and copper ports. The 2800M has three module bays for 10/100Base-TX or 100Base-FX (multi or singlemode) 8 port modules. In...

  • Page 8: Uplink Modules

    1-port 1000Base-LX SM (10km) fiber module with LC connector SFP-1000SXLC 1-port 1000Base-LX SM (30km) fiber module with LC connector Redundant Power Optional redundant power is available for the 2800MR model. 2800-PWR-AC/DC 1U AC/DC power module 2800-PWR-DC/DC 1U DC/DC power module Waters Network Systems 2800M/MR User’s Manual Page 8...

  • Page 9: Hardware Description

    Fast Ethernet Port Fiber Port Status: ACT/FDX/SPD LED SET Mode: ACT/FDX/SPD RESET Button: RESET button is used to reset management system. Figure 3.2 - Front View of 2800M Switch with Fiber Modules Waters Network Systems 2800M/MR User’s Manual Page 9...

  • Page 10: Led

    Blinks when collisions are occurring (Port 25, 26 LED) c. LEDSET set on SPD (speed) mode: Lit when 1000Mbps speed is active Off when 10/100Mbps speed is active Table 3.1 – LED Staus Waters Network Systems 2800M/MR User’s Manual Page 10...

  • Page 11: Rear Panel

    IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which the limitations are the timing requirement from physical signals defined by 802.3 series specification of Media Access Control (MAC) and PHY, and layer 2 protocols such as 802.1d, 802.1q, and LACP. Waters Network Systems 2800M/MR User’s Manual Page 11...

  • Page 12: Cabling Requirements For Sfp Module

    Level 1 switch and connect all other switches to it at Level 2. It is recommended to connect the Server/Host to Waters Network Systems 2800M/MR User’s Manual...
  • Page 13 1. As a member of a VLAN, you cannot be a member of a VLAN in another switch. 2. As a member of a VLAN, you cannot access a member of another VLAN. Waters Network Systems 2800M/MR User’s Manual Page 13...
  • Page 14 4. VLAN4 members cannot access VLAN1 and VLAN3 members, but they can access VLAN2 members. Example 3a: The same VLAN members can be at different switches with the same VID (See Figure 3.7). Waters Network Systems 2800M/MR User’s Manual Page 14...

  • Page 15: Access To Management Functions

    Flow control: None 4. When you complete the connection, press the Enter key. 5. Turn on the switch. 6. The default login is: a. Username = admin b. Password = admin Waters Network Systems 2800M/MR User’s Manual Page 15...

  • Page 16: Configuring Ip, Subnet Mask And Default Gateway

     SNMP manager. The user interface for SNMP is not covered at this time. Assign an IP address, For example: Ethernet LAN IP = 192.168.1.100 Subnet Mask = 255.255.255.0 Default Gateway = 192.168.1.254 Figure 4.2 – Ethernet Port Connection Waters Network Systems 2800M/MR User’s Manual Page 16...

  • Page 17: Ip Address Assignment

    This is referred to as “classful” addressing because the address is spilt into three predefined classes, groupings or categories. Each IP address comprises two parts: network identifier (address) and host identifier (address). The Waters Network Systems 2800M/MR User’s Manual Page 17...
  • Page 18 16-bit host address. There are 16,384 (2^14)/16 networks able to be defined with a maximum of 65534 (2^16 –2) hosts per network. Bit # 01 2 15 16 Network address Host address Waters Network Systems 2800M/MR User’s Manual Page 18...
  • Page 19 They are the addresses with all zero’s and all one’s. For example, an IP address 128.1.2.128, what will the reserved IP address look like? All 0s mean the network itself, and all 1s mean IP broadcast. Waters Network Systems 2800M/MR User’s Manual Page 19...
  • Page 20 With this, you can easily count the number of IP addresses matched. The following table shows the result. Prefix Length No. of IP matched No. of Addressable IP 1024 1022 2048 2046 4096 4094 8192 8190 16384 16382 32768 32766 65536 65534 Table 4.2 Waters Network Systems 2800M/MR User’s Manual Page 20...
  • Page 21 IP Address: as shown in the Figure 4.4, enter “192.168.1.1”, for instance. An IP address such as 192.168.1.x must be set on your PC. Subnet Mask: as shown in the Figure 4.4, enter “255.255.255.0”. Any subnet mask such as 255.255.255.x is allowable in this case. Waters Network Systems 2800M/MR User’s Manual Page 21...

  • Page 22: Web Based Management

    A maximum of three users are able to login simultaneously in the switch. To optimize the display effect, we recommend you use Microsoft IE 6.0 or Firefox V1.00 or above as your web browser. Waters Network Systems 2800M/MR User’s Manual...

  • Page 23: Overview Of Web Management

     Firmware Version  Hardware-Mechanical Version  Serial Number  Host IP Address  Host MAC Address  Device Port  RAM Size  Flash Size Figure 5.2 displays the System Information screen. Waters Network Systems 2800M/MR User’s Manual Page 23...
  • Page 24 This is a very convenient function for browsing the information for a single port. To view a single port, click on the port and an information window will be displayed. (See Figure 5.3) Waters Network Systems 2800M/MR User’s Manual Page 24...
  • Page 25 This a hierarchical menu. When you make a selection, a sub menu may be displayed with additional function in the sub menu. The functions of each folder are described in this section. Waters Network Systems 2800M/MR User’s Manual Page 25...
  • Page 26 The following list is the full function tree for web user interface. Root System Port SNMP DNCP Boot IGMP Snooping VLAN MAC Table GVRP Trunk 802.1X Alarm Configuration Security Bandwidth Diagnostics TFTP Server Firmware Upgrade Reboot Logout Waters Network Systems 2800M/MR User’s Manual Page 26...

  • Page 27: System Information

    Serial number: The serial number is assigned by the manufacturer. Host IP address: The IP address of the switch. Host MAC address: Waters Network Systems 2800M/MR User’s Manual Page 27...

  • Page 28: Ip Configuration

    If the DHCP server is down or does not exist, the switch will issue the request and notify you that the IP address is being requested until the DHCP server is up. Before getting an Waters Network Systems 2800M/MR User’s Manual...
  • Page 29 There are two ways to specify the IP address of DNS. One is fixed mode, which manually specifies its IP address, the other is dynamic mode, which is assigned by DHCP server while Waters Network Systems 2800M/MR User’s Manual Page 29...

  • Page 30: Time Configuration

    The switch supports configurable time zone from –12 to +13 step 1 hour. Default Time zone: +8 Hrs. Daylight Saving: Daylight saving is adopted in some countries. If set, it will adjust the time lag or advance in unit Waters Network Systems 2800M/MR User’s Manual Page 30...
  • Page 31 This is used to set when to stop performing the daylight saving time. Month: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Waters Network Systems 2800M/MR User’s Manual Page 31...

  • Page 32: Account Configuration

    Only one administrator is allowed to exist and unable to be deleted. Up to four guest accounts can be created. The default setting for user account is: Username: admin Password: admin The default setting for guest user account is: Username: guest Password: guest Waters Network Systems 2800M/MR User’s Manual Page 32...

  • Page 33: Management Policy

    __________________________________________________ Rule 5: If both “accept and deny” lists exist, all connections will be denied except the connection inside of accepting range and NOT inside the denying range at the same time. Waters Network Systems 2800M/MR User’s Manual Page 33...
  • Page 34 The switch supports two kinds of options for managed valid VLAN VID, including Any and Custom. Default is Any. Custom allows you to fill in the VID number. The valid VID range is 1~4094. Waters Network Systems 2800M/MR User’s Manual Page 34...

  • Page 35: Virtual Stack

    The top-left button is only for the Master device (Figure 5.8). The background color of the button you press will be changed to represent that the device is under your management. Note: It will remove the grouping temporarily if you login the switch via the console. Waters Network Systems 2800M/MR User’s Manual Page 35...
  • Page 36 Default is Master. Group ID: GID is the group identifier which signs for VSM. Valid letters are A-Z, a-z, 0-9, “ “, and “_” characters. The maximal length is 15 characters. Waters Network Systems 2800M/MR User’s Manual Page 36...

  • Page 37: Port Configuration

    Figure 5.9 – Virtual Stack Configuration Port Configuration Port configuration includes the following functions: Port Configuration Status Configuration Simple Counter Detail Counter Waters Network Systems 2800M/MR User’s Manual Page 37...

  • Page 38: Port Status

    Since the fiber port could be multimode or singlemode, the information will be based on the actual media installed in the switch with reference to connector, distance, fiber mode, etc. Link: Waters Network Systems 2800M/MR User’s Manual Page 38...
  • Page 39 Tx decides if the port transmits the PAUSE frame or not. If it shows On, the port will send the PAUSE frame; otherwise, the port will not send the PAUSE frame. Default: None Waters Network Systems 2800M/MR User’s Manual Page 39...
  • Page 40 Displays the product name of the module manufacturer. Vendor Rev (Revision): Displays the module revision. Vendor SN (Serial Number): Displays the serial number assigned by the manufacturer. Date Code: Displays the date the SFP module was made. Waters Network Systems 2800M/MR User’s Manual Page 40...
  • Page 41 The version of Hardware and Mechanical. The number before the hyphen is the version of electronic hardware; the one after the hyphen is the version of mechanical. Connector(for fiber module only): Displays the connector type (UTP, SC, ST, LC, etc.) Mode(for fiber module only): Waters Network Systems 2800M/MR User’s Manual Page 41...

  • Page 42: Port Configuration

    When disabled, the port is blocked and no traffic can be transferred through this port. Port State is configurable by the user. If a port is set to disable, no Waters Network Systems 2800M/MR User’s Manual...

  • Page 43: Simple Counter

    Displays the summary counting of each port’s traffic, including Tx Byte, Rx Byte, Tx Packet, Rx Packet, Tx Collision and Rx Error Packet. Parameters description: Tx Byte: Total transmitted bytes. Rx Packet: Waters Network Systems 2800M/MR User’s Manual Page 43...

  • Page 44: Detail Counter

    In Figure 5.14, the counter is displayed one port at a time. To see another port’s counter, pull down the Select list. The figures for the port you have chosen will be displayed. Waters Network Systems 2800M/MR User’s Manual Page 44...
  • Page 45 Displays the detailed number of each port’s traffic. In Figure 5.14, the window shows all counter information for one port at a time. Parameter description: Rx Packets: The number of packets received. Rx Octets: Total received bytes. Rx Errors: Number of bad packets received. Waters Network Systems 2800M/MR User’s Manual Page 45...
  • Page 46 Number of 65 ~ 127-byte frames from good and bad packets received. Packets 128-255 Octets: Number of 128 ~ 255-byte frames from good and bad packets received. Packets 256-511 Octets: Number of 256 ~ 511-byte frames from good and bad packets received. Waters Network Systems 2800M/MR User’s Manual Page 46...
  • Page 47 Frames dropped due to the lack of receiving buffer. Rx Undersize Packets: Number of short frames (<64 Bytes) with valid CRC. Rx Oversize Packets: Number of long frames (according to max_length register) with valid CRC. Waters Network Systems 2800M/MR User’s Manual Page 47...

  • Page 48: Snmp Configuration

    Default community name for GET: public Default community name for SET: private Default community name for Trap: public Default Set function: Enable Default trap host IP address: 0.0.0.0 Default port number: 162 Waters Network Systems 2800M/MR User’s Manual Page 48...

  • Page 49: Dhcp Boot

    30 sec. If DHCP Broadcasting Suppression function is enabled, the delay time is set randomly, ranging from 0 to 30 seconds, because the exact delay time is computed by the switch itself. The default is Disable. Waters Network Systems 2800M/MR User’s Manual Page 49...

  • Page 50: Igmp Snooping

    IP multicast group. Multicast packets will be discarded by IGMP Snooping if the user transmits multicast packets to the multicast group which has not been set-up in advance. Waters Network Systems 2800M/MR User’s Manual Page 50...
  • Page 51 Membership Query message to all hosts only when it has received a Membership Query message from a router. IP Address: Displays multicast group IP addresses that are registered on this device. VLAN ID: Waters Network Systems 2800M/MR User’s Manual Page 51...
  • Page 52 The switch supports two option types for managed valid port range, including Any and Custom. Default is Any. You can select the ports to be used and restricted in the allowed group configuration if Custom has been chosen. Waters Network Systems 2800M/MR User’s Manual Page 52...

  • Page 53: Vlans

    1, you can communicate with Port 2-4. If you are connected to Port 5, you cannot communicate with those ports. Each port-based VLAN must be assigned a group name. This switch can support up to a maximum of 24 port-based VLAN groups. Waters Network Systems 2800M/MR User’s Manual Page 53...

  • Page 54: Tag-Based Group

    PVID will be added into all packets. These packets will be forwarded as Tag- based VLAN. So, the incoming packets with tag will become the double-tag ones. Figure 5.20 – VLAN Mode 5.12.2 Tag-based Group Function name: Tag-based Group Configuration Waters Network Systems 2800M/MR User’s Manual Page 54...
  • Page 55 This is used to enable or disable when a port is a member of the new added VLAN. Enable means it is a member of the VLAN. Check the box beside the port x to enable it. Figure 5.20 – Tag-based Group 5.21 – Tag-based Group Waters Network Systems 2800M/MR User’s Manual Page 55...
  • Page 56 Choose Apply save the setting. Figure 5.22 – Tag-based VLAN Delete Group: Choose Delete to remove the selected group entry from the Tag-based group table. Figure 5.23 – Tag-based Group Edit a group: Waters Network Systems 2800M/MR User’s Manual Page 56...

  • Page 57: Pvid

    QoS function is followed. For example, while you set Default Priority of port 2 with 2 and transmit untagged packets to port 2, these packets will follow priority 2 precedence and will be placed into Queue 1. Waters Network Systems 2800M/MR User’s Manual Page 57...

  • Page 58: Port-Based Group

    Used to enable or disable if a port is a member of the new added VLAN, Enable means it is a member of the VLAN. Click the check box beside the port x to enable it. Figure 5.25 – Port-based Group Waters Network Systems 2800M/MR User’s Manual Page 58...
  • Page 59 Choose Delete to remove the selected group entry from the Port-based group table. Figure 5.27 – Port-based Group Edit a group: Select a group entry and press Edit to modify a group‘s description and member set. Waters Network Systems 2800M/MR User’s Manual Page 59...

  • Page 60: Mac Table

    Set the Alias of MAC entry. Search: Find the entry. Previous Page: Move to the previous page. Next Page: Move to the next page. Alias: The Alias of the searched entry. MAC Address: Waters Network Systems 2800M/MR User’s Manual Page 60...
  • Page 61 Used to set the maximum amount of MAC that each port can learn. Valid value of learning limit for port 1~24 ranges from 0-8191. As to port 25~port 26, only the fixed value “8192” is assigned Waters Network Systems 2800M/MR User’s Manual...
  • Page 62 As static with source drop is chosen, the packet will be dropped if its SA is equal to the value you set. This setting belongs to the global one, so, it may affect all ports’ transmission of the packets. Waters Network Systems 2800M/MR User’s Manual...
  • Page 63 Static with Source Drop: While the SA of the incoming packets meets the value you set, these packets will be dropped. Port: Select the port number you would like to setup in the switch. Waters Network Systems 2800M/MR User’s Manual Page 63...
  • Page 64 As to MAC Alias Delete function is used to let you remove an alias name to a MAC address. You can select an existed MAC address or alias name to remove. Figure 5.31 – MAC Alias Waters Network Systems 2800M/MR User’s Manual Page 64...

  • Page 65: Gvrp Configuration

    VLANs associated with currently active members, and through which ports these members can be reached. Figure 5.32 – GVRP Configuration The following three functions are supported with GVRP: Function name: GVRP Config Function description: Waters Network Systems 2800M/MR User’s Manual Page 65...
  • Page 66 The Registrar ignores all GARP messages, and all members remain in the unregistered (EMPTY) state. Restricted Mode: This function is used to restrict dynamic VLAN be created when this port received GVRP PDU. There are two modes: disable and enable. Waters Network Systems 2800M/MR User’s Manual Page 66...
  • Page 67 LeaveAll Message Packets: Number of GARP BPDU with Leave All message received by the GARP application. JoinEmpty Message Packets: Number of GARP BPDU with Join Empty message received by the GARP application. Waters Network Systems 2800M/MR User’s Manual Page 67...
  • Page 68 Those are the members belonging to the same dynamic VLAN group. Edit Administrative Control: When you create a GVRP group, use the Administrative Control function to change the Applicant Mode and Registrar Mode of a GVRP group member. Waters Network Systems 2800M/MR User’s Manual Page 68...

  • Page 69: Spanning Tree Configuration (Stp) Configuration

    Displays the current STP Enabled / Disabled status. Default is Disabled. Bridge ID: Displays the switch’s bridge ID which is the MAC address of this switch. Bridge Priority: Displays the switch’s current bridge priority setting. Default is 32768. Waters Network Systems 2800M/MR User’s Manual Page 69...
  • Page 70 Time Since Last Topology Change is the accumulated time in unit of seconds the STP has been since the last STP Topology Change was made. When Topology Change is initiated again, the counter will be reset to 0 and resume counting once the STP topology change is completed. Waters Network Systems 2800M/MR User’s Manual Page 70...

  • Page 71: Configuration

    If the GSM switch is the root bridge of the LAN, for example, all other bridges will use the hello time assigned by this switch to communicate with each other. The valid value is 1 ~ 10 in unit of seconds. Default is 2 seconds. Max. Age: Waters Network Systems 2800M/MR User’s Manual Page 71...
  • Page 72 Two options are offered for the STP algorithm. One is RSTP and the other is STP. If STP is chosen, RSTP will run as a legacy STP. The switch supports RSTP (802.1w) which is backward compatible with STP (802.1d). Figure 5.36 – STP Status Waters Network Systems 2800M/MR User’s Manual Page 72...

  • Page 73: Stp Port Configuration

    Port Priority and Port Number are combined to form the Port ID. Port IDs are often compared in order to determine which port of a bridge would become the Root Port. The range is 0 – 240. Waters Network Systems 2800M/MR User’s Manual...
  • Page 74 The only benefit of this operation is to make the port quickly get back to act as an RSTP port. Select M Check to send a RSTP BPDU from the port you specified. Figure 5.37 – STP Port Configuration Waters Network Systems 2800M/MR User’s Manual Page 74...

  • Page 75: Trunking Configuration

     Rule 2 - The members of each group cannot exceed more than four ports.  Rule 3 – Group 1 and 2 cannot have as members ports 25 and 26.  Rule 4 – Group 3 cannot have members from 1 to 24 ports. Waters Network Systems 2800M/MR User’s Manual Page 75...
  • Page 76 Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port. This aggregator port is usually the port with the smallest port number within the trunking group. Waters Network Systems 2800M/MR User’s Manual Page 76...
  • Page 77 Displays the method a port uses to aggregate with other ports. Member Ports: Displays all member ports of an aggregator (port). Ready Ports: Displays only the ready member ports within an aggregator (port). Waters Network Systems 2800M/MR User’s Manual Page 77...
  • Page 78 Displays the key value of the aggregator. The key value is determined by the LACP protocol entity and can’t be set through management. Trunk Status: Displays the trunk status of a single member port.”---“ means “not ready” Waters Network Systems 2800M/MR User’s Manual Page 78...

  • Page 79: Configuration

    802.1X-enabled port without authentication. To access the network through a port under 802.1X control, you must first input your account name for authentication and wait to gain authorization before sending or receiving any packets from a 802.1X-enabled port. Waters Network Systems 2800M/MR User’s Manual Page 79...
  • Page 80 PAE. The Authenticator exchanges the message to authentication server using EAP encapsulation. Before successfully authenticating, the supplicant can only touch the authenticator to perform authentication message exchange or access the network from the uncontrolled port. Waters Network Systems 2800M/MR User’s Manual Page 80...
  • Page 81 EAP. 1. At the initial stage, supplicant A is unauthenticated so the port acting as an authenticator is in unauthorized state. Access is blocked in this stage. Waters Network Systems 2800M/MR User’s Manual Page 81...
  • Page 82 10. When the supplicant issues an EAP-Logoff message to Authentication server, the active port being used is set to unauthorized. Waters Network Systems 2800M/MR User’s Manual Page 82...
  • Page 83 Port Status Disable Don’t Care Don’t Care Port Uncontrolled Multihost Auto Successful Port Authorized Multihost Auto Failure Port Unauthorized Multihost ForceUnauthorized Don’t Care Port Unauthorized Multihost ForceAuthorized Don’t Care Port Authorized Table 5.2 Waters Network Systems 2800M/MR User’s Manual Page 83...
  • Page 84 Figure 5.44 – 802.1X State Setting Function name: 802.1X Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, multihost operation mode is supported. Parameter description: Port Number: Waters Network Systems 2800M/MR User’s Manual Page 84...
  • Page 85 Disable mode means the port is in the uncontrolled port sate, so the 802.1x authenticator is not applied. Any node attached to this port can access the network without the 802.1x authenticator. The port status will show the screen displayed in Figure 5.46. Waters Network Systems 2800M/MR User’s Manual Page 85...
  • Page 86 Port Control: This is used to set the operation mode for authorization. There are three types of operation mode supported, ForceUnauthorized, ForceAuthorized, Auto.  ForceUnauthorized: The controlled port remains in the unauthorized state. Waters Network Systems 2800M/MR User’s Manual Page 86...
  • Page 87 A timeout condition in the exchange between the authenticator and the supplicant. The valid range: 1 –65535. Default: 30 seconds. serverTimeout (1-65535): A timeout condition in the exchange between the authenticator and the authentication server. The valid range: 1 –65535. Default: 30 seconds Waters Network Systems 2800M/MR User’s Manual Page 87...

  • Page 88: Alarm Configuration

    LACP: LACP Disabled, LACP Enabled, LACP Member Added, LACP Port Failure GVRP: GVRP Disabled, GVRP Enabled VLAN: Port-based VLAN Enabled, Tag-based VLAN, Enabled Module Swap: Module Inserted, Module Removed, Dual Media Swapped, Slot Inserted, Slot Removed Waters Network Systems 2800M/MR User’s Manual Page 88...
  • Page 89 Email Address 1 – 6: Additional email addresses that would like to receive the alarm message. SMS: SMS Server: IP address of the server transferring your SMS. Username: ISP username. Password: ISP password. Waters Network Systems 2800M/MR User’s Manual Page 89...

  • Page 90: Configuration

    Apply. User Configuration:  User configuration is the specified file for backup purposes and can be updated while confirming the configuration. You can retrieve this configuration by performing Restore User Configuration. Waters Network Systems 2800M/MR User’s Manual Page 90...
  • Page 91 Figure 5.50 – Configuration Screen Waters Network Systems 2800M/MR User’s Manual Page 91...

  • Page 92: Save/Restore

    Save the current configuration as a start configuration file in flash memory. Figure 5.51 – Configuration Screen Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory. Figure 5.52 – Configuration Screen Waters Network Systems 2800M/MR User’s Manual Page 92...
  • Page 93 Restore Default Configuration function can retrieve the factory setting to replace the start configuration. However, by using this restore, the switch’s current IP address will not be changed and will NOT be restored to 192.168.1.1. Figure 5.54 – Restore Default Configuration Waters Network Systems 2800M/MR User’s Manual Page 93...

  • Page 94: Configuration File

    Export Save As User’s configuration file stored in flash. Import File Path: Import Start: Import Save As Start’s configuration file stored in flash. Import User-Conf: Import Save As User’s configuration file stored in flash. Waters Network Systems 2800M/MR User’s Manual Page 94...

  • Page 95: Security

    The monitored egress port is used to set the port to be monitored. It only monitors the packets ) transmitted by the port that has been set. Click in the check box ( beside the port x. Valid ports are Port 1~26. Waters Network Systems 2800M/MR User’s Manual Page 95...
  • Page 96 Valid ports are Port 1~26. In this group, all member ports cannot forward packets with each other. Thus, the switch will not be capable of forwarding packets if all ports become the members of the Isolated group. Waters Network Systems 2800M/MR User’s Manual Page 96...
  • Page 97 Valid ports are Ports 1~26. Egress: Select the ports for the Restricted Group to set into “Egress” mode. Click the check box beside port x. Valid ports are Ports 1~26. Waters Network Systems 2800M/MR User’s Manual Page 97...

  • Page 98: Bandwidth Management

    5.21 Bandwidth Management Function name: Ingress Bandwidth Setting Function description: Ingress Bandwidth Setting function is used to set the limit of Ingress bandwidth for each port. Figure 5.60 – Ingress Bandwidth Control Waters Network Systems 2800M/MR User’s Manual Page 98...
  • Page 99 The format of the packets are limited to unicast, broadcast and multicast. Port 1~24 port numbers range from 66~102400. Port 25~26 port numbers ranges from 66~1024000 with the minimum unit of 1. Default value of Port 1~24 is 102400 and Port 25~26 is 1024000. Waters Network Systems 2800M/MR User’s Manual Page 99...
  • Page 100 Storm Rate: Set the limit of bandwidth for storm type. Valid value of the storm rate ranges from 1-100 with the minimum unit of 1. Only integers are acceptable. Default is 100. Waters Network Systems 2800M/MR User’s Manual Page 100...

  • Page 101: Qos (Quality Of Service) Configuration

    (queue 0 to queue 3). Another scheduling type is Strict Priority which is dedicated for the function named VIP Port of QoS. Ports selected as the VIP Ports own the highest transmitting priority in egress queue of the switch. Waters Network Systems 2800M/MR User’s Manual Page 101...
  • Page 102 You can set the Weight values of Queue 0 to Queue 3. The range of Weight is 1~55. The default weight for Queue 0 is 1, Queue 1 is 2, Queue 2 is 4, and Queue 3 is 8. Waters Network Systems 2800M/MR User’s Manual...
  • Page 103 2 own highest precedence. For the sake of this function taking effect, you must choose Scheduling Method of Strict Priority ahead. Parameter description: VIP Port: Click in the check box () to select any port (Ports 1~26) as the VIP Port. Click Apply Waters Network Systems 2800M/MR User’s Manual Page 103...
  • Page 104 Figure 5.64 – VIP Port Waters Network Systems 2800M/MR User’s Manual Page 104...
  • Page 105 Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Figure 5.65 – Priority Mapping Waters Network Systems 2800M/MR User’s Manual Page 105...
  • Page 106 Priority 1 is mapped to Queue 0, Priority 2 is mapped to Queue 1, Priority 3 is mapped to Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Waters Network Systems 2800M/MR User’s Manual Page 106...
  • Page 107 TOS Throughput Priority Mapping works while T-TYPE in the TOS field of the IP header of the packets received by the switch is configured. Parameter description: Waters Network Systems 2800M/MR User’s Manual Page 107...
  • Page 108  UNUSED. PRECEDENCE 3-bits can arrange eight types of priorities corresponding to the 0~7 priority in the following priority diagram. TOS Reliability Priority Mapping works while R-TYPE in TOS field of IP header of the packets received by the switch is configured. Waters Network Systems 2800M/MR User’s Manual Page 108...
  • Page 109 Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Figure 5.68 – TOS Reliability Priority Mapping Waters Network Systems 2800M/MR User’s Manual Page 109...
  • Page 110 Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Figure 5.69 – TOS Monetary Priority Mapping Waters Network Systems 2800M/MR User’s Manual Page 110...
  • Page 111 0~15 are mapped to Queue 0, Priority 16~31 are mapped to Queue 1, Priority 32~47 are mapped to Queue 0, Priority 48~63 are mapped to Queue 0. Figure 5.70 – DSCP Priority Mapping Waters Network Systems 2800M/MR User’s Manual Page 111...

  • Page 112: Diagnostics

    Loopback Test. The Internal Test function will not send the test signal outside the switch box. The test signal only wraps around in the switch. The External Test function will send the test signal to its Waters Network Systems 2800M/MR User’s Manual...
  • Page 113 IP Address: An IP address with the version of v4, e.g. 192.168.1.1. Default Gateway: IP address of the default gateway. For more details, please see the section of IP address in Section 4. Waters Network Systems 2800M/MR User’s Manual Page 113...

  • Page 114: Tftp Server

    Specify the IP address of the TFTP server. Once you have entered the IP of the TFTP server, click on Apply so the setting will take effect. Figure 5.74 – TFTP Server Assignment Waters Network Systems 2800M/MR User’s Manual Page 114...

  • Page 115: Log

    Events: Displays the trap event name. Auto Upload Enable: Switch the enabled or disabled status of the auto upload function. Upload Log: Upload log data through tftp. Clear Log: Clear log data. Waters Network Systems 2800M/MR User’s Manual Page 115...

  • Page 116: Firmware Upgrade

    TFTP Server: A TFTP server stores the image file you want to upgrade. Path and Filename: File path and filename of the stored the image file used for the upgrade. Do you need the path? Figure 5.76 – Firmware Upgrade Waters Network Systems 2800M/MR User’s Manual Page 116...

  • Page 117: Reboot

    It takes approximately 30 seconds to complete the system boot. Parameter description: Save and Reboot: Save the current settings as start configuration before rebooting the switch. Reboot: Reboot the system directly. Figure 5.77 – Reboot the System Waters Network Systems 2800M/MR User’s Manual Page 117...

  • Page 118: Logout

    You can use Auto Logout. Parameter description: Auto Logout: Default is ON (three minutes). If no action is taken within three minutes, the switch will logout automatically. Figure 5.78 - Logout Waters Network Systems 2800M/MR User’s Manual Page 118...

  • Page 119: Operation Of Cli Management

    Guest functions only permit the system to be viewed. You will not be able to modify settings on the switch with the guest login. Figure 6.1 – Login Screen Waters Network Systems 2800M/MR User’s Manual Page 119...

  • Page 120: Commands Of Cli

    For example, show in IP mode displays the IP information; however, in system mode, it will display the system information. Figure 6.2 – CLI Commands Waters Network Systems 2800M/MR User’s Manual Page 120...
  • Page 121 Save Start save start Use this command to save the None None current configuration as the startup configuration. This command must be used in Waters Network Systems 2800M/MR User’s Manual Page 121...
  • Page 122 Use to set the number of <port range>: syntax <port range> : reauthentication attempts that 1, 5-7, available 1 to 1 to 26 are permitted before the port <max> : 1-10, Waters Network Systems 2800M/MR User’s Manual Page 122...
  • Page 123 Displays the mode of each port None None Show show Displays the parameters of None None parameter parameter each port Show security show security Displays the authentication None None status of each port Waters Network Systems 2800M/MR User’s Manual Page 123...
  • Page 124 <range>: set the <range> 1~23 trap of events range of events, syntax 1, 5-7 Set email set email Used to enable email of the <range>: set the <range> 1~23 <range> events range of email, Waters Network Systems 2800M/MR User’s Manual Page 124...
  • Page 125 <data rate>: 0-1000 1000 Set ingress- set ingress-rate Used to set up the Ingress-rate <range> : syntax 1, 5- <range>; 1 to rate <range> of the port 7, available from 1 to Waters Network Systems 2800M/MR User’s Manual Page 125...
  • Page 126 <filepath>: path path <filepath> firmware upgrade file path upgrade file path Show show Used to display information for None None tftp server Upgrade upgrade Used to run the upgrade None None function Waters Network Systems 2800M/MR User’s Manual Page 126...
  • Page 127 20 to <leave>: 60 to <leave>: leave timer, <leaveall>: available from 60 to 1000 to 5000 <leaveall>: 1000 to 5000 Leave time must be equal to or greater to the join time Waters Network Systems 2800M/MR User’s Manual Page 127...
  • Page 128 When a log event occurs, it is recorded. Show is used to query the log functions. Up to 120 records are supported. Upload upload Used to upload log data through None None Waters Network Systems 2800M/MR User’s Manual Page 128...
  • Page 129 Used to add the static MAC <mac>: mac address, <vid>:0, 1-4094 <vid> <queue> entry format: 00-02-03-04- <queue>: 0 to 3 <rule> <port> 05-06 <rule>: 0 to 2 <vid>: vlan id 0, 1- <port>: 1 to 26 Waters Network Systems 2800M/MR User’s Manual Page 129...
  • Page 130 [<ip> <value>] VLAN ID [<ip> be set [<port> <value>] IP range [<vid> <value>] <value>] [<port> <value>] Range is 1- [<type> Incoming port [<type> 4095 <value>] <value>] Access type [<ip> <value>] Waters Network Systems 2800M/MR User’s Manual Page 130...
  • Page 131 1 to 16 (24) Show show Used to display the setting None None status of the Mirror function Port Clear counter clear counter Used to clear all ports’ counter None None Waters Network Systems 2800M/MR User’s Manual Page 131...
  • Page 132 Used to disable IP TOS QoS None None Enable 1p enable 1p Used to enable 802.1p QoS None None Enable DSCP enable dscp Used to enable IP DSCP QoS None None Waters Network Systems 2800M/MR User’s Manual Page 132...
  • Page 133 Used to set class of ports on <range>: port range, <range>: 1 to <range> <range> port-based QoS syntax 1, 5-7, 16 (24) <class> <class> available from 1 to 16 <class> 1 or 0 Waters Network Systems 2800M/MR User’s Manual Page 133...
  • Page 134 0 to 7 [<q1><priority>] Priority:2; Monetary [<q2><priority>] Cost Priority:3. <q>:queue level, q0: queue 0; q1: queue 1; q2: queue 2; q3: queue 3. <priority>: priority level. One queue has been assigned 2 different priorities. Waters Network Systems 2800M/MR User’s Manual Page 134...
  • Page 135 0 to 26 <egress>:monitored egress port; range syntax: 1,5-7, vailable from 0 to 26 ingress/egress to 0 as ingress/egress disabled Show show Used to display the current None None mirror status Waters Network Systems 2800M/MR User’s Manual Page 135...
  • Page 136 <forward <hello time>: to 40 delay> available from 1 to 10 <forward <max.age> : delay>: 4 to 30 available from 6 to 40 <forward delay>: available from 4 to 30. Note: 2*(Forward Waters Network Systems 2800M/MR User’s Manual Page 136...
  • Page 137 Used to set daylight saving time hr:daylight saving hr:daylight: -5 daylightsaving daylightsaving hour, range -5 to +5 to +5 <hr> MM: daylight saving MM: (01-12) <MM/DD/HH> start month (01-12) DD: (01-31) <mm/dd/hh> DD: daylight saving HH: (01-23) Waters Network Systems 2800M/MR User’s Manual Page 137...
  • Page 138 <method>: static: static /lacp <active LACP> adopt the static link <group>: 1 to 3 aggregation; lacp: <active LACP>: adopt the dynamic active / passive link aggregation-link aggregation control protocol <group>: 1-3 <active LACP>: Waters Network Systems 2800M/MR User’s Manual Page 138...
  • Page 139 PVID(s). Syntax <pvid>: 1 to <default_ 1,5-7, available 4094 priority> from 1 to 26 <default_priorit <pvid>: which PVID y>: 0 to 7 you want to set, available from 1 to 4094 Waters Network Systems 2800M/MR User’s Manual Page 139...
  • Page 140 Show group show group Used to display the VLAN mode None None and VLAN group Show pvid show pvid Used to display pvid, priority None None and drop untag results Waters Network Systems 2800M/MR User’s Manual Page 140...
  • Page 141 Used to set the roll for VS <master|slave>: <master|slave> <master|slave> master:act as master :master or slave:act as slave slave show show Used to display the None None configuration of the virtual stack Waters Network Systems 2800M/MR User’s Manual Page 141...

  • Page 142: Maintenance

    Check the RS-232 cable is to make sure it is connected to console port on the switch and the COM port of PC. c. Check to make sure the COM port of the PC is enabled. Waters Network Systems 2800M/MR User’s Manual Page 142...

  • Page 143: Troubleshooting

    The components involved in the problem d. Any particular application that, when used, appears to create the problem 2. An accurate list of Waters Network Systems product model(s) involved. Include the date(s) that you purchased the products from your supplier.

  • Page 144: Return Material Authorization (Rma) Procedure

    Testing and repair of product that is not under warranty will result in a customer (user) charge. Shipping and Packaging Information Should you need to ship the unit back to Waters Network Systems, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available.

  • Page 145: 9.0 Warranty

    In the event of a malfunction or other indication of product failure attributable directly to faulty materials and/or workmanship, Waters Network Systems will, at its option, repair or replace the defective products or components at no additional charge as set for herein.

This manual is also suitable for:

Proswitch 2800mr

Table of Contents
