Waters Network Systems PS-2126M-POE Operating Manual

Managed switch with twenty four 10/100base-tx poe ports plus two mini gbic slots for 1000base-sx or lx fiber connectivity or 10/100/1000base-tx copper connectivity
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12
Managed Switch with Twenty Four 10/100Base-TX PoE Ports
Plus Two Mini GBIC Slots for 1000Base-SX or LX Fiber Connectivity
CORPORATE HEADQUATERS
5001 American Blvd. W., Suite 605
Bloomington, MN 55437
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605

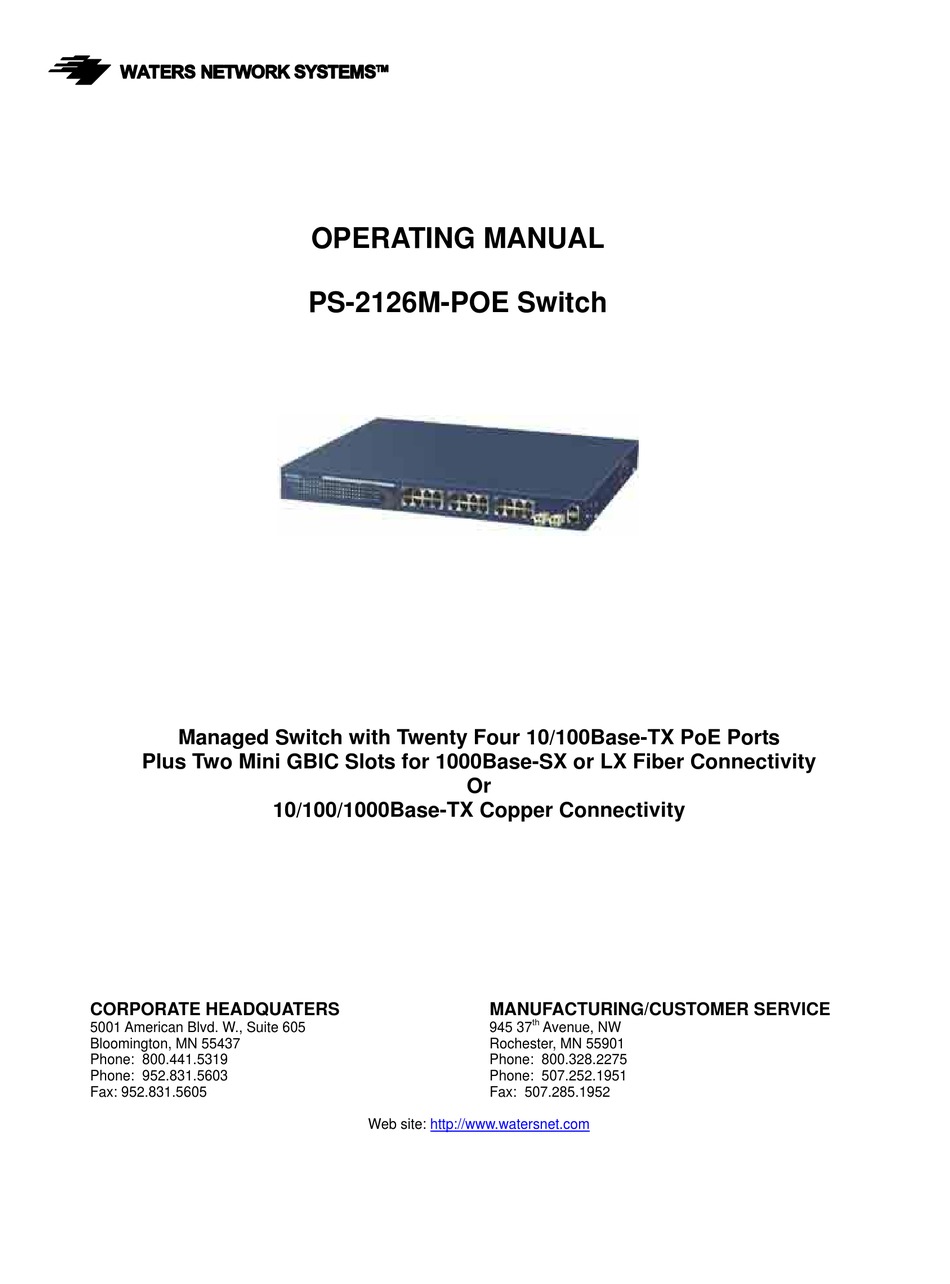

OPERATING MANUAL

PS-2126M-POE Switch
10/100/1000Base-TX Copper Connectivity
Web site:
http://www.watersnet.com
Or
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-2126M-POE and is the answer not in the manual?

Questions and answers

Related Manuals for Waters Network Systems PS-2126M-POE

Summary of Contents for Waters Network Systems PS-2126M-POE

  • Page 1: Operating Manual

    OPERATING MANUAL PS-2126M-POE Switch Managed Switch with Twenty Four 10/100Base-TX PoE Ports Plus Two Mini GBIC Slots for 1000Base-SX or LX Fiber Connectivity 10/100/1000Base-TX Copper Connectivity CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd. W., Suite 605 945 37 Avenue, NW...

  • Page 2: Table Of Contents

    ......................70 ONFIGURATION 5.16.3 STP P ..................... 71 ONFIGURATION 5.17 ......................73 RUNKING ONFIGURATION 5.18 802.1X C ......................78 ONFIGURATION 5.19 ....................... 86 LARM ONFIGURATION 5.20 .......................... 88 ONFIGURATION 5.20.1 ....................... 89 ONFIGURATION Waters Network Systems User’s Manual Page 2 PS-2126M-POE...
  • Page 3 OMMANDS OF MAINTENANCE........................... 133 ..........................133 XAMPLES TROUBLESHOOTING......................... 134 ..................... 134 EFORE ALLING FOR SSISTANCE (RMA) P ............. 135 ETURN ATERIAL UTHORIZATION ROCEDURE ..................136 HIPPING AND ACKAGING NFORMATION WARRANTY ..........................137 Waters Network Systems User’s Manual Page 3 PS-2126M-POE...

  • Page 4: Specifications

    RFC1757 Bridge MIB RFC1493 Bridge MIB RFC1643 Ethernet MIB NETWORK STANDARDS: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3z IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.1d/w IEEE 802.1x IEEE 802.3ad Waters Network Systems User’s Manual Page 4 PS-2126M-POE...
  • Page 5 MECHANICAL: Enclosure: Rack mountable Cooling Method: Fan cooled PHYSICAL CHARACTERISTICS Dimensions: 14.41 x 17.4 x 1.77 in 366 x 442 x 45 mm Weight:: 6.83lbs (3.1kg) WARRANTY: Limited Lifetime Made in USA Waters Network Systems User’s Manual Page 5 PS-2126M-POE...

  • Page 6: Package Contents

    RS-232 Cable Introduction The Waters’ PS-2126M-POE switch is a managed Ethernet switch chassis with twenty four 10/100Base-TX PoE ports and two dual media slots. The dual media slots can be used for either 10/100/1000Base-TX ports or 1000Base-SX or LX fiber. The switch provides 26 usable ports.

  • Page 7: Software Features

    • PoE – PSE status and activity LED indicator Software Features The following lists management highlights of the PS-2126M-POE switch: Provides the status of each port and allows for port configuration Supports per port traffic monitoring counters Supports a snapshot of the system information upon login Supports static trunk function Three user login;...

  • Page 8: Hardware Description

    Figure 3.1 - Front View of PS-2126M-POE Figure 3.1 shows the front view of the PS-2126M-POE switch. The switch chassis has twenty four PoE 10/100Base-TX ports and two dual media slots. Those slots can be used as 10/100/1000Base-TX ports or with SFP modules for 1000Base-SX or LX fiber .
  • Page 9 Lit when full-duplex mode is active (Port 25, Blinks when collisions occur 26 LED) c. LEDSET set on SPD (speed) mode: Lit when 1000Mbps speed is active Off when 10/100Mbps speed is active Table 3-1 - LEDs Waters Network Systems User’s Manual Page 9 PS-2126M-POE...

  • Page 10: Optional Sfp Modules

    AC power source to DC power. Power can be turned on even if there are no connections to the switch ports. Once the power is on, LEDs will light up and then go out except the power LED. Waters Network Systems User’s Manual Page 10...

  • Page 11: Installing Chassis To A 19-Inch Wiring Closet Rail

    Level 1 switch. This generally applies if no VLAN or other special requirements are applied. Example 1: All switch ports are in the same local area network. All ports can access each other (See Figure 3.3). Waters Network Systems User’s Manual Page 11 PS-2126M-POE...
  • Page 12 VLAN and tag-based VLAN. They are different in practical deployment, especially in physical locations. The following diagram shows how the VLAN works. Example 2a: Port-based VLAN (See Figure 3-4). Figure 3.4 - Port-based VLAN Diagram Waters Network Systems User’s Manual Page 12 PS-2126M-POE...
  • Page 13 4. VLAN4 members cannot access VLAN1 and VLAN3 members, but they can access VLAN2 members. Example 3a: The same VLAN members can be at different switches with the same VID (See Figure 3-6). Figure 3.6 – Attribute-based VLAN Waters Network Systems User’s Manual Page 13 PS-2126M-POE...

  • Page 14: Network Applications

    To change the IP address of the switch, via the console connection, you will have to use the CLI command listed below. A complete list of CLI commands is in Section 6.0 of this manual. Waters Network Systems User’s Manual Page 14...
  • Page 15 Note: Once you have set the IP address of the switch, you must save the configuration. The CLI command is: save start. A detailed list of CLI commands can be found in Section 6.0. Waters Network Systems User’s Manual Page 15...
  • Page 16 Note: If the workstation connects to the switch, you will have to setup the same subnet mask between them. 2. Access your web browser or use the console connection. Note: If you make changes to the configuration, you must save the configuration before rebooting the switch. Waters Network Systems User’s Manual Page 16 PS-2126M-POE...
  • Page 17 Class A: Address is less than 126.255.255.255. There are a total of 126 networks can be defined because the address 0.0.0.0 is reserved for default route and 127.0.0.0/8 is reserved for loopback function. Waters Network Systems User’s Manual Page 17 PS-2126M-POE...
  • Page 18 IP address to the network prefix and the host address in bitwise basis. It is designed to utilize the IP address more efficiently and make it easier to manage IP Waters Network Systems User’s Manual...
  • Page 19 The length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched. The following table shows the result. Waters Network Systems User’s Manual Page 19...
  • Page 20 IP address, known as default router. Basically, it is a routing policy. The gateway setting is used for Trap Events Host only in the switch. For assigning an IP address to the switch, check the IP address of the network that will be Waters Network Systems User’s Manual Page 20...
  • Page 21 IP of the server. However, generally the name is used to connect to the server. Thus, the switch DNS client program (such as a browser) will ask the DNS to resolve the IP address of the named server. Waters Network Systems User’s Manual Page 21...

  • Page 22: Web Based Management

    Without administrator’s identity, you can only monitor the system. A maximum of three users are able to login simultaneously in the switch. To optimize the display effect, we recommend you use Microsoft IE 6.0 or above. Waters Network Systems User’s Manual Page 22 PS-2126M-POE...

  • Page 23: Overview Of Web Management

    Model System Description Location Contact Device Name System Up Time Current Time BIOS Version Firmware Version Hardware-Mechanical Version Serial Number Host IP Address Host MAC Address Device Port RAM Size Flash Size Waters Network Systems User’s Manual Page 23 PS-2126M-POE...
  • Page 24 Figure 5.3 - Port Detail Information Figure 5.3 shows basic information of the selected port. You will be able to view port status, traffic status and bandwidth rating for egress and ingress respectively. Waters Network Systems User’s Manual Page 24...
  • Page 25 Root System Port SNMP DHCP Boot IGMP Snooping VLAN MAC Table GVRP Trunk 802.1x Alarm Configuration Security Bandwidth Diagnostics TFTP Server Firmware Upgrade Reboot Logout Waters Network Systems User’s Manual Page 25 PS-2126M-POE...

  • Page 26: System Information

    Serial number: The serial number is assigned by the manufacturer. Host IP address: The IP address of the switch. Host MAC address: Waters Network Systems User’s Manual Page 26 PS-2126M-POE...

  • Page 27: Ip Configuration

    IP address from DHCP server, the device will stop the booting process. If the field is set to “Disable”, you will have to input the IP address manually. For more details about IP address and Waters Network Systems User’s Manual...
  • Page 28 IP address, the other is dynamic mode, which is assigned by DHCP server while DHCP is enabled. DNS can help you easily remember the mnemonic address name with the meaningful words in it. No assignment of DNS address is made by default. Default: 0.0.0.0 Waters Network Systems User’s Manual Page 28 PS-2126M-POE...

  • Page 29: Time Configuration

    And when the time passes Waters Network Systems User’s Manual...
  • Page 30 This is used for the ending of daylight saving time. Month: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Waters Network Systems User’s Manual Page 30 PS-2126M-POE...

  • Page 31: Account Configuration

    Up to four guest accounts can be created. The default setting for user account is: Username: admin Password: admin The default setting for guest user account is: Username: guest Password: guest Figure 5.6 – Account Configuration Waters Network Systems User’s Manual Page 31 PS-2126M-POE...

  • Page 32: Management Policy

    According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those Waters Network Systems User’s Manual...
  • Page 33 Action Type default is Deny. Deny restricts access switch management. Accept provides the authority to manage the switch. Edit/Create: A new entry of Management Security Configuration can be created after the initial parameters Waters Network Systems User’s Manual Page 33 PS-2126M-POE...

  • Page 34: Virtual Stack

    For Master redundancy, you may configure more than two devices as Master device, however, the Master device with the smaller MAC value will be the Master. All of these 16 devices can become the Master device and back up with each other . Waters Network Systems User’s Manual Page 34...
  • Page 35 It is the group identifier (GID) which signs for VSM. Valid letters are A-Z, a-z, 0-9, “ “ and “_” characters. The maximum length is 15 characters. Figure 5.9 – Virtual Stack Waters Network Systems User’s Manual Page 35 PS-2126M-POE...

  • Page 36: Port Configuration

    Port Status Function Description: Port status reports the current status of all ports in the switch. The screen will be automatically refreshed approximately every five seconds as port parameters change. Parameter Description Waters Network Systems User’s Manual Page 36 PS-2126M-POE...
  • Page 37 Rx Pause: RX pause determines the way that the port processes the PAUSE frame. If on is displayed, the port will apply the PAUSE frame; otherwise, the port will ignore the PAUSE frame. Waters Network Systems User’s Manual Page 37...
  • Page 38 Displays the Manufacturer's OUI code which is assigned by IEEE. Vendor Name: Displays the company name of the module manufacturer. Vendor P/N: Displays the product name of the module manufacturer. Vendor Rev (Revision): Displays the module revision. Waters Network Systems User’s Manual Page 38 PS-2126M-POE...

  • Page 39: Port Configuration

    Figure 5.12 – Port Configuration Function name: Port Configuration Function description: Used to set the operation mode of each port. The switch supports three parameters for each port: State Waters Network Systems User’s Manual Page 39 PS-2126M-POE...

  • Page 40: Simple Counter

    The valid range is three to ten seconds. The refresh interval is used to set the update frequency. Default update time is three seconds. Waters Network Systems User’s Manual Page 40...

  • Page 41: Detail Counter

    In Figure 5.14, the counter is displayed one port at a time. To see another port’s counter, pull down the Select list. The figures for the port you have chosen will be displayed. Waters Network Systems User’s Manual Page 41...
  • Page 42 Rx Broadcast: Shows the counting number of the received broadcast packet. Rx Multicast: Shows the counting number of the received multicast packet. Tx Packets: The counting number of the packet transmitted. TX Octets: Waters Network Systems User’s Manual Page 42 PS-2126M-POE...
  • Page 43 Number of 512 ~ 1023-byte frames in good and bad packets transmitted. Tx 1024-Bytes: Number of 1024-max_length-byte frames in good and bad packets transmitted. Rx CRC/Alignment: Number of alignment errors and CRC error packets received. Rx Undersize: Waters Network Systems User’s Manual Page 43 PS-2126M-POE...
  • Page 44 Number of collisions transmitting frames experienced. Tx Drops: Number of frames dropped due to excessive collision, late collision, or frame aging. Tx FIFO Drops: Number of frames dropped due to the lack of transmitting buffer. Waters Network Systems User’s Manual Page 44 PS-2126M-POE...

  • Page 45: Poe Function

    Shows whether the port is supplying the power to the PD or not. AC Disconnect Port Off: Port is turned off due to the AC Disconnect function. DC Disconnect Port Off: Port is turned off due to the DC Disconnect function. Waters Network Systems User’s Manual Page 45 PS-2126M-POE...
  • Page 46 PD at any time. Active means the port is read to supply the power. State: Enable means the power supplied to the PD is legal while the port linked to the PD; Disable means the port does not own the PoE function. Waters Network Systems User’s Manual Page 46 PS-2126M-POE...

  • Page 47: Snmp Configuration

    Hence, the requesting network management unit cannot access a device with a different community name via SNMP protocol; If they both have the same community name, they can talk each other. Waters Network Systems User’s Manual Page 47...
  • Page 48 If all public traps are disabled, no public trap message will be sent. The Enterprise (no. 6) trap is classified as private trap, which is listed in the Trap Alarm Configuration function folder. Default for all public traps: Enable. Figure 5.17 - Community and trap host setting Waters Network Systems User’s Manual Page 48 PS-2126M-POE...

  • Page 49: Dhcp Boot

    30 seconds. If DHCP Broadcasting Suppression function is enabled, the delay time is set randomly, ranging from 0 to 30 seconds. The exact delay time is computed by the switch itself. The default is Disable. Figure 5.18 - DHCP Waters Network Systems User’s Manual Page 49 PS-2126M-POE...

  • Page 50: Igmp Snooping

    Parameter description: IGMP snooping mode selection: The switch supports three kinds of IGMP Snooping status, including passive, active and disable. Disable: Use the disable mode to disable IGMP Snooping function. Default: Disable Active: Waters Network Systems User’s Manual Page 50 PS-2126M-POE...
  • Page 51 The switch supports two options for managing a valid IP range: Any and Custom. The default is Any. If Custom had been chosen, you can assign the effective IP range. The valid range is 224.0.0.0~239.255.255.255. Waters Network Systems User’s Manual Page 51...

  • Page 52: Vlans

    Port-based VLAN is defined by port. Any packet coming in or out from any one port of a port-based VLAN will be accepted. No filtering criterion applies in port-based VLAN. The only criterion is the physical port you connect to. For example, for a port-based VLAN Waters Network Systems User’s Manual Page 52...
  • Page 53 PVID will be added into all packets. Then, these packets will be forwarded as Tag-based VLANs. So, the incoming packets with tag will become the double-tag ones. Figure 5.21 – VLAN Mode Waters Network Systems User’s Manual Page 53 PS-2126M-POE...

  • Page 54: Tag-Based Group

    Used to enable or disable a member port. Enable means the port is a member of the VLAN. Select the check box ( beside Port X to enable it. Figure 5.22 – Tag-based Group Waters Network Systems User’s Manual Page 54 PS-2126M-POE...
  • Page 55 Select Apply to save the setting. Figure 5.23 – Tag-based VLAN Delete Group: Press Delete to remove the selected group entry from the tag-based group table. Figure 5.24 – Tag-based Group Waters Network Systems User’s Manual Page 55 PS-2126M-POE...

  • Page 56: Pvid

    2 and transmit untagged packets to port 2, these packets will own priority 2 precedence based on your default 802.1p priority mapping setting in the QoS function and will be sent to Queue 1. Waters Network Systems User’s Manual Page 56...

  • Page 57: Port-Based Group

    Add Group: Create a new port-based VLAN. Input the VLAN name and choose the group member by selecting the check box beside the port number. Select Apply for the setting to take effect. Waters Network Systems User’s Manual Page 57...
  • Page 58 Use Delete to remove the selected group entry from the port-based group table. Figure 5.28 – Port-based Group Edit a group: To edit a group entry, use Edit. This allows you to modify a group‘s description and member set. Waters Network Systems User’s Manual Page 58 PS-2126M-POE...

  • Page 59: Mac Table

    The Alias of the searched entry. MAC Address: The MAC address of the searched entry. Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Waters Network Systems User’s Manual Page 59 PS-2126M-POE...
  • Page 60 Deletes a MAC address which is idling for a period of time from the MAC Table, which will not affect static MAC address. Range of MAC address aging time is 10-1000000 seconds. The default aging time is 300 seconds. Waters Network Systems User’s Manual Page 60...
  • Page 61 If static with source drop is chosen, the packet will be dropped if its SA is equal to the value you set. This setting is global so, it may affect all ports’ transmission of the packets. Figure 5.31 – Static MAC Settings Waters Network Systems User’s Manual Page 61...
  • Page 62 MAC address and an English name. Select Create/Edit to add a new record with name. Select the MAC Alias Delete function to remove an alias name from a MAC address. You can select an existing MAC address or alias name for removal. Waters Network Systems User’s Manual Page 62 PS-2126M-POE...
  • Page 63 00 – 40 - C7 - D6 – 00 - 01 Alias: Assigned MAC alias name. Note: If there are too many learned MAC addresses, it is recommended to input the MAC address and alias name directly. Waters Network Systems User’s Manual Page 63 PS-2126M-POE...

  • Page 64: Gvrp Configuration

    Downward arrow key to choose Enable or Disable. Select Apply and the function will take effect immediately. Join Time: Used to declare the Join Time in unit of centisecond. Valid time range: 20 –100 centisecond, Default: 20 centisecond. Leave Time: Waters Network Systems User’s Manual Page 64 PS-2126M-POE...
  • Page 65 GVRP PDU. Except received dynamic VLAN message of the GVRP PDU is an existed static VLAN in the switch. This port will be added into the static VLAN members dynamically. Function name: GVRP Counter Waters Network Systems User’s Manual Page 65 PS-2126M-POE...
  • Page 66 Number of GARP BPDU with Empty message received by the GARP application. Transmitted: Total GVRP Packets: Total GARP BPDU transmitted by the GVRP application. Invalid GVRP Packets: Number of invalid GARP BPDU transmitted by the GVRP application. Waters Network Systems User’s Manual Page 66 PS-2126M-POE...
  • Page 67 When you create a GVRP group, use the Administrative Control function to change the Applicant Mode and Registrar Mode of a GVRP group member. Refresh: Refresh function allows you to see current GVRP group status. Waters Network Systems User’s Manual Page 67 PS-2126M-POE...

  • Page 68: Spanning Tree Configuration (Stp) Configuration

    Displays the switch’s current bridge priority setting. Default is 32768. Designated Root: Displays the root bridge ID of this network segment. If this switch is a root bridge, the “Designated Root” will show this switch’s bridge ID. Waters Network Systems User’s Manual Page 68 PS-2126M-POE...
  • Page 69 Time Since Last Topology Change is the accumulated time in unit of seconds the STP has been since the last STP Topology Change was made. When Topology Change is initiated again, the counter will be reset to 0 and resume counting once the STP topology change is completed. Waters Network Systems User’s Manual Page 69...

  • Page 70: Stp Configuration

    When a bridge received a BPDU originating from the root bridge and if the message age conveyed in the BPDU exceeds the Max. Age of the root bridge, the bridge Waters Network Systems User’s Manual Page 70...

  • Page 71: Stp Port Configuration

    Displays the current state of a port for viewing only. There are three possible states. ( according to 802.1w specification) DISCARDING state indicates that this port can neither forward packets nor contribute Waters Network Systems User’s Manual Page 71 PS-2126M-POE...
  • Page 72 This can expedite the convergence because this will have the port fast transited to forwarding state. There are three parameters, Auto, True and False, used to configure the type of the point-to- Waters Network Systems User’s Manual Page 72...

  • Page 73: Trunking Configuration

    “trunk group” (also called aggregator). LACP is safer than the other trunking method - static trunk. The switch LACP does not support the followings: ⎯ Link Aggregation across switches ⎯ Aggregation with non-IEEE 802.3 MAC link Waters Network Systems User’s Manual Page 73 PS-2126M-POE...
  • Page 74 A port uses LACP as its trunk method to aggregate with other ports also using LACP. Static: A port uses Static Trunk as its trunk method to aggregate with other ports also using Static Trunk. Waters Network Systems User’s Manual Page 74 PS-2126M-POE...
  • Page 75 This field represents the trunking status of a port which uses a trunking method other than “None”. It also represents the management link status of a port which uses the “None” trunking method. “---“ means “not ready” Figure 5.39 – Trunk Port Setting/Status Waters Network Systems User’s Manual Page 75 PS-2126M-POE...
  • Page 76 Displays the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are using to view LACP. Partner: The peer system from the aggregator’s view. System Priority: Displays the System Priority of a system ID. Waters Network Systems User’s Manual Page 76 PS-2126M-POE...
  • Page 77 DA+SA, DA and SA are three hash methods offered for the Link Aggregation of the switch. Packets will decide the path to transmit according to the mode of hash that has been chosen. Default: DA and SA Waters Network Systems User’s Manual Page 77...

  • Page 78: Configuration

    PAE. The authenticator may request the supplicant to re- authenticate itself at a configured time period. Once re-authenticating has begun, the Waters Network Systems User’s Manual Page 78...
  • Page 79 PC outside the controlled port, running Supplicant PAE. In this case, PC A wants to access the services on device B and C. It first must exchange the authentication message with the authenticator on the port it connected via EAPOL packet. The authenticator transfers the Waters Network Systems User’s Manual Page 79 PS-2126M-POE...
  • Page 80 If the authenticator receives a Radius-Access-Reject, it will send an EAP-Failure to the supplicant. This means the supplicant has failed to authenticate. The port connected is in the unauthorized state, the Waters Network Systems User’s Manual Page 80...
  • Page 81 Port Status Disable Don’t Care Don’t Care Port Uncontrolled Multihost Auto Successful Port Authorized Multihost Auto Failure Port Unauthorized Multihost ForceUnauthorized Don’t Care Port Unauthorized Multihost ForceAuthorized Don’t Care Port Authorized Table 5-3 Waters Network Systems User’s Manual Page 81 PS-2126M-POE...
  • Page 82 31 characters. The character string may contain upper case, lower case and 0-9 without spaces. Default: Radius Figure 5.46 – 802.1X Setting Function name: 802.1X Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, multihost operation mode is supported. Waters Network Systems User’s Manual Page 82 PS-2126M-POE...
  • Page 83 802.1X authenticator. The Port Status will display the following screen. Port Number: The port number to be chosen to show its 802.1X Port Status. The valid number is Port 1 – 26. Waters Network Systems User’s Manual Page 83 PS-2126M-POE...
  • Page 84 The controlled port remains in the authorized state. Auto: The controlled port is set to be in authorized state or unauthorized state depends on the result of the authentication exchange between the authentication server and the supplicant. Waters Network Systems User’s Manual Page 84 PS-2126M-POE...
  • Page 85 A timeout condition in the exchange between the authenticator and the supplicant. The valid range: 1 –65535. Default: 30 seconds serverTimeout (1-65535): A timeout condition in the exchange between the authenticator and the authentication server. The valid range: 1 –65535. Default: 30 seconds Waters Network Systems User’s Manual Page 85 PS-2126M-POE...

  • Page 86: Alarm Configuration

    LACP: LACP Disabled, LACP Enabled, LACP Member Added, LACP Port Failure GVRP: GVRP Disabled, GVRP Enabled VLAN: Port-based VLAN Enabled, Tag-based VLAN Enabled Module Swap: Module Inserted, Module Removed, Dual Media Swapped Waters Network Systems User’s Manual Page 86 PS-2126M-POE...
  • Page 87 SMS Server: IP address of the server transferring your SMS. Username: Username in ISP. Password: Password in ISP. Mobile Phone 1-6: Additional mobile phone numbers that would like to receive the alarm message. Waters Network Systems User’s Manual Page 87 PS-2126M-POE...

  • Page 88: Configuration

    User configuration is the specified file for backup purposes and can be updated while confirming the configuration. You can retrieve this configuration by performing Restore User Configuration. Note: If you make changes to the configuration, you must save the configuration before rebooting the switch. Waters Network Systems User’s Manual Page 88 PS-2126M-POE...

  • Page 89: Configuration File

    Figure 5.52 - Configuration 5.20.1 Configuration File Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Figure 5.53 – Configuration – Save Start Waters Network Systems User’s Manual Page 89 PS-2126M-POE...

  • Page 90: Restore Default Configuration

    Restore Default Configuration function can retrieve the factory setting to replace the start configuration. If the factory settings are restored, the IP address of the switch will be restored to 192.168.1.1. Figure 5.55 – Restore User Configuration Waters Network Systems User’s Manual Page 90 PS-2126M-POE...
  • Page 91 When restoring the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system. Figure 5.57 – Restore User Configuration Message Waters Network Systems User’s Manual Page 91...

  • Page 92: Configuration File

    Export Save As User’s configuration file stored in flash. Import File Path: Import Start: Import Save As Start’s configuration file stored in flash. Import User-Conf: Import Save As User’s configuration file stored in flash. Figure 5.58 – Configure Export/Import Path Waters Network Systems User’s Manual Page 92 PS-2126M-POE...

  • Page 93: Security

    The Isolated Group function allows the port to be independent of other ports in the Isolated group. Communication is forbidden between these ports. However, the ports of the Isolated group are still able to communicate with the ports of the non-Isolated group. This feature makes it helpful for the Waters Network Systems User’s Manual Page 93...
  • Page 94 The valid ports are Port 1~26. Egress: Select the ports that the Restricted Group should be set into “Egress” mode. Just click the check box ( beside the port x. The valid ports are Port 1~26. Waters Network Systems User’s Manual Page 94 PS-2126M-POE...

  • Page 95: Bandwidth Management

    The Egress Bandwidth Setting function is used to set the limit of Egress bandwidth for each port. Parameter description: Port No.: Choose the desired port for the Egress Bandwidth Setting. The valid range for the ports is 1~26. Waters Network Systems User’s Manual Page 95 PS-2126M-POE...
  • Page 96 Enables the function of bandwidth storm control for unknown unicast packets. These packets are the MAC addresses that have not completed the learning process. Broadcast, Multicast, Unknown Unicast Storm Control: Enables the function of bandwidth storm control for all packets in transmission. Waters Network Systems User’s Manual Page 96 PS-2126M-POE...

  • Page 97: Quality Of Service (Qos) Configuration

    DSCP and the last two bits are left unused. • Port Based Priority “VIP Port” - All packets set as VIP Ports will have the highest transmitting priority. Waters Network Systems User’s Manual Page 97 PS-2126M-POE...
  • Page 98 DSCP. You can also select a Scheduling Method of WRR (Weighted Round Robin) or Strict Priority. Once those have been set, you can arrange Weight values for queue 0 to queue 3. Parameter description: Waters Network Systems User’s Manual Page 98...
  • Page 99 Scheduling Method of Strict Priority must be chosen. Parameter description: VIP Port: Click the check box ( to select any port ( port 1~26) as the VIP Port. Click <Apply>. Waters Network Systems User’s Manual Page 99 PS-2126M-POE...
  • Page 100 Queue 1, Priority 4 is mapping to Queue 2, Priority 5 is mapping to Queue 2, Priority 6 is mapping to Queue 3, and Priority 0 is mapping to Queue 3. Figure 5.66 – Priority Mapping Waters Network Systems User’s Manual Page 100...
  • Page 101 Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Figure 5.67 – TOS Delay Mapping Waters Network Systems User’s Manual Page 101...
  • Page 102 Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Figure 5.68 – TOS Throughput Mapping Waters Network Systems User’s Manual Page 102...
  • Page 103 Queue 1, Priority 4 is mapped to Queue 2, Priority 5 is mapped to Queue 2, Priority 6 is mapped to Queue 3, and Priority 0 is mapped to Queue 3. Figure 5.69 – TOS Reliability Mapping Function name: M-Type TOS Function description: Waters Network Systems User’s Manual Page 103 PS-2126M-POE...
  • Page 104 DSCP can handle a total of 64 (0~63) kinds of Traffic Class based on the arrangement of 6-bit field in DSCP of the IP packet. You can set these 64 types of Class that belong to queues 0~3. Waters Network Systems User’s Manual...

  • Page 105: Diagnostics

    Three functions, including Diagnostics, Loopback Test and Ping Test are available for device self-diagnostics. Each of them will be described in detail in the following sections. Diagnostics Diagnostics Loopback Test Ping Test Function name: Diagnostics Waters Network Systems User’s Manual Page 105 PS-2126M-POE...
  • Page 106 If they all are okay, OK is displayed. Note: When you choose either of these tests, there will be interference with the normal system. Packets that are being sent and received will stop temporarily. Waters Network Systems User’s Manual Page 106...
  • Page 107 An IP address with the version of v4, e.g. 192.168.1.1. Default Gateway: IP address of the default gateway. For more details, please see the section of IP address in Section 4.4. Figure 5.74 – Ping Test Waters Network Systems User’s Manual Page 107 PS-2126M-POE...

  • Page 108: Tftp Server

    The switch supports a total 120 log entries. For more details on log items, please refer to Section 5.19 for Trap/Alarm Configuration and SNMP Configuration. Waters Network Systems User’s Manual Page 108...
  • Page 109 Events: Displays the trap event name. Auto Upload Enable: Switch the enabled or disabled status of the auto upload function. Upload Log: Upload log data through tftp. Clear Log: Clear log data. Waters Network Systems User’s Manual Page 109 PS-2126M-POE...

  • Page 110: Firmware Upgrade

    TFTP Server: A TFTP server stores the image file you want to upgrade. Path and Filename: File path and filename stored the image file you want to upgrade. Figure 5.77 – Firmware Upgrade Waters Network Systems User’s Manual Page 110...

  • Page 111: Reboot

    The switch provides and automatic logout to prevent unauthorized users from using the system. If you do not logout and exit the browser, the switch will automatically logout. You can use Auto Logout. Waters Network Systems User’s Manual Page 111...
  • Page 112 Parameter description: Auto Logout: Default is ON (three minutes). If no action is taken within three minutes, the switch will logout automatically. Figure 5.79 - Logout Waters Network Systems User’s Manual Page 112 PS-2126M-POE...

  • Page 113: Operation Of Cli Management

    Guest functions only permit the system to be viewed. You will not be able to modify settings on the switch with the guest login. Figure 6.1 – Login Screen Waters Network Systems User’s Manual Page 113...

  • Page 114: Commands Of Cli

    For example, show in IP mode displays the IP information; however, in system mode, it will display the system information. Figure 6.2 – Command List Waters Network Systems User’s Manual Page 114 PS-2126M-POE...
  • Page 115 Save Start save start Use this command to save the None None current configuration as the startup configuration. This command must be used in Waters Network Systems User’s Manual Page 115 PS-2126M-POE...
  • Page 116 Use to set the number of <port range>: syntax <port range> : reauthentication attempts that 1, 5-7, available 1 to 1 to 12 are permitted before the port <max> : 1-10, Waters Network Systems User’s Manual Page 116 PS-2126M-POE...
  • Page 117 Displays the mode of each port None None Show show Displays the parameters of None None parameter parameter each port Show security show security Displays the authentication None None status of each port Waters Network Systems User’s Manual Page 117 PS-2126M-POE...
  • Page 118 <range>: set the <range> 1~24 trap of events range of events, syntax 1, 5-7 Set email set email Used to enable email of the <range>: set the <range> 1~24 <range> events range of email, Waters Network Systems User’s Manual Page 118 PS-2126M-POE...
  • Page 119 0-1000 <data rate>: 0-1000 Enable enable ingress- Used to set up the Ingress-rate <range> : syntax 1, 5- <range>; 1 to ingress-rate rate <range> of the port 7, available from 1 to Waters Network Systems User’s Manual Page 119 PS-2126M-POE...
  • Page 120 <filepath>: path path <filepath> firmware upgrade file path upgrade file path Show show Used to display information for None None fttp server Upgrade upgrade Used to run the upgrade None None function Waters Network Systems User’s Manual Page 120 PS-2126M-POE...
  • Page 121 20 to <leave>: 60 to <leave>: leave timer, <leaveall>: available from 60 to 1000 to 5000 <leaveall>: 1000 to 5000 Leave time must be equal to or greater to the join time Waters Network Systems User’s Manual Page 121 PS-2126M-POE...
  • Page 122 When a log event occurs, it is recorded. Show is used to query the log functions. Up to 120 records are supported. Upload upload Used to upload log data through None None Waters Network Systems User’s Manual Page 122 PS-2126M-POE...
  • Page 123 “0” means this [alias]: mac entry is a filtering alias name entry <vid>: vlan id 0, 1- 4094. VID must be zero if vlan mode is not tag-based [alias]: mac alias name, max 15 Waters Network Systems User’s Manual Page 123 PS-2126M-POE...
  • Page 124 [<type> [<type> <value>] 4095 and can <value>] Access type be set to any [<action> [<action> <value>] [<ip> <value>] <value>] a(ccept) or d (eny) Any valid IP address [<port> <value>] 1 or 1- Waters Network Systems User’s Manual Page 124 PS-2126M-POE...
  • Page 125 7, available from 1 to Disable state disable state Used to disable the <range>: syntax 1, 5- <range> :1~12 <range> communication capability of the 7, available from 1 to port Waters Network Systems User’s Manual Page 125 PS-2126M-POE...
  • Page 126 <tcp/udp port <default> UDP/TCP port range>:0- <match> selection, range: 1-10 65535 <tcp/udp port range>: <default>: 1 or 0-65535 <default>: default <match>: 1 or 0 class (all other TCP/UDP ports) 1:high, 0:low <match>:special Waters Network Systems User’s Manual Page 126 PS-2126M-POE...
  • Page 127 0:disable ip tcp/udp port classification 1 :down prioritize web browsing, e-mail, FTP and news 2:prioritize IP telephony (VoIP) 3: prioritize iSCSI 4: prioritize web browsing, email, FTP transfers and news 5: prioritize streaming audio/video Waters Network Systems User’s Manual Page 127 PS-2126M-POE...
  • Page 128 <hello multiple of 4096, <hello time>: 1 time> available from 0 to to 10 <max.age> 61440 <max.age> : 6 <forward <hello time>: to 40 delay> available from 1 to 10 <forward Waters Network Systems User’s Manual Page 128 PS-2126M-POE...
  • Page 129 Used to set the IP address of <IP>: the IP address <IP>: TFFP the TFFP server of the TFFP server server IP Show show Used to display information of None None the TFFP server Time Waters Network Systems User’s Manual Page 129 PS-2126M-POE...
  • Page 130 <active LACP> adopt the static link <group>: 1 to aggregation; lacp: adopt the dynamic <active LACP>: link aggregation-link active / passive aggregation control protocol <group>: 1-12 <active LACP>: active: set the LACP Waters Network Systems User’s Manual Page 130 PS-2126M-POE...
  • Page 131 <name> based VLAN group name <range> <range>: syntax 1, 5- 7, available from 1 to Set port-role set port-role Used to set the egress rule. <range>: ports to be <range>: 1 to Waters Network Systems User’s Manual Page 131 PS-2126M-POE...
  • Page 132 Used to set role <master|slave>: <master|slave> <master|slave> master: act as ; master or master, slave: act as slave slave Show show Used to display the None None configuration of the virtual stack. Waters Network Systems User’s Manual Page 132 PS-2126M-POE...

  • Page 133: Maintenance

    Check the RS-232 cable is to make sure it is connected to console port on the switch and the COM port of PC. c. Check to make sure the COM port of the PC is enabled. Waters Network Systems User’s Manual Page 133...

  • Page 134: Troubleshooting

    Situations when the problem occurs c. The components involved in the problem d. Any particular application that, when used, appears to create the problem 2. An accurate list of Waters Network Systems product model(s) involved. Include the date(s) Waters Network Systems User’s Manual...

  • Page 135: Return Material Authorization (Rma) Procedure

    No Problem Found. Waters Network Systems reserves the right to charge for the testing of non-defective units under warranty. Testing and repair of product that is not under warranty will result in a customer (user) charge.

  • Page 136: Shipping And Packaging Information

    Shipping and Packaging Information Should you need to ship the unit back to Waters Network Systems, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection.

  • Page 137: Warranty

    Warranty Waters’ warranty statement is available on our web site at: www.watersnet.com. Waters Network Systems User’s Manual Page 137 PS-2126M-POE...
