WATERS NETWORK SYSTEMS™
5 and 8 Port Classroom and Workgroup Switches
CORPORATE HEADQUATERS
5001 American Blvd. W., Suite 605
Bloomington, MN 55437
Phone: 800.441.5319
Phone: 952.831.5603
Fax: 952.831.5605
OPERATING MANUAL
ProSwitch
Lite
Web site:
http://www.watersnet.com
MANUFACTURING/CUSTOMER SERVICE
th
945 37
Avenue, NW
Rochester, MN 55901
Phone: 800.328.2275
Phone: 507.252.1951
Fax: 507.285.1952
Advertisement
Table of Contents
Related Manuals for Waters Network Systems ProSwitch Lite
Summary of Contents for Waters Network Systems ProSwitch Lite
-
Page 1: Operating Manual

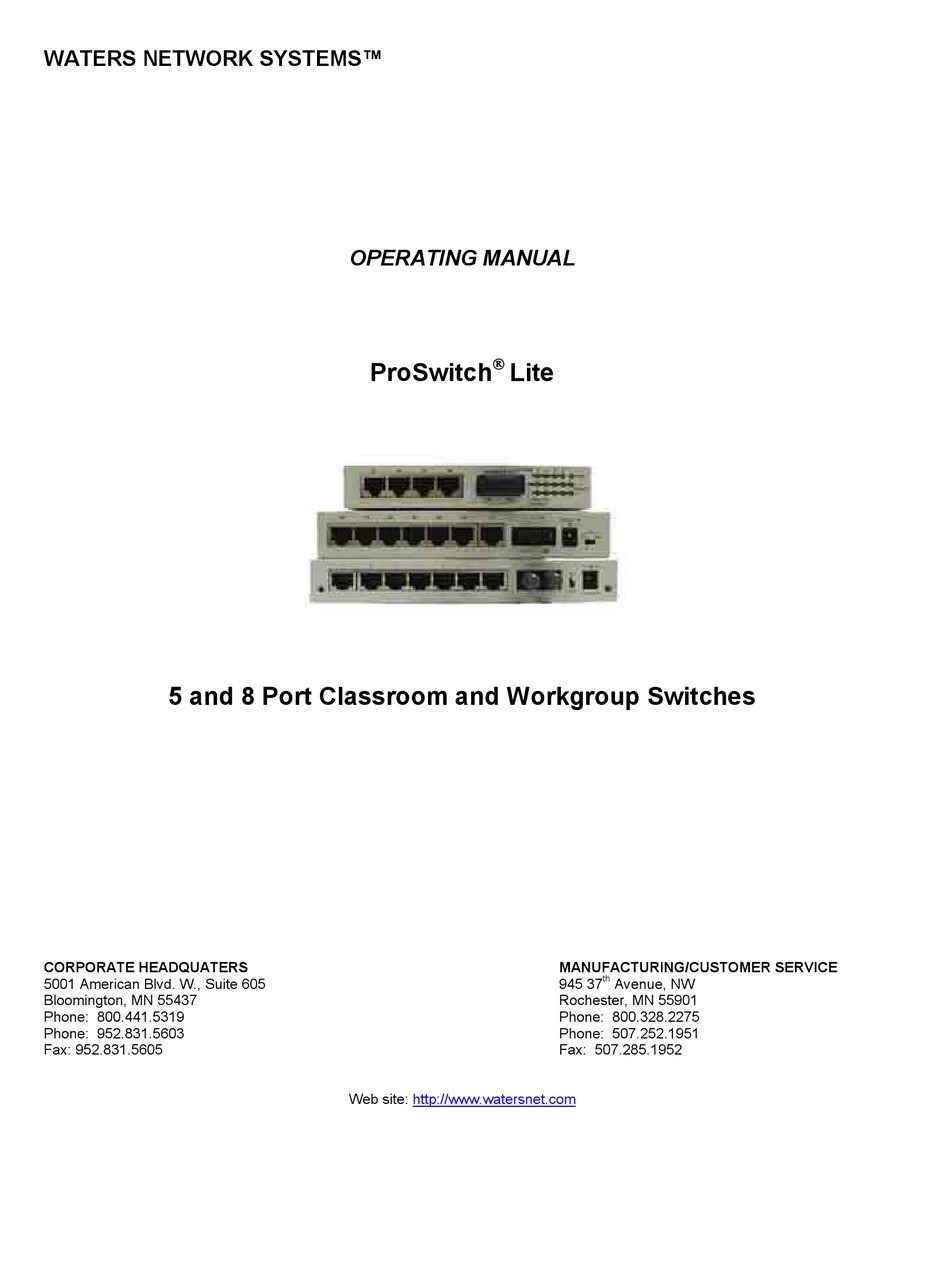

WATERS NETWORK SYSTEMS™ OPERATING MANUAL ProSwitch Lite 5 and 8 Port Classroom and Workgroup Switches CORPORATE HEADQUATERS MANUFACTURING/CUSTOMER SERVICE 5001 American Blvd. W., Suite 605 945 37 Avenue, NW Bloomington, MN 55437 Rochester, MN 55901 Phone: 800.441.5319 Phone: 800.328.2275 Phone: 952.831.5603... -
Page 2: Table Of Contents
PACKAGE CONTENTS - PROSWITCH LITE................. 4 PRODUCT DESCRIPTION........................ 4 LOCATION OF THE PROSWITCH LITE ..................4 CONNECTING THE PROSWITCH LITE TO YOUR NETWORK ............. 4 MOUNTING THE PROSWITCH LITE ....................5 POWERING THE PROSWITCH LITE ....................5 STATUS OF LEDS ..........................6 TROUBLESHOOTING........................ -
Page 3: Specifications
Ambient relative humidity: 10% to 90% (non-condensing) MECHANICAL: Enclosure: Rugged high-strength sheet metal suitable for stand-alone, wall or tabletop mounting PHYSICAL CHARACTERISTICS: Dimensions: 6.3 x 3.2 x 1.1 (160 x 81 x 28cm) Weight: .92LBS (.42kg) ProSwitch Lite User’s Manual Page 3... -
Page 4: Package Contents - Proswitch Lite
Connecting the ProSwitch Lite to Your Network The ProSwitch Lite has been designed to support all standard Ethernet media types within a single switch unit. The various media types supported along with the corresponding IEEE 802.3 and 802.3u standards and connector types are as follows: ProSwitch Lite User’s Manual... -
Page 5: Mounting The Proswitch Lite
Mounting the ProSwitch Lite Table-Top or Shelf Mounting The ProSwitch Lite can be easily mounted on a table-top or any suitable horizontal surface. There are four rubber feet provided for stability so finished surfaces won’t be scratched. Powering the ProSwitch Lite The Lite switch is equipped with a universal power adapter that accepts AC input voltages from 100 to 240VAC and 50 to 60 Hz. -
Page 6: Status Of Leds
Please follow the suggestions listed below prior to contacting your supplier. However, if you are unsure of the procedures described in this section or if the Waters’ ProSwitch Lite switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact Waters Network Systems’... -
Page 7: Return Material Authorization (Rma) Procedure
Shipping and Packaging Information Should you need to ship the unit back to Waters Network Systems, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble- wrap"... -
Page 8: Warranty
In the event of a malfunction or other indication of product failure attributable directly to faulty materials and/or workmanship, Waters Network Systems will, at its option, repair or replace the defective products or components at no additional charge as set for herein. This limited warranty does not include service to repair damage resulting from accident, disaster, misuse, neglect, lightning, acts of God, tampering or product modification.
