SPECIFICATIONS
MEChANICAL REMOVAL/REPLACEMENT

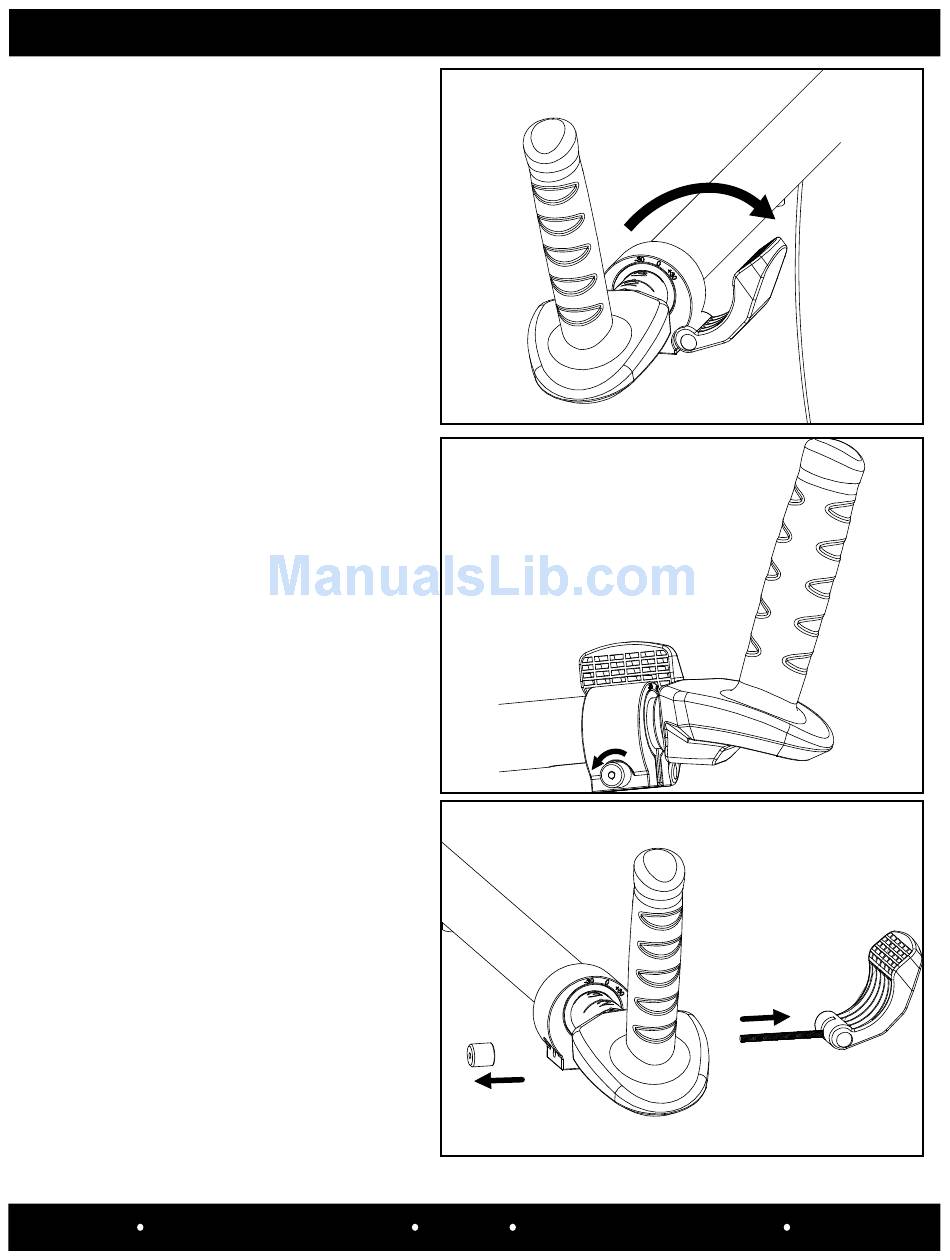

Step 2:

Push the yellow handlebar clamp outward
to loosen the grip on the handlebar
Step 3a:
Loosen the clamp by turning the
thumb nut (#A5406) with your fingers
counterclockwise.
Step 3b:
Continue to turn the thumb nut until it
comes completely off of the threaded rod,
then remove the lever clamp (#A5137)/
threaded rod (#A5407) and clamp barrel
(#A5408).
6
