Removing The Left Cover (With The Reader Assembly Intact) - Canon MF8100 Series Service Manual

[1]
2) Open the reader assembly [1] and the top cover [2].
3) Remove the 2 screws [1] from the side; then, remove the 3 claws [2] to
detach the right cover [3].
MEMO
It is difficult to release three claws [2]. If you release the lowest one first,
the second lowest, and then the top, it becomes easy.
F-3-8
[1]
[2]
F-3-9
[1]
F-3-10

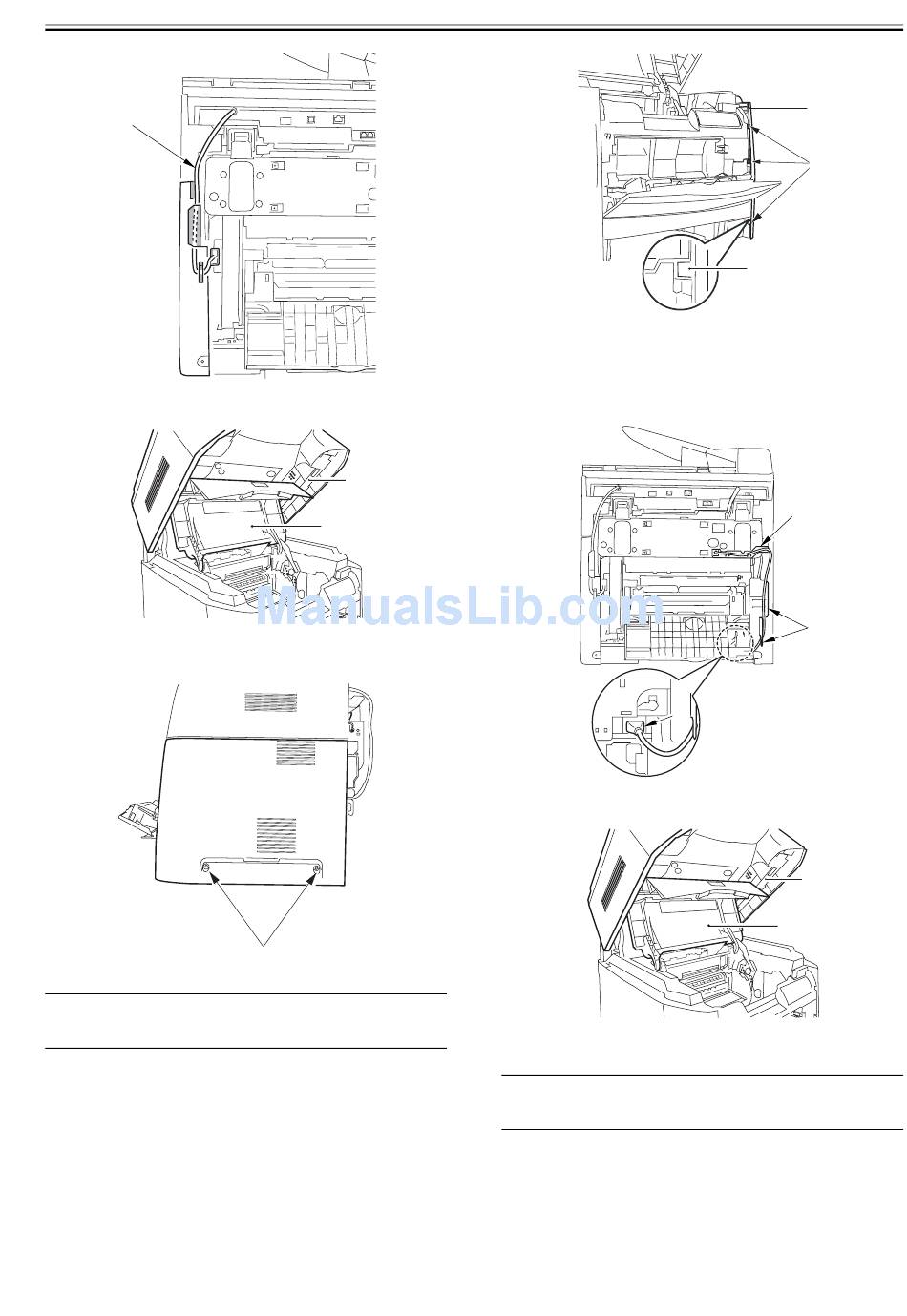

3.2.1.4 Removing the Left Cover (with the reader
assembly intact)
1) Disconnect the plug [1], and free the cable [2] of the reader assembly from
the guide.
2) Open the reader assembly [1] and the top cover [2].
3) Remove the 2 screws [1] of the side; then, remove the 3 claws [2] to detach
the right cover [3].
MEMO
It is difficult to release three claws [2]. If you release the lowest one first,
the second lowest, and then the top, it becomes easy.
Chapter 3
[3]
[2]
[2]
F-3-11
[2]
[2]
[1]
F-3-12
[1]
[2]
F-3-13
0007-6984
3-3
