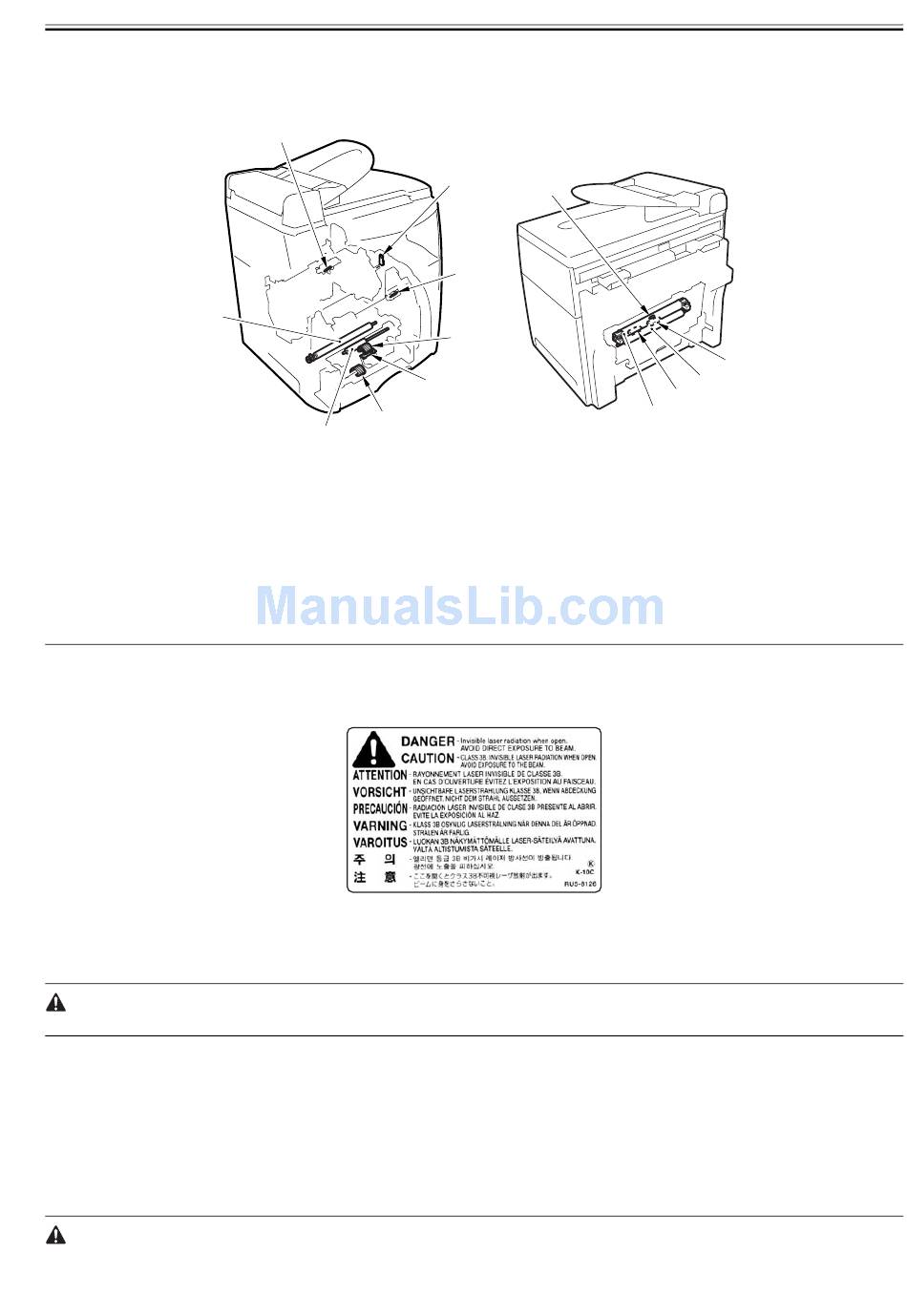

1.2.4 Major Component

[6]
[1]
[2]
[3]
[4]
[5]
[6]
[7]

1.3 Safety

1.3.1 Safety of the Laser Light

Laser light can prove to be hazardous to the human body. The machine's laser unit is fully enclosed in a protective housing and external covers so that its light will
not escape outside as long as the machine is used normally.

1.3.2 Safety of Toner

The machine's toner is a non-toxic material composed of plastic, iron, and small amounts of dye.
Do not put the toner into fire. It may explode.
Toner on the Skin or Clothes
1. If your skin or clothes came into contact with toner, use dry tissue to remove the toner, and then wash with water.
2. Do not use warm or hot water, which will cause the toner to jell, permanently fusing it with the fibers of the clothes.
3. Do not bring toner into contact with vinyl material. They are likely to react with each other.

1.3.3 Safety and Ozone

The cleaning charge roller used in the machine generates ozone gas (O3) at time of corona discharge (only when the machine is in operation).
A set of rules exists under Underwriters' Laboratories (UL) standards for levels of ozone gas permitted, and the machine has been certified to comply with the rules
at time of shipment from the factory.

1.3.4 Points to Note When Replacing/Disposing of the Lithium Battery

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
Main drive assembly
Registration shutter assembly
[1]
[13]
[5]
Toner cartridge memory tag contact
Machine inside temperature thermistor
Multifeeder pickup roller
Separation pad
Registration roller
Secondary toner roller
Drum cartridge memory tag contact
[7] Developing rotary assembly
[8] Fixing assembly
[2]
[8]
[7]
[3]
[4]
F-1-5
[8] Thermal fuse
[9] Main thermistor
[10] Sub thermistor
[11] Fixing film assembly
[12] Pressure roller
[13] Cassette pickup roller
F-1-6
[9]
[12]
[10]
[11]
Chapter 1
0007-4619
0007-4966
0007-4969
0007-4970
0011-0506
1-5
