Kraun Wireless ADSL2/2plus Modem Router 54Mbps User Manual page 35

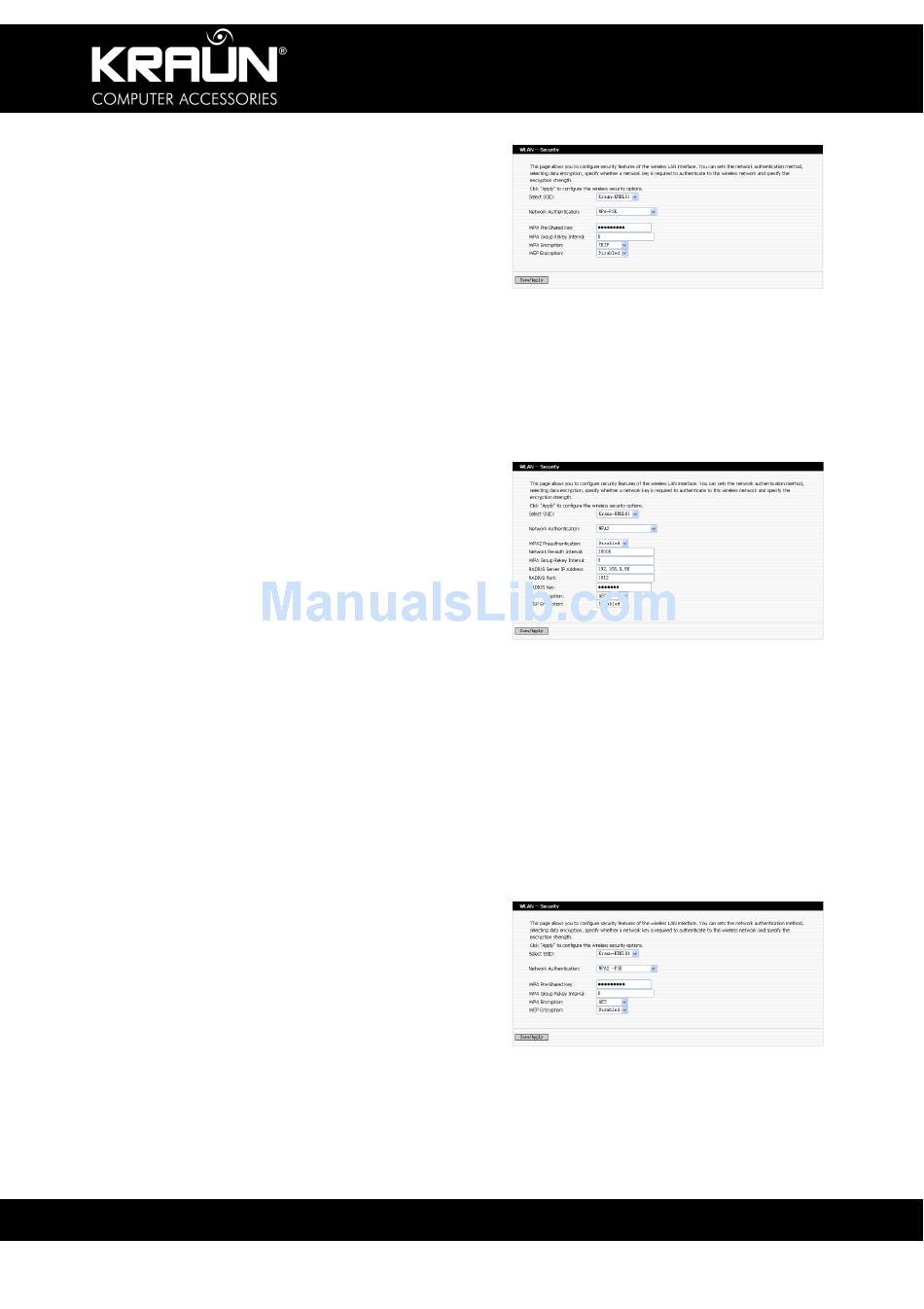

4.4.2.3 If "Network Authentication" is set as
"WPA-PSK", the system displays
the window shown in the right
figure.
(1) WPA Group Rekey Interval: Once
this interval times out, the key will
change. If this value is set to 0, the
key will not change.
(2) WPA Encryption: TKIP, AES,
TKIP+AES
(3) WEP Encryption:
Enabled, Disabled
(4) WPA Pre-Shared Key: Enter a key
or pass phrase here.
4.4.2.4 If "Network Authentication" is set to
"WPA2", the system displays the
window shown in the right figure.
(1) WPA2 Pre-authentication: Enabled,
Disabled
(2) Network Re-auth Interval: Once this
interval times out, the system make
authentication again.
(3) RADIUS Server IP Address: IP
address of the target server of
802.1X authentication
(4) RADIUS Port: Port number of the
target server of 802.1X
authentication
(5) RADIUS Key
(6) WPA Encryption: TKIP, AES,
TKIP+AES
(7) WEP Encryption: Enabled, Disabled
4.4.2.5 If "Network Authentication" is set
to "WPA2-PSK", the system
displays the window shown in the
right figure.
(1) WPA Group Rekey Interval: Once
this interval times out, the key will
change. If this value is set to 0, the
key will not change.
(2) WPA Encryption: TKIP, AES,
TKIP+AES
(3) WEP Encryption: Enabled, Disabled
(4) WPA Pre-Shared Key: Enter a key
or pass phrase here.
