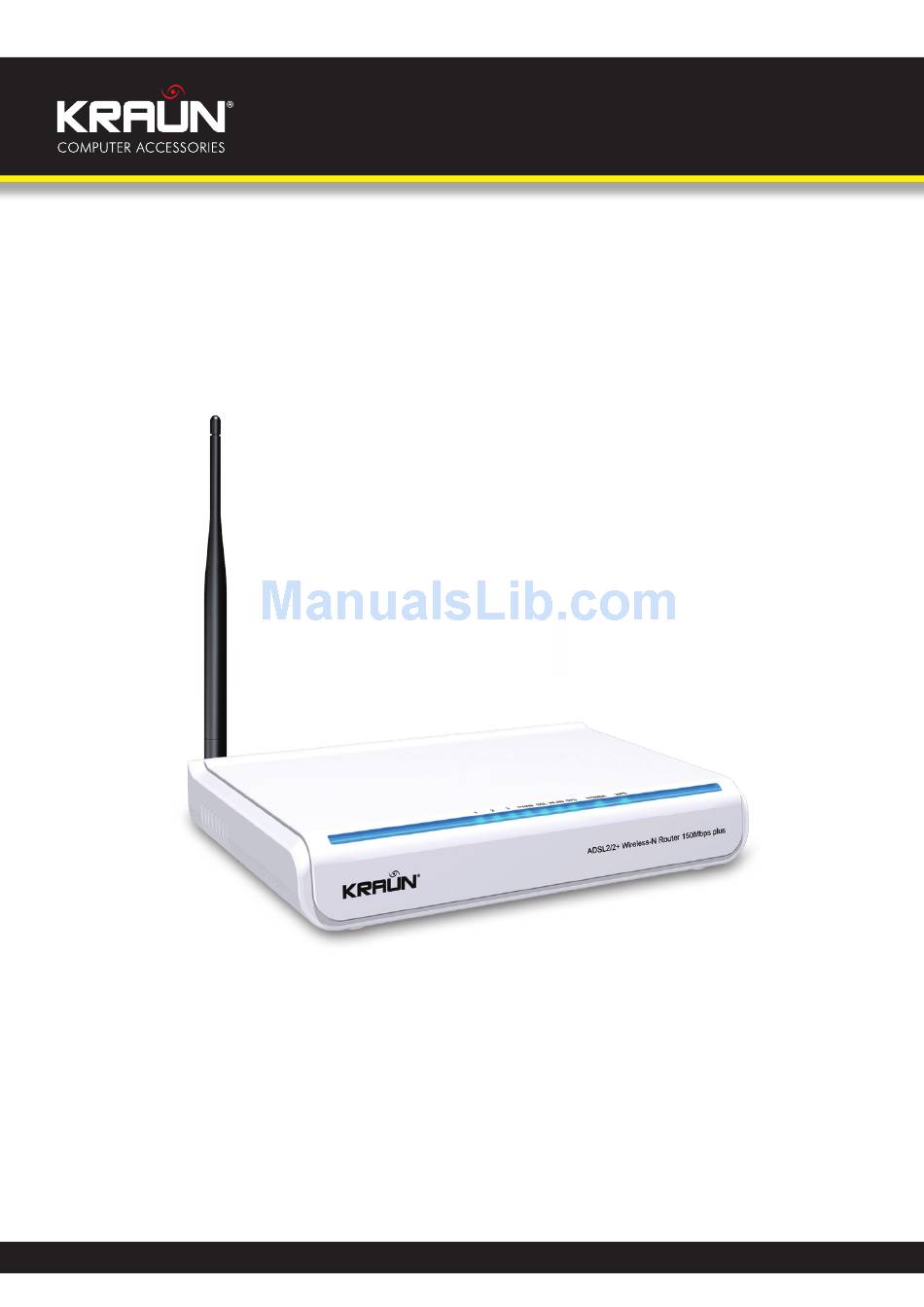

Kraun KN.2R User Manual

Adsl2/2+ wireless-n router 150mbps plus

Advertisement

Quick Links

Manual
ADSL2/2+ Wireless-N
Router 150Mbps plus
User's Manual
Cod. KN.2R
Warning
The manufacturer is under no circumstances liable for any unauthorised modifications made to
the product by the user or any other parties which may compromise its conformity and safety.
www.kraun.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KN.2R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kraun KN.2R

  • Page 1 Manual ADSL2/2+ Wireless-N Router 150Mbps plus User’s Manual Cod. KN.2R Warning The manufacturer is under no circumstances liable for any unauthorised modifications made to the product by the user or any other parties which may compromise its conformity and safety.
  • Page 2: Table Of Contents

    PPP over Ethernet (PPPoE) IP over Ethernet 4.2.3 LAN 4.2.4 DHCP setting DHCP Server DHCP client 4.2.5 NAT Virtual Server 4.2.6 Port Triggering 4.2.7 DMZ Host 4.2.8 Security IP Filter URL Filter 4.2.9 Time Restriction 4.2.10 Quality of Service Queue Configuration 4.2.11 Routing Default Gateway Static Route www.kraun.it...
  • Page 3 4.7 Back to Wizard Appendix 1 3. Setting the IP of your PC manually 4. PC dial-up Appendix 2 5. Troubleshooting 6. Verifying the Connection 7. FAQ 8. VPI/VCI List Appendix 3: Regulatory Information Appendix 4 Contact Information Need to contact Kraun? www.kraun.it...
  • Page 4: Chapter 1. Product Overview

    Manual Chapter 1. Product Overview Functions and operations are subject to vary according to different software versions; please refer to the actual product you purchase. Thanks for purchasing this Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”! It is an easy-to install gateway device, which provides easy-to-operate configuration interface to free you from compli- cated configurations. Thus, it can help you to access Internet through some simple configurations. Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”, an IEEE802.11n-compliant, easy to use, pow- er saving, ADSL2+ router with an up to 150Mbps Wireless transmission rate, is integrated with ADSL2+ Modem, wireless router, switch and wired router all in one. The wireless transmission rate and coverage it provides is 6 times of that of a common 54Mbps product, thus freeing you from surplus and complicated cable distribution.
  • Page 5: Package Contents

    Manual 1.2 Package Contents Unpack the package and check the following items. • One ADSL2/2+ router • One Power Adapter • One Voice Splitter • One RJ45 network Cable • Two RJ11 Telephone Lines • One Quick Installation Guide • One CD-ROM If any of the above listed items is missing or damaged, please contact your Kraun reseller for im- mediate replacement. 1.3 Factory Defaults Item Default Value Common Default Settings Username admin Password admin IP Address 192.168.1.1 Subnet Mask 255.255.255.0 Wireless KRAUN_XXXXXX...
  • Page 6: Chapter 2. Hardware Description

    Manual Chapter 2. Hardware Description 2.1 Panel Layout 2.1.1 Front Panel Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus” front panel There are 9 LED indicators on the front panel of Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”. You can judge whether the device is in correct working condition by checking the status of the indicators. The meanings of the indicators are described as follows: Color Status Description Always On The device has power Power Green The device has no power or power adapter is damaged Green Flashing System functions correctly...
  • Page 7: Back Panel

    Manual 2.1.2 Back Panel Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus” Back Panel ON/OFF: Power Switch. Press it in to turn on the power and press it out to turn off the power. WPS/RESET: Hold and press it for 1 second to connect WPS, and 7 seconds to bring all settings back to factory defaults. Note: Please use the supplied power adapter, for use of an unmatched power adapter may damage the device. LAN1/2/3/4: LAN network cable interface. It is used to connect Hub, Switch, or computer in a LAN. (When the access way is changed into community broadband, LAN4 can be used as the wireless Router’s WAN port.) DSL: RJ11 interface for telephone line connection (It does not function when the device is configured to use Ethernet uplink mode as access mode). 2.2 Hardware Connection • Follow the diagram below to connect your network devices when using DSL uplink access mode (through telephone line). • Follow the diagram below to connect your network devices when using Ethernet uplink access mode (through network cable).
  • Page 8: Chapter 3. Fast Configuration

    Manual Chapter 3. Fast configuration Since we are using computer to access Internet, we need to first configure the computer and then log on to router’s management interface (WEB UI) to configure the router through the configured computer. Log in to the router’s Web-based UI through “Setup Wizard” provided through a browser installed in your PC. 3.1 Logging on to your router through Web browser Before entering the web browser, you need to verify the connectivity between the router and your computer. First, click the start menu on the lower left corner of your computer desktop. Then, input “cmd” in the search programs and file texts box and press “enter’. Finally, Open the dos window and enter “ping 192.168.1.1”, and press Enter. If the screen displays the following results, it indicates your computer has already been connected to the router. www.kraun.it...
  • Page 9 Manual Now the direct link between your computer and the router has been successfully established, which means you can log on to the router’s web-based utility. 1. Open the IE Browser as shown below. 2. Input http://192.168.1.1 in the address field and press “Enter” to enter router’s management interface. 3. The router’s management interface is displayed as below: www.kraun.it...
  • Page 10: Fast Internet Access

    The device provides two Internet access ways: DSL Uplink and Ethernet Uplink. If you are using Ethernet Uplink (through network cable) for Internet access, please click the “Advanced Settings” on top right corner of the interface to enter the configuration interface and refer to section 2 of Chapter 4.2.2 WAN Service for configurations. You need to configure the parameters below on this interface: 1. VPI/VCI 2. PPPOE User name 3. PPPOE Password VPI/VCI: Different areas and ISPs have different VPI/VCI. For the convenience of its users, the device has integrated many important VPI/VCI. Therefore, you only need to select your ISP and area and the device will provide you with an auto-matched VPI/VCI in accordance with your area. However, if your ISP provides you with a special VPI/VCI, then select “Manual” for ISP option and enter the value manually. PPPOE User name: the user name provided by your ISP; used together with password to authenti- cate the user. PPPOE Password: the password provided by your ISP; used together with user name to authenticate the user. For example: User A obtains a user name and a pass word, which are respectively aliceadsl and aliceadsl, from Telecom for ADSL broadband, so he/she needs to input the parameters as below: Note: For the sake of security, password input on Web UI is displayed in encryption code. www.kraun.it...
  • Page 11 Manual This product has support the wireless function: it is enabled by default the security encryption WPA. The default Key is: KRAUN_KN.2R. We suggest you change it for security reasons after the first access. This can be from 8–63 characters of your choice, including spaces and punctuation. Note: 1. The wireless network name (SSID) of this device is “KRAUN_the last 6 characters of MAC address”, for example, “KRAUN_051609”. You can check it by clicking “Advanced Setup”------“Wireless”- -------“Basic Setting” tabs. After all settings are finished and status shows “Connected”. Congratulations! You can access In- ternet now! Launch a web browser; enter http://www.kraun.it in the address field and Internet access will be successful as below: www.kraun.it...
  • Page 12 Manual Now, try to use a wireless network adapter to search “KRAUN_051609”: First, click (network adapter connection icon) to search wireless signals as shown in the figure below: Then click “KRAUN_051609”select “Connect” to go to the dialogue box below: Enter the key: KRAUN_KN.2R and click “OK”; system will automatically connects with your wireless network in a while. Advanced settings provide you more powerful functions such as filter, QoS and port range forward- ing. Continue to read the “Advanced Settings” section below if necessary. www.kraun.it...
  • Page 13: Chapter 4. Advanced Settings

    Manual Chapter 4. Advanced Settings Enter the setup wizard screen below and then click “Advanced Settings” on the right top corner as shown in the figure below: After you enter the advanced settings screen, you can set the advanced settings for the router to satisfy your requirements. There are seven main menus on this screen: Device Info, Advanced Setup, Wireless, Diagnostics, Management, Exit and Back to wizard as shown in the below picture. www.kraun.it...
  • Page 14: Device Information

    Manual 4.1 Device Information There are five submenus: Summary, WAN, Statistics, Route and ARP. Summary: It displays system information, current status of WAN connection and Wireless as shown in the figure below: www.kraun.it...
  • Page 15 Manual WAN: Click this menu to display the WAN information of this routing modem: Interface, Descrip- tion, Type, Igmp, NAT, Firewall, Status, IPv4 Address and vlanID as shown in the figure below: Statistics: It gathers the received and transmitted packets on LAN/WAN ports. Statistics—LAN: It displays the received and transmitted packets of the device’s LAN ports as shown in the figure below: Note: eth0, eth1 and eth2 are respectively LAN port1, 2 and 3 of the device; and wl0 is a wireless port. Statistics—WAN: It displays the received and transmitted packets of the device’s WAN port as shown in the figure below: www.kraun.it...
  • Page 16 Manual Statistics-xDSL: It displays statistic information of ADSL connection including mode, traffic type, status and other ADSL parameters as shown in the below figure: Route: displays routing table of the device as shown in the figure below: ARP: displays the device’s LAN ports, IP and MAC addresses of the PCs that are wirelessly connected as shown in the figure below: www.kraun.it...
  • Page 17: Advanced Setup

    4.2 Advanced Setup Advanced Setup: Consists of 14 submenus including Connection Mode/ WAN Service/LAN/DHCP Setting/NAT/Security/Time Restriction/Quality of Service/Routing/DNS/DSL/UPnP/ Interface Grouping and Multicast as shown in the figure below: 4.2.1 Connection mode Connection Mode This router supports two connection modes: DSL mode and Ethernet mode. Select DSL mode, if you access Internet through telephone line and Ethernet mode through network cable. By default, system is in DSL mode. To enter the connection mode interface, click “Advanced Setup”---“Connection Mode”. Select a proper connection mode and then click the “Apply” button. www.kraun.it...
  • Page 18 1. In DSL mode, you are required to configure parameters for ATM interface. To enter the ATM Interface page, click “Advanced Setup”---“Connection Mode” (Select DSL mode and click “Apply”) --- “WAN Service”---ATM Interface. And then click “Add” to configure the rel- evant parameters. On this page, you can configure VPI and VCI values (consult your local ISP if you are not clear). For other options, keep the defaults and click the “Apply/Save” button. 2. In Ethernet modes, you are required to configure parameters for Ethernet interface. To enter the ETH Interface page, click “Advanced Setup”---“Connection Mode” (Select Ethernet mode and click “Apply”) --- “WAN Service”---“ETH Interface”. And then click the “Add” button to configure relevant parameters. www.kraun.it...
  • Page 19: Wan Service

    Manual The Ethernet interface configured on this page is used as a WAN port. You can select only one LAN interface to function as a WAN port. Once you finish, click the “Apply/Save” button. 4.2.2 WAN Service 1. WAN Configuration in DSL Mode PPP over Ethernet (PPPoE) Click “Advanced Setup”—“Connection mode”(Select DSL mode and click “Apply”)---“WAN Service”- --“ATM Interface” (Keep default DSL link type EOA unchanged, and click the “Apply/Save” button. For details, refer to 4.2.1----1) ---“Connection Setting” to enter WAN service setup interface (page1) and then click the “Add” button there to select a WAN service type on page 2. Page 1 Page 2 Select PPP over Ethernet (PPPoE), modify the service description if necessary and then click “Next” on page 2 to enter the page below (page 3): www.kraun.it...
  • Page 20 • Authentication Method: It is used by ISP to verify its clients during PPPoE dialup. Select “Auto” if you are not sure about it. • Clone MAC: This feature clones the MAC address of the PC that is currently entering the router’s management page to work as the WAN MAC address of the router. • Dial on Demand: Automatically connects or disconnects Internet according to the use of the network. It is recommended when your ISP limits network use time. • PPP IP extension: The IP addresses of all packets including management packets that egress WAN port will be converted to the WAN port’s IP address once this feature is enabled. • Enable PPP Debug Mode: This feature can be enabled only when supported by your ISP. • Bridge PPPoE Frames Between WAN and Local Ports: PPPoE dialup frame initiated by LAN port will directly egress WAN port without being modified if this feature is enabled. • Multicast Proxy: Router enables multicast proxy server if this feature is enabled. www.kraun.it...
  • Page 21 Manual Enter the PPP user name and PPP Password provided by your ISP. For other options, keep the default values if you are not clear about them, and then click the “Next” button to display the following screen (page 4): Page 4 This page allows you to configure the gateway address for WAN connection. We recommend you to keep the default values and click the “Next” button on page 4 to enter the following page (page 5): page 5 www.kraun.it...
  • Page 22 Manual This page allows you to configure the DNS server’s IP address for the WAN port. We recommend you to keep the default values if you are not clear about it and click the “Next” button (on page 5) to enter the following page (page 6): Page 6 This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. You can access Internet once PPPoE dialup succeeds. www.kraun.it...
  • Page 23: Ip Over Ethernet

    Manual IP over Ethernet When your ISP provides you an IP address or tells you that you only need to configure your PC to obtain an IP address automatically to access Internet, you need to select IP over Ethernet(IPoE(as the WAN service type. Modify the service description if necessary and then click the “Next” button: • Obtain an IP address automatically: WAN port will automatically obtain an IP address for accessing Internet from the ISP, if this feature is selected. • Use the following Static IP address: select this feature if your ISP provides you an IP address. • WAN IP Address: the IP address provided by your ISP for accessing Internet. • WAN Subnet Mask: the subnet mask address provided by your ISP for accessing Internet. • WAN gateway IP Address: the gateway IP address provided by your ISP for accessing Internet. www.kraun.it...
  • Page 24 Manual Enter the IP/ subnet mask/gateway IP address provided by your ISP or select “Obtain an IP address automatically” and click the “Next” button (on page 1) to enter page 2 below: Page 1 Page 2 www.kraun.it...
  • Page 25 Manual We recommend you to keep the default settings unchanged and click the “Next” button (on page 2) to enter the screen (page 3) below: Page 3 This page allows you to configure the gateway address for WAN connection. We recommend you to keep the default values and click the “Next” button (on page 3) to enter the following page (page 4): Page 4 www.kraun.it...
  • Page 26 Manual This page allows you to configure the DNS server’s IP address for the WAN port. We recommend you to keep the default values if you are not clear about it and click the “Next” button (on page 4) to enter the following page (page 5): Page 5 This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. You can access Internet once the configured connection succeeds. www.kraun.it...
  • Page 27: Bridging

    Manual Bridging If you want to use your PC or other devices to execute dialup or you do not want to share your broadband service with other users, you can first configure your router’s WAN service type as bridg- ing and then use your PC or other devices for dialup connection. Modify the service description if necessary and then click “Next”. This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. www.kraun.it...
  • Page 28: Pppoa

    Manual After successful configurations, use your PC or other devices to dialup and then you can access In- ternet. Note: When you need to configure several WAN connections (multiple PVCs), first configure the needed number of ATM interfaces and then follow the above corresponding configuration proce- dures. PPPOA First, click “Advanced Setup”—“Connection Mode” (select DSL Mode and click “Apply”)----“WAN Service”---“ATM Interface” to enter ATM PVC Configuration interface; Then select PPPoA and click “Apply/Save” there as shown in the figure below: Click “Connection Setting” to enter WAN service setup interface Click the “Add” button. www.kraun.it...
  • Page 29 • PPP User Name: User name for PPPoA dialup. It is provided by your ISP. • PPP Password: The password provided by your ISP for PPPoA dialup. • Authentication Method: It is used by ISP to verify its clients during PPPoA dialup. Select “Auto” if you are not sure about it. • Clone MAC: This feature clones the MAC address of the PC that is currently entering the router’s management page to work as the WAN MAC address of the router. • Dial on Demand: Automatically connects or disconnects Internet according to the use of the network. It is recommended when your ISP limits network use time. • Enable PPP Debug Mode: This feature can be enabled only when supported by your ISP. • Multicast Proxy: Router enables multicast proxy server if this feature is enabled. www.kraun.it...
  • Page 30 Manual Enter the PPP user name and PPP Password provided by your ISP. For other options, keep the default values if you are not clear about them, and then click the “Next” button to display the following screen: This page allows you to configure the gateway address for WAN connection. We recommend you to keep the default values and click the “Next” button to enter the following page: www.kraun.it...
  • Page 31 Manual This page allows you to configure the DNS server’s IP address for the WAN port. We recommend you to keep the default values if you are not clear about it and click the “Next” button to enter the following page: This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. You can access Internet once PPPoA dialup succeeds. www.kraun.it...
  • Page 32: Ipoa

    Manual IPOA First, click “Advanced Setup”—“Connection Mode” (select DSL Mode and click “Apply”)----“WAN Service”---“ATM Interface” to enter ATM PVC Configuration interface; Then select PPPoA and click “Apply/Save” there as shown in the figure below: Click “Connection Setting” to enter WAN service setup interface Click the “Add” button Modify the service description if necessary and then click the “Next” button: www.kraun.it...
  • Page 33 Manual • WAN IP Address: the IP address provided by your ISP for accessing Internet. • WAN Subnet Mask: the subnet mask address provided by your ISP for accessing Internet. Enter the IP/ subnet mask provided by your ISP and click the “Next” button: We recommend you to keep the default settings unchanged and click the “Next” button: This page allows you to configure the gateway address for WAN connection. We recommend you to keep the default values and click the “Next” button: www.kraun.it...
  • Page 34 Manual This page allows you to configure the DNS server’s IP address for the WAN port. Enter the DNS server IP address provided by your ISP and click the “Next” button: This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. You can access Internet once the configured connection succeeds. www.kraun.it...
  • Page 35: Wan Configuration In Ethernet Mode

    Manual 2. WAN Configuration in Ethernet Mode In Ethernet mode, system supports PPP over Ethernet (PPPoE) and IP over Ethernet (IPoE). PPP over Ethernet (PPPoE) Click “Advanced Setup”—“WAN Service” –“Connection Setting” to enter WAN service setup inter- face (page 1) and then click the “Add” button to go to page 2 and select a proper WAN service type. Page 1 Page 2 Select PPP over Ethernet (PPPoE) on page 2, modify the service description if necessary and then click “Next” to enter page 3: www.kraun.it...
  • Page 36 • Authentication Method: It is used by ISP to verify its clients during PPPoE dialup. Select “Auto” if you are not sure about it. • Clone MAC: This feature clones the MAC address of the PC that is currently entering the router’s management page to work as the WAN MAC address of the router. Configure it when your ISP requires a fixed MAC for your Internet access. • Dial on Demand: Automatically connects or disconnects Internet according to the use of the network. It is recommended when your ISP limits network use time. This feature can help you to save the Internet fee.PPP IP extension: The IP addresses of all packets including management packets that egress WAN port will be converted to the WAN port’s IP address once this feature is enabled. • Enable PPP Debug Mode: This feature can be enabled only when supported by your ISP. • Bridge PPPoE Frames Between WAN and Local Ports: PPPoE dialup frame initiated by LAN port will directly egress WAN port without being modified if this feature is enabled. • Multicast Proxy: Router enables multicast proxy server if this feature is enabled. www.kraun.it...
  • Page 37 Manual Enter the PPP user name and PPP Password provided by your ISP. For other options, keep the default values if you are not clear about them, and then click the “Next” button to display the following screen: This page allows you to configure the gateway address for the WAN connection. We recommend you to keep the default values and click the “Next” button to enter the following page: This page allows you to configure the DNS server’s IP address for the WAN port. We recommend you to keep the default values if you are not clear about it and click the “Next” button to enter the following page: This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. www.kraun.it...
  • Page 38: Ip Over Ethernet

    Manual You can access Internet once PPPoE dialup succeeds. IP over Ethernet When your ISP provides you an IP address or tells you that you only need to configure your PC to obtain an IP address automatically to access Internet, you need to select IP over Ethernet (IPoE) as the WAN service type. Modify the service description if necessary and then click the “Next” button: • Obtain an IP address automatically: WAN port will automatically obtain an IP address for accessing Internet from the ISP, if this feature is selected. www.kraun.it...
  • Page 39 Manual • Use the following Static IP address: select this feature if your ISP provides you an IP address. • WAN IP Address: the IP address provided by your ISP for accessing Internet. • WAN Subnet Mask: the subnet mask address provided by your ISP for accessing Internet. • WAN gateway IP Address: the gateway IP address provided by your ISP for accessing Internet. Enter the IP/ subnet mask/gateway IP address provided by your ISP or select “Obtain an IP address automatically” and click the “Next” button: We recommend you to keep the default settings unchanged and click the “Next” button: This page allows you to configure the gateway address for WAN connection. We recommend you to keep the default values and click the “Next” button: www.kraun.it...
  • Page 40 Manual This page allows you to configure the DNS server’s IP address for the WAN port. We recommend you to keep the default values if you are not clear about it and click the “Next” button: This page displays the configuration information. After confirmation, please click “Apply/Save” to save it. You can access Internet once the configured connection succeeds. www.kraun.it...
  • Page 41: Lan

    Web-based management interface, and the default gateway of all computers that connect to the router’s LAN ports have to be set to the new IP address for normal Internet access. 4.2.4 DHCP setting DHCP Server This router enables DHCP server function by default. DHCP refers to Dynamic Host Control Proto- col. With an internal DHCP server, the Router can automatically configure the IP addresses, subnet mask, gateway and DNS server, etc for the computers that connect to the router’s LAN ports and are configured to obtain an IP address automatically. Therefore, it reduces the inconvenience and trouble in manually configuring IP address and other network parameters for multiple computers in LAN. www.kraun.it...
  • Page 42: Dhcp Client

    To use the Router’s DHCP server function, you must set the TCP/IP protocol of the computers in LAN to “Obtain an IP address automatically”. DHCP client This page displays DHCP client’s information such as host name, MAC address, IP address, and lease time. • Hostname: The name of a PC or a network device that has successfully obtained an IP address from the DHCP server. • MAC Address: The MAC address of a PC or a network device that has successfully obtained an IP address from the DHCP server. • IP Address: The IP address distributed by DHCP server. • Expires In: This item displays the leftover lease time. www.kraun.it...
  • Page 43: Nat

    • Use Interface: It indicates which WAN connection the configured rules are to be applied to. When there is only one configured WAN connection available, system will select it automatically. • Service Name: There are two options available: (1) Select a Service: allows you to select an existing service from the drop-down list box. (2) Custom Service: allows you to define a service yourself. www.kraun.it...
  • Page 44 • External Port Start/ External Port End: The port range through which Internet users access the router’s LAN side server. • Protocol: There are 3 options: TCP, UDP and TCP/UDP. We recommend you to select TCP/UDP if you are not sure about which protocol to choose. • Internal Port Start/ Internal Port End: The port range used by the created server on router’s LAN side. Note: When UPNP function is enabled on the router and on some application programs on the com- puter that is connected to the router’s LAN port, the virtual server page will display: UPNP interface is being used. For example, you have created two servers on the router’s LAN side: (1) FTP server (Port: 21) for transferring files is at the IP address of 192.168.1.100 (2) Web server (port: 80) is at the IP address of 192.168.1.110. And you want your Internet friends to access your FTP and Web servers respectively via port: 21 and port: 80. For configurations, follow the instructions below: 1. Configuring FTP server: Click “NAT”-> “Virtual Server” to enter the virtual server interface. Then click the “Add” button to configure the following page (refer to the parameters that are configured on the page): 2. Configuring Web server The screen appears as below after the above configuration is finished: www.kraun.it...
  • Page 45: Port Triggering

    Manual Supposing that the IP address of PPP0 is 183.37.227.201, then the Internet user only needs to enter ftp://183.37.227.201 or http://183.37.227.201 in Web browser address field to access your FTP or Web server respectively. 4.2.6 Port Triggering Some application programs or network business (such as network game, video conference, etc) can not work with simple NAT router due to the isolation caused by router’s built-in firewall. Therefore, proper configuration is needed. When application program initiates a connection toward the trig- gering port, all correspondingly open ports will be enabled to implement successful connection and service. Click “Advanced Setup”à“NAT”à“Port Triggering” to enter the port triggering interface and then click the “Add” button to add rules. www.kraun.it...
  • Page 46 • Trigger Port Start/ Trigger Port End: The port range for application programs to initiate connections. • Trigger Protocol: There are 3 options: TCP, UDP and TCP/UDP. We recommend you to select TCP/UDP if you are not sure about which protocol to choose. • Open Port Start/ Open Port End: the port range that will be automatically enabled by the built-in firewall when connections initiated by application programs succeed. For example, you have created a server on router’s LAN side that can automatically download mate- rial from Internet (via port: 9090) and share its data with other users. And you want Internet users to download data from your server (via port: 9999). For configurations, follow the instructions below: To enter the port-triggering interface, click “Advanced Setup”à “NAT”à“Port Triggering”, and then click the “Add” button to configure the page below (Refer to the parameters configured on the page below): www.kraun.it...
  • Page 47: Dmz Host

    Manual When your server initiates a connection toward the server on Internet via port: 9090, the router’s firewall will automatically open port: 9999 to let Internet users access your server to download data via this port: 9999. 4.2.7 DMZ Host Once a PC on a LAN is set as a DMZ host, it can implement network communication with Internet without limit. • DMZ Host IP Address: the IP address of a PC to be set as a DMZ host. DMZ host must be connected to the router’s LAN port. Note: The router’s firewall cannot have effect on the DMZ host once it is enabled. Therefore, net- work security problem may occur. Thus, we recommend you to enable this function only when nec- essary and delete the corresponding settings as soon as you are not using it. For example, if you want the PC at the IP address of 192.168.1.100 from your router’s LAN side to be shared by Internet users for data and other resources. For configurations, follow the instructions below: www.kraun.it...
  • Page 48: Security

    Manual Click “Advanced Setup”----“NAT”---“DMZ Host” to configure the page below: Supposing that the router’s WAN IP address is 183.37.227.201, then the Internet user only needs to enter http://183.37.227.201 in Web browser address field to access your Web server. 4.2.8 Security IP Filter IP filter function can block LAN PCs from communicating with Internet PCs by preventing specific IP addresses from accessing external network through router via specific a port number or range. 1. Click “Advanced Setup” à “Security” à “IP Filtering” to display the page above and then click the “Add” button to enter the page below to add filtering rules. www.kraun.it...
  • Page 49 • Packets filtered in this function are transferred from LAN to WAN. • If you are not familiar with all parameters to be configured, you can just configure some of them and keep the left unchanged. And the filtering function can also be implemented. For example: If you want to filter the PC at the IP address of 192.168.1.200 and make it unable to access Internet. Then follow the instructions below: First, click “Advanced Setup” à “Security” à “IP Filtering” to enter the IP filtering setup page and then click the “Add” button to enter the page below to configure needed parameters as below: Then click the “Apply/Save” button to save your setting. Note: • Principle of using “IP Filter” funciton to prohibit BT download: when you use BT software to download data, it needs to send request for connectting “seed” server, and when this request passes the router, the router’s IP Filter function will hold it up and ignore the request so that BT fails to connect the server and download will be aborted. • The ports that BT “seed” server frequently uses are in the range of 6900-8100 such as 6969(8000 and 7373. Therefore, we can block this port range by creating proper rules to stop BT software from connecting the server. However, some Non-BT “seed” servers are also using port 8080, thus, in order not to affect other servers, we must divide the port range of 6900-8100 to be blocked into 2 groups: 6900-8079 and 8081-8100. • The protocols that BT uses are TCP/UDP, so we need to block both of them. www.kraun.it...
  • Page 50: Url Filter

    Manual URL Filter URL filter function blocks all LAN PCs from accessing specific domain names on Internet. It rejects all requests to access the specific domains. For example, if you want to prevent all LAN PCs from accessing www.sina.com.cn, then follow the instructions below: Click “Advanced Setup”à“Security”à“URL Filter” to the page above and then click the “Add” there to enter the page below to configure needed parameters: URL Address: Enter the domain name that rejects LAN PCs access. Port Number: It indicates the port used by Web server, 80 by default. Then click the “Apply/Save” button to save your settings. As a result, all LAN PCs can not access www.sina.com.cn. Note: After you have added the URL filter rule, if you previously accessed this URL, then you need to reboot the router and delete your PC’s cache to activate the function. However, you can access the deleted URL without rebooting the router after you delete a filter rule. www.kraun.it...
  • Page 51: Time Restriction

    Click “Advanced Setup”à“Security” à “Time Restriction” to enter the screen above and then click the “Add” button there to enter the screen below to configure needed parameters: • User Name: Enter the defined user name by you. • Browser’s MAC Address: The MAC address of the PC that is currently accessing the router’s management interface; it is automatically added by system. • Other MAC Address: The MAC address whose Internet access time you want to restrict. Enter it manually. • Start Blocking Time (hh:mm) / End Blocking Time (hh:mm): The time range during which Internet access is blocked. After configuration is finished, click the “Apply/Save” button and the MAC address of aa:bb:cc:dd:ee:ff can only access Internet on Saturday and Sunday. www.kraun.it...
  • Page 52: Quality Of Service

    Manual 4.2.10 Quality of Service Quality of service is the ability to provide different priority to different applications, users, or data flows, or to guarantee a certain level of performance to a data flow. Select the “Advanced Setup”à “Quality of Service” menu to enter the following screen. Select the “Enable QoS” Checkbox, and select Default DSCP Mark Value, then, Click ‘Save/Apply’ to save and activate the rule. Queue Configuration Click “Advanced Setup”-> “Quality of Service”-> “Queue config” to display the configured QoS rule www.kraun.it...
  • Page 53: Routing

    Manual Click “Add” to enter the following screen to add rules. Name: The name of the configured rule. Enable: Enable/Disable the rule. Interface: The interface that needs to configure priority. Precedence: Set a priority for the selected interface. Click “Save/Apply” to save the settings. 4.2.11 Routing Default Gateway Gateway is the path for sending packets when your computer is communicating with computers on other networks. When there are multiple WAN connections, the gateway must be specified, oth- erwise, your computer may not be able to communicate with computers on other networks. When there is only one WAN connection, just keep the default settings. Click “Advanced Setup”-> “Routing”-> “Default Gateway” to enter the screen below. Available Routed WAN Interfaces: Current existed WAN connection. Selected Default Gateway Interfaces: WAN connection has already been selected as the gateway. Select the WAN connection that you want to set as the gateway and click “Apply/Save” to save the settings. The settings will be effective after the system reboot. www.kraun.it...
  • Page 54: Static Route

    Manual Static Route Static Route is a special route. When you use proper static routing in networks, you can reduce routing selection problems and the forwarding rate of the data packets. IP address, subnet mask and gateway can be set to specify a routing item. Destination IP address and subnet mask can be used to specify an object network/ host. Then the Router will send the packets to the specific object network/ host. Click “Add” to enter the screen below. Click “Apply/Save” to display the current configured static route information. www.kraun.it...
  • Page 55: Dns

    • Destination IP address cannot be at the same net segment with the IP addresses of the router’s WAN or LAN port. • We recommend using the default settings if there is no special requirement, for inappropriate or incorrect route setting would cause network malfunction. 4.2.12 DNS server DNS server is used to map the domain name and it can be automatically obtained when you con- nect to the ISP or it can also be manually configured. After entering the DNS server IP address, click “Apply/Save” to save the settings. Note: • After saving the settings, you need to reboot the router to bring the new configuration into effect. • Please keep the default settings if there is no special requirement for incorrect DNS settings will cause the LAN computer to be unable to access the Internet via the domain name. DDNS If your server is set up on the router’s LAN side, and the router’s WAN IP address is changeable. When users on the Internet want to visit the server via the domain name, but the domain name can not be translated as the router’s WAN IP, which will cause visit failure. However, DDNS will request the corresponding ISP to update the domain name and IP address when WAN IP is changed. When the WAN IP address is updated, users on the Internet can still successfully visit the server. This router supports three DDNS providers: www.dyndns.org, www.3322.org, www.tzo.com www.kraun.it...
  • Page 56: Dsl

    Manual Select “Advanced Setup” ->“DNS” -> “Dynamic DNS”, and click the “Add” button to add a rule. Dynamic DNS Provider: Select your DDNS provider. Hostname: The domain name registered at the corresponding DDNS website. Interface: WAN connection interface Username: Enter the username that you use to register from the DDNS provider Password: Enter the password that you use to register from the DDNS provider Click “Apply/Save” to save the settings. 4.2.13 To be applicable for different environments, DSL advanced setting screen provides multiple ASDL modulation modes for users to choose. Click the checkbox to enable corresponding modulation modes, and then click “Apply/Save” to complete the settings. Note: If you are not familiar with the ADSL modulation modes, please use the default settings. www.kraun.it...
  • Page 57: Upnp

    Manual 4.2.14 UPnP With UPnP (Universal Plug and Play) function, the host in LAN can request the Router to carry spe- cific port forwarding, thus the external host can access the internal host for resources. For example, the MSN Messenger under Windows XP and Windows Me can utilize UPnP in video and audio com- munication, thus the function restricted by NAT can restore its normal use. Enable UPnP to help support applications that would not otherwise work behind a Router. Both UPnP Internet Gateway Device and NAT Traversal are supported. Select “Enable UPnP” and then click “Apply/Save” to save the settings. Note: 1. Because the security of current UPnP version has not been guaranteed, please close it when you do not need it. 2. Only the application programs that support UPnP protocol can use this function. MSN Messenger may need to be supported by Operating Systems such as Windows XP/ ME. 3. UPnP function needs the support from Operating Systems such as Windows XP/ME. 4.2.15 Interface Grouping If your ADSL line supports multi-WAN connection(there are multiple groups of PPPOE or other ac- cess modes),and you wish some LAN ports of your router(or the wireless network) to solely share one of the WAN ports, then you may fulfill this function by configuring the interface grouping. • Group Name: The name of the configuration rule. • WAN Interface used in the grouping: WAN connection that needs to be grouped. • Available LAN Interfaces: Interfaces that can be grouped. • Grouped LAN Interfaces: LAN interface that needs to connect with specified WAN interface www.kraun.it...
  • Page 58: Multicast

    Manual 4.2.16 Multicast IGMP Configuration Click “Advanced Setup”-> “Multicast” to enter the IGMP Configuration screen. You can configure IGMP parameters on this screen, if you are not clear about the IGMP, we recom- mend using the default configuration. If you want to modify the configured parameters, please make sure whether the router’s IGMP feature is enabled. 4.3 Wireless Setting Wireless function includes “Basic”, “Security”, “MAC Filter”, “Wireless Bridge” and “Station Info”. 4.3.1 Basic Setting • Enable Wireless: check/uncheck to enable/disable the wireless function. www.kraun.it...
  • Page 59: Wireless Mode

    The name displayed in “View available wireless networks” under Windows is a SSID. • Hide SSID: If you do not want wireless network to be searched by other users via SSID name, then you had better prohibit SSID broadcast. As a result, your wireless network will not appear in the searched wireless network list but it is still available, you only need to add it to the list manually. The following example teaches you how to add a wireless network under Windows 7: Step1: Click icon on bottom right corner as shown in the above figure to display “Currently connected to”. Step2: Click “Open Network and Sharing Center” to enter the configuration interface below. www.kraun.it...
  • Page 60 Manual Step3: Click “Manage Wireless Network” to enter the page below: Step4: Click the “Add” button on the page above to enter “Manually connect to a wireless net- work” and select “Manually create a network profile” on the page below: Step5: Enter the required wireless network information on the page below, and then click “Next”. Network name: It is the name of the wireless network to add (SSID). Security type: It is authentication method of the wireless network. Security key: It is the security key of the wireless network. www.kraun.it...
  • Page 61 Manual Step6: Click the “Close” button and you have finished the operations of manually adding wireless network Step7: Now, you can go to check the added wireless network on the page below by clicking “Man- age wireless network”. www.kraun.it...
  • Page 62 • Max Clients: The max number of wireless clients that are allowed to be connected to the wireless network is 16 and system default is 8. You can modify it manually (The Max number is 16). • Channel: wireless signal needs to be transferred through a certain channel. If two transmission signals are using the same channel, then mutual interference will be caused to decrease communication efficiency. There are 13 channels (1 to 13) for your option. Thus, to avoid interferences, you are recommended to choose the channel that is different from that of another SSID. If you select “Auto”, then system will automatically choose a channel with relatively less interference for your wireless network. • Bandwidth: The bandwidth here refers to wireless signal’s frequency width that only functions in b/g/n mixed wireless mode. www.kraun.it...
  • Page 63: Security Setting

    • PIN: To use PIN, you must know wireless client’s PIN code and input it in its text box, then save this configuration. Meanwhile, use the same PIN code in the client for connection. • Enable WPS: check/uncheck to enable/disable the WPS function. It is disabled by default. Note: The WPS feature only functions with wireless network available. • Network Authentication: To secure your wireless network, system provides several authentication modes: • Open: you can select “no encryption” or WEP (64 bits/128 bits) as encryption algorithm. • Shared: you can select WEP 64 bits/ WEP 128 bits as encryption algorithm. • WPA-PSK: you can select AES, TKIP or TKIP+AES as encryption algorithm. • WPA2-PSK: you can select AES, TKIP or TKIP+AES as encryption algorithm. • Mixed WPA/ WPA2-PSK: you can select AES, TKIP or TKIP+AES as encryption algorithm. www.kraun.it...
  • Page 64: Mac Filter

    Manual 4.3.3 MAC Filter MAC address filter can allow or refuse specific clients to access your wireless network, see the screen below: Disabled: Select it to disable MAC filter function. Allow: only allows clients in the MAC address list to access your wireless network. Deny: only prohibits clients in the MAC address list from accessing your wireless network. Add: to add a MAC address, click the “Add” button. To delete an added MAC address, first check the “Remove” box behind the MAC address in list and then click the “Remove” button. Example 1: If you want to allow the PC with MAC address of 00:1A:3D:9C: BB: 23 only to access your wireless network, then follow the instructions below: Click the “Add” button in the above screen to enter the page below and enter the MAC address 00:1A:3D:9C: BB: 23 in the text box as shown in the below figure: Then click the “Apply/Save” button on the above screen to save the parameter. Select “Allow” on the page below: www.kraun.it...
  • Page 65 Manual Example 2: If you want to prohibit the PC with MAC address of 00:c2:a5:67:d4:23 only from access- ing your wireless network, then follow the instructions below: 1. Enter the Wireless--MAC filter page and click the “Add” button to enter the page below and enter the MAC address 00:c2:a5:67:d4:23 in the text box as shown in the below figure: Then click the “Apply/Save” button on the above screen to save the parameter. 2. Select “Deny” on the page below: www.kraun.it...
  • Page 66: Wireless Bridge

    Kraun ADSL2/2+ Wireless-N Router Kraun ADSL2/2+ Wireless-N Router 150Mbps plus-1 150Mbps plus-2 In the above figure, two Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-s are used to enlarge wireless signal coverage. Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-2 is configured as a wireless access point to establish a wireless bridge with Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-1. In the meantime, the AP function reserved in Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-2 enables PC3 and PC4 to communicate with Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-2 and access Internet through wireless network adapters. 2. Wireless bridge (Here in this mode, wireless is used as pure bridge only with no more AP function to connect and communicate with remote devices. Namely, your PC can only be connected to the device via wired media instead of communicating with the device through wireless network adapter.) See the figure below:...
  • Page 67: Station Info

    Manual In the above figure, two Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus” are used to enlarge wireless signal coverage. Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-2 is configured as a wireless bridge to establish a wireless bridge with Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-1. Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-2, here, does not have the AP function, thus, PC3 and PC4 can communicate with Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”-2 and access Internet only through wired network adapters instead of wireless ones. Bridge Restrict:There are three options available: Enabled, Enabled (Scan) and Disabled. Enabled: Select it to enable wireless bridge function. You need to know the MAC address of a re- mote bridge and enter it manually. 4 MAC addresses of remote bridges can be saved to simultane- ously establish bridges with 4 APs. Enabled (Scan): Select it to enable wireless bridge function. In the meantime, system will automati- cally scan MAC addresses of available wireless devices. See the figure below: You only need to check the wireless network that you want to bridge with and click the “Apply/ Save” button. And system will automatically establish wireless bridge with the remote device for you. Disabled: To disable wireless bridge function, select this option. Note: To use the wireless bridge function, both devices must support the function. Besides, SSID, channel, encryption method and key of one device must be set to the same value of its link partner’s.
  • Page 68: Diagnostics

    Manual 4.4 Diagnostics Through the Diagnostics function, you can check connection status of the router’s interfaces. When a connection is successfully established, its status displays a “PASS”, otherwise it displays a “FAIL” click “. To enter the page below, click the “Diagnostics” tab on the left navigation menu column: If you are not clear about the test result, please click “Help” for more details. 4.5 Management Management settings include: system log, TR-069 client, Internet time, access control, backup, up- date, restore default, update software and reboot, as shown in the picture below. www.kraun.it...
  • Page 69: System Log

    Manual 4.5.1 System log System log records the running status of Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus”, such as ADSL dial-up procedure and data packets records and so on. To view the log, please follow the steps below. 1. Click “System Log” to enter the “System Log” screen and click the radio button before “Enable” (Note: The function is disabled by system default). 2. Click “View System Log” and you can check the logs on the appearing screen. www.kraun.it...
  • Page 70: Internet Time

    Manual 4.5.2 Internet Time Internet time synchronization is used to update the router’s system time so that the router’s system time accords with the Internet time. The default setting selects “Automatically synchronize with Internet time servers”, as shown in the picture below. Note: NTP time server is used to update the time. Select “Time zone offset” as the time zone where you are. 4.5.3 Access Control This screen allows you to change the device’s login password, which is admin by default. 1. Click “Access Control” to enter the “Access Control-Passwords” screen. www.kraun.it...
  • Page 71 Manual 2. Enter the router’s current login password in the old password textbox. 3. Enter the password you wish to set in the new password and confirm password textboxes. 4. After clicking Apply/Save, the login dialog will pop up. 5. Enter the new password you have set to re-enter the router’s setup wizard screen. www.kraun.it...
  • Page 72: Backup

    Manual 4.5.4 Backup With backup settings, you can back up your router’s configuration. The steps are as follows: 1. Click “Backup” to enter the “Settings—Backup” screen. 2. Click the “Backup settings” button, and click “Save” on the appearing “File Download” dialog to export the router’s configuration file. 4.5.5 Update This function enables you to import the previous backup file with ease. The steps are as follows: 1. Click the “Update” menu to display the “Tools—Update Settings” screen. www.kraun.it...
  • Page 73: Restore Default

    Manual 2. Click “Browse” to select the file you want to import. 3. Click “Update settings” to import the configuration and the device will reboot. 4.5.6 Restore default If you have made some illegal operation on the device, you will be unable to access the Internet. This feature enables you to restore the device to factory default settings. 1. Click “Restore Default” to display the “Tools -- Restore Default Settings” screen. 2. Click the Restore Default Settings button, and click “Ok” on the appearing dialog. www.kraun.it...
  • Page 74: Update Software

    Manual 3. After clicking “Ok”, you will see the procedure bars. 4.5.7 Update Software Update Software enables you to upgrade the device to improve its system stability. The upgrade steps are as follows: 1. Click “Update Software” to display the “Tools -- Update Software” screen. www.kraun.it...
  • Page 75: Reboot

    Manual 2. Click the “Browse” button to select the upgrade file and then click “Update Software”. 3. After clicking the “Update Software”, it comes to the upgrade screen. The progress takes about 2 minutes. 4.5.8 Reboot To reboot the router, click “Management”----“Reboot” to enter the page below, and then click the “Reboot” button there. www.kraun.it...
  • Page 76: Exit

    Manual 4.6 Exit Select the Exit menu and click Ok on the appearing dialog to log out from the router’s web-based utility. 4.7 Back to Wizard Click Back to Wizard menu, you will come back to the router’s setup wizard screen as shown in the screen below: www.kraun.it...
  • Page 77: Appendix 1

    Manual Appendix 1 1. Setting the IP of your PC manually Choose “Use the following IP address”, and enter the IP address: 192.168.1.xxx. (xxx ranges 2~254), Subnet mask : 255.255.255.0, Gateway: 192.168.1.1, DNS Server: You can enter your local DNS server address (consult your local ISP) or set the Router as DNS proxy server. Click “OK” to finish settings. Then click “OK” on “Properties” of “local area connection” to save settings. 2. PC dial-up When working in bridging mode, Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus” connects with internet via dial-up software (the third party software). With multiple built-in VPI/VCI, there is no need for any configuration and only an installed dial-up program will enable access to internet. Different ISP may use different dial-up software. Use the included dial-up software of Windows to access internet if you are a PPPoE dial-up user. ISP may provide special dial-up software. Please refer to the matched “help” files of the third party software during installation. The installation method of Windows dial-up software is illustrated below (Windows 7 is used as an example). www.kraun.it...
  • Page 78 Manual Click icon on the left bottom of the PC’s desktop, and then click “Control Panel”: Enter Control Panel page and click “Network and Sharing Center” as below: Enter “Network and Sharing Center” and select “Set up a new connection or network” as below: www.kraun.it...
  • Page 79 Manual Choose “Connect to the Internet” and click “Next” on the page below: e) Select “Dialup” on the appearing page below: www.kraun.it...
  • Page 80 Manual f) Enter User name and password provided by your ISP on the page below: g) And then click “Connect”. h) If you get the screen below in a while, then you can access Internet. www.kraun.it...
  • Page 81: Appendix 2

    Appendix 2 1. Troubleshooting Trouble Case Troubleshooting • Check if the power adapter is connected properly. Power LED Off • Check if the power adapter is matched. • Check if the ADSL cable connection is OK. ADSL LINK Off • Make sure the telephone line is OK with your phone. • Check the phone line cabling is right. • Check the Ethernet cable is OK. LAN LINK • Make sure the PC’s NIC indicator is ON. • Make sure the NIC works normally. • Make sure the above troubles are clear. • Make sure the dial-up connection is established and set up. • Make sure the user name and password are right. Can’t access the Internet • If the dial-up is OK, please make sure the IE proxy server is configured properly. • Please try opening multiple web pages 2. Verifying the Connection First, click the start menu on the left bottom corner of your computer desktop. www.kraun.it...
  • Page 82 Manual Then, input “cmd” in the search programs and file texts box and press “enter’. Finally, Open the dos window and enter “ping 192.168.1.1”, and press Enter. If the screen displays the following results, it indicates your computer has already been connected to the router. Now the direct link between your computer and the router has been successfully established, which means you can log on to the router’s web-based utility. If the screen shows as below, it indicates the connection hasn’t been established. Then please check the previous settings, the power of the Router, and the cables between the Router and the com- puter. Then try to set it again. www.kraun.it...
  • Page 83: Faq

    3. FAQ Q: How do I judge whether ADSL connection is OK? A: After the hardware is connected correctly, when the connection is OK, the “ADSL-LINK” indicator of Kraun “ADSL2/2+ Wireless-N Router 150Mbps plus” will be always on; otherwise, it will be flashing. Flashing indicates the connection is troubled or wrong. Please consult your ISP or connect your cables again. Q: I’m an ADSL user, but why sometimes I cannot access the Internet?
  • Page 84 2. When you choose the place to set the Router, make sure that the signals pass through fewer walls. 2) Modify channels to reduce wireless disturbance. Note: When you set your wireless transmitting channel, keep above 5 channels far away from other wireless signal channels. 3) Keep the wireless Router far away from household appliances to reduce the disturbance of the signals. 4) If the antenna of wireless Router is detachable, you can change it for a higher gain one to enhance wireless signals. www.kraun.it...
  • Page 85: Vpi/Vci List

    PPPoA VC-MUX France (1) PPPoE LLC France (2) PPPoE LLC France (3) PPPoA VC-MUX Germany PPPoE LLC Hungary - Sci-Network PPPoE LLC Iceland - Islandssimi PPPoA VC-MUX Iceland - Siminn PPPoA VC-MUX Israel PPPoA VC-MUX Italy PPPoA VC-MUX Jamaica (1) PPPoA VC-MUX Jamaica (2) PPPoA VC-MUX Jamaica (3) 1483 Bridged IP LLC Jamaica (4) 1483 Bridged IP LLC Kazakhstan PPPoA VC-MUX Mexico PPPoE LLC Netherlands - BBNED PPPoA VC-MUX Netherlands - MX Stream PPPoA VC-MUX New Zealand - Slingshot PPPoA VC-MUX Portugal PPPoE LLC www.kraun.it...
  • Page 86 PPPoE LLC Trinidad & Tobago - TSTT PPPoA VC-MUX Turkey (1) PPPoE LLC Turkey (2) PPPoA VC-MUX United States - 4DV.Net PPPoA VC-MUX United States - All Tel (1) PPPoE LLC United States - All Tel (2) 1483 Bridged IP LLC United States - August.net (1) 1483 Bridged IP LLC United States - August.net (2) 1483 Bridged IP LLC United States - BellSouth PPPoE LLC United States - CenturyTel (1) PPPoE LLC United States - CenturyTel (2) 1483 Bridged IP LLC United States - Coqui.net PPPoA LLC United States - Covad PPPoE LLC United States - Earthlink (1) PPPoE LLC United States - Earthlink (2) PPPoE LLC United States - Earthlink (3) PPPoALLC United States - Embarq 1483 Bridged IP LLC United States - GWI 1483 Bridged IP LLC United States - QWest (1) PPPoALLC www.kraun.it...
  • Page 87 United States - Sprint (1) PPPoALLC United States - Sprint (2) PPPoE LLC United States - SureWest 1483 Bridged LLC Snap Communications(1) United States - SureWest PPPoE LLC Communications(2) United States - SureWest PPPoA LLC Communications(3) United States - Toast.Net PPPoE LLC United States - US West PPPoA VC-MUX United States - Verizon (1) PPPoE LLC United States - Verizon (2) 1483 Bridged IP LLC United Kingdom (1) PPPoA VC-MUX United Kingdom (2) PPPoE LLC United Kingdom - AOL PPPoE VC-MUX United Kingdom - Karoo PPPoA LLC Venezuela - CANTV 1483 Routed IP LLC Vietnam PPPoE LLC Vietnam - VDC PPPoE LLC Vietnam - Viettel PPPoE LLC Vietnam - FPT PPPoE LLC www.kraun.it...
