Kraun Wireless Modem Router ADSL2/2+ User Manual

Wireless modem router adsl2/2+
Hide thumbs Also See for Wireless Modem Router ADSL2/2+:
Table of Contents

Advertisement

Quick Links

See also: User Manual

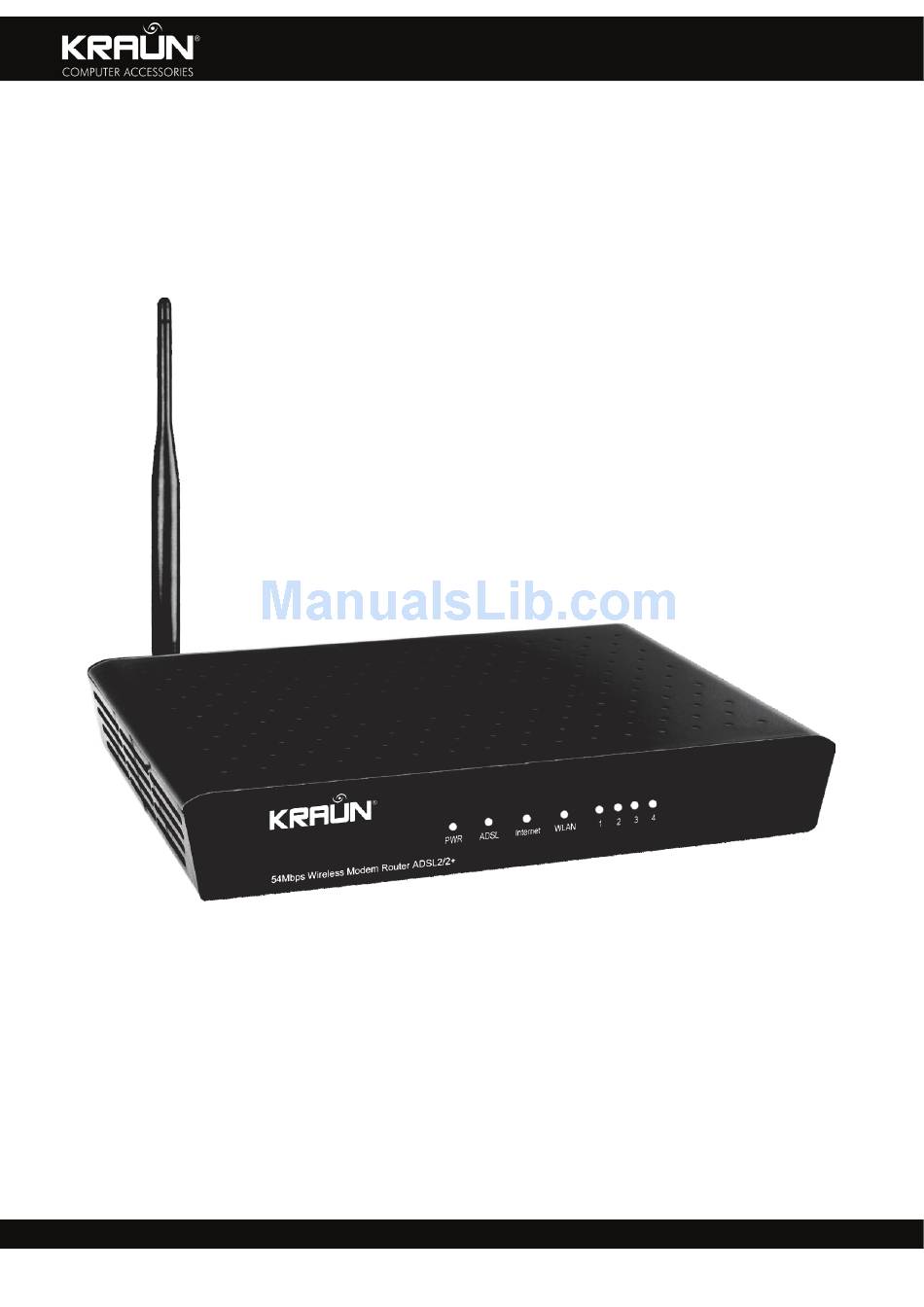

Wireless Modem Router
ADSL2/2+
User's Manual
Cod. KR.YL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless Modem Router ADSL2/2+ and is the answer not in the manual?

Questions and answers

Related Manuals for Kraun Wireless Modem Router ADSL2/2+

Summary of Contents for Kraun Wireless Modem Router ADSL2/2+

  • Page 1 Wireless Modem Router ADSL2/2+ User’s Manual Cod. KR.YL...

  • Page 2: Table Of Contents

    Contents Package contents 1. Introduction 1.1 Product Overview 1.2 Main Features 1.3 Conventions 2. Hardware Installation 2.1 The Front Panel 2.2 The Back Panel 2.3 Installation Environment 2.4 Connecting the Router 3. Quick Installation Guide 3.1 Configure PC 3.2 Login 4.

  • Page 3: Package Contents

    Package contents Supports PPPoE, it allows connecting the internet on demand and disconnecting from the Internet when idle. The following contents should be found in your box: Quick response semi-conductive surge protection circuit, provides reliable ESD and surge-protect function. - KR.YL 54M Wireless Modem Router ADSL2/2+ High speed and asymmetrical data transmit mode, - power Adapter for KR.YL ADSL2+ Router provides safe and exclusive bandwidth.

  • Page 4: The Back Panel

    2.2 The Back Panel The Router’s ports, where the cables are connected, On/Off switch, power connector and RESET button are located on the back panel. Figure 2-2 POWER: The Power plug is where you will connect the power adapter. RESET: There are two ways to reset the Router’s factory defaults.
  • Page 5 Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”...

  • Page 6: Login

    If the Router’s IP address is 192.168.1.1, your PC’s IP address must be within the range of 192.168.1.2 ~ 192.168.1.254. 3.2 Login Once your host PC is properly configured, please proceed as follows to use the Web-based Utility: Start your web browser and type the private IP address of the Router in the URL field: 192.168.1.1.

  • Page 7: Status

    After your successful login, you can configure and manage the device. There are main menus on the top of the Web-based Utility, submenus will be available after you click one of the main menus. On the center of the Web-based Utility, there are the detailed configurations or status information.
  • Page 8 (x.x.x.x), such as 192.168.1.100. The Router will not accept the IP address if it is not in this format. 3) PPPoA/PPPoE Select this option if your ISP requires you to use a PPPoE connection. This option is typically used for DSL services. Select Dynamic PPPoE...
  • Page 9 4) Bridge Mode version 1 (IGMP v1) and IGMP v2. Select “Disabled” If you select this type of connection, the modem can be to disable it. configured to act as a bridging device between your LAN and • GMP Snoop: Enable the IGMP Snoop function if you your ISP.
  • Page 10 broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1. • 802.11 b/g : In the drop-down list you can select “802.11g (54Mbps)”...

  • Page 11: Advanced Setup

    Figure 4-18 Firewall: Select this option can automatically detect and Figure 4-14 block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack. 3) WPA-PSK SPI: If you enable SPI, all traffics initiated from WAN To configure WPA-PSK settings, select the WPA-PSK option would be blocked, including DMZ, Virtual Server, and from the drop-down list.
  • Page 12 Figure 4-20 Destination IP Address: This parameter specifies the IP network address of the final destination. Figure 4-22 IP Subnet Mask: Enter the subnet mask for this destination. Gateway IP Address: Enter the IP address of the gateway. DMZ Host IP Address: Enter the specified IP Address for The gateway is an immediate neighbor of your ADSL Router DMZ host on the LAN side.
  • Page 13 Click the CANCEL button to cancel the configuration which is made just now. 4.4.3.3 IP Address Mapping Select Multiple for numbers of IPs in Figure 4-21, and choose “Advanced Setup->NAT->IP Address Mapping(for Multiple IP Service)”. You can configure the Address Mapping Rule in the next screen.

  • Page 14: Access Management

    • DSCP Remarking: Enter the number to remark the DSCP priority. • 802.1p Remarking: Select the type to remark the 802.1p priority. • Queue: Select the priority type for the action. 4.4.5 VLAN Choose “Advanced Setup->VLAN”, you can activate the VLAN function in the next screen.
  • Page 15 interface, the filter will match the IP traffic of LAN port with specified IPs. Direction: Select the direction for this IP Filter rule. There are three filtering directions: Both, Incoming, Outgoing. Note: Incoming means that IP traffic which is coming into the router, and the Outgoing means that IP traffic which is going out the router.
  • Page 16 Step 3: Enter the “Source IP Address”, “Destination IP Address”, To add a MAC Address filtering entry: “Subnet Mask” and “Port Number” in the corresponding field. For example: If you want to block the PCs with MAC addresses 00-0AEB-00-07-BE and 00-0A-EB-00-07-5F to access the Internet, you can configure as follows.
  • Page 17 Figure 4-36 Get Community: Set the password for the incoming Get and Get next requests from the management station. Figure 4-34 Set Community: Set the password for incoming Set requests from the management station. Filter Type Selection: Select the Application Filter for the next configuration.
  • Page 18 Wildcard support: Select the option to use Wildcard function. 4.5.6 CWMP Choose “Access Management->CWMP”, you can configure the CWMP function in the screen (shown in Figure 4-39). The router offers CWMP feature. The function supports TR-069 protocol which collects information, diagnoses the devices and configures devices automatically...

  • Page 19: Maintenance

    4.6 Maintenance Choose “Maintenance”, you can see the next submenus: Figure 4-40 Click any of them, and you will be able to configure the corresponding function. Figure 4-43 3) Manually 4.6.1 Administration Select Manually as the Synchronize time, you need to set Choose “Maintenance->Administration”, you can set new the date and time corresponding to the current time.

  • Page 20: Help

    Step 1: Click the ROMFILE SAVE button (shown in Figure 4-45), click Save button in the next screen (shown in Figure 4-46) to proceed. Figure 4-46 Figure 4-49 4.7 Help Step 2: Save the file as the appointed file (shown in Figure 4-47). Choose “Help”, you can view the help information for configuration of any function.

  • Page 21: Appendix A: Specifications

    Appendix A: Specification General Standards and Protocols: ANSI T1.413, ITU G.992.1, ITU .992.2, ITU G.992.3, ITU G.992.5, IEEE 802.11b, IEEE 802.11g ,IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA , PPPoE, SNTP, HTTP, DHCP, ICMP, NAT Safety & Emission FCC, CE Ports: 4 10/100M Auto-Negotiation RJ45 port, Auto MDI/MDIX), 1 RJ11 port LED’s: 1,2,3,4(LAN), WLAN, ADSL, Power, Internet...

This manual is also suitable for:

Kr.yl
