Develop ineo 3300P User Manual page 42

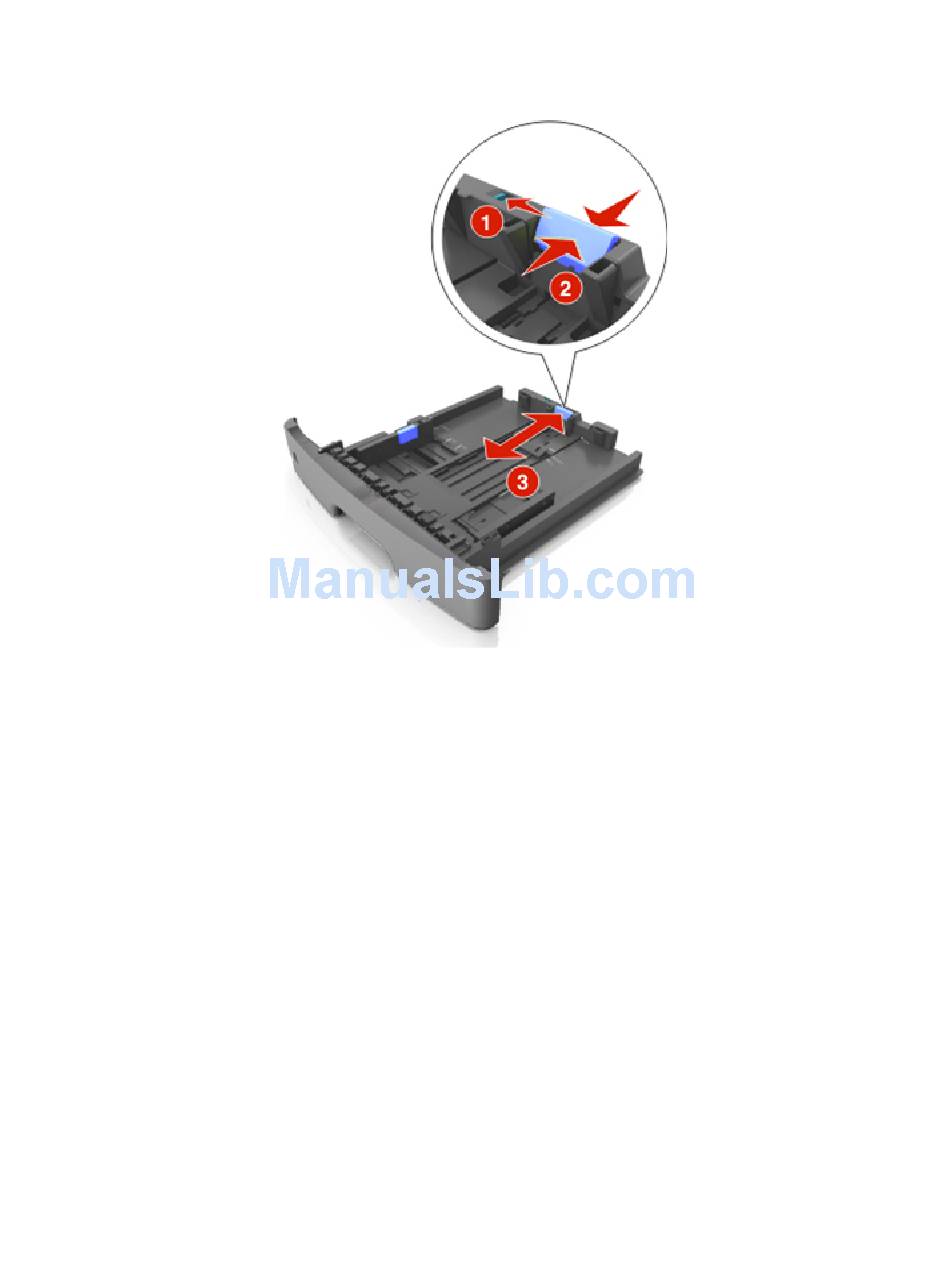

3. Unlock the length guide. Squeeze, and then slide the length guide tab to the correct position for the
size of the paper you are loading.
Notes:
- For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward
to accommodate their length.
- When loading legal-size paper, the length guide extends beyond the base leaving the paper
exposed to dust. To protect the paper from dust, you can purchase a dust cover separately.
- If you are loading A6-size paper in the standard tray, then squeeze and slide the length guide tab
toward the center of the tray to the A6-size position.
- Make sure the width and length guides are aligned with the paper size indicators on the bottom of
the tray.
User's Guide
- 42 -
