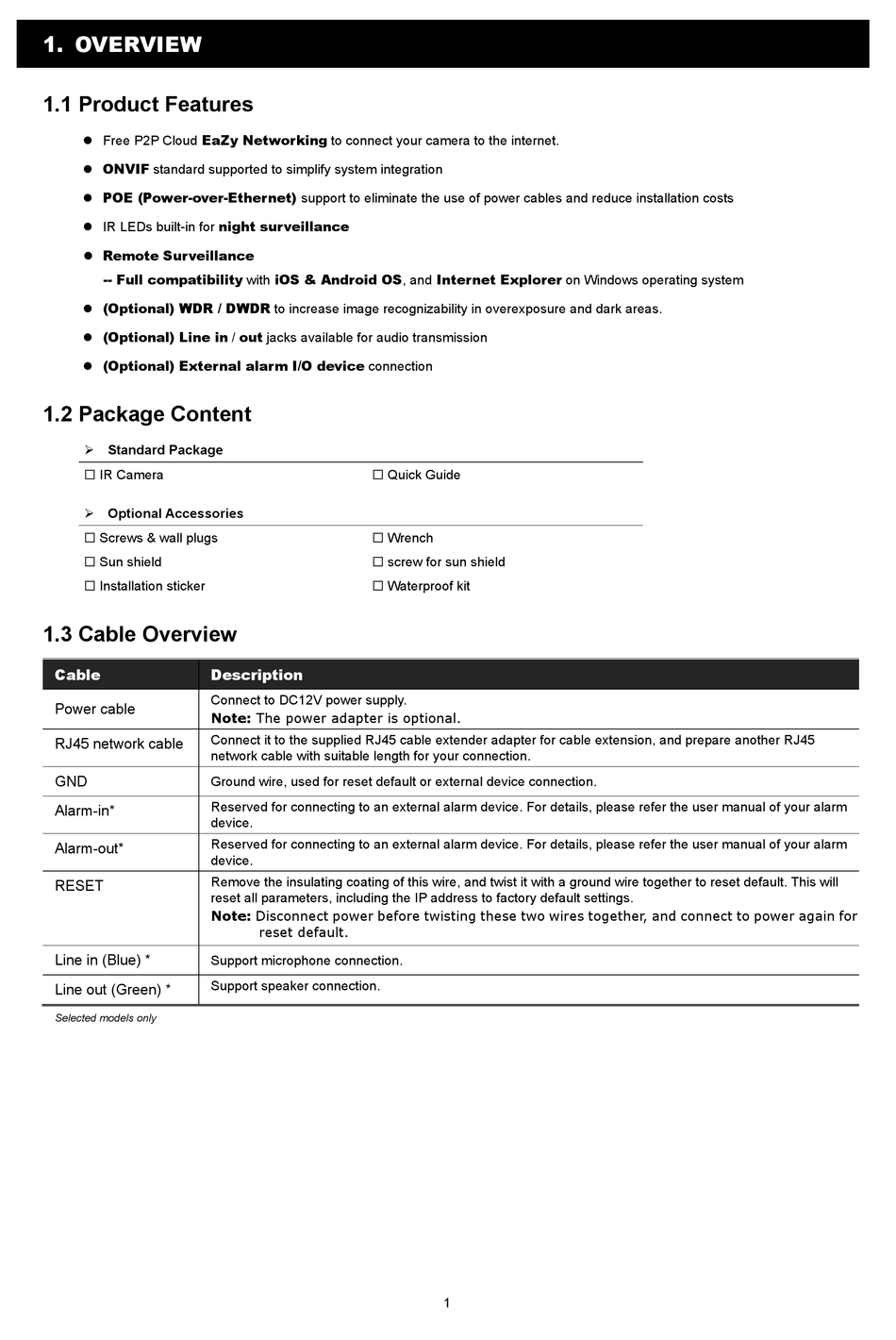

1. OVERVIEW

1.1 Product Features

 Free P2P Cloud EaZy Networking to connect your camera to the internet.
 ONVIF standard supported to simplify system integration
 POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
 IR LEDs built-in for night surveillance
 Remote Surveillance
-- Full compatibility with iOS & Android OS, and Internet Explorer on Windows operating system
 (Optional) WDR / DWDR to increase image recognizability in overexposure and dark areas.
 (Optional) Line in / out jacks available for audio transmission
 (Optional) External alarm I/O device connection

1.2 Package Content

 Standard Package
 IR Camera
 Optional Accessories
 Screws & wall plugs
 Sun shield
 Installation sticker

1.3 Cable Overview

Cable Description
Connect to DC12V power supply.
Power cable
Note: The power adapter is optional.
Connect it to the supplied RJ45 cable extender adapter for cable extension, and prepare another RJ45
RJ45 network cable
network cable with suitable length for your connection.
GND Ground wire, used for reset default or external device connection.
Reserved for connecting to an external alarm device. For details, please refer the user manual of your alarm
Alarm-in*
device.
Reserved for connecting to an external alarm device. For details, please refer the user manual of your alarm
Alarm-out*
device.
Remove the insulating coating of this wire, and twist it with a ground wire together to reset default. This will
RESET
reset all parameters, including the IP address to factory default settings.
Note: Disconnect power before twisting these two wires together, and connect to power again for
Line in (Blue) * Support microphone connection.
Support speaker connection.
Line out (Green) *
Selected models only
 Quick Guide
 Wrench
 screw for sun shield
 Waterproof kit
reset default.
1
