- Page 1 Crestron C2N/C2NI-CB Series ® Cameo Keypads Operations & Installation Guide...
- Page 2 United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Assembly and Installation ........... 12 Programming Software ..............23 Earliest Version Software Requirements for the PC ....23 Programming with Crestron SystemBuilder or D3 Pro ..24 Programming with SIMPL Windows ........25 Uploading and Upgrading .............. 29 Communication Settings ............29 Uploading a SIMPL Windows Program...... -

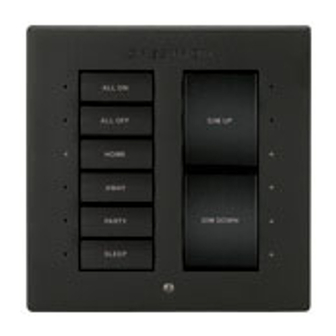

Page 5: Cameo Keypads: C2N/C2Ni-Cb Series
® Crestron total solution control system network (Cresnet ). The keypads are available in three versions: C2N-CBF, Flush Mount (no back box required) for domestic and international installation; C2N-CBD, Standard Mount (decorator style), back box installation, for domestic installation;... - Page 6 Crestron customer service representative for details.) Mounting options include a choice of installation as a standalone device using Crestron’s exclusive flush-mounting system; or, for the domestic keypads, decorator installation in a conventional gang-box using standard decorator style faceplates; or for the UK-style models, traditional mounting (electrical box optional).
-
Page 7: Specifications
.exe files containing the .cuz or .upz file. All can be obtained from the Downloads section of the Crestron website. To avoid program problems, make sure you are using the update file with the correct suffix letter (e.g., S, V, W, X). -
Page 8: Physical Description
The Crestron Engraver software, Version 2.4 or later, is available from the Crestron website. NOTE: A single button cannot be installed in the lowest position of the keypad. - Page 9 Crestron C2N/C2NI-CB Series Cameo Keypads Keypad Overall Dimensions – Flush Mount Configuration 1.73 in (4.38 cm) 1.52 in (3.86 cm) 3.20 in (8.13 cm) Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series • 5...
- Page 10 Cameo Keypads Crestron C2N/C2NI-CB Series Keypad Overall Dimensions – Decorator Mount Configuration 1.52 in 1.80 in (3.86 cm) (4.56 cm) 4.12 in (10.47 cm) 6 • Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C...
-
Page 11: Industry Compliance
Crestron C2N/C2NI-CB Series Cameo Keypads Keypad Overall Dimensions – UK-Style Configuration 1.14 in (2.89 cm) 1.52 in (3.86 cm) 0.30 in (0.76 cm) 3.38 in (8.58 cm) 3.38 in (8.58 cm) Industry Compliance As of the date of manufacture, the keypads have been tested and found to comply with specifications for CE marking. - Page 12 Cameo Keypads Crestron C2N/C2NI-CB Series This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 13: Setup
CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do so could cause equipment damage or void the Crestron warranty. CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. -
Page 14: Identity Code
Cameo Keypads Crestron C2N/C2NI-CB Series NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor, and the other twisted pair is the Y conductor and the Z conductor. - Page 15 Crestron C2N/C2NI-CB Series Cameo Keypads The Crestron Toolbox provides several methods to easily set or change device Net IDs for any device on the network. The following method permits you to change the Net ID of any device in the network through the “Network Device Tree”...
-
Page 16: Assembly And Installation
Cameo Keypads Crestron C2N/C2NI-CB Series Network Device Tree – Sub-Menu 5. Enter a new Net ID and press Enter. Enter New Net ID 6. Repeat this procedure for each additional network device requiring a Net ID change. Assembly and Installation... - Page 17 Crestron C2N/C2NI-CB Series Cameo Keypads row six is on the top, and programming of the switches would have to be done accordingly. Installation consists of connecting the unit to the Cresnet system, and then mounting it directly to the mounting surface or to a back box, depending on the keypad configuration.
- Page 18 Cameo Keypads Crestron C2N/C2NI-CB Series 3. Hold the bezel and rear housing together and install and tighten the two supplied Phillips pan head, 4-40 x 3/16” cover screws (black) into the rear housing and switch assembly, as shown in the following illustration.
- Page 19 Crestron C2N/C2NI-CB Series Cameo Keypads 6. Use the supplied template to prepare the hole in the wall. (Refer to the Appendix on page 40 for an illustration of the template.) After the Cresnet network wiring has been installed and verified, use the following procedure to install the keypad in the prepared hole.
- Page 20 Cameo Keypads Crestron C2N/C2NI-CB Series Decorator Mounting Installation The keypad for Decorator mounting installation is supplied partially assembled along with several items as listed in the following table. Supplied Parts/Assemblies – Decorator Mounting ITEM DESCRIPTION Rear housing and switch assembly...
- Page 21 Crestron C2N/C2NI-CB Series Cameo Keypads Bezel Assembly Holes Ground Wire Cover Button Caps Screw and Spacers Plastic Button Support LEDs Bracket Rear Housing and Switch Assembly 3. Hold the bezel and rear housing together 4. Install and tighten the two supplied Phillips pan head, 4-40 x 3/16”...
- Page 22 Cameo Keypads Crestron C2N/C2NI-CB Series 5. Attach the desired decorator style faceplate (not supplied). 6. Turn the Cresnet system power ON. UK-Style Mounting Installation The keypad for UK-style mounting installation is supplied partially assembled along with several items as listed in the following table.
- Page 23 Crestron C2N/C2NI-CB Series Cameo Keypads Supplied Parts/Assemblies – UK-Style Mounting (continued) ITEM DESCRIPTION Screws, Black, Phillips pan Used to attach the bezel assembly to the keypad rear head, 4-40 x 3/16” housing and switch assembly Single row spacer Switch cover for single non-operational switch...
- Page 24 Cameo Keypads Crestron C2N/C2NI-CB Series The keypad can be mounted directly to a mounting surface or it can be mounted to a back box. In both cases, you can choose to have mounting screws visible or hidden. Mounting to the Mounting Surface Use the supplied template to prepare the hole in the wall.
- Page 25 Crestron C2N/C2NI-CB Series Cameo Keypads 3. Insert the keypad into the hole and press the bezel against the plastic wall plate until it snaps securely into position. 4. Turn the Cresnet system power On. If the keypad needs to be removed from the wall, there are two slots on one edge of the bezel (visible in the figure on page 22).
- Page 26 Cameo Keypads Crestron C2N/C2NI-CB Series Screws (not supplied) Plastic Wall Plate Back Box C2NI-CBUK (typical) Screws (supplied) Plastic Wall Plate Bezel (Rear View) Drill Centerpoint (2) 22 • Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C...
-
Page 27: Programming Software
Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. -
Page 28: Programming With Crestron Systembuilder Or D3 Pro
Crestron Toolbox 1.01.11 or later o Engraver 2.5 or later o CUZ 3.137 for 2-Series processors or later • Crestron Engraver version 2.5 (required if using SystemBuilder or to produce custom labeling for the buttons). Programming with Crestron SystemBuilder or... -
Page 29: Programming With Simpl Windows
Both Crestron SystemBuilder and D3 Pro are fully integrated with Crestron's suite of software development tools, including SIMPL Windows, VT Pro-e, and the Crestron Database. Both access these tools behind the scenes, enabling you to easily create robust systems. Programming with SIMPL Windows NOTE: The following assumes that the reader has knowledge of SIMPL Windows. - Page 30 Cameo Keypads Crestron C2N/C2NI-CB Series Expanded PRO2 System Tree C2Net-Device Slot in Configuration Manager To incorporate a Cameo keypad into the system, drag the C2N-CB from the Wired Keypad folder of the Device Library and drop it in System Views. The PRO2 system tree displays the C2N-CB in Slot 9, with a default Net ID of 25 as shown in the following illustration.
- Page 31 Net ID match. For Net ID hardware setting details, refer to “Identity Code” on page 10. Cameo Symbol in Programming Manager Programming Manager is where programmers “program” a Crestron control system by assigning signals to symbols. For detailed information, refer to the SIMPL program help file (F1).
- Page 32 6 is now physically at the top of the keypad, button 4 still controls the mode of the merged buttons. NOTE: A Crestron module in Crestron Database version 17.1.0, the C2N-Cameo Bargraph Feedback v1.0, makes it possible to use the...
-
Page 33: Uploading And Upgrading
Communication Settings NOTE: For laptops and other PCs without a built-in RS-232 port, Crestron recommends the use of a PCMCIA card over a USB adapter, particularly if using Viewport. The procedure in this section provides details for RS-232 communication between the PC and the control system. - Page 34 Crestron C2N/C2NI-CB Series Typical Connection Diagram when Uploading 1. Open Crestron Toolbox and click Tools | Manage Address Book to display a list of available devices. Select Serial on COM1 as the connection type. Serial on COM1 is an entry in the DefaultAddressBook that is included with Crestron Toolbox.
- Page 35 Cameo Keypads “Address Book” Window – Serial Setup 2. After setting the correct parameters, click OK to return to the Crestron Toolbox main window. 3. Click Tools | Network Device Tree View, or click the network device tree icon to display the devices in the system. Select Serial on COM1 from the drop down list if it is not already selected.
-
Page 36: Uploading A Simpl Windows Program
Uploading a SIMPL Windows Program A control The SIMPL Windows file can be uploaded to the control system source system using SIMPL Windows or via the Crestron file has the extension Toolbox. .smw. A... - Page 37 Cameo Keypads Open Crestron Toolbox. Select Tools | System Info. Crestron Toolbox – Tools | System Info When the “System Info” window appears and you are connected to the control system, the Functions option becomes available from the menu bar.
- Page 38 Cameo Keypads Crestron C2N/C2NI-CB Series “SIMPL Program” Window 6. Click the Browse button to browse for a new compiled (.spz) program file in the “Open” window. “Open” Window 34 • Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C...
-
Page 39: Firmware Upgrade
A firmware To take advantage of all the Cameo keypad features, it is important that upgrade file the unit contains the latest firmware available. Please check the Crestron has the extension .upg. website for the latest version of firmware. Not every product has a firmware upgrade, but as Crestron improves functions, adds new features, and extends the capabilities of its products, firmware upgrades are posted. - Page 40 Cameo Keypads Crestron C2N/C2NI-CB Series “Firmware” Window Click Browse to display the Open window to locate the desired firmware (.upg) file. Locate Firmware in the “Open” Window 7. Click Open to return to the “Firmware” window, and click Send to transfer the file. The File Transfer window monitors the transfer of the file and gives you the option of canceling the transfer.
- Page 41 Crestron C2N/C2NI-CB Series Cameo Keypads “File Transfer” Window 8. When the transfer is complete, the “Firmware” window reopens indicating the new firmware version. Click Close after the firmware has been transferred. Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series • 37...
-
Page 42: Problem Solving
Crestron website (http://www.crestron.com/) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 43: Future Updates
Crestron C2N/C2NI-CB Series Cameo Keypads Future Updates As Crestron improves functions, adds new features, and extends the capabilities of the Cameo keypad, additional information and programming examples may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision. -
Page 44: Appendix: Template For Flush Mounting Hole
Cameo Keypads Crestron C2N/C2NI-CB Series Appendix: Template for Flush Mounting Hole The following figure (not to scale) illustrates the supplied template used to prepare the hole in the wall or other mounting surface for the flush mounting style Cameo keypad. -
Page 45: Return And Warranty Policies
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. - Page 46 Cameo Keypads Crestron C2N/C2NI-CB Series This page intentionally left blank. 42 • Cameo Keypads: C2N/C2NI-CB Series Operations & Installation Guide - DOC. 6346C...
- Page 47 Crestron C2N/C2NI-CB Series Cameo Keypads This page intentionally left blank. Operations & Installation Guide - DOC. 6346C Cameo Keypads: C2N/C2NI-CB Series • 43...
- Page 48 Crestron Electronics, Inc. Operations & Installation Guide - DOC. 6346C 15 Volvo Drive Rockleigh, NJ 07647 (2012599) Tel: 888.CRESTRON 03.14 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
