Running the demonstration
To exit this submenu, press the SEL push-button. To exit the Date submenu, select Return
and press the SEL push-button.
Alarm submenu
You can use this submenu to configure the alarm activation time. When the alarm time value
is reached, all the LEDs (LED1 to LED4) start flashing simultaneously for 30 seconds. This
submenu is divided into two items that allow you to display or set the current alarm.
●
Alarm Adjust: the alarm time activation is set in the same way as in the Time Adjust
submenu. The following messages are successively displayed on the LCD when this
submenu is selected.

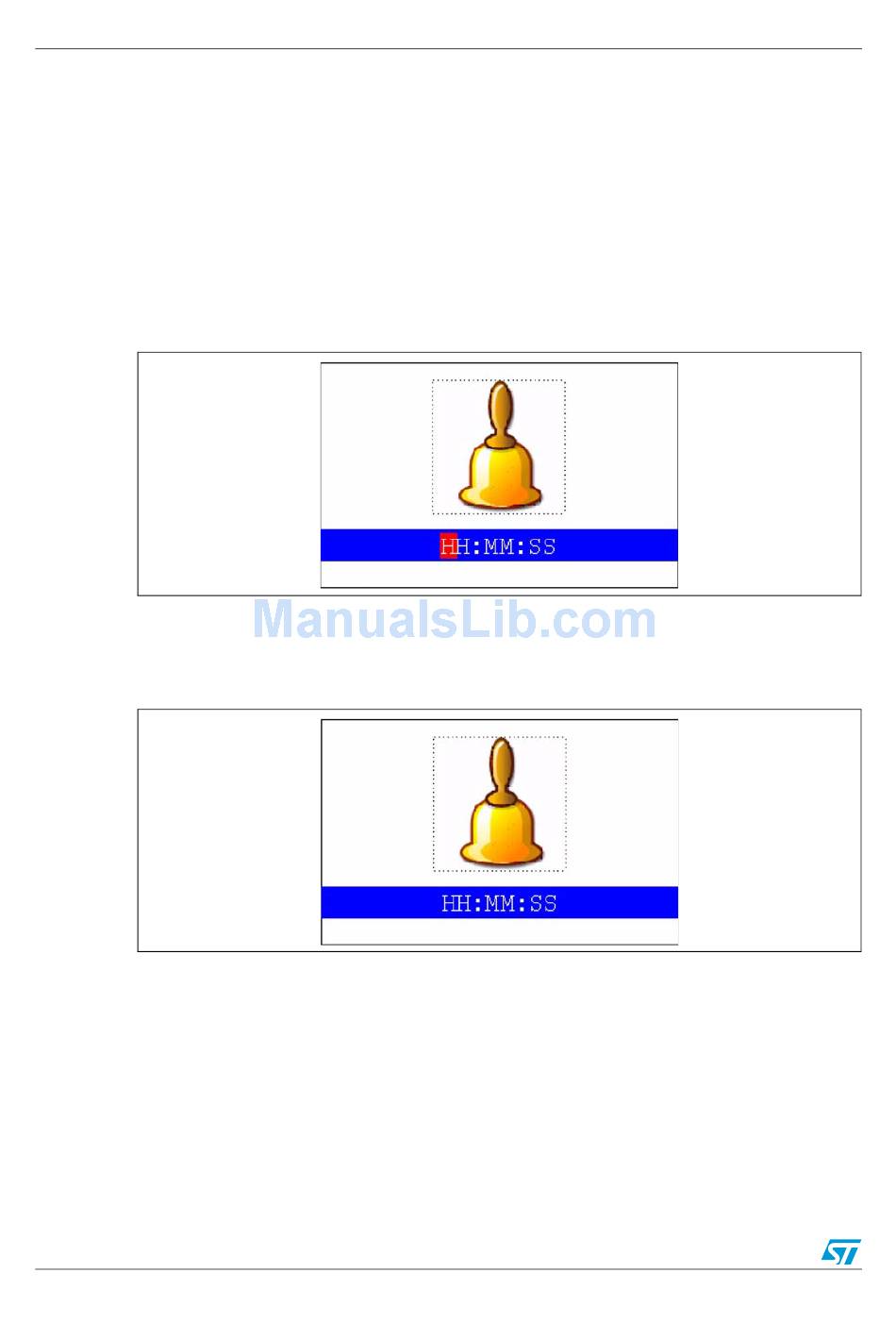

Figure 29. Setting the alarm activation time

●
Alarm Show: this item displays the current alarm time. The default alarm activation
time displayed after powering up is 00:00:00. The message shown in
displayed on the LCD when this submenu is selected.

Figure 30. Alarm Show submenu

To exit the Alarm Show submenu, press the SEL push-button. To exit the Alarm submenu,
select Return and press the SEL push-button.
Note: In the Alarm Adjust and Alarm Show menus, if the time and date have not been previously
configured, the message shown in
28/49
Figure 31 is displayed on the LCD screen.
Doc ID 18064 Rev 1
UM1011
Figure 30 is
