Running the demonstration
Figure 2.
2.2

Demonstration startup

The demonstration starts after a board reset. The system checks if an SD memory card is
already plugged into the connector CN6. If no card detected, the demonstration does not
start and the message shown in
12/49

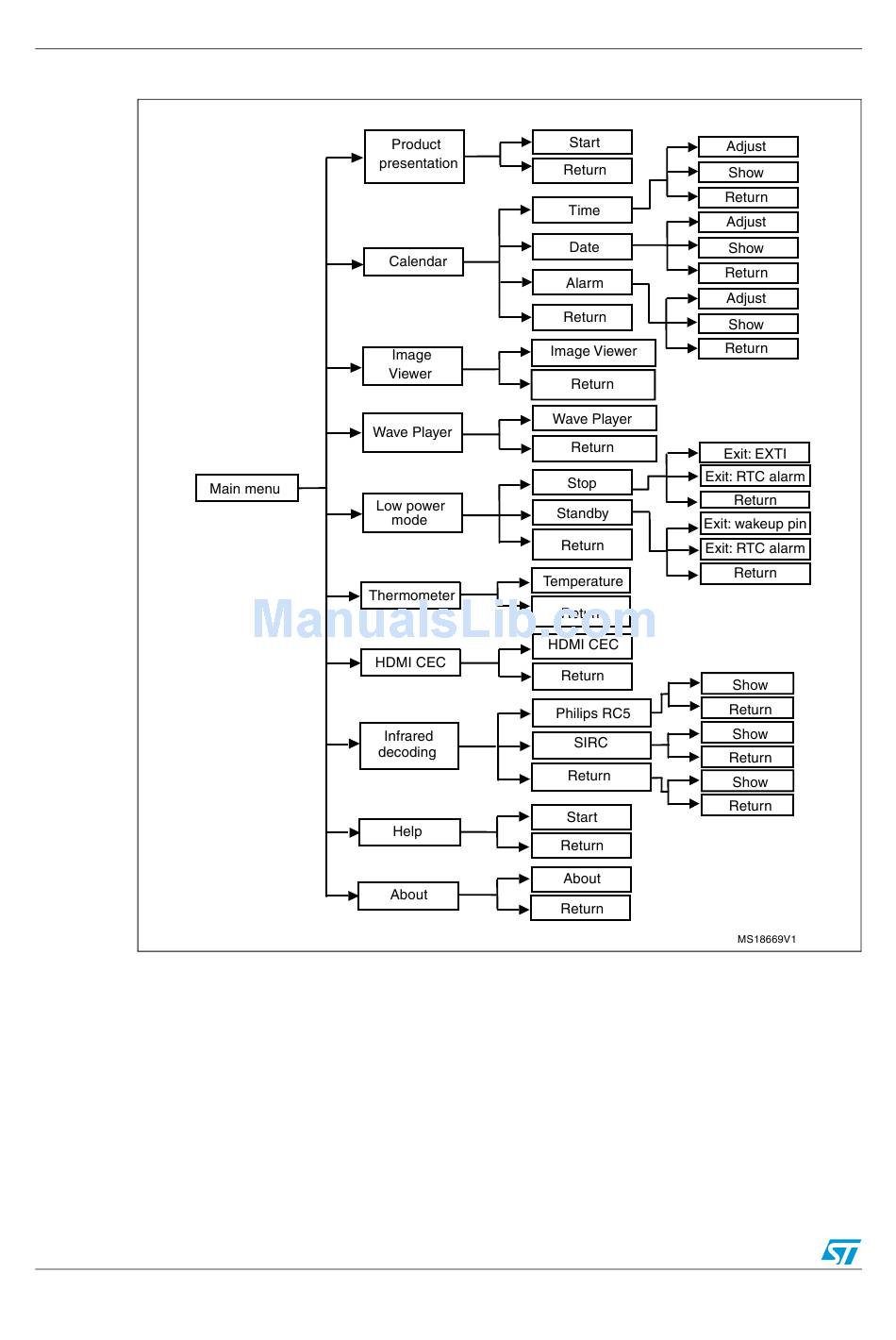

Structure of the demonstration menus
Figure 3
Doc ID 18064 Rev 1
is displayed on the LCD screen.
UM1011
